Parts for Mercury Mark & Kiekhaefer Mark 35A Flywheel Assembly & Stator
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

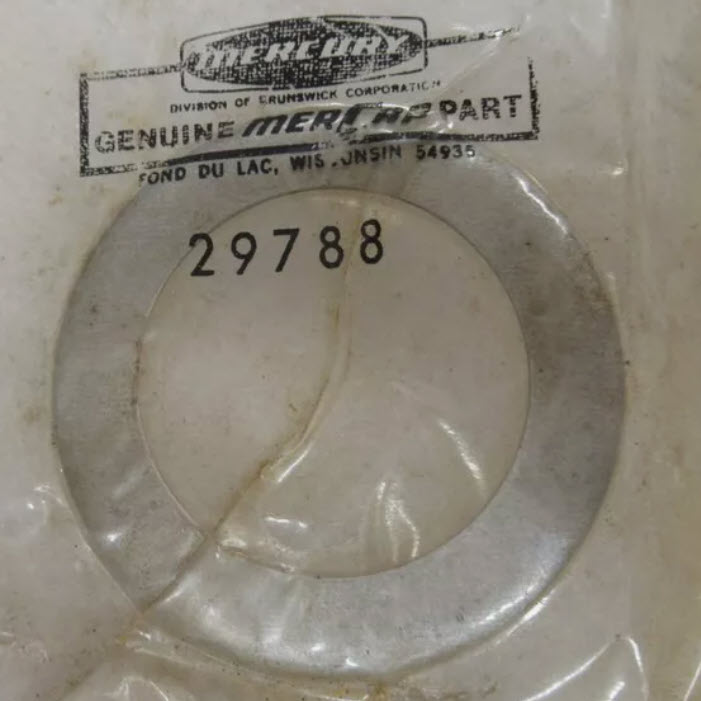

| # | 29788 | FLANGE, FLYWHEEL PULLEY SEE NOTE #2 BELOW (,,1,1,1,1, required per assembly) |
 |
|
29788 - Flywheel Pulley Flange, NLA [ More info ]
|
| # | 30306 | PULLEY, FLYWHEEL SEE NOTE #2 BELOW (,,1,1,1,1, required per assembly) |
  |
|
30306 - Flywheel Pulley, NLA [ More info ]
|
| # | 12-28927 | WASHER, RATCHET TO FLYWHEEL (1/8" SPACER) (,3,,,,, required per assembly) |
|
|
12-28927 - Washer - Priced Individually [ More info ]
|
|
|
12-26907 - Washer (5/8 In. O.d.) NLA [ More info ]
|
| # | 29787 | HUB, FLANGE-FLYWHEEL PULLEY SEE NOTE #2 BELOW (,,1,1,1,1, required per assembly) |
  |
|
29787 - Flywheel Pulley Hub, NLA [ More info ]
|
| #1 | 11-22339 | NUT, FLYWHEEL (1,1,1,1,1, required per assembly) |
  |
|
11-22339 - Nut (5/8x18) [ More info ]
|
  |
|
11-8M0214915 - NUT Note: Priced Individually [ More info ]
|
  |
|
18-3713 - Nut, 11-22339 [ More info ]
|
| #2 | 12-26617 | WASHER, FLYWHEEL NUT (1,1,1,1,1, required per assembly) |
|
|
12-26617 - Washer Flywheel Nut, NLA [ More info ] Unavailable |
| #3 | 28-20994 | KEY, FLYWHEEL (1,1,1,1,1, required per assembly) |
|
20994 - Bracket [ More info ] Unavailable |
|
|
|
20455A 2 - Bracket Assembly, NLA [ More info ]
|
| #4 | 208-1535A 1 | FLYWHEEL ASSEMBLY (LUG HEIGHT 15/32") SEE NOTE #1 BELOW (1,,,,,, required per assembly) |
|
208-1535A 1 - Flywheel [ More info ] Unavailable |
|
|
208-1385A 1 - Flywheel [ More info ] Unavailable |
|
|
208-1996A 1 - Flywheel [ More info ] Unavailable |
|
|
223-2402A 1 - Flywheel [ More info ] Unavailable |
|
|
223-2402A 2 - Flywheel [ More info ] Unavailable |
|
|
|
223-2402A 7 - Flywheel, NLA [ More info ]
|
| #4 | 208-1385A 1 | FLYWHEEL ASSEMBLY (LUG HEIGHT 11/32") SEE NOTE #1 BELOW (1,,1,,1,,1 required per assembly) |
| #4 | 211-1414A 4 | FLYWHEEL ASSEMBLY (WITH SPACERS) SEE NOTE #1 BELOW (,1,,,,, required per assembly) |
|
|
211-1414A 4 - Flywheel, NLA [ More info ] Unavailable |
| #4 | 211-1414A 2 | FLYWHEEL ASSEMBLY (WITHOUT SPACERS) SEE NOTE #1 BELOW (,1,,,,, required per assembly) |
|
|
211-1414A 2 - Flywheel, NLA [ More info ] Unavailable |
| #4 | 211-1414A 7 | FLYWHEEL ASSEMBLY (WITHOUT SPACERS) SEE NOTE #1 BELOW (,1,,1,,1, required per assembly) |
|
211-1414A 7 - Flywheel [ More info ] Unavailable |
|
|
215-1850A 6 - Flywheel [ More info ] Unavailable |
|
|
|
215-3289A 1 - Flywheel, NLA [ More info ] Unavailable |

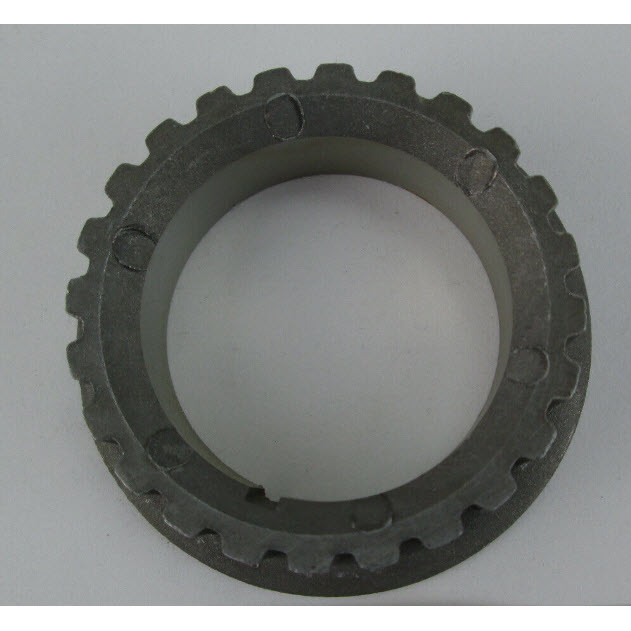

| #5 | 22823 | PULLEY, FLYWHEEL SEE NOTE #2 BELOW (1,1,1,1,1, required per assembly) |
  |
|
22823 - Pulley, NLA [ More info ]
|
| #6 | 12-25293 | WASHER, PULLEY TO FLYWHEEL SEE NOTE #2 BELOW (1,1,1,1,1, required per assembly) |
|
|
12-25293 - Washer Flywheel Pulley, NLA [ More info ]
|
| #7 | 17-26618 | DOWEL PIN, FLYWHEEL PULLEY (1,1,1,1,1, required per assembly) |
|
|
17-26618 - Pin -Dowel, NLA [ More info ]
|
| #8 | 50-25263 | RATCHET, FLYWHEEL (,1,,1,,1, required per assembly) |
|
|
50-25263 - Ratchet, NLA [ More info ]
|
| #9 | 10-29238 | CSREW, RATCHET TO FLYWHEEL (,3,,3,,3, required per assembly) |
|
|
10-29238 - Screw, NLA [ More info ] Unavailable |

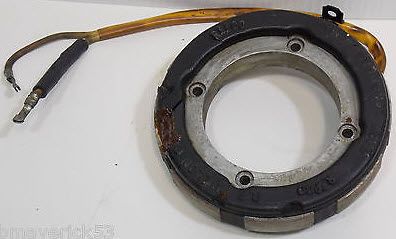

| #10 | 398-1455 | STATOR, ALTERNATOR-FLYWHEEL (,1,,1,,1, required per assembly) |
  |
|
398-1455 - Stator, NLA [ More info ] Unavailable |
| #11 | 22647 | DISCONNECT, KNIFE SPLICE-STATOR LEAD WIRE (,2,,2,,2, required per assembly) |
|
|
22647 - Disconnect, NLA [ More info ]
|
| #12 | 32-26528 | SLEEVE, RUBBER-STATOR LEAD WIRE (,2,,2,,2, required per assembly) |
|
32-26528 - Sleeve [ More info ] Unavailable |
|
|
32-24839A 1 - Hose [ More info ] Unavailable |
|
|
|
32-61115 - Hose, NLA [ More info ] Unavailable |
| #13 | 10-29249 | SCREW, STATOR TO UPPER END CAP (,4,,4,,4, required per assembly) |
|
10-29249 - SCREW Note: Priced Individually [ More info ] Unavailable |
|
|
10-37652 - Screw [ More info ] Unavailable |
|
  |
|
10-68918 - Screw [ More info ]
|
| #14 | 54-24836 | CLIP, STATOR LEAD TO CRANKCASE FLANGE (,1,,1,,1, required per assembly) |
|
|
54-24836 - Clip - Priced Individually [ More info ]
|
| #15 | 10-25255 | SCREW, STATOR LEAD CLIP FASTENING (,1,,,,, required per assembly) |
|
|
10-25255 - SCREW,NLA [ More info ] Unavailable |
| #15 | 10-30009 | SCREW, STATOR LEAD CLIP FASTENING (,,,1,,1, required per assembly) |
|
|
10-30009 - Screw - Priced Individually [ More info ]
|
|
|
10-69014 - Screw Note: Priced Individually [ More info ]
|
  |
10-807754 - Screw - Priced Individually [ More info ] Unavailable |
|
|
|
108M0113176 - Screw - Priced Individually [ More info ]
|
