Parts for Mercury Mark & Kiekhaefer Mark 35A Cylinder Block & Crankcase Assembly
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 13-26993 | LOCKWASHER, UPPER END CAP MOUNTING SCREW (4,4,,,,, required per assembly) |
  |
|
13-26993 - LockWasher - Priced Individually [ More info ]
|
  |
|
138M0204647 - LOCKWASHER, Priced Individually [ More info ]
|
| # | 21-28481A 1 | CHECK VALVE ASSEMBLY, LOWER END CAP (1,1,1,1,1, required per assembly) |
  |
|
21-28481A 1 - Check Valve Kit, NLA [ More info ]
|
| # | 17-20323 | DOWEL PIN, CYLINDER BLOCK TO CENTER MAIN BEARING (1,1,1,1,1, required per assembly) |
  |
|
17-20323 - Pin -Dowel - Priced Individually [ More info ]
|
| # | 17-20032 | DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING (1,1,1,1,1, required per assembly) |
  |
|
17-20032 - Pin -Dowel - Priced Individually [ More info ]
|
| # | 12-20084 | WASHER; CRANKCASE SCREW (2,2,,,,, required per assembly) |
  |
|
12-20084 - Washer, (.328 X .562 X .062) [ More info ]
|
| # | N.S.S. | CRANKCASE (1,1,1,1,1, required per assembly) |
  |
|
N.S.S. - Not Sold Separate [ More info ] Unavailable |
| #1 | 808-1321A 4 | CYLINDER BLOCK AND CRANKCASE ASSEMBLY (1,1,1,1,1, required per assembly) |
  |
|
808-1321A 4 - CYLINDER BL,NLA [ More info ] Unavailable |
| #2 | 23-26348 | BUSHING, CRANKCASE (2,2,2,2,2, required per assembly) |
  |
|
23-26348 - Bushing , NLA [ More info ] Unavailable |
| #3 | 16-25885 | STUD, CARBURETOR MOUNTING (1-1/4") (4,4,4,4,4, required per assembly) |
  |
22-25885 - Elbow - Priced Individually [ More info ] Unavailable |
|
  |
|
22-99664 - Elbow [ More info ]
|
  |
22-99664 1 - Elbow [ More info ] Unavailable |
|
  |
|
22-99664 2 - Elbow [ More info ]
|
| #4 | 17-20033 | DOWEL PIN, CRANKCASE TO CYLINDER BLOCK (2,2,2,2,2, required per assembly) |
  |
|
17-20033 - Pin -Dowel - Priced Individually [ More info ]
|
  |
|
17-43044 - Pin -Dowel-solid [ More info ]
|
| #5 | 16-29988 | STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1-9/16") (2,2,2,2,2, required per assembly) |
  |
16-29988 - Stud - Priced Individually [ More info ] Unavailable |
|
  |
|

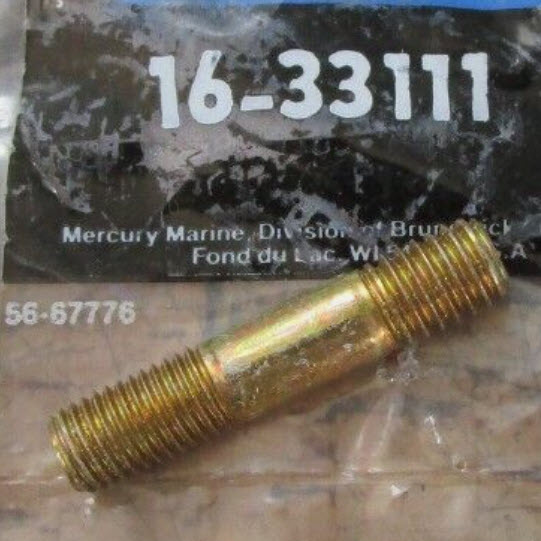

16-33111 - Stud, NLA [ More info ]
|
| #6 | 16-29990 | STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3-3/8") (2,2,2,2,2, required per assembly) |
  |
16-29990 - Stud - Priced Individually [ More info ] Unavailable |
|
  |
|
|
  |
16-56297 2 - Stud [ More info ] Unavailable |
|
  |
|
16-8M0034463 - Stud [ More info ]
|
| #7 | 16-29989 | STUD, SYLINDER BLOCK TO DRIVE SHAFT HOUSING (1-7/8") (4,4,4,4,4, required per assembly) |
  |
|
16-29989 - Stud, NLA [ More info ]
|
| #8 | 22-30139 | PLUG, PIPE - WATER PRESSURE HOLE (SEE NOTE BELOW) (,,1,1,1,1, required per assembly) |
  |
22-30139 - Plug , Priced Individually [ More info ] Unavailable |
|
  |
22-32802 - Plug , Priced Individually [ More info ] Unavailable |
|
  |
22-32802 1 - Plug, Brass, Priced Individually [ More info ] Unavailable |
|
  |
|
22-32802 2 - Brass Pipe Plug, Priced Individually [ More info ]
|
  |
|
18-4263 - Pipe Plug, 1/8-27 NPT, Brass [ More info ]
|
| #9 | 10-22039 | SCREW, CRANKCASE TO CYLINDER BLOCK (2-3/4") (4,4,4,4,4, required per assembly) |
  |
|
10-22039 - Screw, NLA [ More info ]
|
| #10 | 10-22040 | SCREW, CRANKCASE TO CYLINDR BLOCK (1-1/2") (14,14,14,1 required per assembly) |
  |
10-22040 - Screw - Priced Individually [ More info ] Unavailable |
|
  |
10-69097 - Screw [ More info ] Unavailable |
|
  |
|
10-78841 - Bolt, NLA [ More info ]
|
| #11 | 11-29250 | NUT, CRANKCASE FASTENING SCREW (18,18,18,1 required per assembly) |
  |
|
11-29250 - Nut (5/16-24) [ More info ]
|
| #12 | 10-20089 | SCREW, MAIN BEARING LOCKING (2,2,2,2,,, required per assembly) SERIAL 00000000-01352947 |
  |
|
10-20089 - Screw, NLA [ More info ]
|
| #12 | 10-26801 | SCREW, MAIN BEARING LOCKING (,,2,2,2,2, required per assembly) SERIAL 01352948-09999999 |
  |
|
10-26801 - Screw - Priced Individually [ More info ]
|
  |
|
10-98260 - Screw [ More info ]
|
| #13 | 14-20091 | TAB WASHER, BEARING LOCKING SCREW (3,3,3,3,3, required per assembly) |
  |
|
14-20091 - Tab Washer - Priced Individually [ More info ]
|
| #14 | 10-20359 | SCREW, CENTER MAIN BEARING LOCKING (1,1,1,1,1, required per assembly) |
  |
|
10-20359 - Screw - Priced Individually [ More info ]
|
| #15 | 00-339A 1 | END CAP ASSEMBLY, UPPER (1,1,1,1,1, required per assembly) |
  |
|
1100-339A 1 - End Cap Assembly, NLA [ More info ]
|
| #16 | 30-20080 | BEARING, BALL - UPPER END CAP (1,1,1,1,1, required per assembly) |
  |
30-20080 - Ball Bearing [ More info ] Unavailable |
|
  |
30-53853 - Ball Bearing [ More info ] Unavailable |
|
  |
30-63742 - Ball Bearing [ More info ] Unavailable |
|
  |
|
30-63742T - Ball Bearing [ More info ]
|
  |
|
18-1154 - Bearing, 30-63742, 377139 [ More info ]
|
  |
|
31-01988 - Lower Crank Bearing, Mercury 30-63742T, OMC 377139 [ More info ]
|
| #17 | 25-20081 | "O" RING, UPPER END CAP (1,1,1,1,1, required per assembly) |
  |
|
25-20081 - O-Ring - Priced Individually [ More info ]
|
| #18 | 26-29476 | OIL SEAL (1,1,1,1,1, required per assembly) |
  |
26-29476 - Oil Seal - Priced Individually [ More info ] Unavailable |
|
  |
|
26-41953 - Oil Seal - Priced Individually [ More info ]
|
  |
|
18-2016 - Seal, 26-41953 [ More info ]
|
| #19 | 15-20082A 1 | SHIM, UPPER END CAP TO CRANKCASE (AR,AR,AR,A required per assembly) |
  |
|
15-20082A 1 - Shim Set, NLA [ More info ]
|
| #20 | 10-23703 | SCREW, UPPER END CAP MOUNTING (4,4,,,,, required per assembly) |
  |
|
10-23703 - Screw, NLA [ More info ]
|
| #20 | 10-29198 | SCREW, UPPER END CAP MOUNTING (,,4,4,4,4, required per assembly) |
  |
|
10-29198 - Screw w/ Lw - Priced Individually [ More info ] Unavailable |
| #21 | 1102-1484A 1 | END CAP ASSEMBLY, LOWER (1,1,1,1,1, required per assembly) |
  |
1102-1484A 1 - End Cap Assembly [ More info ] Unavailable |
|
  |
|
1102-4181A 3 - End Cap Assembly, NLA [ More info ] Unavailable |
| #24 | 26-29477 | OIL SEAL, LOWER (1,1,1,1,1, required per assembly) |
  |
|
26-29477 - Seal, NLA [ More info ]
|
| #25 | 15-20085A 1 | SHIM, LOWER END CAP TO CRANKCASE (AR,AR,AR,A required per assembly) |
  |
|
15-20085A 1 - Shim Set [ More info ]
|
| #27 | 27-26923 | GASKET, CYLINDER BLOCK TO MANIFOLD PLATE (1,1,1,1,1, required per assembly) |
  |
|
27-26923 - Cylinder Block To Manifold Plate Gasket [ More info ]
|
| #28 | 26922 | PLATE, EHAUST MANIFOLD (1,1,1,1,1, required per assembly) |
  |
|
26922 - PLATE,NLA [ More info ] Unavailable |
| #29 | 28240 | COVER, EXHAUST MANIFOLD (1,1,1,1,1, required per assembly) |
  |
|
28240 - Exhaust Manifold Cover [ More info ] Unavailable |
| #30 | 10-28668 | SCREW, MANIFOLD COVER MOUNTING (13,13,13,1 required per assembly) |
  |
|
10-28668 - Screw - Priced Individually [ More info ]
|
| #30 | 10-28666 | SCREW, MANIFOLD COVER AND HIGH TENSION LEAD CLIP MOUNTING (2,2,2,2,2, required per assembly) |
  |
|
10-28666 - Screw, NLA [ More info ]
|
| #31 | 12-20028 | WASHER, MANIFOLD COVER AND HIGH TENSION LEAD CLIP SCREWS (2,2,2,2,2, required per assembly) |
  |
|
12-20028 - Washer, (.265 X .437 X .060) [ More info ]
|
| #32 | 100-1A 1 | CYLINDER BLOCK COVER ASSEMBLY (SEE NOTE BELOW) (1,1,1,1,1, required per assembly) |
  |
|
1000-1A 1 - Cover Assembly, NLA [ More info ] Unavailable |
| #34 | 27-22333 | GASKET, CYLINDER BLOCK COVER (1,1,1,1,1, required per assembly) |
  |
|
27-22333 - Cylinder Block Cover Gasket [ More info ]
|
| #35 | 10-20653 | SCREW, CYLINDER BLOCK COVER MOUNTING (10,10,10,1 required per assembly) |
  |
|
10-20653 - Bolt - Priced Individually [ More info ]
|
| #36 | 11-24652 | NUT, COVER MOUNTING SCREW (10,10,10,1 required per assembly) |
  |
|
11-24652 - Nut (1/4-28) [ More info ]
|
| #37 | 27-27936 | GASKET, TRANSFER PORT COVER (2,2,2,2,2, required per assembly) |
  |
27-27936 - Starter Motor Bracket Gasket [ More info ] Unavailable |
|
  |
|
27-27936 1 - Gasket [ More info ]
|
| #38 | 27935 | COVER, TRANSFER PORT (2,2,2,2,2, required per assembly) |
  |
|
27935 - Transfer Port Cover [ More info ]
|
| #39 | 10-20540 | SCREW, TRANSFER PORT COVER FASTENING (6,6,6,6,6, required per assembly) |
  |
|
10-20540 - Screw, NLA [ More info ] Unavailable |
| #40 | 21-28483A 1 | CHECK VALVE ASSEMBLY, BLEED HOSE (UPPER) (1,1,1,1,1, required per assembly) |
  |
21-28483A 1 - Check Valve [ More info ] Unavailable |
|
  |
|
22-62365A 1 - Fuel Connector, NLA [ More info ]
|
| #42 | 32-28654 | HOSE, CYLINDER BLEED (6-1/2") (1,1,1,1,1, required per assembly) |
  |
32-28654 - Hose - Cylinder Bleed - 6.5 Inch [ More info ] Unavailable |
|
  |
32-32840A 1 - Hose - Bleed - Cylinder Block [ More info ] Unavailable |
|
  |
32-52742A 1 - Hose Assembly [ More info ] Unavailable |
|
  |
32-26980 88 - Fuel Line, Enricher Valve [ More info ] Unavailable |
|
  |
|
32-99126 88 - Tubing - 36 Inch [ More info ]
|
| #43 | 22-20445 | CONNECTOR, CYLINDER BLEED HOSE (LOWER) (1,1,1,1,1, required per assembly) |
  |
|
22-20445 - Connector [ More info ]
|
  |
22-89097 - Connector [ More info ] Unavailable |
|
  |
|
22-67902 - Fitting [ More info ]
|
| #44 | 54-20387 | CLAMP, BLEED HOSE TO CHECK VALVE AND CONNECTOR (2,2,2,2,2, required per assembly) |
  |
|
54-20387 - Fuel Line Clamp [ More info ]
|
