Parts for Mercury Mark & Kiekhaefer KE7, KF7, KG4, KG7 (1939 - 1953) Gear Housing Assembly

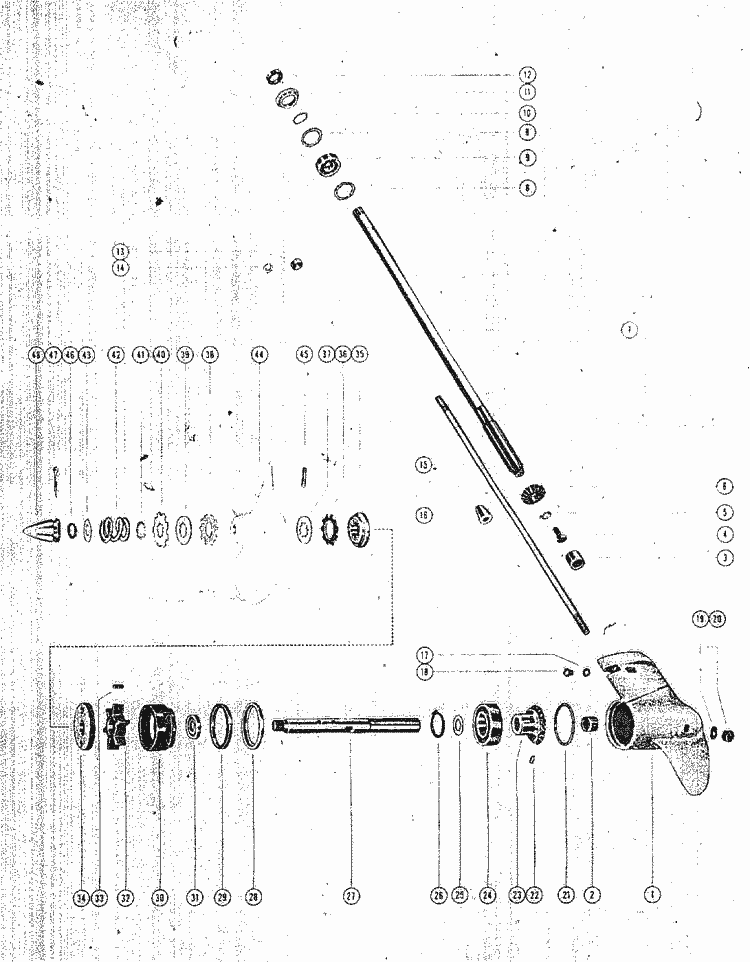

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 1601-188A 6 | GEAR HOUSING ASSEMBLY, COMPLETE (,,,1 required per assembly) |
 |
|
1601-188A 6 - GEAR HOUSING ASSY NLA [ More info ] Unavailable |
| # | 1601-83A 6 | GEAR HOUSING ASSEMBLY, COMPLETE (1,,, required per assembly) |
|
|
1601-83A 6 - GEAR HOUSING ASSY NLA [ More info ] Unavailable |
| # | 52-24488A 1 | CLUTCH ASSEMBLY (,1,1, required per assembly) |
|
|
52-24488A 1 - CLUTCH ASSY NLA [ More info ] Unavailable |
| # | 1601-188A 4 | GEAR HOUSING ASSEMBLY, COMPLETE (,1,1, required per assembly) |
|
|
1601-188A 4 - GEAR HOUSING ASSY NLA [ More info ] Unavailable |
| #1 | 1601-83A 2 | GEAR HOUSING ASSEMBLY (1,,, required per assembly) |
|
|
1601-83A 2 - GEAR HOUSING ASSY NLA [ More info ] Unavailable |
| #1 | 1601-188A 1 | GEAR HOUSING ASSEMBLY (,1,1,1 required per assembly) |
|
|
1601-188A 1 - GEAR HOUSING ASSY NLA [ More info ] Unavailable |

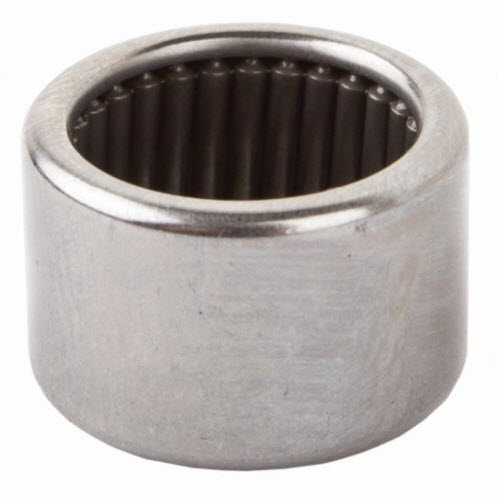

| #2 | 31-22458 | BEARING, ROLLER - PROPELLER SHAFT (1,,, required per assembly) |
  |
|
31-22458 - Roller Bearing - Forward Gear [ More info ]
|
| #2 | 31-21145 | BEARING, ROLLER - PROPELLER SHAFT (,1,1,1 required per assembly) |
  |
|
31-21145 - Roller Bearing - Gimbal Housing - Upper [ More info ]
|
| #3 | 31-21146 | BEARING, ROLLER - DRIVE SHAFT (1,1,1,1 required per assembly) |
|
|
31-21146 - Roller Bearing, NLA [ More info ]
|
| #4 | 10-20807 | SCREW, PINION GEAR TO DRIVE SHAFT (1,,, required per assembly) |
|
|
10-20807 - Screw, NLA [ More info ]
|
| #4 | 10-21153 | SCREW, PINION GEAR TO DRIVE SHAFT (,1,1,1 required per assembly) |
|
|
10-21153 - Screw, NLA [ More info ]
|
| #5 | 14-20806 | TAB WASHER, PINION GEAR TO DRIVE SHAFT SCREW (1,1,1,1 required per assembly) |
|
|
14-20806 - Tab Washer, NLA [ More info ]
|
| #6 | 43-22427 | GEAR, PINION - DRIVE SHAFT (1,1,1,1 required per assembly) |
|
|
43-22427 - Gear, Pinion - Drive Shaft, NLA [ More info ]
|
| #7 | 45-24471 | DRIVE SHAFT (1,,, required per assembly) |
|
|
45-24471 - DRIVE SHAFT NLA [ More info ] Unavailable |
| #7 | 45-24486 | DRIVE SHAFT (,1,1,1 required per assembly) |
|
|
45-24486 - DRIVE SHAFT NLA [ More info ] Unavailable |
| #7 | 45-24496 | DRIVE SHAFT (KF7L) (,1,, required per assembly) |
|
|
45-24496 - DRIVE SHAFT NLA [ More info ] Unavailable |
| #8 | 15-20919 | SHIM, DRIVE SHAFT BALL BEARING (LARGE) (AR,,, required per assembly) |
| #8 | 15-21158 | SHIM, DRIVE SHAFT BALL BEARING (LARGE) (,AR,AR,AR required per assembly) |
| #9 | 30-21149 | BALL BEARING, DRIVE SHAFT (1,1,1,1 required per assembly) |
|
|
30-21149 - Ball Bearing , NLA [ More info ]
|
| #10 | 15-21148 | SHIM, DRIVE SHAFT BALL BEARING (SMALL) (AR,AR,AR,A required per assembly) |
| #11 | 26-20590A 1 | PILOT AND OIL SEAL ASSEMBLY (1,1,1,1 required per assembly) |
|
|
26-20590A 1 - OIL SEAL ASSY NLA [ More info ] Unavailable |
| #12 | 26-20590 | OIL SEAL (1,1,1,1 required per assembly) |
|
|
26-20590 - OIL SEAL NLA [ More info ] Unavailable |
| #13 | 12-20684 | WASHER, WATER INLET TUBE (RUBBER) (1,1,1,1 required per assembly) |
  |
|

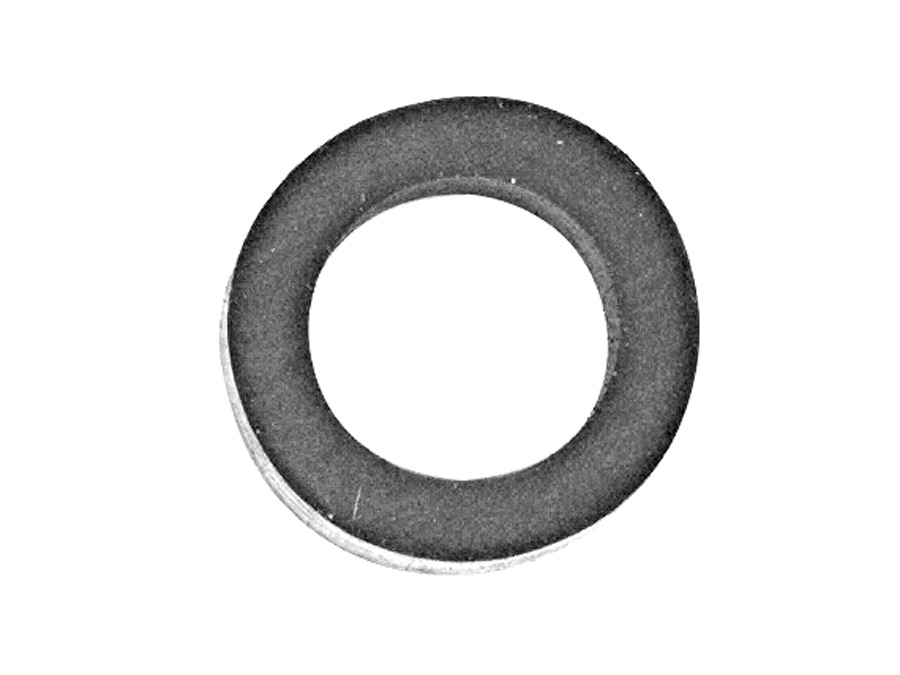

12-20684 - Washer (Rubber) [ More info ]
|
| #14 | 12-20683 | WASHER, WATER INLET TUBE (1,1,1,1 required per assembly) |
|
|
12-20683 - Washer, NLA [ More info ]
|
| #15 | 16-22471 | STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (LONG) (1,,, required per assembly) |
|
|
16-22471 - STUD NLA [ More info ] Unavailable |
| #15 | 16-21168 | STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (LONG) (,1,1,1 required per assembly) |
|
|
16-21168 - STUD NLA [ More info ] Unavailable |
| #15 | 16-24497 | STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (LONG) (KF7L) (,1,, required per assembly) |
|
|
16-24497 - STUD NLA [ More info ] Unavailable |
| #16 | 21167 | DAMPENER, VIBRATION - GEAR HOUSING STUD (1,1,1,1 required per assembly) |
  |
|
21167 - DAMPENER NLA [ More info ] Unavailable |
| #17 | 12-20262 | WASHER, GEAR HOUSING VENT SCREW (1,1,1,1 required per assembly) |
|
|
12-20262 - 12-20262 - WASHER [ More info ] Unavailable Replaced by -19643 |
  |
|

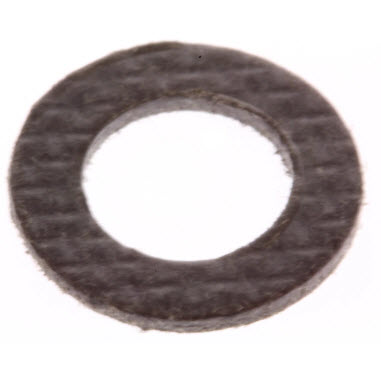

19643 - Seal - Priced Individually [ More info ]
|
  |
|

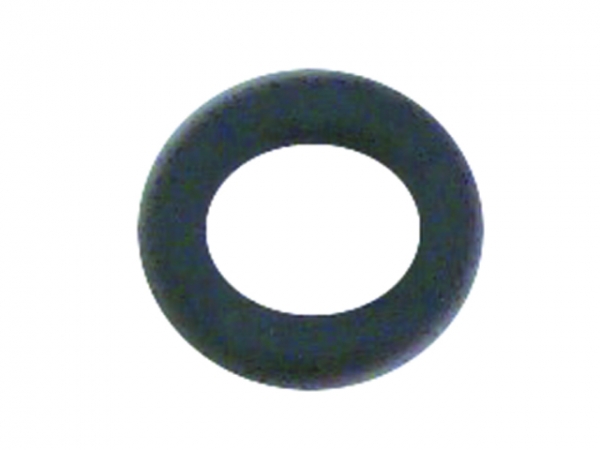

18-4261 - Washer, 19643 [ More info ]
|
| #18 | 10-28653 | SCREW, GEAR HOUSING VENT (1,1,1,1 required per assembly) |
  |
|
10-28653 - Screw - Priced Individually [ More info ]
|

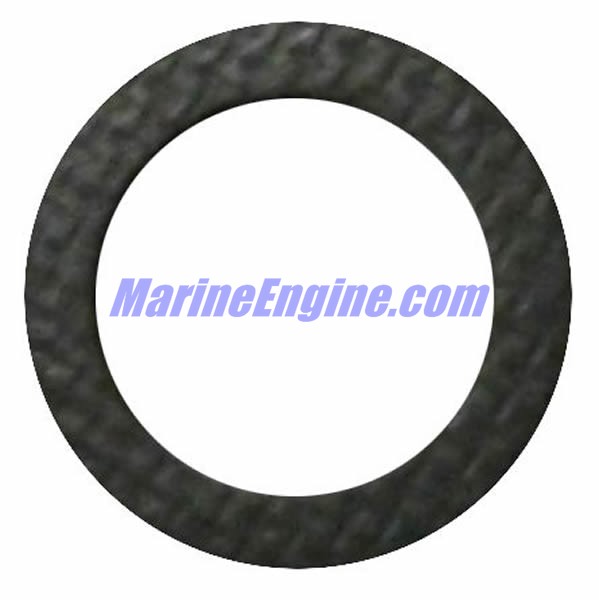

| #19 | 12-20260 | WASHER, GREASE FILLER HOLE SCREW (1,1,1,1 required per assembly) |
  |
|
12-20260 - 12-20260 - WASHER [ More info ] Unavailable Replaced by 12-19183 |
  |
|
12-19183 - 12-19183 - WASHER Fiber [ More info ] Unavailable Replaced by 12-191832 |
  |
|
12-191832 - 12-191832 - ->191833 [ More info ] Unavailable Replaced by -191833 |
  |
|

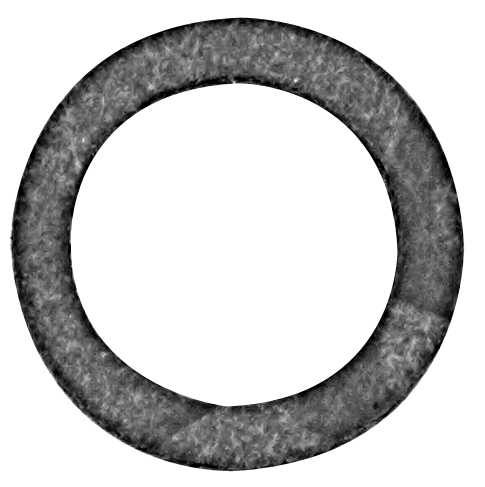

12-19183 3 - Seal -Blue - Priced Individually [ More info ]
|
  |
|
18-2945-9 - Gasket 12-19183 2-Pack [ More info ]
|
  |
|
12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ]
|
  |
|
12-19183K02 - Seal, Pack of 4 [ More info ]
|
| #20 | 10-28634 | SCREW, GREASE FILLER HOLE (1,1,1,1 required per assembly) |
  |
|
10-28634 - 10-28634 - SCREW (.375-16) [ More info ] Unavailable Replaced by 10-79953 |
  |
|
10-79953 - 10-79953 - SCREW (.375-16 x [ More info ] Unavailable Replaced by 10-79953A2 |
  |
|
10-79953A2 - 10-79953A2 - ->79953Q2 [ More info ] Unavailable Replaced by -79953Q2 |
  |
|
10-79953Q2 - 10-79953Q2 - ->79953Q04 [ More info ] Unavailable Replaced by -79953Q04 |
  |
|

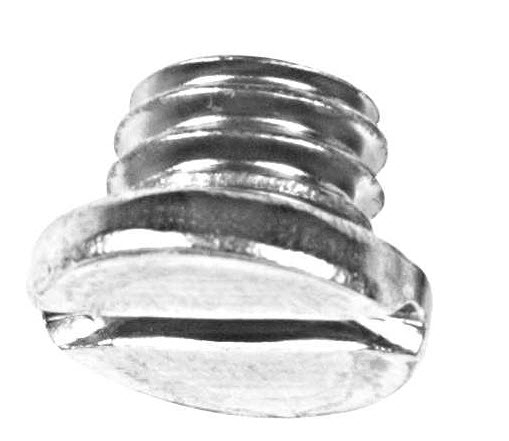

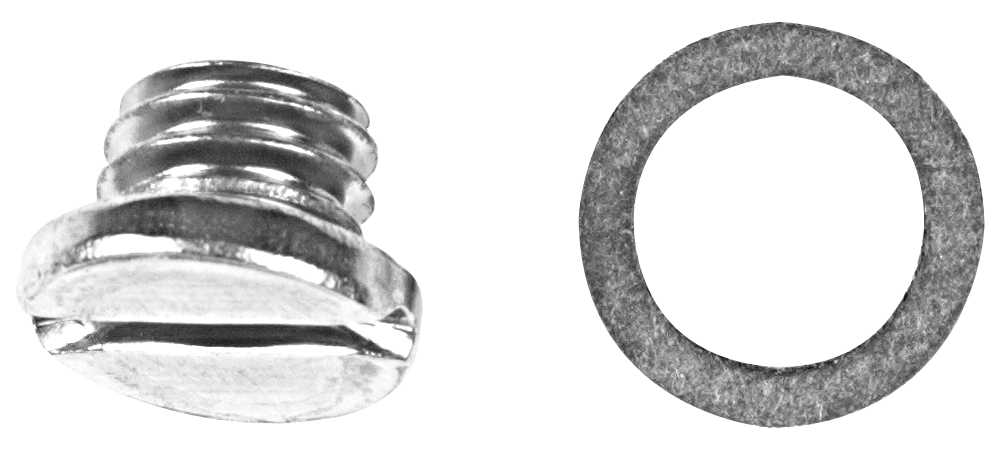

10-79953Q04 - Screw Kit - Priced Individually [ More info ]
|
  |
|
18-2244 - Plug Kit, 10-79953A2 [ More info ]
|
  |
|
10-79953K04 - Drain Screw - Priced Individually [ More info ]
|
| #21 | 15-22401 | SHIM, PROPELLER SHAFT BALL BEARING (AR,,, required per assembly) |
| #21 | 15-20514 | SHIM, PROPELLER SHAFT BALL BEARING (,AR,AR,AR required per assembly) |
| #22 | 17-21156 | PIN, PROPELLER GEAR TO PROPELLER SHAFT (1,1,1,1 required per assembly) |
|
|
17-21156 - 17-21156 - PIN [ More info ] Unavailable Replaced by 17-20937 |
|
|
17-20937 - 17-20937 - GEAR PIN [ More info ] Unavailable Replaced by 17-813061 |
|
|
17-813061 - NLA - PIN NLA [ More info ] Unavailable |
| #23 | 43-22443 | GEAR, PROPELLER (1,,, required per assembly) |
|
|
43-22443 - Prop Gear [ More info ]
|
| #23 | 43-21155 | GEAR, PROPELLER (,1,1,1 required per assembly) |
|
|
43-21155 - PROPELLER GEAR NLA [ More info ] Unavailable |
| #24 | 30-20464 | BALL BEARING, PROPELLER SHAFT (1,1,1,1 required per assembly) |
|
|
30-20464 - 30-20464 - BALL BEARING [ More info ] Unavailable Replaced by 30-63326 |
|
|
30-63326 - 30-63326 - BEARING [ More info ] Unavailable Replaced by 30-63326T |
  |
|

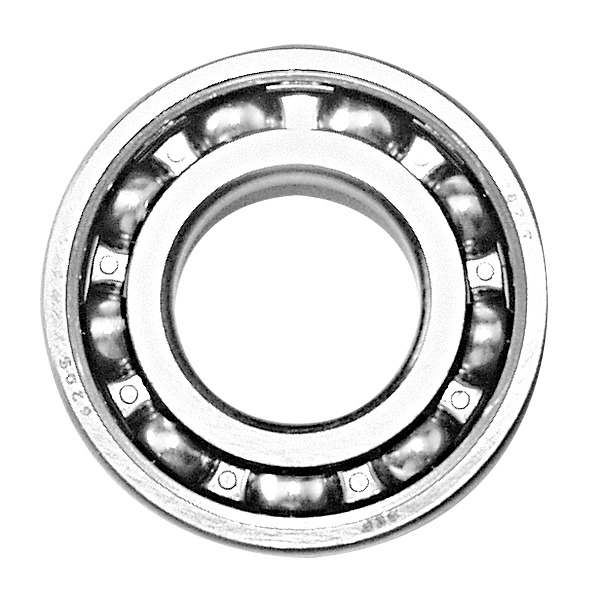

30-63326T - Ball Bearing [ More info ]
|
  |
|

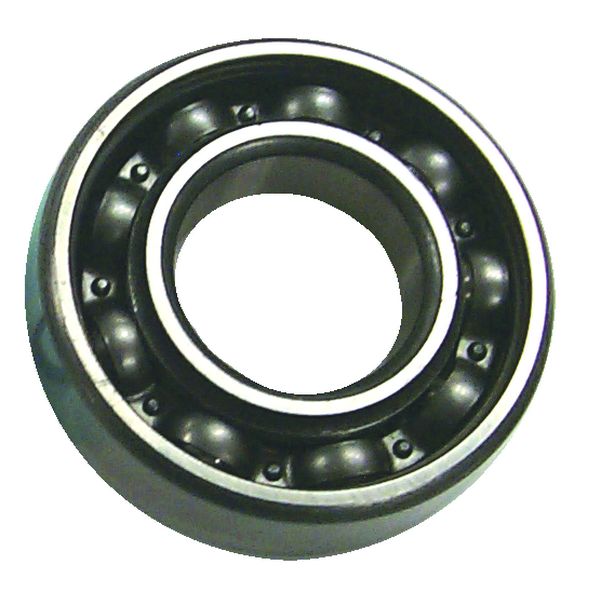

18-1153 - Bearing 30-63326 [ More info ]
|
| #25 | 12-21157 | WASHER, THRUST - PROPELLER SHAFT (1,1,1,1 required per assembly) |
|
|
12-21157 - WASHER @5 NLA [ More info ] Unavailable |
| #26 | 53-21159 | RING, SNAP - BALL BEARING RETAINING (1,1,1,1 required per assembly) |
|
|
53-21159 - NLA SNAP RING NLA [ More info ] Unavailable |
| #27 | 44-22399 | SHAFT, PROPELLER (1,,, required per assembly) |
|
|
44-22399 - 44-22399 - PROPELLER SHAFT [ More info ] Unavailable Replaced by 44-22399A2 |
|
|
44-22399A 2 - Prop Shaft, NLA [ More info ]
|
| #27 | 44-24487 | SHAFT, PROPELLER (,1,1, required per assembly) |
|
|
44-24487 - PROPELLER SHAFT NLA [ More info ] Unavailable |
| #27 | 44-24569 | SHAFT, PROPELLER (,,,1 required per assembly) |
|
|
44-24569 - PROPELLER SHAFT NLA [ More info ] Unavailable |
| #28 | 12-21161 | "L" WASHER, WATER PUMP HOUSING (1,1,1,1 required per assembly) |
|
|
12-21161 - WASHER NLA [ More info ] Unavailable |
| #29 | 12-21160 | WASHER, SEALING - WATER PUMP HOUSING (1,1,1,1 required per assembly) |
|
|
12-21160 - WASHER NLA [ More info ] Unavailable |
| #30 | 46-21163A 2 | WATER PUMP CARTRIDGE ASSEMBLY (1,,, required per assembly) |
|
|
46-21163A 2 - CARTRIDGE ASSY NLA [ More info ] Unavailable |
| #30 | 46-21163A 1 | WATER PUMP CARTRIDGE ASSEMBLY (,1,1,1 required per assembly) |
|
|
46-21163A 1 - CARTRIDGE ASSY NLA [ More info ] Unavailable |

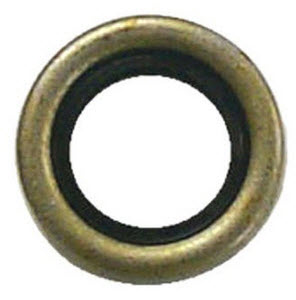

| #31 | 26-20070 | OIL SEAL, WATER PUMP CARTRIDGE (,1,1,1 required per assembly) |
  |
|
26-20070 - Seal - Priced Individually [ More info ]
|
  |
|

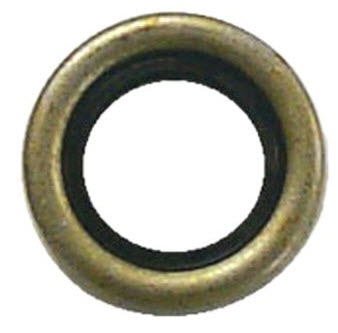

18-2004 - Seal 26-20070 [ More info ]
|

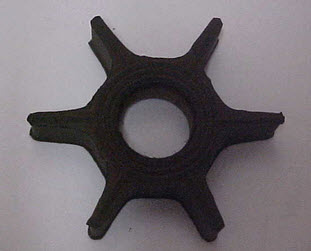

| #32 | 47-24472 | IMPELLER, WATER PUMP (1,,, required per assembly) |
  |
|
47-24472 - IMPELLER NLA [ More info ] Unavailable |
| #32 | 47-21164 | IMPELLER, WATET PUMP (,1,1,1 required per assembly) |
|
|
47-21164 - IMPELLER NLA [ More info ] Unavailable |
| #33 | 28-20946 | PIN, IMPELLER DRIVE (1,1,1,1 required per assembly) |
|
|
17-20946 - NLA - PIN NLA [ More info ] Unavailable |
| #34 | 22397 | COVER, WATER PUMP GAND GEAR HOUSING (1,,, required per assembly) |
|
|
22397 - Water Pump Cover [ More info ]
|

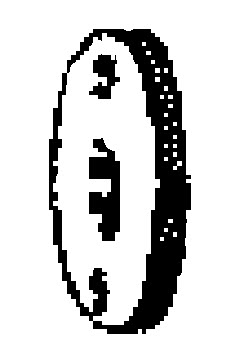

| #34 | 21166 | COVER, WATER PUMP GAND GEAR HOUSING (,1,1,1 required per assembly) |
  |
|
21166 - COVER NLA [ More info ] Unavailable |
| #35 | 52-24488 | PLATE, THRUST (,1,1, required per assembly) |
|
|
52-24488 - PLATE NLA [ More info ] Unavailable |
| #36 | 24502 | PLATE, FRICTION (THIN) (,14,14, required per assembly) |
  |
|
24502 - Friction Plate [ More info ]
|
| #37 | 15-24495 | SHIM, INTERMEDIATE (,13,13, required per assembly) |
|
|
15-24495 - SHIM NLA [ More info ] Unavailable |
| #38 | 24490 | PLATE FRICTION (THICK) (,1,1, required per assembly) |
|
|
24490 - 24490 - PLATE [ More info ] Unavailable Replaced by -24502 |
| #39 | 24489 | PLATE, INTERMEDIATE (,1,1, required per assembly) |
|
|
24489 - PLATE NLA [ More info ] Unavailable |
| #40 | 14-24491 | TAB WASHER (,1,1, required per assembly) |
|
|
14-24491 - Prop Tab Washer, NLA [ More info ]
|
| #41 | 15-24492 | SHIM (SMALL) (,AR,AR, required per assembly) |
| #42 | 24-24500 | SPRING (,1,1, required per assembly) |
|
|
24-24500 - SPRING NLA [ More info ] Unavailable |
| #43 | 12-24501 | WASHER (,1,1, required per assembly) |
|
|
12-24501 - Washer, NLA [ More info ]
|
| #44 | 48-24473 | PROPELLER (9" PITCH) (1,,, required per assembly) |
|
|
48-24473 - PROPELLER NLA [ More info ] Unavailable |
| #44 | 48-24498 | PROPELLER (9" PITCH) (,1,1, required per assembly) |
|
|
48-24498 - PROPELLER NLA [ More info ] Unavailable |
| #44 | 48-24572 | PROP0ELLER (8" PITCH) (,,,1 required per assembly) |
|
|
48-24572 - PROPELLER NLA [ More info ] Unavailable |
| #45 | 17-20957 | PIN, SHEAR - PROPELLER (1,,,1 required per assembly) |
|
|
17-20957 - Shear Pin, NLA [ More info ]
|
| #46 | 12-24665 | WASHER, PROPELLER NUT (1,,,1 required per assembly) |
|
|
12-24665 - WASHER NLA [ More info ] Unavailable |
| #46 | 12-20959 | WASHER, PROPELLER NUT (,,,1 required per assembly) |
|
|
12-20959 - Washer (7/8 X .06) [ More info ]
|
| #47 | 18-22374 | COTTER PIN, PROPELLER NUT (1,,,1 required per assembly) |
|
|
18-22374 - Cotter Pin, NLA [ More info ]
|
| #48 | 22506 | NUT, PROPELLER (1,,, required per assembly) |
|
|
22506 - NUT NLA [ More info ] Unavailable |
| #48 | 11-24493 | NUT, PROPELLER (,1,1, required per assembly) |
|
|
11-24493 - NUT NLA [ More info ] Unavailable |
| #48 | 11-24570 | NUT, PROPELLER (,,,1 required per assembly) |
|
|
11-24570 - NUT NLA [ More info ] Unavailable |
