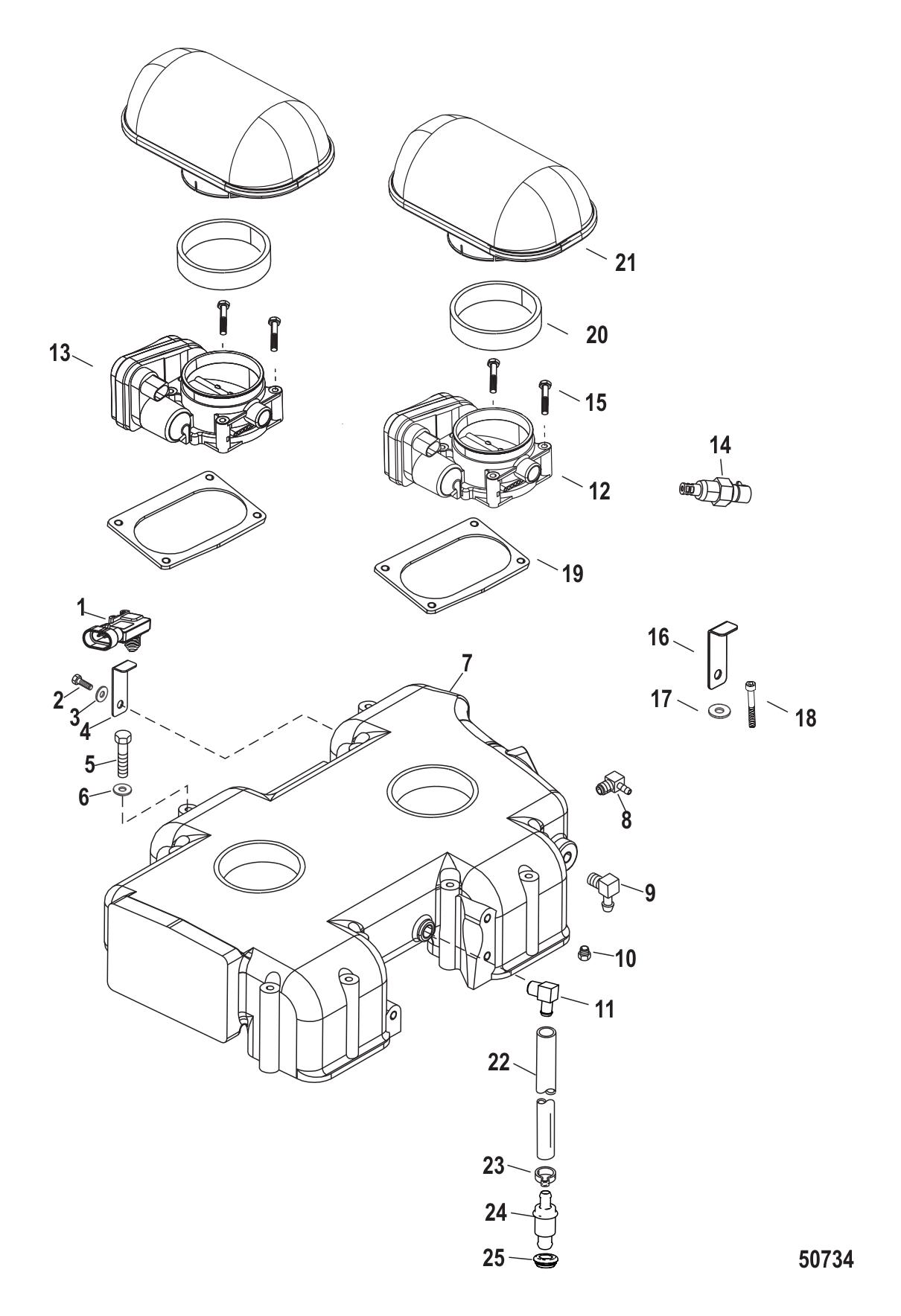

Intake Plenum & Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0065565	PARTIAL-565 (1 required per assembly)
		8M0065565 - PARTIAL-565 [ More info ] Unavailable
#1	854445	SENSOR MAP MANIFOLD ABSOLUTE PRESSURE (1 required per assembly)
		854445 - MAP Sensor Manifold Absolute Pressure [ More info ] $132.61 6 In Stock.
		8M0237529 - SENSOR MAP [ More info ] Unavailable
#2	847401	SCREW (1 required per assembly)
		10-847401 - Screw [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#3	30164	WASHER @3 (1 required per assembly)
		12-30164 - Washer, (.192 X .375 X .0312) [ More info ] $2.49 10+ In Stock.
#4	8M0061478	BRACKET (1 required per assembly) — Replaces: 840981
		8M0061478 - Bracket [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#5	71319	SCREW (12 required per assembly)
		10-71319 - Screw [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#6	846673	WASHER (12 required per assembly)
		12-846673 - Washer, (.265 X .500 X .060) Stainless Steel [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#7	8M0064682	PLENUM ASSY (1 required per assembly)
		8M0064682 - Plenum Assembly [ More info ] $3,007.16 Available to Order: Shipping delay up to 10 days.
#8	73817	CONNECTOR (90 DEGREE) (1 required per assembly)
		22-73817 - Connector [ More info ] Unavailable
#9	196881	FITTING (90 DEGREE) (1 required per assembly)
		22-19688 1 - Fitting [ More info ] $94.49 $49.81 1 In Stock.
#10	328022	PLUG PIPE (.125-27) BRASS (1 required per assembly)
		22-32802 2 - Brass Pipe Plug, Priced Individually [ More info ] $7.59 1 In Stock.
		18-4263 - Pipe Plug, 1/8-27 NPT, Brass [ More info ] $5.30 10+ In Stock.
#11	687271	FITTING (.250-18) 90 DEGREE - BRASS (1 required per assembly)
		22-68727 1 - Fitting [ More info ] $32.68 1 In Stock.
#12	8M0046460	THROTTLE BODY ASSEMBLY W/ AIR FOIL (1 required per assembly) — Replaces: 866592A04
		8M0046460 - Throttle Body [ More info ] $995.49 Available to Order: Shipping delay up to 10 days.
#13	877828T02	CONTROL THROTTLE - ELECTRONIC (1 required per assembly)
		877828T02 - Throttle Control [ More info ] $947.49 $583.62 7 In Stock.
#14	891663001	SENSOR TEMPERATURE (1 required per assembly)
		891663001 - Temperature Sensor Assembly [ More info ] $228.49 In Stock
#15	88552550	SCREW (M6 X 50 MM) STAINLESS STEEL (8 required per assembly)
		10-885525 50 - Screw - Priced Individually [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#16	884353	BRACKET (2 required per assembly)
		884353 - Bracket [ More info ] $14.59 Available to Order: Shipping delay up to 10 days.
#17	30164	WASHER (.192 X .375 X .0312) STAINLESS STEEL (2 required per assembly)
#18	90188	SCREW (#10-24 X .500) STAINLESS STEEL (2 required per assembly)
		10-90188 - Screw [ More info ] $1.70 $1.36 7 In Stock.
#19	841156	GASKET THROTTLE BODY TO PLENUM (2 required per assembly)
		27-841156 - Throttle Body To Plenum Gasket [ More info ] $8.18 Available to Order: Shipping delay up to 10 days.
#20	863393	CLAMP (2 required per assembly)
		54-863393 - Clamp [ More info ] $48.99 Available to Order: Shipping delay up to 10 days.
#21	8M0119612	FLAME ARRESTOR (2 required per assembly) — Replaces: 862537T
		8M0119612 - Flame Arrestor [ More info ] $206.99 In Stock
#22	8M0042521	HOSE (1 required per assembly) — Replaces: 844172019
		32-8M0042521 - Hose - PCV Valve To Plenum [ More info ] $12.49 Available to Order: Shipping delay up to 10 days.
#23	848764	CLAMP (1 required per assembly)
		54-848764 - Clamp [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#24	8M0099429	VALVE ASSY-VENT (1 required per assembly) — Replaces: 848578
		8M0099429 - Valve Assembly - Vent [ More info ] $31.09 Available to Order: Shipping delay up to 10 days.
#25	811553	GROMMET INTAKE MANIFOLD (1 required per assembly)
		25-811553 - Grommet [ More info ] $85.25 2 In Stock.
