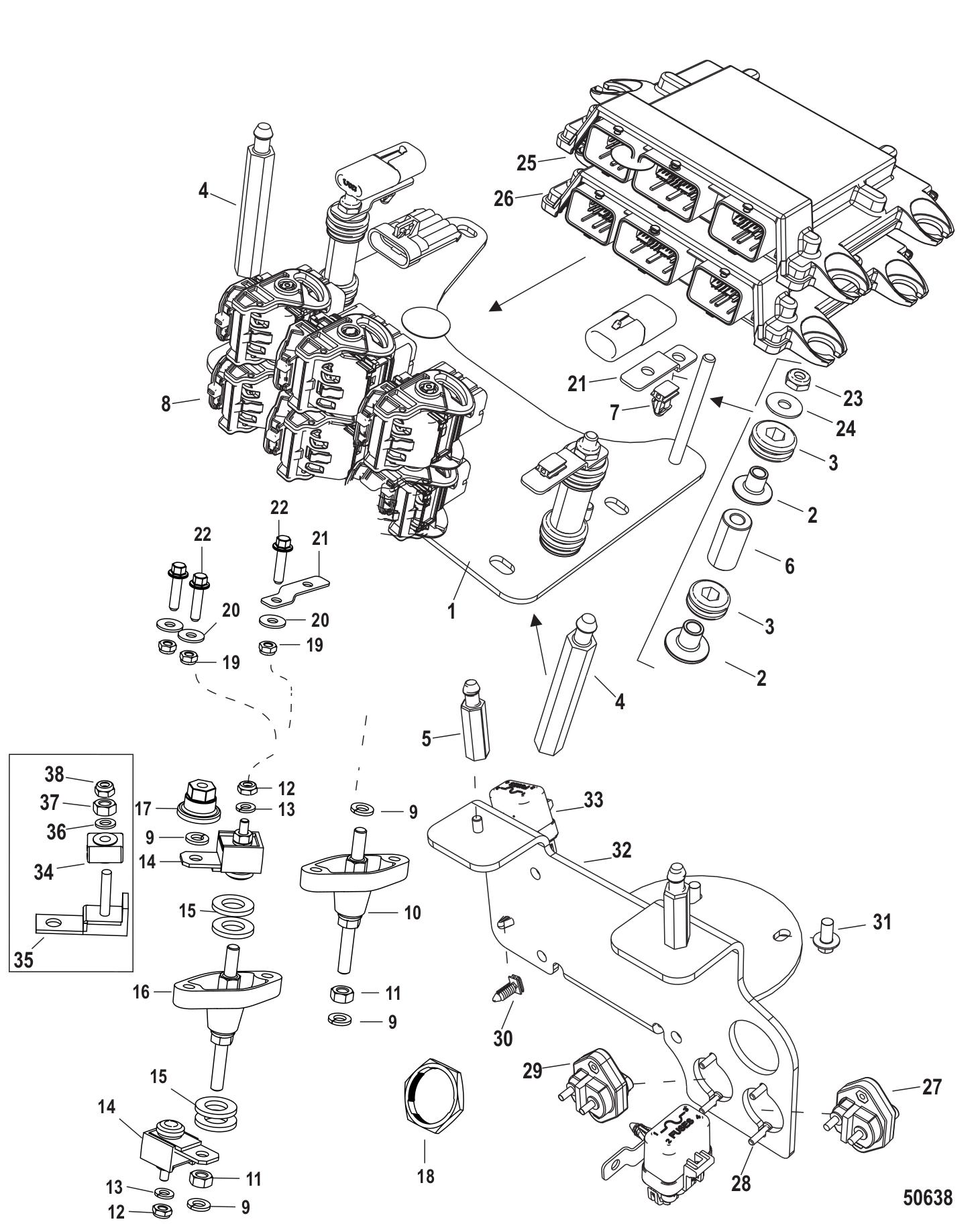

Electrical Plate Assembly

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0139044	FUSE KIT (2 required per assembly)
		8M0139044 - FUSE KIT [ More info ] Unavailable
#1	8M0064688	PCM BRACKET (1 required per assembly)
		8M0064688 - PCM Bracket [ More info ] $740.49 Available to Order: Shipping delay up to 10 days.
#2	856954	BUSHING (6 required per assembly)
		23-856954 - Bushing [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#3	834985	GROMMET @5 (6 required per assembly)
		25-834985 - Grommet [ More info ] $3.00 2 In Stock.
		25-8M0190980 - GROMMET Note: Must be ordered in multiples of 5 [ More info ] $3.89 Available to Order: Shipping delay up to 10 days.
#4	8M0061397	POST LONG (2 required per assembly)
		8M0061397 - POST-Cover [ More info ] $29.21 Available to Order: Shipping delay up to 10 days.
#5	8M0044738	POST SHORT (2 required per assembly)
		238M0044738 - POST-Cover-Short [ More info ] Unavailable
		8M0217380 - POST-COVER-SHORT [ More info ] Unavailable
#6	8M0061733	SPACER-COIL/PCM (1 required per assembly)
		238M0061733 - Spacer-Coil/PCM [ More info ] $27.77 Available to Order: Shipping delay up to 10 days.
#7	892448	CLIP @2 (4 required per assembly)
		54-892448 - Clip - Priced Individually [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#8	8M0207772	RELAY-TRIM (9 required per assembly) — Replaces: 882751
		8M0207772 - RELAY-TRIM [ More info ] $17.99 6 In Stock.
		8M0219830 - RELAY-TRIM (8M0219830) [ More info ] $18.69 $18.67 In Stock
#9	882751A1	RELAY ASSY-TRIM (6 required per assembly)
		882751A 1 - Relay - 8M0207773 [ More info ] Unavailable
		18-5849 - Relay, 882751A1 [ More info ] $20.16 10+ In Stock.
		300-01562 - Power Trim Relay, 882751A1 [ More info ] $16.99 10 In Stock.
		R151 - Relay [ More info ] $20.40 $19.55 In Stock
#10	8M0045431	STUD ASSEMBLY GROUND BLACK (1 required per assembly)
		168M0045431 - Ground Stud Assembly [ More info ] $59.29 Available to Order: Shipping delay up to 10 days.
#11	400213	NUT @2 (2 required per assembly)
		11-40021 3 - Nut - Priced Individually [ More info ] $2.89 1 In Stock.
#12	826709109	NUT @5 (2 required per assembly)
		11-826709109 - Nut, (.250-28) Stainless Steel [ More info ] $3.59 5 In Stock.
#13	26992	LOCKWASHER @5 (2 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#14	832969T01	FUSE ASSY (2 required per assembly)
		88-832969T01 - Fuse Assembly [ More info ] $56.85 Available to Order: Shipping delay up to 10 days.
#15	85172	WASHER @2 (4 required per assembly)
		12-85172 - Washer,rubber-upper Mount Screw [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#16	8M0044741	STUD ASSEMBLY HOT RED (1 required per assembly)
		168M0044741 - HOT Stud Assembly [ More info ] $59.29 Available to Order: Shipping delay up to 10 days.
#17	8M0048010	NUT (1 required per assembly)
		118M0048010 - Nut [ More info ] $39.08 Available to Order: Shipping delay up to 10 days.
#18	889664	NUT (1 required per assembly)
		11-889664 - Nut, (1.500-18) Black Nylon [ More info ] $6.69 Available to Order: Shipping delay up to 10 days.
#19	401386	NUT @5 (4 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#20	4002316	WASHER @5 (4 required per assembly)
		12-40023 16 - Washer - Priced Individually [ More info ] $1.17 2 In Stock.
		128M0214930 - WASHER Note: Must be ordered in multiples of 5 [ More info ] $1.00 1 In Stock.
#21	858953	BRACKET (2 required per assembly)
		858953 - Bracket [ More info ] $3.89 Available to Order: Shipping delay up to 10 days.
#22	8M0103807	SCREW @2 (4 required per assembly) — Replaces: 88552525
		108M0103807 - Screw (M6 x 25 MM) Stainless Steel [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#23	8267098	NUT @2 (3 required per assembly)
		11-826709 8 - Nut - Priced Individually [ More info ] $6.89 $1.38 10+ In Stock.
#24	65567	WASHER @2 (3 required per assembly)
		12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#25	NSS	NOT SOLD SEPARATE PCM- Contact Service (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#26	8M0064700	PROPULSION CONTROL MODULE (PCM) TRANSMISSION (1 required per assembly)
		8M0064700 - Propulsion Control Module [ More info ] Unavailable
#27	11178A01	BREAKER-CIRCUIT Design I (n/a required per assembly) — Replaces: 865827T
		88-11178A01 - Circuit Breaker [ More info ] $121.49 $119.78 In Stock
#28	96113	SCREW Design II (4 required per assembly)
		10-96113 - Screw [ More info ] $0.50 10+ In Stock.
#28	830861	SCREW @5 Design I (n/a required per assembly)
		10-830861 - Screw - Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#29	8M0021530	BREAKER CIRCUIT - 25 AMPERE - 25 AMPERE (1 required per assembly) — Replaces: 8M6001115
		88-8M0021530 - Breaker -25 Amp [ More info ] $95.70 Available to Order: Shipping delay up to 10 days.
#30	828991T	CLIP (2 required per assembly) — Replaces: 828991
		54-828991T - Clip [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#31	4010716	SCREW (4 required per assembly)
		10-40107 16 - Screw [ More info ] $4.49 1 In Stock.
#32	8M0056800	BRACKET (1 required per assembly)
		8M0056800 - Bracket [ More info ] $208.33 Available to Order: Shipping delay up to 10 days.
#33	NSS	NOT SOLD SEPARATE SEE WIRING SECTION FOR COVER NUMBER (3 required per assembly)
#34	8M0129562	FUSE BLOCK 125 AMP - GREEN (2 required per assembly)
		888M0129562 - Fuse Block-125AMP [ More info ] $19.64 Available to Order: Shipping delay up to 10 days.
#35	8M0129529	FUSE BAR HOLDER KIT (2 required per assembly)
		888M0129529 - Fuse Block HOLDER [ More info ] $19.45 Available to Order: Shipping delay up to 10 days.
#36	35044	WASHER (2 required per assembly)
		12-35044 - Washer, (.281 X .625 X .065) Stainless Steel [ More info ] $2.49 10+ In Stock.
#37	94330	NUT @2 (2 required per assembly)
		11-94330 - Nut, Brass (1/4-20) [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#38	8267118	NUT (2 required per assembly)
		11-826711 8 - Nut [ More info ] $3.71 7 In Stock.
#NS	8M0065010	BRACKET (1 required per assembly)
		8M0065010 - Bracket [ More info ] $423.05 Available to Order: Shipping delay up to 10 days.
#NS	61356	NUT @5 Design II (4 required per assembly)
		11-61356 - Nut (#10-32) [ More info ] $3.29 $0.66 10+ In Stock.
#NS	72554	DECAL Design II (2 required per assembly)
		37-72554 - Decal [ More info ] $1.00 Available to Order: Shipping delay up to 10 days.
