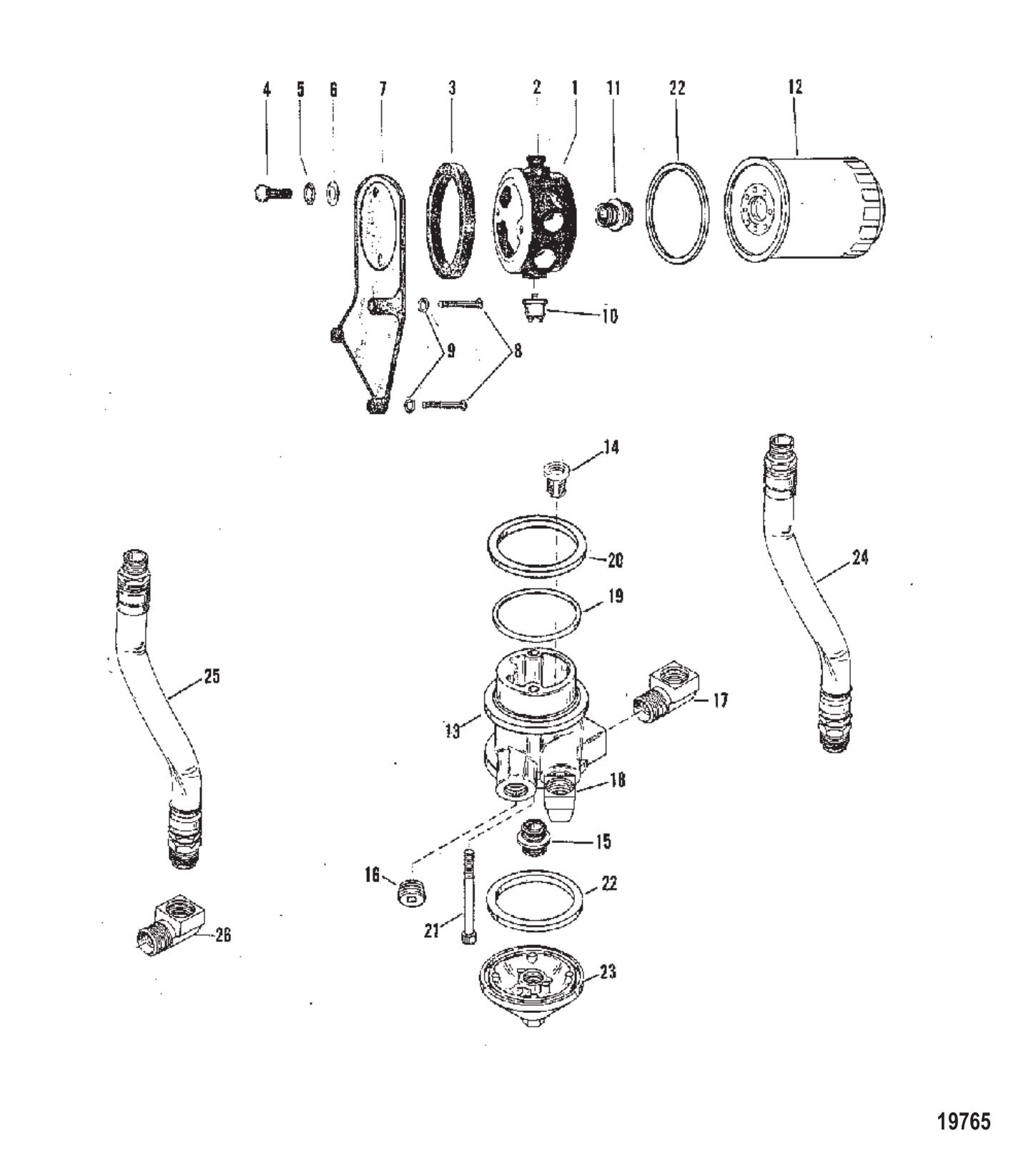

Find 7.9L (482 Cu In) V8 GM MerCruiser Engines - Gas Parts by Serial Number Range Oil Filter & Adaptor (S/N 5669976 & Up)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 47410A1 | GASKET SET (370/400) (1 required per assembly) |
  |
|
27-47410A 1 - Engine Gasket Set [ More info ] Unavailable |
| #- | 99386A2 | GASKET SET (440/460) (1 required per assembly) |
  |
|
27-99386A 2 - Gasket Set, NLA [ More info ] Unavailable |
| #1 | 48504T2 | ADAPTOR ASSY OIL FILTER (1 required per assembly) — Replaces: 48504A2 |
  |
|
48504T 2 - Adaptor Assembly [ More info ] Unavailable |
| #2 | 8M0180565 | PLUG PIPE (1 required per assembly) — Replaces: 87543, 32803 |
  |
|
228M0180565 - PLUG [ More info ]
|
| #3 | 48506 | WASHER INSULATOR (1 required per assembly) |
  |
|
12-48506 - Washer, NLA [ More info ]
|
| #4 | 37612 | SCREW (.375-16 X 1.250) ADAPTOR TO BRACKET (2 required per assembly) |
  |
|
10-37612 - Screw - Priced Individually [ More info ]
|
| #5 | 35048 | LOCKWASHER (.375) ADAPTOR SCREW (2 required per assembly) |
  |
|
13-35048 - LockWasher - Priced Individually [ More info ]
|
| #6 | 20553 | WASHER (.406 X .734 X .063) OIL FILTER ADAPTOR SCREW (2 required per assembly) |
  |
|
12-20553 - Washer - Priced Individually [ More info ]
|
| #7 | 63880T | BRACKET OIL FILTER (1 required per assembly) — Replaces: 63880 |
  |
|
63880T - Bracket [ More info ] Unavailable |
| #8 | 47462 | SCREW (.437-14 X 1.250) BRACKET TO ENGINE (2 required per assembly) |
  |
|
10-47462 - Screw - Priced Individually [ More info ]
|
| #8 | 37612 | SCREW (.375-16 X 1.250) BRACKET TO ENGINE (1 required per assembly) |
| #9 | 35048 | LOCKWASHER (.375) BRACKET SCREW (1 required per assembly) |
| #9 | 32993 | LOCKWASHER (.437) BRACKET SCREW (2 required per assembly) |
  |
|
13-32993 - LockWasher - Priced Individually [ More info ]
|
| #10 | 864252A01 | KIT-OIL SENSOR (440/460) (1 required per assembly) — Replaces: 94009 |
  |
87-864252A01 - Oil Sensor Kit [ More info ] Unavailable |
|
  |
|
1300-03773 - Oil Pressure Sensor, 87-864252A01 [ More info ]
|
  |
|
87-8M0210755 - Oil Sensor Kit [ More info ]
|
| #11 | 805632 | CONNECTOR (1 required per assembly) — Replaces: 32720 |
  |
|
22-805632 - Connector [ More info ]
|
| #12 | 16595T | FILTER-OIL (1 required per assembly) — Replaces: 99884, 16595 |
  |
35-16595T - Oil Filter [ More info ] Unavailable |
|
  |
|
35-16595Q - Oil Filter [ More info ]
|
  |
|
18-7876-1 - Oil Filter - GM/Chevy Long [ More info ]
|
  |
|
35-881126K01 - Oil Filter [ More info ]
|
| #13 | 90783A22 | ADAPTER ASSEMBLY OIL FILTER (1 required per assembly) — Replaces: 90783A1, 90783A13 |
  |
|
90783A22 - Adaptor Assembly [ More info ] Unavailable |
| #14 | 34543 | VALVE BY-PASS (1 required per assembly) — Replaces: 34344 |
  |
|
|
| #15 | 805632 | CONNECTOR (1 required per assembly) — Replaces: 32720 |
| #16 | 328022 | PLUG PIPE (.125-27) BRASS (1 required per assembly) — Replaces: 32802, 328021 |
  |
|
22-32802 2 - Brass Pipe Plug, Priced Individually [ More info ]
|
  |
|
18-4263 - Pipe Plug, 1/8-27 NPT, Brass [ More info ]
|
| #17 | 48246 | ELBOW OIL HOSE (1 required per assembly) |
  |
|
22-48246 - Elbow [ More info ]
|
| #18 | 63825 | ELBOW OIL HOSE (1 required per assembly) |
  |
|
22-63825 - Elbow [ More info ]
|
| #19 | 62700 | O-RING (3.237 X .103) OIL FILTER ADAPTOR (1 required per assembly) |
  |
|
25-62700 - O-Ring [ More info ]
|
  |
|
18-0860-9 - O-Ring 25-62700 2-Pack [ More info ]
|
| #20 | 99893 | GASKET OIL FILTER ADAPTOR (1 required per assembly) |
  |
|
27-99893 - Oil Filter Adaptor Gasket [ More info ]
|
| #21 | 91966 | SCREW (.312-18 X 4.00) OIL FILTER ADAPTOR (1 required per assembly) |
  |
|
10-91966 - Screw, NLA [ More info ] Unavailable |
| #21 | 91967 | SCREW (.312-18 X 3.50) OIL FILTER ADAPTOR (1 required per assembly) |
  |
|
10-91967 - Screw, NLA [ More info ] Unavailable |
| #22 | 91892 | GASKET ADAPTOR COVER AND OIL FILTER (2 required per assembly) |
  |
27-91892 - Adaptor Gasket [ More info ] Unavailable |
|
  |
|
27-8M0188440 - GASKET Note: Must be ordered in multiples of 2 [ More info ] Unavailable |
| #23 | 8M0104033 | ADAPTOR ADAPTOR (1 required per assembly) — Replaces: 91830 |
  |
|
8M0104033 - Adaptor [ More info ] Unavailable |
| #24 | 9235738 | HOSE (18.5 INCHES) OIL - ADAPTOR (15") (1 required per assembly) |
  |
|
32-92357 38 - Hose - 18.5 Inch [ More info ] Unavailable |
| #25 | 9235738 | HOSE (18.5 INCHES) OIL - ADAPTOR (18-1/2") (1 required per assembly) |
| #25 | 9235749 | HOSE ASSEMBLY (24.00 INCHES) OIL - ADAPTOR (24") (1 required per assembly) |
  |
|
32-92357 49 - Hose - 24 Inch [ More info ] Unavailable |
| #26 | 63825 | ELBOW HOSE TO OIL COOLER (L.H. SIDE)(90 DEGREES) (2 required per assembly) |
| #26 | 47630 | ELBOW 90 DEGREE HOSE TO OIL COOLER (R.H. SIDE) (2 required per assembly) |
  |
|
22-47630 - Elbow [ More info ]
|
