Find 7.9L (482 Cu In) V8 GM MerCruiser Engines - Gas Parts by Serial Number Range Carburetor & Linkage (440 / 460)

Revise Search: Sterndrive > MerCruiser Engines - Gas > 7.9L (482 Cu In) V8 GM > 1983-1986 4179554 - 6181046 > Carburetor & Linkage (440 / 460)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

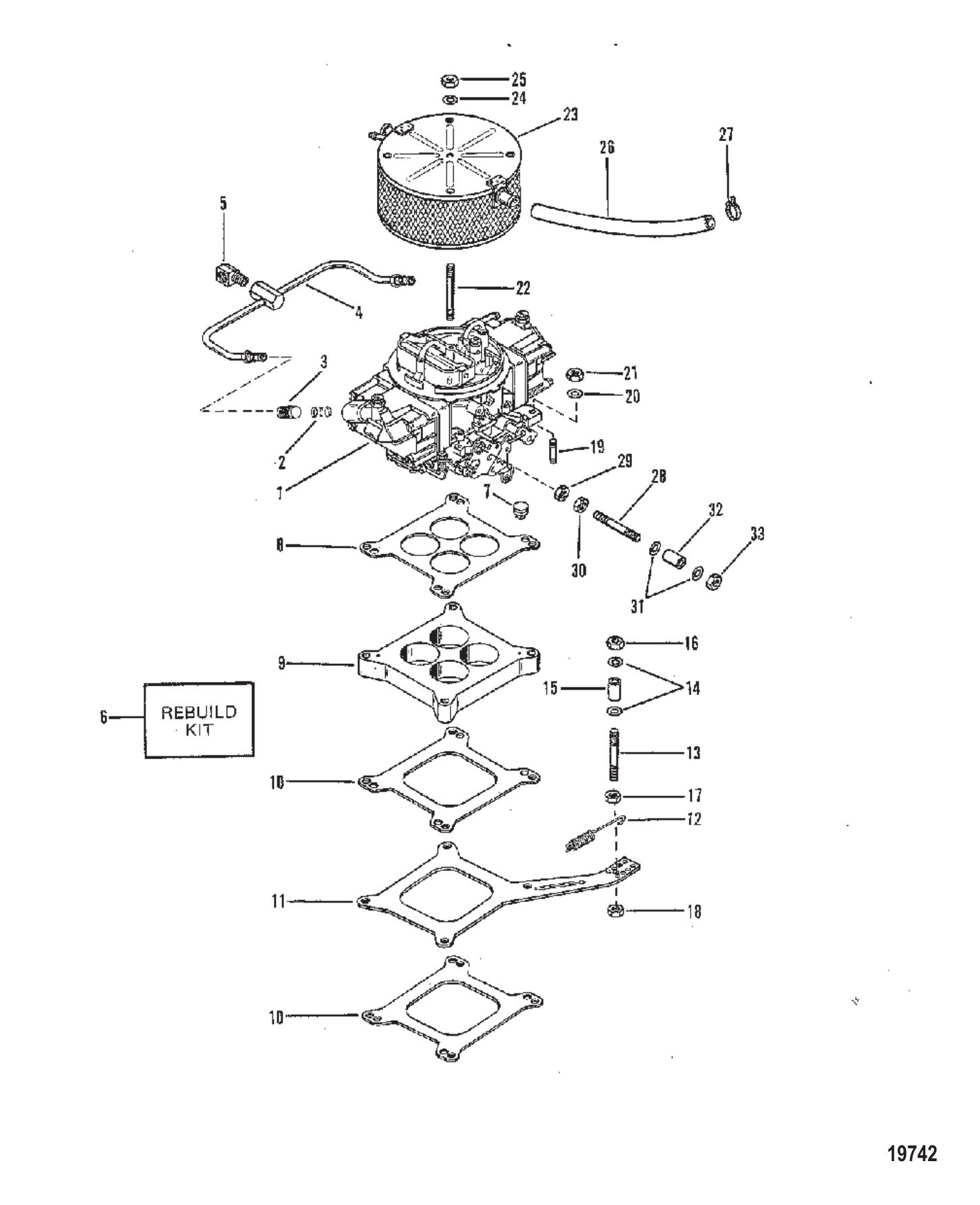

Carburetor & Linkage (440 / 460)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	99386A2	GASKET SET (1 required per assembly)
		27-99386A 2 - Gasket Set, NLA [ More info ] Unavailable
#1	13549A2	CARBURETOR (1 required per assembly) — Replaces: 8862A1, 13549A1
		13549A 2 - Carburetor [ More info ] Unavailable
		13549A 4 - Carburetor [ More info ] Unavailable
		13549T 4 - Carburetor [ More info ] Unavailable
		13549T25 - Carburetor [ More info ] Unavailable
		13549A25 - Carburetor-BLACK [ More info ] Unavailable
#2	9032	SPRING FILTER (2 required per assembly) — Replaces: 48143
		3302-9032 - Spring, Fuel Strainer [ More info ] $7.89 Available to Order: Shipping delay up to 10 days.
#3	93568	FILTER (2 required per assembly)
		35-93568 - Filter [ More info ] $15.68 Available to Order: Shipping delay up to 10 days.
		18-7717 - Filter, 35-93568 [ More info ] $12.99 $12.78 Available to Order: Shipping delay up to 10 days.
#4	94068A1	LINE ASSEMBLY FUEL INLET (1 required per assembly) — Replaces: 94068
		32-94068A 1 - Fuel Line [ More info ] Unavailable
#5	93385	FITTING (90 DEGREE) FUEL INLET TUBE (1 required per assembly)
		22-93385 - Fitting [ More info ] $13.19 Available to Order: Shipping delay up to 10 days.
#6	13220	REBUILD KIT CARBURETOR OVERHAUL (1 required per assembly)
		13220 - Rebuild Kit [ More info ] $265.85 Available to Order: Shipping delay up to 10 days.
		18-7751 - Carburetor Kit [ More info ] $253.18 1 In Stock.
#7	8M0204657	PLUG INTAKE MANIFOLD VACUUM HOLE (1 required per assembly) — Replaces: 36373
		228M0204657 - PLUG [ More info ] $5.69 Available to Order: Shipping delay up to 10 days.
#8	41609	GASKET CARBURETOR (1 required per assembly)
		27-41609 - Carburetor Gasket [ More info ] $18.49 Available to Order: Shipping delay up to 10 days.
#9	41548	SPACER CARBURETOR (1 required per assembly)
		41548 - SPACER,NLA [ More info ] Unavailable
#10	41610	GASKET SPACER (2 required per assembly)
		27-41610 - Carburetor Spacer Gasket [ More info ] $19.19 7 In Stock.
		18-0467 - Gasket 27-41610 [ More info ] $16.19 In Stock
#11	940701	BRACKET THROTTLE (1 required per assembly) — Replaces: 94070
		94070 1 - Bracket [ More info ] Unavailable
#12	897454	SPRING THROTTLE RETURN THROTTLE RETURN (1 required per assembly) — Replaces: 32817
		24-897454 - Spring [ More info ] $12.29 Available to Order: Shipping delay up to 10 days.
#13	728091	STUD (.250 X 1.620) THROTTLE CABLE (1 required per assembly) — Replaces: 72809
		16-72809 1 - Stud [ More info ] $9.49 Available to Order: Shipping delay up to 10 days.
#14	69056	WASHER (.255 X .620 X .030) STAINLESS STEEL THROTTLE CABLE STUD (2 required per assembly) — Replaces: 21631
		12-69056 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ] $1.80 2 In Stock.
#15	31866	SPACER (.256 X .313 X .625) THROTTLE CABLE STUD (1 required per assembly)
		23-31866 - Spacer - .26 X .31 X .64 [ More info ] $5.69 10+ In Stock.
#16	8267098	NUT (.250-20) STAINLESS STEEL THROTTLE CABLE STUD (1 required per assembly) — Replaces: 56374
		11-826709 8 - Nut - Priced Individually [ More info ] $6.89 $1.38 10+ In Stock.
#17	21825	NUT (.250-28) THROTTLE CABLE STUD (1 required per assembly)
		11-21825 - Nut, (1/4x28) [ More info ] $1.70 10+ In Stock.
#18	826709109	NUT (.250-28) STAINLESS STEEL THROTTLE CABLE STUD (1 required per assembly) — Replaces: 20586, 35045
		11-826709109 - Nut, (.250-28) Stainless Steel [ More info ] $3.59 5 In Stock.
#19	30668	STUD (.312-18/.312-24 X 2.812) CARBURETOR (4 required per assembly)
		16-30668 - Stud [ More info ] $14.33 1 In Stock.
#20	20084	WASHER (.328 X .562 X .062) CARBURETOR STUD (4 required per assembly)
		12-20084 - Washer, (.328 X .562 X .062) [ More info ] $3.05 10+ In Stock.
#21	82670911	NUT (.312-24) STAINLESS STEEL CARBURETOR STUD (4 required per assembly) — Replaces: 35814
		11-826709 11 - Nut (5/16-24) [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#22	306671	STUD FLAME ARRESTOR (1 required per assembly) — Replaces: 30667
		16306671 - Stud [ More info ] $10.19 Available to Order: Shipping delay up to 10 days.
#23	95946	FLAME ARRESTOR (1 required per assembly)
		95946 - Flame Arrestor, NLA [ More info ] Unavailable
#24	22937	WASHER FLAME ARRESTOR STUD (1 required per assembly)
		12-22937 - Washer - Priced Individually [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#25	8267089	NUT (.250-28) FLAME ARRESTOR STUD (1 required per assembly) — Replaces: 20361
		11-826708 9 - Nut - Priced Individually [ More info ] $1.50 10 In Stock.
		18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ] $11.99 $8.16 Available to Order: Shipping delay up to 10 days.
#26	8M2001709	HOSE (36.00 INCHES BULK) VENT (11'') (2 required per assembly) — Replaces: 9331512, 807498240
		32-8M2001709 - Hose - Breather - 36 Inch [ More info ] Unavailable
		32-8M2012906 - Hose [ More info ] Unavailable
		328M0062669 - Hose [ More info ] $28.49 Available to Order: Shipping delay up to 10 days.
#27	53101	CLAMP VENT HOSE (4 required per assembly)
		54-53101 - Clamp [ More info ] $5.37 10+ In Stock.
#28	728091	STUD (.250 X 1.620) THROTTLE CABLE TO CARBURETOR (1 required per assembly) — Replaces: 72809
#29	826709109	NUT (.250-28) STAINLESS STEEL THROTTLE CABLE STUD (1 required per assembly) — Replaces: 20586, 35045
#30	21825	NUT (.250-28) THROTTLE CABLE STUD (1 required per assembly)
#31	8M0204649	WASHER @10 THROTTLE CABLE STUD (2 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#32	53811	SPACER THROTTLE CABLE STUD (1 required per assembly)
		23-53811 - Spacer - Cable Stud [ More info ] $1.76 10+ In Stock.
#33	8267098	NUT (.250-20) STAINLESS STEEL THROTTLE CABLE STUD (1 required per assembly) — Replaces: 56374
