Parts for SSM VII MerCruiser Outdrive Units Connector Block & Hydraulic Hoses (Wet & Dry Sump)

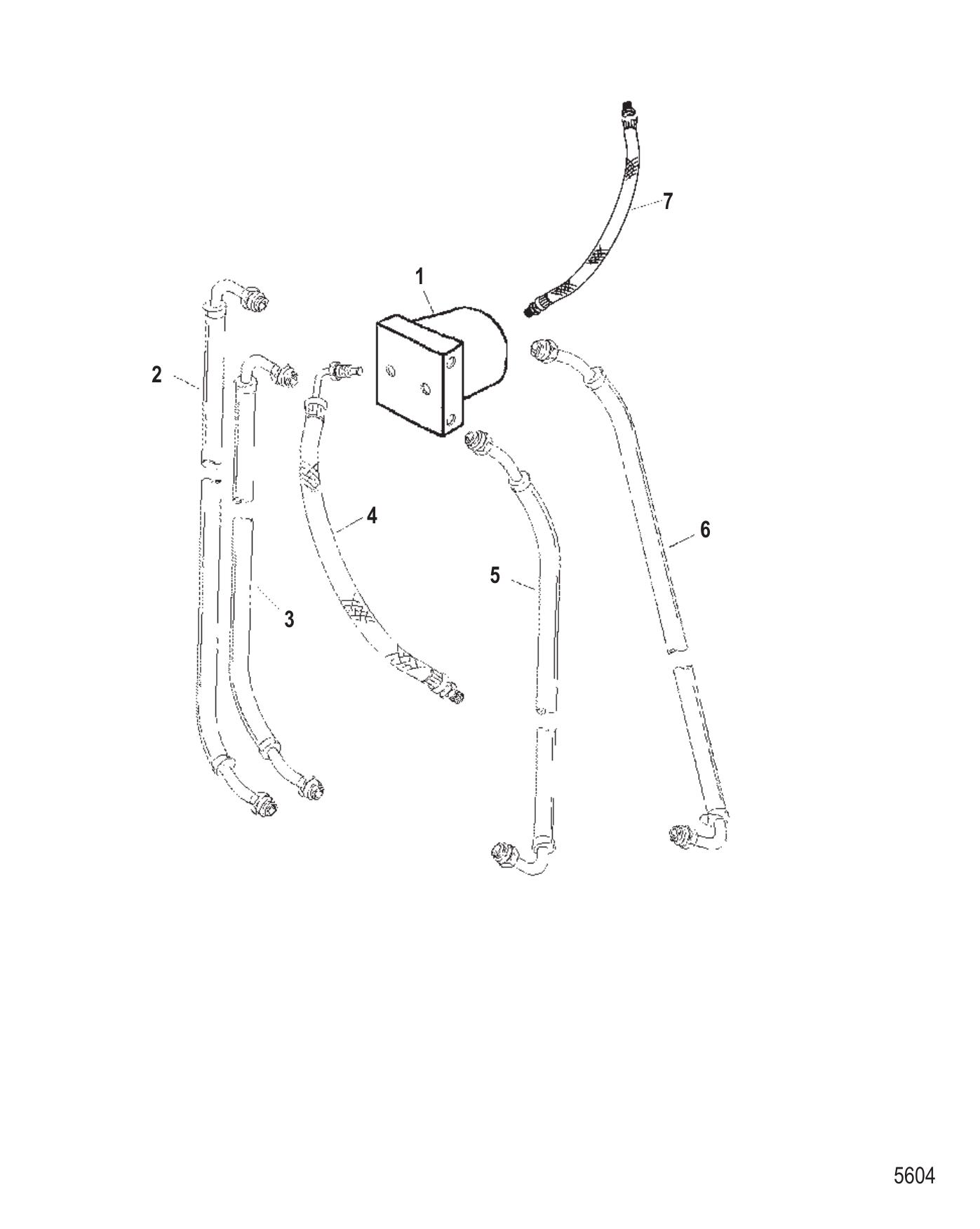

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 846471A1 | BLOCK ASSEMBLY HYDRAULIC CONNECTOR (1 required per assembly) |
  |
|
846471A 1 - Block Assembly - Hydraulic [ More info ]
|
| #2 | 846440 | HOSE STEERING (15.50 Inches) Top - Port (1 required per assembly) |
  |
|
32-846440 - Hydraulic Hose -15.5 In [ More info ]
|
| #3 | 846439 | HOSE STEERING (18.00 Inches) Bottom - Port (1 required per assembly) |
  |
|
32-846439 - Hydraulic Hose -18.0 In [ More info ]
|
| #4 | 846933 | HOSE TRIM RAM (23.00 Inches) (2 required per assembly) |
  |
|
32-846933 - Hydraulic Hose -23.0 In [ More info ]
|
| #5 | 846426 | HOSE STEERING (15.00 Inches) Bottom - Starboard (1 required per assembly) |
  |
|
32-846426 - Hydraulic Hose -15.0 In [ More info ]
|
| #6 | 846427 | HOSE STEERING (19.25 Inches) Top - Starboard (1 required per assembly) |
  |
|
32-846427 - Hydraulic Hose -19.25 In [ More info ]
|
| #7 | 845976 | HOSE ASSEMBLY HYDRAULIC (30.00 INCHES) TRIM PUMP (2 required per assembly) |
  |
|
32-845976 - Hose - Hydraulic - 30 Inch [ More info ]
|
| #NS | 86391 | O-RING (1 required per assembly) |
  |
|
25-86391 - O-ring,Transfer Port Cover [ More info ]
|
| #NS | 846345 | STUD (#10-32 X .750) (1 required per assembly) |
  |
|
16-846345 - Stud [ More info ]
|
