Parts for SSM II / III / IV / V MerCruiser Outdrive Units Gear Housing Assembly (Driveshaft) (IIIa SSM)

Revise Search: Sterndrive > MerCruiser Outdrive Units > SSM II / III / IV / V > 1982-1995 All & Up > Gear Housing Assembly (Driveshaft) (IIIa SSM)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

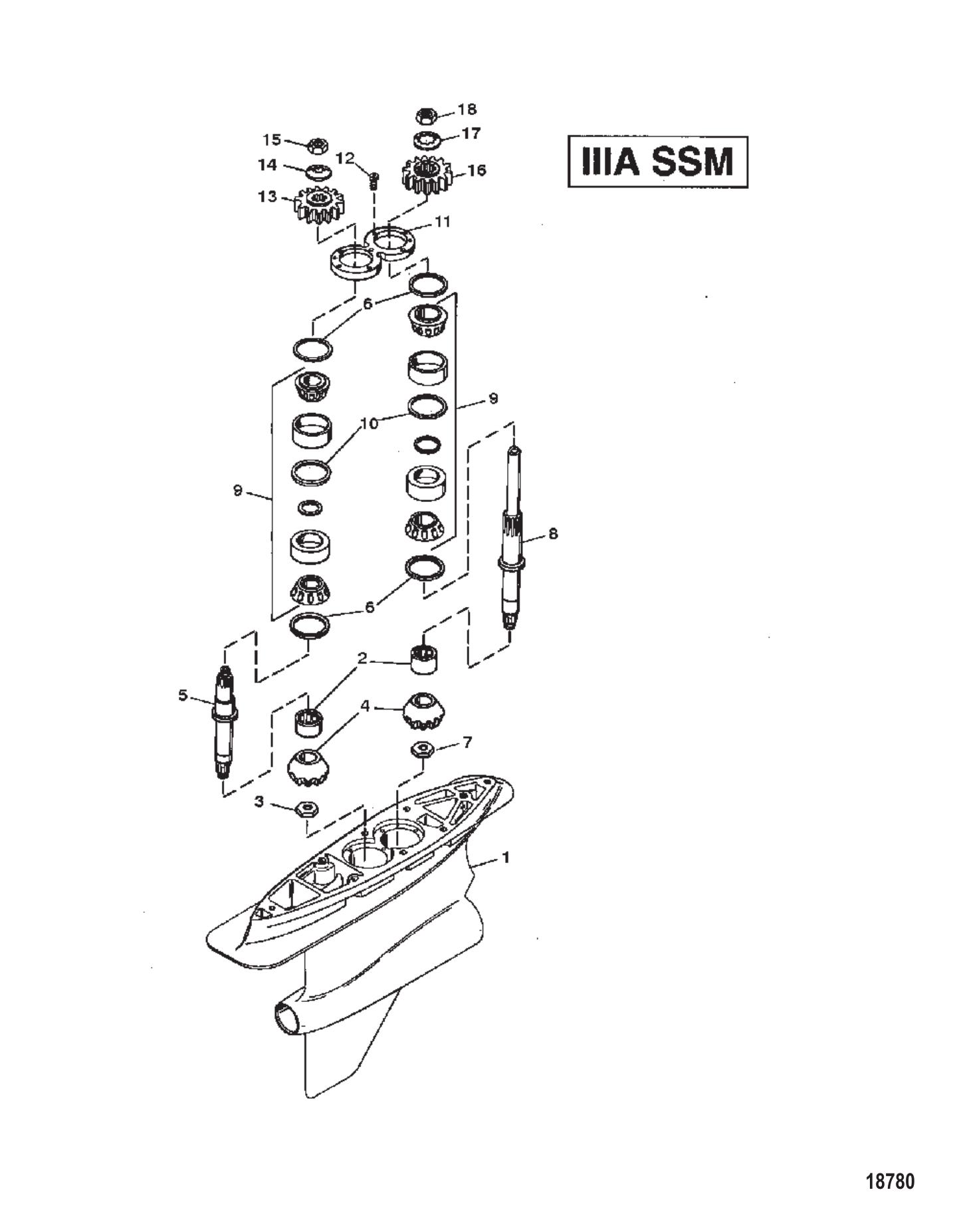

Gear Housing Assembly (Driveshaft) (IIIa SSM)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	817090T10	REBUILD KIT-MCV (1 required per assembly) — Replaces: 817090A10
		1677-817090T10 - Rebuild Kit -mcv, NLA [ More info ] Unavailable
#1	817090A13	GEAR HSG-BASIC (BASIC) (1 required per assembly)
		1677-817090A13 - GEAR HSG-BASIC,NLA [ More info ] Unavailable
#2	19480T	BEARING ROLLER (2 required per assembly) — Replaces: 19480
		31-19480T - Bearing [ More info ] Unavailable
#3	19328	NUT (SPECIAL) (1 required per assembly)
		11-19328 - Nut [ More info ] $135.12 Available to Order: Shipping delay up to 10 days.
#4	19329A1	GEAR SET (PINION AND DRIVE) (RH - 1.00:1 RATIO) (2 required per assembly)
		43-19329A 1 - Gear Set 1:1 RH,NLA [ More info ] Unavailable
#4	19330A1	GEAR SET (PINION AND DRIVE) (LH - 1.00:1 RATIO) (2 required per assembly)
		43-19330A 1 - Gear Set-1:1 LH,NLA [ More info ] Unavailable
#4	816226A1	GEAR SET (PINION AND DRIVE) (RH - 1.125:1 RATIO) (2 required per assembly) — Replaces: 19332A1
		43-816226A 1 - Gear Set,NLA [ More info ] Unavailable
#4	816227A1	GEAR SET (PINION AND DRIVE) (LH - 1.125:1 RATIO) (2 required per assembly) — Replaces: 19333A1
		43-816227A 1 - Gear Set,NLA [ More info ] Unavailable
#5	816265T	DRIVESHAFT (REAR) (1 required per assembly) — Replaces: 816265
		45-816265T - Drive Shaft,NLA [ More info ] Unavailable
#6	39808A1	SHIM SET (AR required per assembly)
		15-39808A 1 - Shim Set, NLA [ More info ] $6.00 $5.08 8 In Stock.
#7	19327	NUT (SPECIAL) (1 required per assembly)
		11-19327 - Nut [ More info ] Unavailable
#8	818552T	DRIVESHAFT (FRONT) (1 required per assembly) — Replaces: 818552
		45-818552T - Drive Shaft, NLA [ More info ] Unavailable
#9	35990A1	BEARING ASSEMBLY ROLLER ROLLER (2 required per assembly) — Replaces: 35990A2
		31-35990A 1 - Tapered Roller Bearing [ More info ] $56.49 Available to Order: Shipping delay up to 10 days.
#10	39816	SPACER (2 required per assembly)
		23-39816 - Spacer [ More info ] $38.41 1 In Stock.
#11	19326T	ADAPTOR (1 required per assembly) — Replaces: 19326
		19326T - Adaptor, NLA [ More info ] Unavailable
#12	39826	SCREW (7 required per assembly)
		10-39826 - Screw [ More info ] $1.10 $0.94 10+ In Stock.
#13	18987	GEAR SPUR (REAR) (1 required per assembly)
		43-18987 - Spur Gear [ More info ] Unavailable
#14	19479	WASHER (1 required per assembly)
		12-19479 - Washer [ More info ] Unavailable
#15	61315	NUT (SPECIAL) (1 required per assembly)
		11-61315 - Nut [ More info ] $16.00 $13.55 5 In Stock.
#16	18986	GEAR SPUR (FRONT) (1 required per assembly)
		43-18986 - Spur Gear [ More info ] Unavailable
#17	817260	WASHER (1 required per assembly)
		12-817260 - WASHER [ More info ] Unavailable
#18	19475	NUT (SPECIAL) (1 required per assembly)
		11-19475 - NUT,NLA [ More info ] Unavailable
