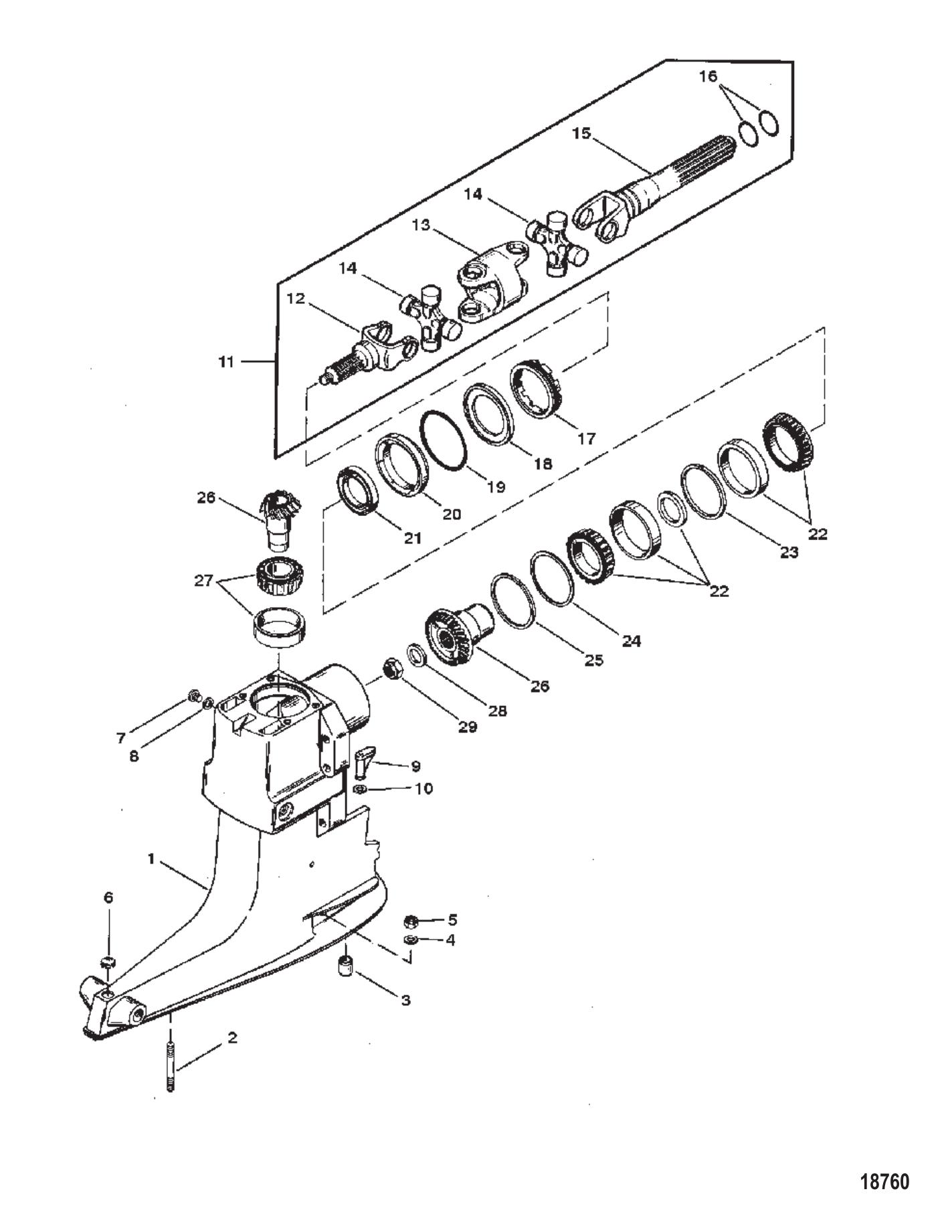

Parts for SSM II / III / IV / V MerCruiser Outdrive Units Driveshaft Housing & Gear Assy (Alpha One-Ss)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 32511A1 | SEAL KIT (1 required per assembly) |
  |
|
26-32511A 1 - Seal Kit [ More info ]
|
  |
|
18-2648 - Seal Kit, 26-32511A1 [ More info ]
|
  |
|
26-03809 - Seal Kit 26-32511A 1 [ More info ]
|
| #1 | 9552A5 | D SHAFT HSG ASSY (1 required per assembly) |
  |
|
3500-9552A 5 - D SHAFT HSG ASSY,NLA [ More info ] Unavailable |
| #2 | 56295 | STUD (.437 X 2.69) (2 required per assembly) |
  |
|
16-56295 - Stud - Priced Individually [ More info ]
|
| #3 | 812846 | BUSHING (1 required per assembly) |
  |
|
23-812846 - Bushing,NLA [ More info ] Unavailable |
| #4 | 45176 | WASHER @5 (2 required per assembly) |
  |
|
12-45176 - Washer, (.453 X .812 X .105) [ More info ]
|
| #5 | 859116 | NUT @5 (2 required per assembly) — Replaces: 134391 |
  |
|
11-859116 - Nut, (.437-20), Sold Individually [ More info ]
|
| #6 | 47579 | PLUG @5 (1 required per assembly) |
  |
|
19-47579 - Plug - Priced Individually [ More info ]
|
  |
|
18-3232-9 - Plug, 19-47579, 5PK [ More info ]
|
| #7 | 79953Q2 | SCREW KIT @2 (1 required per assembly) — Replaces: 79953, 79953A2 |
  |
10-79953Q 2 - Screw Kit - Priced Individually [ More info ] Unavailable |
|
  |
|
10-79953Q04 - Screw Kit - Priced Individually [ More info ]
|
  |
|
18-2244 - Plug Kit, 10-79953A2 [ More info ]
|
  |
|
10-79953K04 - Drain Screw - Priced Individually [ More info ]
|
| #8 | 191833 | SEAL-BLUE @15 (1 required per assembly) — Replaces: 19183, 191832 |
  |
12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable |
|
  |
|
18-2945-9 - Gasket 12-19183 2-Pack [ More info ]
|
  |
|
12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ]
|
  |
|
12-19183K02 - Seal, Pack of 4 [ More info ]
|
  |
|
12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ]
|
  |
|
12-02108-1 - Drain Gasket (1 piece) [ More info ]
|
| #9 | 12625 | SHIFTER (1 required per assembly) |
  |
|
12625 - Shifter [ More info ] Unavailable |
| #10 | 12626 | RING RETAINING (1 required per assembly) |
  |
|
53-12626 - Ring - Retaining [ More info ]
|
| #11 | 814819A2 | UNIVERSAL JOINT (1 required per assembly) — Replaces: 59830A5 |
  |
|
814819A 2 - Universal Joint [ More info ]
|
  |
|
92-102-06K - Complete U-Joint replaces 814819A2 [ More info ]
|
| #12 | 46020002 | YOKE-SHORT (1 required per assembly) — Replaces: 46020T, 460201 |
  |
46020002 - Yoke-Short [ More info ] Unavailable |
|
  |
|
46020T02 - Yoke - Short [ More info ]
|
  |
|
18-2125 - Short Yoke, 46020T [ More info ]
|
  |
|
94-03800 - Short Yoke, 46020T [ More info ]
|
| #13 | 393831 | SOCKET CENTER (1 required per assembly) — Replaces: 39383T |
  |
|
39383 1 - Yoke, Center Socket [ More info ]
|
  |
|
94-01440 - Center Yoke Socket 0912213 [ More info ]
|
| #14 | 75832T1 | CROSS AND BEARING (2 required per assembly) — Replaces: 75832A3, 758321 |
  |
|
75832T 1 - Cross & Bearing - Heavy Duty [ More info ]
|
  |
|
18-2174 - Universal Joint 75832A3 [ More info ]
|
  |
|
18-2104 - Universal Joint 75832A2 [ More info ]
|
  |
|
94-00801 - Universal Joint 75832T [ More info ]
|
| #15 | 59830A7 | YOKE ASSEMBLY (COUPLING END) (1 required per assembly) — Replaces: 59830A1 |
  |
|
59830A 7 - Yoke Assembly [ More info ]
|
  |
|
18-2146 - Long Yoke, 59830A7 [ More info ]
|
  |
|
94-02421 - Long Yoke 59830A 7 [ More info ]
|
| #16 | 25439 | O-RING (.862 X .103) (2 required per assembly) |
  |
|
25-25439 - O-Ring, Shaft Shaft Bushing [ More info ]
|
| #17 | 8168112 | RETAINER-BEARING (1 required per assembly) — Replaces: 66071, 8168111 |
  |
816811 2 - Bearing Retainer [ More info ] Unavailable |
|
  |
|
93-02673 - U-Joint Retainer Nut 8168112 [ More info ]
|
  |
|
8M0169040 - Bearing Retainer [ More info ]
|
| #18 | 35983 | RING (1 required per assembly) |
  |
|
35983 - Ring, Roller Bearing Retainer to Oil Seal Carrier [ More info ]
|
| #19 | 70937 | O RING @10 (1 required per assembly) |
  |
|
25-70937 - O-ring, Oil Seal Carrier [ More info ]
|
  |
|
18-7169-9 - O-Ring (PK5) 25-70937, 911686 [ More info ]
|
  |
|
25-8M0214941 - OIL SEAL CARRIER O-RING Note: Priced Individually [ More info ]
|
| #20 | 8M0171103 | CARRIER ASSY (1 required per assembly) — Replaces: 66081A2 |
  |
|
8M0171103 - U-Joint SEAL CARRIER ZZ [ More info ]
|
  |
|
18-0577 - Carrier Assembly, 66081A2 [ More info ]
|
  |
|
93-02717 - Carrier Assembly 66081A 2 [ More info ]
|
| #21 | 823894 | SEAL OIL (1 required per assembly) — Replaces: 68493 |
  |
|
26-823894 - Seal [ More info ]
|
  |
|
18-2003 - Seal, 26-823894 [ More info ]
|
| #22 | 35988A9 | BEARING ASSY (1.50:1 RATIO)(STEP SHOULDER GEAR) (1 required per assembly) |
  |
|
31-35988A 9 - Bearing [ More info ]
|
| #22 | 35988A12 | BEARING ASSY (1.50:1 RATIO)(STRAIGHT SHOULDER GEAR) (1 required per assembly) — Replaces: 35988A2 |
  |
|
31-35988A12 - Bearing Kit - Roller [ More info ]
|
  |
|
31-00571 - Bearing Assembly 31-35988A 12 [ More info ]
|
| #22 | 35988A3 | BEARING ASSY (1.32:1 RATIO) (1 required per assembly) |
  |
|
31-35988A 3 - Tapered Roller Bearing [ More info ] Unavailable |
| #23 | 66824 | SPACER (1.32:1 RATIO) (1 required per assembly) |
  |
|
23-66824 - Spacer - Roller Bearing Cups [ More info ]
|
| #23 | 35985 | SPACER (1.50:1 RATIO)(STRAIGHT SHOULDER GEAR) (1 required per assembly) |
  |
|
23-35985 - Spacer - Drive Gear Bearing Cups [ More info ]
|
| #24 | 35980A1 | SHIM SET (AR required per assembly) |
  |
|
15-35980A 1 - Shim Set [ More info ]
|
| #25 | 8M0124132 | SHIM @2 (1 required per assembly) — Replaces: 71013 |
  |
|
238M0124132 - Shim - Priced Individually [ More info ]
|
| #26 | 18411A4 | GEAR KIT WITH BEARINGS AND SHIMS (PINION AND DRIVE) (1.50:1 RATIO) (20-22 GEAR RATIO) (1 required per assembly) — Replaces: 18410A4 |
  |
|
43-18411A 4 - Gear Kit With Bearings And Shims [ More info ]
|
| #26 | 8M0080756 | GEAR SET (PINION AND DRIVE) (1.32:1 RATIO) (16-20 GEAR RATIO) (1 required per assembly) — Replaces: 66773A3 |
  |
|
438M0080756 - Gear Set [ More info ]
|
  |
|
43-803115T 1 - Gear Repair Kit [ More info ]
|
| #27 | 32573A1 | BEARING ASSY (1.50:1 RATIO) (1 required per assembly) |
  |
|
31-32573A 1 - Bearing - Roller [ More info ]
|
  |
|
18-1142 - Bearing 31-32573A1 [ More info ]
|
| #27 | 66818A1 | BEARING ASSY (1.32:1 RATIO) (1 required per assembly) |
  |
|
31-66818A 1 - Roller Bearing - Pinion Gear [ More info ]
|
| #28 | 45810 | WASHER (1 required per assembly) |
  |
|
12-45810 - Washer, Drive Gear To Universal Joint [ More info ]
|
| #29 | 22339 | NUT @5 (1 required per assembly) |
  |
11-22339 - Nut (5/8x18) [ More info ] Unavailable |
|
  |
|
18-3713 - Nut, 11-22339 [ More info ]
|
  |
|
11-8M0214915 - NUT Note: Priced Individually [ More info ]
|
  |
|
11-01817 - Nut 11-22339 [ More info ]
|
