Parts for R / Mr / Alpha One (Sterndrive) MerCruiser Outdrive Units Gear Housing (Driveshaft) - Mr

Revise Search: Sterndrive > MerCruiser Outdrive Units > R / Mr / Alpha One (Sterndrive) > 1983-1990 6225577 - 0F386995 > Gear Housing (Driveshaft) - Mr

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

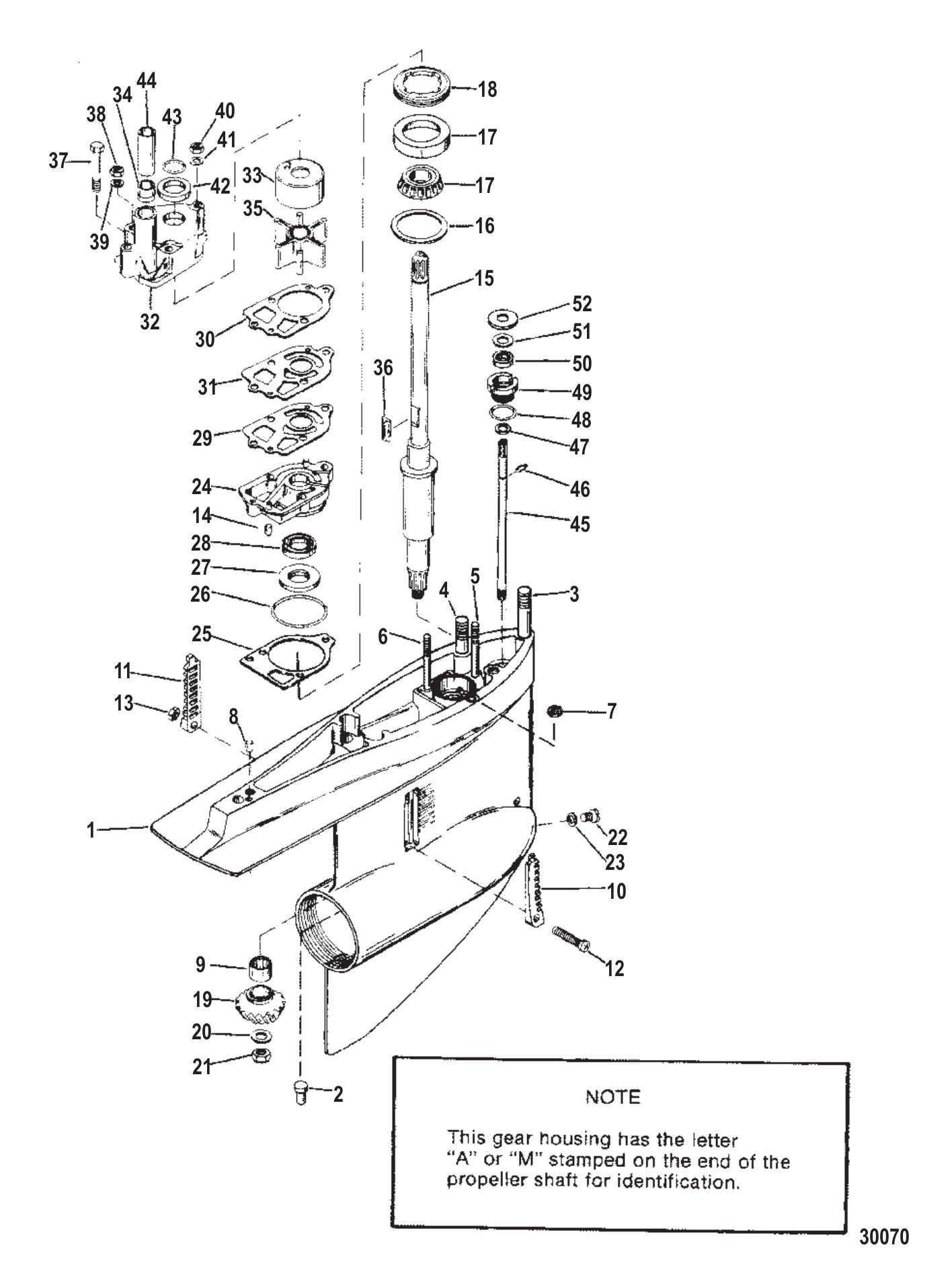

Gear Housing (Driveshaft) - Mr

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	803091T1	REPAIR KIT-GEARS (1 required per assembly)
		43-803091T 1 - Gear Repair Kit [ More info ] $1,122.49 Available to Order: Shipping delay up to 10 days.
#-	44292A3	BASE ASSY-W/P (1 required per assembly)
		46-44292A 3 - Water Pump Base [ More info ] $43.49 $42.72 In Stock
		18-3420 - Water Pump Base 46-44292A3 [ More info ] $35.99 $35.88 6 In Stock.
		46-01844 - Water Pump Base Kit 46-44292A 3 [ More info ] $34.99 $29.28 In Stock
#-	89984T5	REPAIR KIT-W/P (1 required per assembly)
		47-89984T 5 - Water Pump Repair Kit [ More info ] $69.49 2 In Stock.
		47-89984Q 5 - Water Pump Repair Kit [ More info ] $62.99 2 In Stock.
#-	33144A2	SEAL KIT (1 required per assembly)
		26-33144A 2 - Seal Kit [ More info ] $99.99 In Stock
		18-2652 - Seal Kit, 26-33144A2 [ More info ] $69.05 7 In Stock.
#-	32511A1	SEAL KIT (1 required per assembly)
		26-32511A 1 - Seal Kit [ More info ] $77.49 In Stock
		18-2648 - Seal Kit, 26-32511A1 [ More info ] $31.98 10+ In Stock.
		26-03809 - Seal Kit 26-32511A 1 [ More info ] $41.99 $27.20 4 In Stock.
#-	96148A8	PUMP KIT-WATER (1 required per assembly)
		46-96148A 8 - Water Pump Kit, No Base [ More info ] $71.99 5 In Stock.
		18-3517 - Water Pump Kit, No Base, 46-96148A8 [ More info ] $54.29 $54.25 10+ In Stock.
		18-3317 - Mercury Water Pump Kit, With Base 18-3417 [ More info ] $69.61 In Stock
		46-96148T 8 - Water Pump Kit, No Base [ More info ] $83.49 1 In Stock.
		46-00090 - Water Pump Kit, No Base, 46-96148A8 [ More info ] $49.99 $46.62 10+ In Stock.
		46-00048 - Water Pump Kit w/Base, base is OEM 46-44292A3 equivalent [ More info ] $57.99 $51.04 6 In Stock.
		46-00047 - Water Pump Kit with Base 96148A8, uses base matching 46-57234A1 [ More info ] $53.99 $48.17 Available to Order: Shipping delay up to 10 days.
#-	878087A4	GEAR SET-21T (1 required per assembly)
		43-878087A 4 - Gear Set [ More info ] $915.49 $915.07 Available to Order: Shipping delay up to 10 days.
#-	803090T1	REPAIR KT-BEARING (1 required per assembly)
		31-803090T 1 - Bearing And Seal Kit [ More info ] $373.49 Available to Order: Shipping delay up to 10 days.
#1	8951A37	GEAR HOUSING ASSEMBLY (BLACK) (1 required per assembly)
		1623-8951A37 - Gear Housing Assembly [ More info ] $1,571.49 Available to Order: Shipping delay up to 10 days.
#2	379721	PIN (1 required per assembly)
		17-37972 1 - Pin [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#3	46911	STUD (3-3/16 INCH) (1 required per assembly)
		16-46911 - Stud [ More info ] $7.49 $1.50 10+ In Stock.
#4	56298	STUD (.437 X 1.97) (1-31/32 INCH) (2 required per assembly)
		16-56298 - Stud [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#5	8M0034463	STUD (.312-24 X 3.38) (1 required per assembly) — Replaces: 562972
		16-8M0034463 - Stud [ More info ] $17.89 Available to Order: Shipping delay up to 10 days.
#6	69501	STUD (3-1/4 INCH) (2 required per assembly)
		16-69501 - Stud [ More info ] $3.59 2 In Stock.
#7	8M0204680	SEAL @3 See Note 1 (1 required per assembly) — Replaces: 455771
		26-8M0204680 - QUAD RING SEAL, ORANGE, Priced Individually [ More info ] $4.29 4 In Stock.
#8	35973	PIN DOWEL (2 required per assembly)
		17-35973 - Pin -Dowel - Priced Individually [ More info ] $1.80 10+ In Stock.
#9	42647A1	BEARING ASSEMBLY ROLLER (1 required per assembly)
		31-42647A 1 - Roller Bearing - Drive Shaft [ More info ] $65.99 Available to Order: Shipping delay up to 10 days.
		18-1117 - Bearing, 387817, 31-42647A1 [ More info ] $56.09 1 In Stock.
		31-02762 - Bearing, 31-42647A1, 387817 [ More info ] $47.99 $42.20 Available to Order: Shipping delay up to 10 days.
#10	934231	INSERT (STARBOARD) (BLACK) (1 required per assembly)
		93423 1 - Insert [ More info ] $8.69 Available to Order: Shipping delay up to 10 days.
#11	934241	INSERT (PORT) (BLACK) (1 required per assembly)
		93424 1 - Insert [ More info ] $8.99 $5.04 2 In Stock.
#12	76156	SCREW (#10-32 X 1.88) (1 required per assembly)
		10-76156 - Screw [ More info ] $3.39 10+ In Stock.
#13	859124	NUT (#10-32) STAINLESS STEEL (1 required per assembly) — Replaces: 45812
		11-859124 - Nut, (#10-32) Stainless Steel, Nylon Insert [ More info ] $18.69 10+ In Stock.
#14	42836	PIN GROOVE (1 required per assembly)
		17-42836 - Pin, Groove, Water Pump,NLA [ More info ] $1.96 $1.66 10 In Stock.
#15	8M0140438	DRIVESHAFT (1 required per assembly) — Replaces: 42634
		458M0140438 - Drive Shaft [ More info ] $675.49 Available to Order: Shipping delay up to 10 days.
#16	8M0063267	SHIM SET (AR required per assembly) — Replaces: 42637A1
		15-8M0063267 - Shim Set [ More info ] $28.41 10+ In Stock.
#17	8M0146566	BEARING ASSEMBLY CUP/CONE (1 required per assembly) — Replaces: 36387A1
		318M0146566 - Upper Driveshaft Bearing [ More info ] $74.99 $74.83 Available to Order: Shipping delay up to 10 days.
		31-02194 - Bearing Kit 31-36387A 1 [ More info ] $52.49 $41.29 In Stock
#18	8245191	RETAINER (1 required per assembly)
		824519 1 - Retainer [ More info ] $6.99 1 In Stock.
		18-2346 - Retainer, 824519 1 [ More info ] $5.25 Available to Order: Shipping delay up to 10 days.
#19	878087A4	GEAR SET (INCLUDES PINION AND FORWARD GEARS) (1 required per assembly)
#20	92721	WASHER (1 required per assembly)
		12-92721 - Washer, Pinion Gear [ More info ] $1.50 $0.85 10+ In Stock.
		18-2359 - Nut Kit [ More info ] $5.19 $3.51 Available to Order: Shipping delay up to 10 days.
#21	35921	NUT (.625-18) (1 required per assembly)
		11-35921 - Nut, (.625-18) [ More info ] $7.99 10+ In Stock.
		18-3719 - Nut, 11-35921, 314730 [ More info ] $5.19 1 In Stock.
#22	67892A06	PLUG KIT DRAIN - MAGNETIC (1 required per assembly) — Replaces: 67892A1, 67892A05
		22-67892A06 - Drain Plug Kit [ More info ] Unavailable
		22-8M0058389 - Screw Kit - Priced Individually [ More info ] $11.69 6 In Stock.
		18-23751-9 - Drain Screw , Package of 50 [ More info ] $346.09 In Stock
		18-2375 - Plug, 22-67892A1 [ More info ] $7.16 10+ In Stock.
		10-02683 - Drain Screw [ More info ] $6.39 $6.03 2 In Stock.
#23	191833	SEAL (Component of Drive Shaft Housing Seal Kit 26-32511A) See Note 1 (1 required per assembly) — Replaces: 191832
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 5 In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 8 In Stock.
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
#24	44292A3	BASE ASSEMBLY WATER PUMP (1 required per assembly)
#25	8M0204678	GASKET (1 required per assembly) — Replaces: 426311
		27-8M0204678 - WATER PUMP Gasket [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#26	8M0142854	O RING (2.175 X .103) (AR required per assembly) — Replaces: 90011, 896523
		25-8M0142854 - O-Ring [ More info ] $1.10 5 In Stock.
#26	38099	O-RING (2.109 I.D.) (AR required per assembly)
		25-38099 - O-ring (.139 X 2.109 Id) [ More info ] $3.29 10+ In Stock.
#27	89238	SEAL OIL (1 required per assembly)
		26-89238 - Seal [ More info ] $21.19 In Stock
		18-2014 - Seal 26-89238, 26F69430 [ More info ] $18.86 5 In Stock.
		26-00171 - Seal 26-89238, 26F694305 [ More info ] $16.99 $14.00 Available to Order: Shipping delay up to 10 days.
#28	16977	SEAL OIL (1 required per assembly)
		26-16977 - Seal [ More info ] $18.69 In Stock
		18-2026 - Seal, 321453 [ More info ] $15.99 $15.82 10+ In Stock.
		18-2013 - Seal, 26-16977 [ More info ] $15.99 $14.81 2 In Stock.
#29	8M0090319	GASKET @5 LOWER See Note 1 (1 required per assembly) — Replaces: 856081
		27-8M0090319 - Water Pump Gasket - Priced Individually [ More info ] $4.19 7 In Stock.
		18-2914-9 - Gasket 27-85608 2-Pack [ More info ] $6.27 Available to Order: Shipping delay up to 10 days.
#30	858524	GASKET UPPER See Note 1 (1 required per assembly)
		27-858524 - Water Pump Base Gasket [ More info ] $4.09 9 In Stock.
		18-2915-9 - Gasket 27-858524 2-Pack [ More info ] $6.14 Available to Order: Shipping delay up to 10 days.
#31	8M0204677	PLATE-FACE See Note 1 (1 required per assembly) — Replaces: 32435, 324351
		8M0204677 - Wear Plate [ More info ] $9.29 1 In Stock.
#32	96148T1	BODY ASSEMBLY WATER PUMP (1 required per assembly)
		46-96148T 1 - Water Pump Body [ More info ] $51.99 In Stock
		18-3116 - Housing 46-96148A1 [ More info ] $49.09 4 In Stock.
#33	48752T	INSERT (1 required per assembly)
		48752T - Water Pump Insert - Priced Individually [ More info ] $12.39 4 In Stock.
		18-3114 - SS Cup, 48752 [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#34	38970	SEAL RUBBER (1 required per assembly)
		26-38970 - Seal - Priced Individually [ More info ] $5.09 10+ In Stock.
		18-3110 - Seal, 26-38970 [ More info ] $3.49 $3.43 5 In Stock.
#35	89984T4	IMPELLER See Note 1 (1 required per assembly)
		47-89984T 4 - Impeller [ More info ] $49.49 4 In Stock.
		18-3017 - Impeller 47-89984 [ More info ] $39.99 $23.95 10+ In Stock.
		47-00001 - Water Pump Impeller Mercury Force 47-89984T 4 [ More info ] $20.89 $20.72 10+ In Stock.
#36	8M0032834	KEY See Note 1 (1 required per assembly) — Replaces: 56654
		28-8M0032834 - Key - Priced Individually [ More info ] $4.40 10+ In Stock.
		28-8M0214992 - KEY @5 [ More info ] Unavailable
#37	96411	SCREW (#14-8 X 2.25) (1 required per assembly)
		10-96411 - Screw [ More info ] $2.00 10+ In Stock.
		10-8M0215009 - SCREW [ More info ] Unavailable
#38	8267119	NUT (.250-28) (2 required per assembly) — Replaces: 13438
		11-826711 9 - Nut [ More info ] $2.59 10+ In Stock.
#39	8M0204649	WASHER @10 (2 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#40	13436	NUT (5/16-24) (1 required per assembly)
		11-13436 - Nut (5/16-24) [ More info ] $3.29 5 In Stock.
#41	36001	WASHER (1 required per assembly)
		12-36001 - Washer - Priced Individually [ More info ] $1.50 10+ In Stock.
		18-4270 - Washer 12-36001 [ More info ] $1.25 $0.91 2 In Stock.
#42	30271	RING RUBBER (Component of Water Pump Impeller Kit 47-89984T5) (1 required per assembly)
		25-30271 - Ring - Priced Individually [ More info ] $1.90 2 In Stock.
		18-7426-9 - O-Ring (PK2) 25-30271 [ More info ] $4.39 Available to Order: Shipping delay up to 10 days.
		25-8M0214918 - WATER PUMP HSG RUBBER RING O/B [ More info ] $1.99 6 In Stock.
#43	30613	O-RING UPPER (Component of Water Pump Impeller Kit 47-89984T5) (1 required per assembly)
		25-30613 - O-ring, Upper Drive Shaft [ More info ] Unavailable
		25-8M0214919 - O RING @5 [ More info ] Unavailable
#44	29804T	SLEEVE GUIDE (Component of Water Pump Impeller Kit 47-89984T5) (1 required per assembly)
		23-29804T - Sleeve - Priced Individually [ More info ] $8.99 9 In Stock.
		18-3109 - Tube 23-29804 [ More info ] $6.21 1 In Stock.
#45	774811	SHIFT SHAFT (1 required per assembly)
		77481 1 - Shift Shaft - Lower [ More info ] $63.49 $33.36 5 In Stock.
		18-2150 - Shaft, 77481-1 [ More info ] $59.29 $24.95 In Stock
#46	29641	E RING (1 required per assembly)
		53-29641 - E Ring - Priced Individually [ More info ] $1.80 8 In Stock.
#47	27880	WASHER (1 required per assembly)
		12-27880 - Washer, Lower Shift Shaft And Crank [ More info ] $1.70 10+ In Stock.
#48	25439	O-RING (.862 X .103) (1 required per assembly)
		25-25439 - O-Ring, Shaft Shaft Bushing [ More info ] $1.99 10+ In Stock.
#49	8M0112749	BUSHING ASSY. (1 required per assembly) — Replaces: 30617A2
		23-8M0112749 - Shift Shaft Bushing ZZ [ More info ] $29.39 In Stock
#50	892361	SEAL OIL (1 required per assembly)
		26-89236 1 - Seal [ More info ] $17.69 10+ In Stock.
		18-2009 - Seal, 26-89236 [ More info ] $13.12 8 In Stock.
#51	31266	WASHER RUBBER (1 required per assembly)
		12-31266 - Washer (rubber) [ More info ] $1.10 2 In Stock.
#52	8M0042641	WASHER (.390 X 1.00 X .06) (1 required per assembly) — Replaces: 29395
		12-8M0042641 - Washer [ More info ] $1.70 5 In Stock.
		18-4267-9 - Washer, 12-29395, 2PK [ More info ] $3.49 Available to Order: Shipping delay up to 10 days.
#--	8951A43	GEAR HOUSING ASSEMBLY COMPLETE (BLACK) (1 required per assembly)
		1623-8951A43 - Gear Housing Assembly [ More info ] Unavailable
		90-106-02 - SE106 Lower Unit Mercruiser Alpha One, Standard Rotation [ More info ] $1065.00 $1065.00 Available to Order
