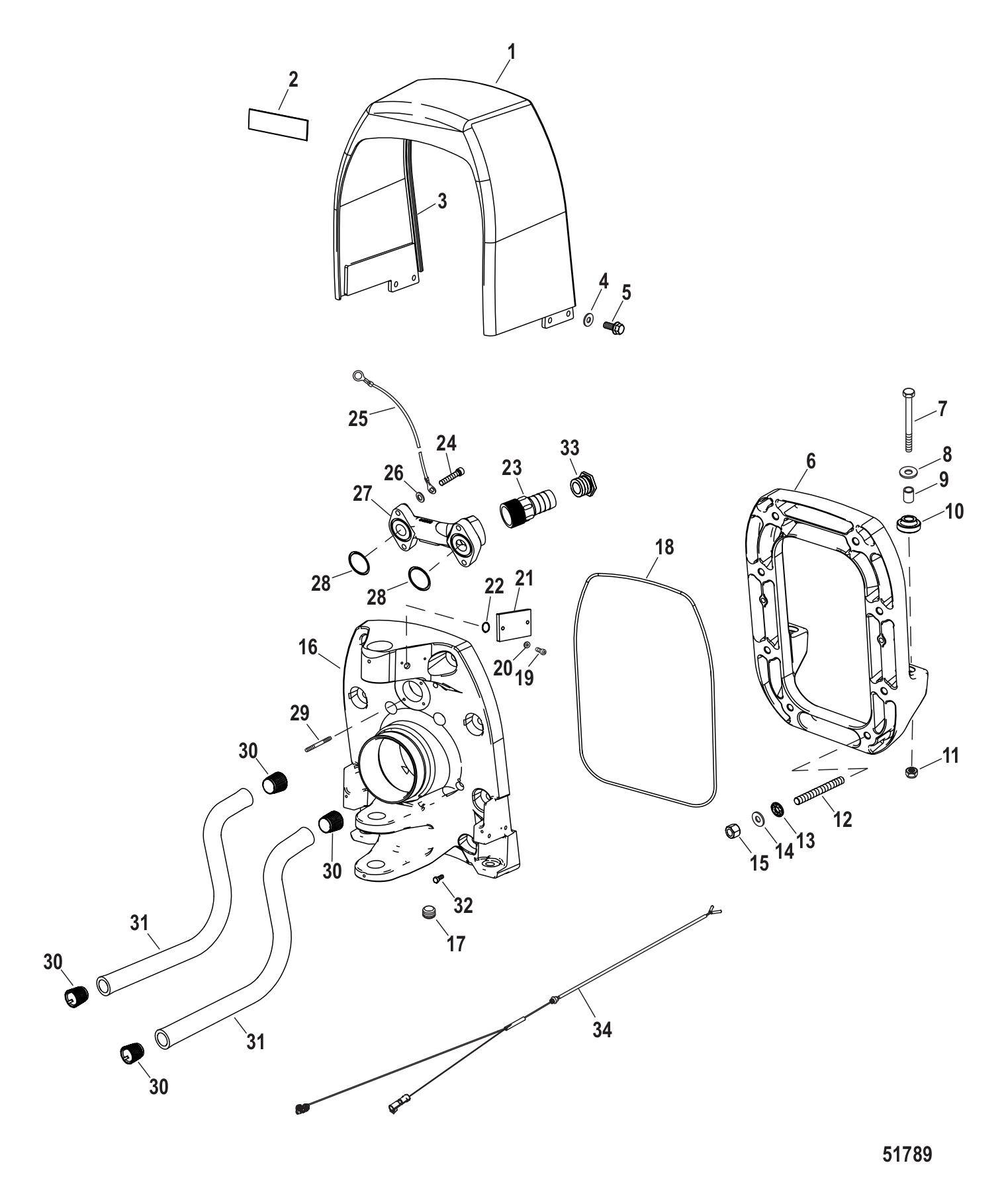

Outer Transom Assembly

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0050504	COWL ASSY (1 required per assembly) — Replaces: 841959A01
		8M0050504 - Cowl Assembly [ More info ] $977.98 Available to Order: Shipping delay up to 10 days.
#2	8M8020346	DECAL NXT1 (1 required per assembly)
		37-8M8020346 - Decal -NXT1 [ More info ] $45.12 Available to Order: Shipping delay up to 10 days.
#3	8M8021103	EXTRUSION (3.75 FEET) RUBBER (1 required per assembly)
		8M8021103 - Extrusion [ More info ] Unavailable
		8M0192264 - EXTRUSION [ More info ] Unavailable
#4	823933	WASHER (4 required per assembly)
		12-823933 - Washer, (.405 X .760 X .060) [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#5	805559	SCREW (4 required per assembly)
		10-805559 - Screw [ More info ] $10.29 Available to Order: Shipping delay up to 10 days.
#6	8M0127616	TRANSOM PLATE-INR (1 required per assembly) — Replaces: 841955001
		8M0127616 - TRANSOM Plate-INR [ More info ] $932.43 Available to Order: Shipping delay up to 10 days.
#7	97934	SCREW (2 required per assembly)
		10-97934 - Screw [ More info ] Unavailable
		10-8M0215010 - Screw [ More info ] $5.99 Available to Order: Shipping delay up to 10 days.
#8	35777	WASHER @2 (2 required per assembly)
		12-35777 - Washer, (.5156 X 1.375 X .125) Aluminum [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#9	99299	SPACER (2 required per assembly)
		23-99299 - Spacer - .52 X .87 X .63 [ More info ] $7.49 1 In Stock.
#10	8M0000066	SPACER (2 required per assembly)
		23-8M0000066 - Spacer [ More info ] $21.15 Available to Order: Shipping delay up to 10 days.
#11	863332	NUT (2 required per assembly)
		11-863332 - Nut, (.500-20) Aluminum [ More info ] $7.19 Available to Order: Shipping delay up to 10 days.
#12	846384	STUD (8 required per assembly)
		16-846384 - Stud [ More info ] $56.35 Available to Order: Shipping delay up to 10 days.
#13	8M0000668	O-RING (8 required per assembly)
		25-8M0000668 - O-ring, (.600 X .210) [ More info ] $4.04 Available to Order: Shipping delay up to 10 days.
#14	47428	WASHER (8 required per assembly)
		12-47428 - Washer, (.660 X 1.120 X .141) Stainless Steel [ More info ] $11.65 1 In Stock.
#15	47379	NUT (8 required per assembly)
		11-47379 - Nut, (.625-18) Stainless Steel [ More info ] $22.40 $6.27 10+ In Stock.
#16	8M8025995	TRANSOM ASSY-OUTR (1 required per assembly) — Replaces: 841958A01, 841958T01
		8M8025995 - Outer Transom Assembly [ More info ] Unavailable
#16	8M0046327	TRANSOM ASSY-OUTR (1 required per assembly)
		8M0046327 - Outer Transom Assembly [ More info ] Unavailable
#17	35052	PLUG PIPE (.250-18 X .375) (5 required per assembly)
		22-35052 - Pipe Plug [ More info ] $19.59 Available to Order: Shipping delay up to 10 days.
#18	847213	O-RING SPECIAL (1 required per assembly)
		25-847213 - O-Ring [ More info ] $56.76 Available to Order: Shipping delay up to 10 days.
#19	842143	SCREW (#10-32 X .620) STAINLESS STEEL (2 required per assembly)
		10-842143 - Screw [ More info ] Unavailable
#20	72761	WASHER (.203 X .562 X .060) STAINLESS STEEL (2 required per assembly)
		12-72761 - Washer, (.203 X .562 X .060) Stainless Steel [ More info ] $1.63 10+ In Stock.
#21	8M0008595	COVER (1 required per assembly)
		8M0008595 - Cover [ More info ] $27.14 Available to Order: Shipping delay up to 10 days.
#22	85045	O-RING (.551 X .070) (1 required per assembly)
		25-85045 - O-ring, (.551 X .070) [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#23	8M0051041	FITTING (1 required per assembly) — Replaces: 8625561
		22-8M0051041 - Fitting [ More info ] $11.57 Available to Order: Shipping delay up to 10 days.
#24	823029	SCREW (4 required per assembly)
		10-823029 - Screw [ More info ] $6.44 Available to Order: Shipping delay up to 10 days.
#25	62826A10	CABLE ASSY (1 required per assembly)
		84-62826A10 - Cable Assembly [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#26	843108	WASHER (4 required per assembly)
		12-843108 - Washer, (.330 X .560 X .060) Stainless Steel [ More info ] $0.69 Available to Order: Shipping delay up to 10 days.
#27	841995001	MANIFOLD-WATER (1 required per assembly)
		841995001 - Water Manifold [ More info ] $317.53 Available to Order: Shipping delay up to 10 days.
#28	8M0204681	O RING @5 (2 required per assembly) — Replaces: 457101
		25-8M0204681 - O RING Note: Priced Individually [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#29	846388	STUD (4 required per assembly)
		16-846388 - Stud [ More info ] $27.87 Available to Order: Shipping delay up to 10 days.
#30	41674T	INSERT (4 required per assembly) — Replaces: 41674
		41674T - Insert [ More info ] $6.09 4 In Stock.
#31	8M0186194	HOSE-MOLDED (2 required per assembly) — Replaces: 8M0005856
		32-8M0186194 - HOSE-MOLDED [ More info ] Unavailable
#32	85486	SCREW (2 required per assembly)
		10-85486 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#33	8M0022461	PLUG-PIPE (OPT required per assembly)
		22-8M0022461 - Pipe Plug [ More info ] $20.48 Available to Order: Shipping delay up to 10 days.
#34	8M0041215	HARNESS ASSEMBLY MERCCATHODE (1 required per assembly)
		8M0041215 - Harness Assembly [ More info ] $219.42 Available to Order: Shipping delay up to 10 days.
