Parts for NXT1 Drive MerCruiser Outdrive Units Gimbal Ring Components

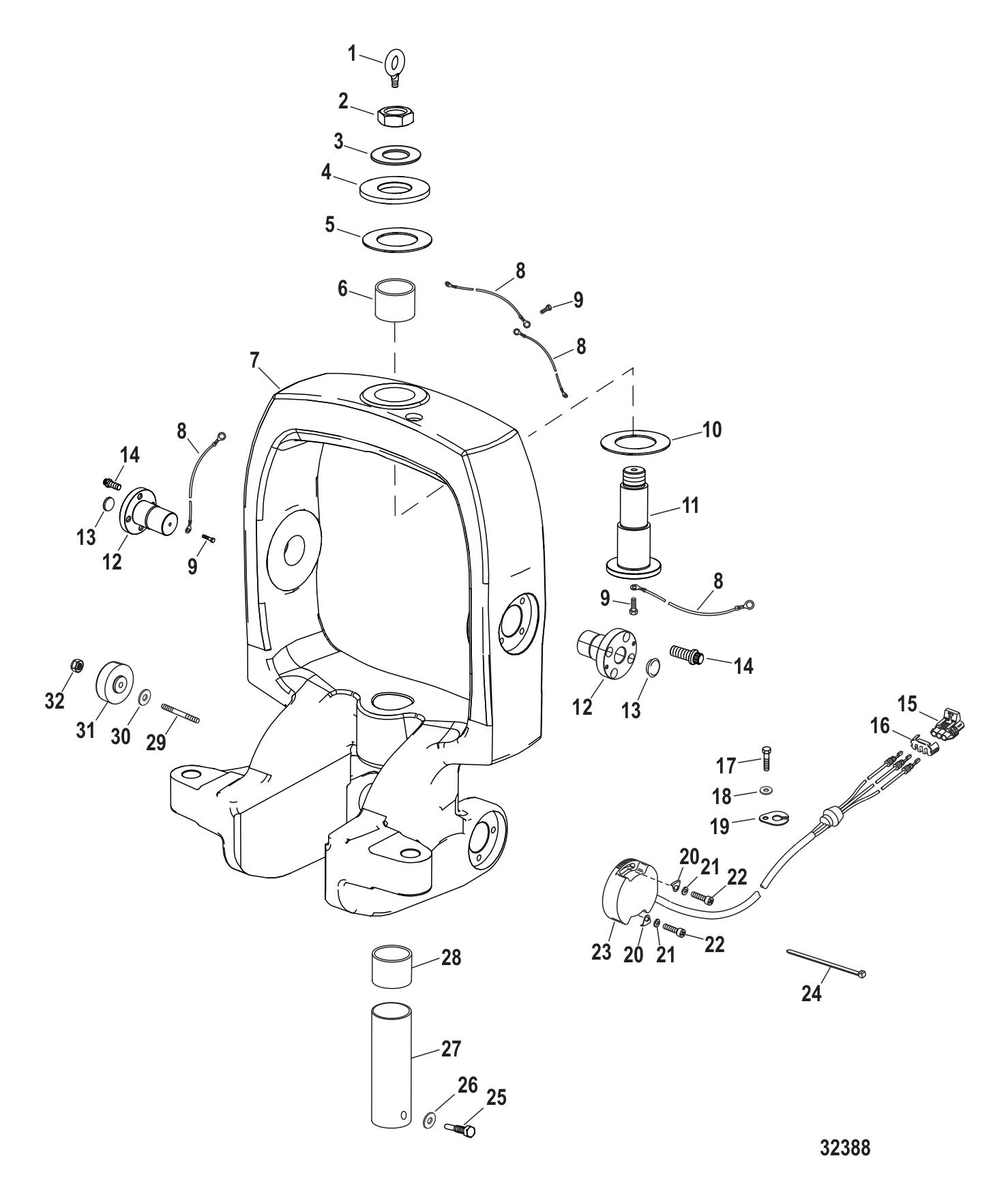

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 846682 | EYE SCREW (1 required per assembly) |
  |
|
846682 - Eye Screw [ More info ]
|
| #2 | 846391 | NUT (1 required per assembly) |
  |
|
11-846391 - Nut, (1.00-16) Stainless Steel [ More info ]
|
| #3 | 846382 | WASHER (1 required per assembly) |
  |
|
12-846382 - Washer, (1.015 X 1.750 X .096) Stainless Steel [ More info ]
|
| #4 | 846397 | WASHER (1 required per assembly) |
  |
|
12-846397 - Washer, (1.250 X 2.620 X .190) Stainless Steel [ More info ]
|
| #5 | 846375 | THRUST WASHER (1 required per assembly) |
  |
|
12-846375 - Thrust Washer [ More info ]
|
| #6 | 846916 | BEARING (1 required per assembly) |
  |
|
23-846916 - Bearing - Sleeve [ More info ]
|
| #7 | 8M8025996 | ORD 8M0148457 (1 required per assembly) — Replaces: 841994A01, 841994T01 |
  |
|
8M8025996 - Gimbal Ring Assembly [ More info ] Unavailable |
| #7 | 8M0046328 | GIMBAL RING (1 required per assembly) |
  |
|
8M0046328 - GIMBAL RING [ More info ] Unavailable |
| #8 | 88238A5 | CABLE ASSY (1 required per assembly) |
  |
|
88238A 5 - Cable Assembly [ More info ]
|
| #9 | 69022 | SCREW (3 required per assembly) |
  |
|
10-69022 - Screw [ More info ]
|
| #10 | 846375 | THRUST WASHER (1 required per assembly) |
| #11 | 8M0051211 | PIN-HINGE (1 required per assembly) — Replaces: 846403 |
  |
8M0051211 - Hinge Pin [ More info ] Unavailable |
|
  |
|
8M0233788 - PIN-HINGE [ More info ] Unavailable |
| #12 | 846433 | PIN-HINGE (2 required per assembly) |
  |
846433 - Hinge Pin [ More info ] Unavailable |
|
  |
|
17-8M0234739 - PIN-HINGE [ More info ] Unavailable |
| #13 | 846643 | PLUG (2 required per assembly) |
  |
|
19-846643 - Plug [ More info ]
|
| #14 | 846498 | SCREW (8 required per assembly) |
  |
|
10-846498 - Screw [ More info ]
|
| #15 | 8307973 | CONNECTOR ASSY (1 required per assembly) |
  |
|
830797 3 - Connector Assembly [ More info ]
|
| #16 | 831957 | TPA-3 WIRE (1 required per assembly) |
  |
|
831957 - TPA-3 Wire [ More info ]
|
| #17 | 28635 | SCREW @5 (1 required per assembly) |
  |
|
10-28635 - Screw - Priced Individually [ More info ]
|
| #18 | 35950 | WASHER @2 (1 required per assembly) |
  |
|
12-35950 - Washer, (.273 X .437 X .031) Stainless Steel [ More info ]
|
| #19 | 12078 | CLAMP (1 required per assembly) |
  |
|
54-12078 - Clamp [ More info ]
|
| #20 | 57008 | RETAINER @5 (2 required per assembly) |
  |
|
57008 - Retainer [ More info ]
|
| #21 | 26996 | LOCKWASHER @15 (2 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #22 | 37978 | SCREW @5 (2 required per assembly) |
  |
|
10-37978 - Screw - Priced Individually [ More info ]
|
| #23 | 8M0083578 | SENSOR ASSEMBLY TRIM DIGITAL [0M973048] & Up (1 required per assembly) — Replaces: 863187A05 |
  |
|
8M0083578 - Sensor ASSY [ More info ]
|
| #24 | 816311T | TIE STRAP @100 (2 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #25 | 846348 | SCREW (1 required per assembly) |
  |
|
10-846348 - Screw [ More info ]
|
| #26 | 35950 | WASHER @2 (1 required per assembly) |
| #27 | 8M8027382 | PIN KT-LOWER PIVT (1 required per assembly) — Replaces: 844323, 844323T |
  |
|
8M8027382 - Lower Pivot Pin Kit [ More info ]
|
| #28 | 846916 | BEARING (1 required per assembly) |
| #29 | 8M0022145 | STUD (1 required per assembly) — Replaces: 57932 |
  |
|
16-8M0022145 - Stud [ More info ]
|
| #30 | 34931 | WASHER (1 required per assembly) |
  |
|
12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ]
|
| #31 | 848653T | ANODE (1 required per assembly) |
  |
|
848653T - Anode [ More info ] In Stock |
| #32 | 826709112 | NUT (1 required per assembly) |
  |
|
11-826709112 - Nut, (.375-16) Stainless Steel [ More info ]
|
