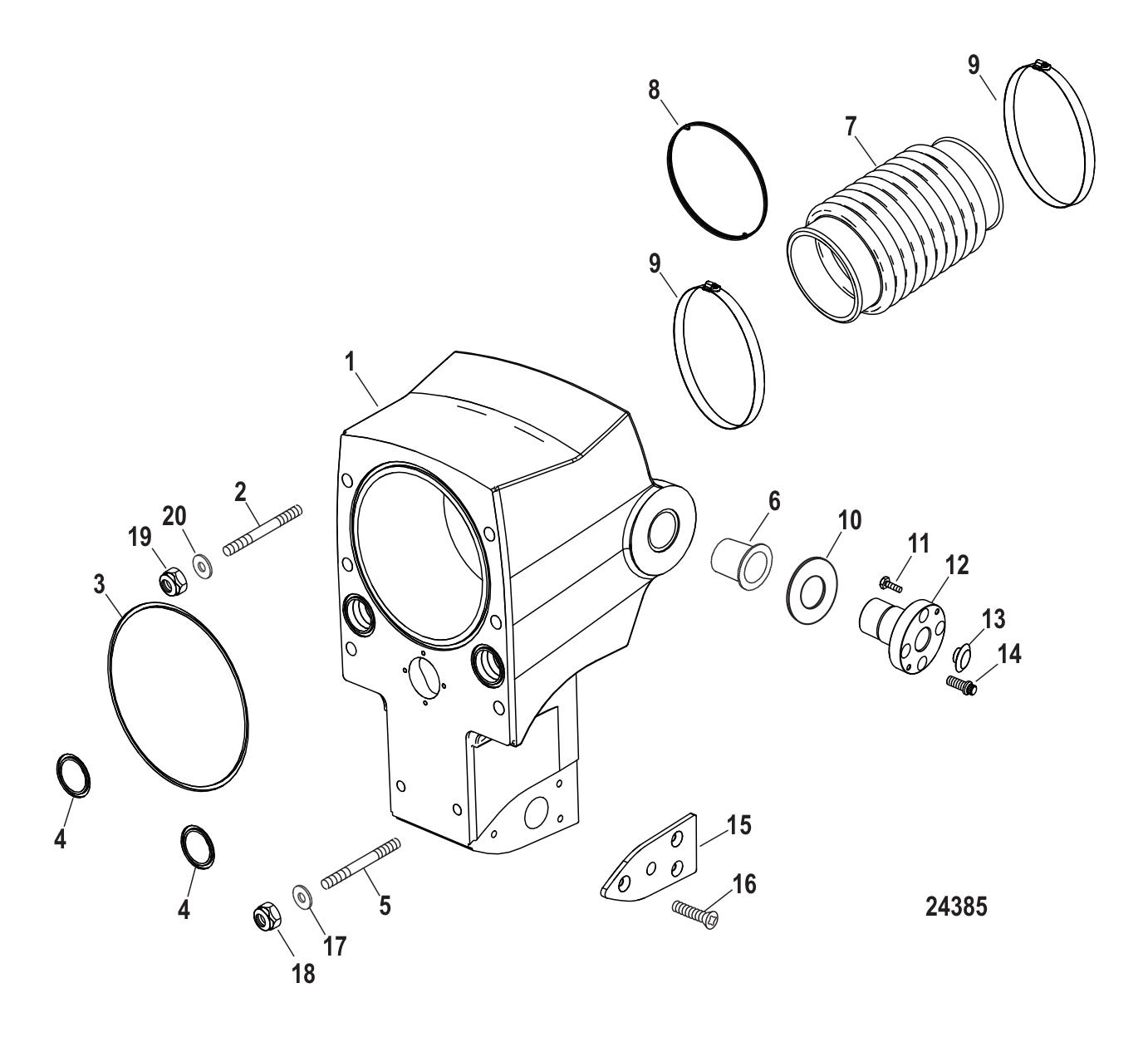

Bell Housing Assembly

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	841960T01	BELL HOUSING ASSY (1 required per assembly) — Replaces: 841960A01
		841960T01 - Bell Housing Assembly [ More info ] Unavailable
#1	8M0068755	BELL HSG ASSY (1 required per assembly) — Replaces: 8M0046329
		8M0068755 - BELL HSG ASSY [ More info ] Unavailable
#2	846389	STUD (.625-11/.625-18 X 3.310) (6 required per assembly)
		16-846389 - Stud [ More info ] $42.02 Available to Order: Shipping delay up to 10 days.
#3	846363	O-RING (7.262 X .120) (1 required per assembly)
		25-846363 - O-ring, (7.262 X .120) [ More info ] $4.90 Available to Order: Shipping delay up to 10 days.
#4	8M0204681	O RING @5 (2 required per assembly) — Replaces: 457101
		25-8M0204681 - O RING Note: Priced Individually [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#5	8M0007427	STUD (.500-13/.500-20 X 2.440) (2 required per assembly)
		16-8M0007427 - Stud [ More info ] $23.42 Available to Order: Shipping delay up to 10 days.
#6	846915	BEARING (2 required per assembly)
		23-846915 - Bearing - Hinge Pin [ More info ] $148.03 Available to Order: Shipping delay up to 10 days.
#7	846302A1	BELLOWS ASSY (1 required per assembly)
		846302A 1 - Bellows Assembly [ More info ] Unavailable
#8	846421	SPRING INSIDE BELLOWS (1 required per assembly)
		24-846421 - Spring, Bellows [ More info ] $62.91 Available to Order: Shipping delay up to 10 days.
#9	846428	CLAMP (2 required per assembly)
		54-846428 - Clamp [ More info ] $18.23 Available to Order: Shipping delay up to 10 days.
#10	8M0063236	THRUST WASHER (2 required per assembly) — Replaces: 8M0007180
		128M0063236 - Thrust Washer [ More info ] $22.62 Available to Order: Shipping delay up to 10 days.
#11	69022	SCREW (1 required per assembly)
		10-69022 - Screw [ More info ] $1.10 $0.62 10+ In Stock.
#12	846433	PIN-HINGE (2 required per assembly)
		846433 - Hinge Pin [ More info ] Unavailable
		17-8M0234739 - PIN-HINGE [ More info ] Unavailable
#13	846643	PLUG (2 required per assembly)
		19-846643 - Plug [ More info ] $0.48 Available to Order: Shipping delay up to 10 days.
#14	846498	SCREW (8 required per assembly)
		10-846498 - Screw [ More info ] $15.19 $12.16 10+ In Stock.
#15	8M0000691	WEAR PAD (2 required per assembly)
		8M0000691 - Wear Pad [ More info ] $21.83 Available to Order: Shipping delay up to 10 days.
#15	8M0039046	WEAR PAD TILT HOUSING THRUST ECP (2 required per assembly)
		8M0039046 - WEAR PAD Tilt Housing T [ More info ] $24.40 Available to Order: Shipping delay up to 10 days.
#16	11601	SCREW (6 required per assembly)
		10-11601 - Screw [ More info ] $1.31 Available to Order: Shipping delay up to 10 days.
#17	846377	WASHER (2 required per assembly)
		12-846377 - Washer, (.531 X 1.06 X .095) Stainless Steel [ More info ] $12.99 Available to Order: Shipping delay up to 10 days.
#18	826709117	NUT @2 (2 required per assembly)
		11-826709117 - Nut, (.500-20) Stainless Steel [ More info ] $10.99 4 In Stock.
#19	47379	NUT (6 required per assembly)
		11-47379 - Nut, (.625-18) Stainless Steel [ More info ] $22.40 $6.27 10+ In Stock.
#20	846378	WASHER (6 required per assembly)
		12-846378 - Washer, (.688 X 1.00 X .120) Stainless Steel [ More info ] $5.41 Available to Order: Shipping delay up to 10 days.
