Parts for M6 Drive MerCruiser Outdrive Units Trim & Steering Cylinders

Revise Search: Sterndrive > MerCruiser Outdrive Units > M6 Drive > 0M976346 & Up > Trim & Steering Cylinders

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

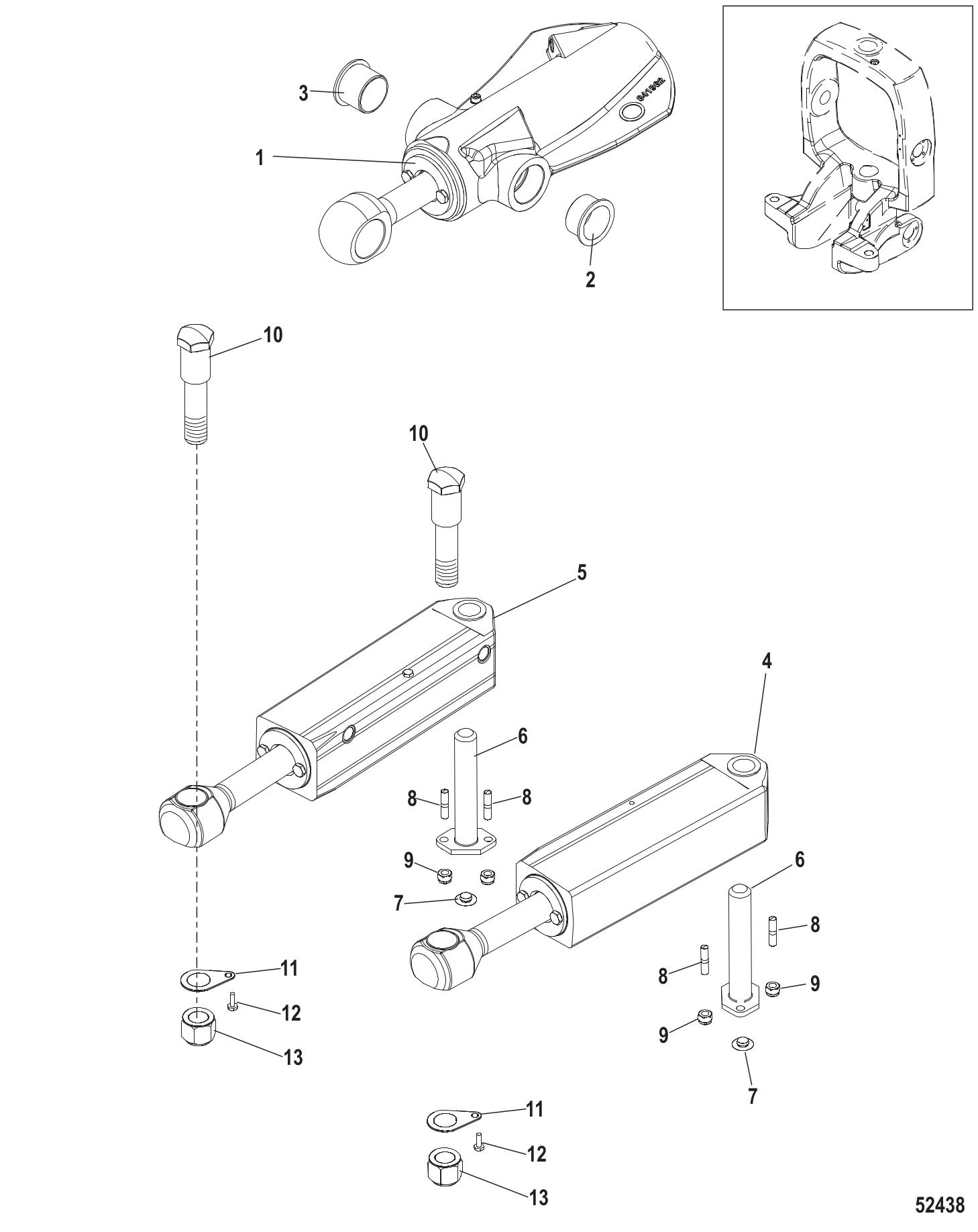

Trim & Steering Cylinders

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0192247	CYLINDER ASY-NXT1 [0M969099] & Up (1 required per assembly) — Replaces: 841962A01, 8M0073278
		8M0192247 - CYLINDER ASY-NXT1 [ More info ] Unavailable
#2	842105	BEARING (1 required per assembly)
		23-842105 - Bearing [ More info ] $28.47 Available to Order: Shipping delay up to 10 days.
#3	846373	BEARING (4 required per assembly)
		23-846373 - Bearing - Flanged [ More info ] $131.78 Available to Order: Shipping delay up to 10 days.
#4	8M0073272	CYLINDER ASY-STBD - NOTE: See Steering Cylinder Componets Section For Service Parts Breakdown [0M969067] & Below (1 required per assembly) — Replaces: 841983A01, 8M0070039
		8M0073272 - Cylinder Assembly - Stbd [ More info ] Unavailable
		8M0192246 - CYLINDER ASY-STBD [ More info ] Unavailable
#4	8M0192246	CYLINDER ASY-STBD [0M969068] & Up (1 required per assembly) — Replaces: 8M0073272
#5	8M0073354	CYLINDER ASY-PORT - NOTE: See Steering Cylinder Componets Section For Service Parts Breakdown [0M969067] & Below (1 required per assembly) — Replaces: 841983A02, 8M0070040
		8M0073354 - Cylinder Assembly - Port [ More info ] Unavailable
		8M0192248 - CYLINDER ASY-PORT [ More info ] $2,430.00 Available to Order: Shipping delay up to 10 days.
#5	8M0192248	CYLINDER ASY-PORT [0M969068] & Up (1 required per assembly) — Replaces: 8M0073354
#6	844322	PIN-CYL PIVOT (2 required per assembly)
		844322 - Cylinder Pivot Pin [ More info ] $141.24 Available to Order: Shipping delay up to 10 days.
#7	846643	PLUG (2 required per assembly)
		19-846643 - Plug [ More info ] $0.48 Available to Order: Shipping delay up to 10 days.
#8	846386	STUD (4 required per assembly)
		16-846386 - Stud [ More info ] $29.62 Available to Order: Shipping delay up to 10 days.
#9	35888	NUT @5 (4 required per assembly)
		11-35888 - Nut (1/4-28) [ More info ] $6.89 $3.04 10+ In Stock.
		18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ] $11.99 $8.16 Available to Order: Shipping delay up to 10 days.
#10	846854	SCREW (2 required per assembly)
		10-846854 - Screw [ More info ] $101.86 Available to Order: Shipping delay up to 10 days.
#11	847048	PLATE-BONDING (2 required per assembly)
		847048 - Plate -bonding [ More info ] $19.76 Available to Order: Shipping delay up to 10 days.
#12	69022	SCREW (2 required per assembly)
		10-69022 - Screw [ More info ] $1.10 $0.62 10+ In Stock.
#13	846853	NUT (2 required per assembly)
		11-846853 - Nut, (.750-16) Stainless Steel [ More info ] $17.97 Available to Order: Shipping delay up to 10 days.
