Trim Cylinder (Dry Sump) with Trim Sensor Plate

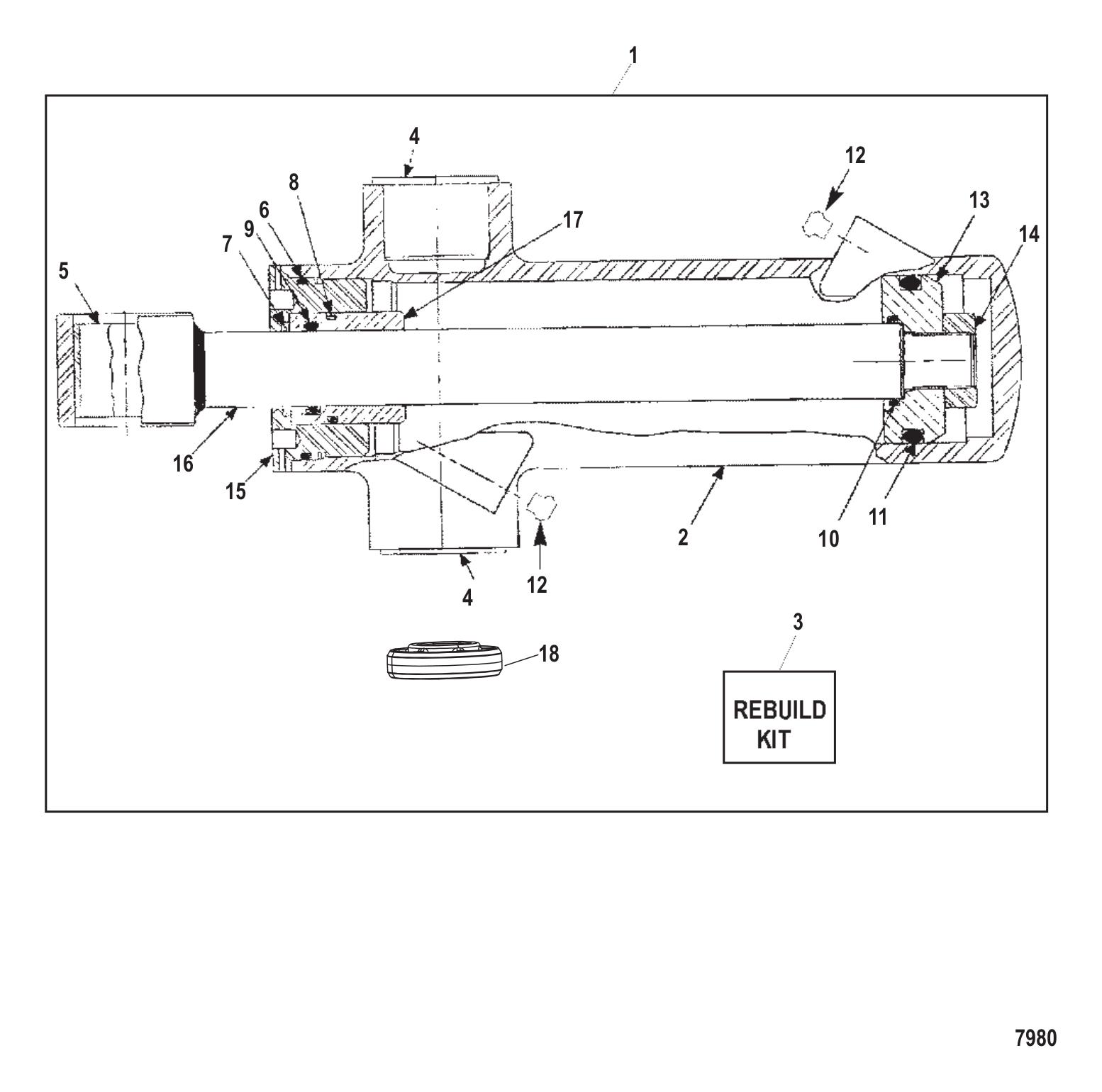

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	846555A07	CYLINDER ASY-TRIM - NOTE: With Trim Plate Shipped Loose (1 required per assembly) — Replaces: 846555A06
		846555A07 - Trim Cylinder Assembly [ More info ] Unavailable
#2	8463172	BODY TRIM CYLINDER (1 required per assembly)
		846317 2 - Trim Cylinder Body [ More info ] Unavailable
#3	846555A2	REBUILD KIT TRIM CYLINDER (1 required per assembly)
		846555A 2 - Rebuild Kit [ More info ] $486.82 Available to Order: Shipping delay up to 10 days.
#4	846373	BEARING FLANGED (2 required per assembly)
		23-846373 - Bearing - Flanged [ More info ] $131.78 Available to Order: Shipping delay up to 10 days.
#5	846372	BEARING SLEEVE (1 required per assembly)
		23-846372 - Bearing - Sleeve [ More info ] $125.24 Available to Order: Shipping delay up to 10 days.
#6	846362	O-RING (1 required per assembly)
		25-846362 - O-Ring [ More info ] $0.71 Available to Order: Shipping delay up to 10 days.
#7	843311	SCRAPER (1 required per assembly)
		843311 - Scraper [ More info ] $72.34 Available to Order: Shipping delay up to 10 days.
#8	65936	O-RING (1 required per assembly)
		25-65936 - O-ring, Upper Mount [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
		18-7143-9 - O-Ring 25-65936 (5-Pack) [ More info ] $10.64 Available to Order: Shipping delay up to 10 days.
#9	23145	O-RING (.984 X .139) (1 required per assembly)
		25-23145 - O-ring, (.984 X .139) [ More info ] $1.99 1 In Stock.
		18-7114 - O-Ring 25-23145, 302540 [ More info ] $2.02 $1.59 8 In Stock.
#10	86614	O-RING (1.049 X .103) (1 required per assembly)
		25-86614 - O-ring, (1.049 X .103) [ More info ] Unavailable
#11	846369	O-RING (1.850 X .190) (1 required per assembly)
		25-846369 - O-ring, (1.850 X .190) [ More info ] $1.52 Available to Order: Shipping delay up to 10 days.
#12	843049	INSERT INVERTED FLARE TUBE SEAT - BRASS (2 required per assembly)
		843049 - Insert [ More info ] $31.40 Available to Order: Shipping delay up to 10 days.
#13	847519	PISTON STANDARD (1 required per assembly)
		847519 - Hydraulic Piston [ More info ] Unavailable
#13	847520A2	PISTON AND ROD KIT TRIM .020 OVERSIZE (OPT required per assembly)
		847520A 2 - PISTON AND ROD KI NLA [ More info ] Unavailable
#14	20739	NUT (.750-16) (1 required per assembly)
		11-20739 - Nut (.750X16) [ More info ] $5.89 10+ In Stock.
#15	846446	CAP END (1 required per assembly)
		846446 - Cap -end [ More info ] Unavailable
#16	879317T98	ROD END PISTON (1 required per assembly) — Replaces: 847520, 8M0006885
		879317T98 - Rod End [ More info ] Unavailable
		8M0080801 - Trim Rod End [ More info ] $725.44 Available to Order: Shipping delay up to 10 days.
#17	846445	BUSHING ROD GUIDE (1 required per assembly)
		846445 - Bushing [ More info ] Unavailable
#18	842812	PLATE SENSOR (1 required per assembly)
		842812 - Plate [ More info ] Unavailable
