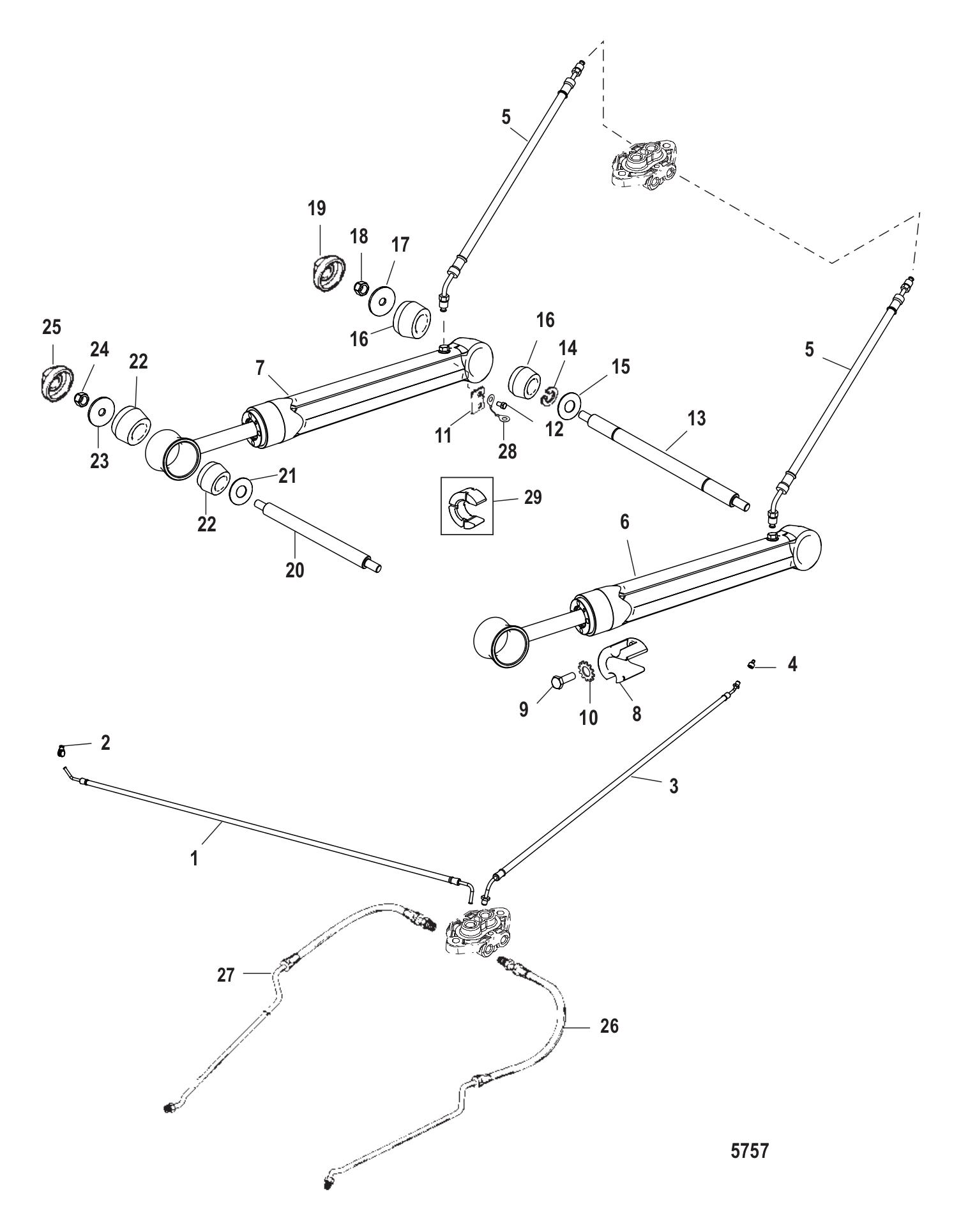

Parts for Bravo XR Three MerCruiser Outdrive Units Trim Cylinders & Hydraulic Hoses (Standard Transoms)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 865384001 | HOSE BLACK HYDRAULIC MANIFOLD TO PUMP (1 required per assembly) |
  |
|
32-865384001 - Hydraulic Hose [ More info ]
|
| #2 | 865410001 | FITTING FEMALE QUICK CONNECT (1 required per assembly) |
  |
|
22-865410001 - Fitting -q/C [ More info ]
|
| #3 | 865385001 | HOSE GRAY HYDRAULIC MANIFOLD TO PUMP (1 required per assembly) |
  |
|
32-865385001 - Hydraulic Hose [ More info ]
|
| #4 | 865411001 | FITTING MALE QUICK CONNECT (1 required per assembly) |
  |
|
22-865411001 - Fitting -q/C [ More info ]
|
| #5 | 99904Q | HOSE HYDRAULIC TRIM CYLINDER TO CONNECTOR (2 required per assembly) — Replaces: 99904 |
  |
|
32-99904Q - Hydraulic Hose [ More info ]
|
  |
|
18-2116 - Hose, 32-99904 [ More info ]
|
  |
|
32-00700 - Trim Hose, Mercury 32-99904 [ More info ]
|
| #6 | 8M0132610 | CYL ASY-TRIM-STB STARBOARD (See Power Trim Cylinder Repair Kits For Breakdown) (1 required per assembly) — Replaces: 98704A26, 8M0108280 |
  |
|
8M0132610 - Trim Cylinder, Starbord Side [ More info ]
|
  |
|
9B-121-01 - Trim Cylinder Starboard for All Bravo Drives [ More info ]
|
| #6 | 8M0128693 | CYL ASSEMBLY-STBD STARBOARD (SEACORE)(See Power Trim Cylinder Repair Kits For Breakdown) (1 required per assembly) — Replaces: 866464A02, 8M0108282 |
  |
|
8M0128693 - CYL ASSEMBLY - Starboard [ More info ]
|
| #7 | 8M0132609 | CYL ASY-TRIM-PORT PORT (See Power Trim Cylinder Repair Kits For Breakdown) (1 required per assembly) — Replaces: 98703A26, 8M0108279 |
  |
|
8M0132609 - Trim Cylinder-PORT [ More info ]
|
  |
|
9B-121-02 - Trim Cylinder Port for All Bravo Drives [ More info ]
|
| #7 | 8M0128692 | CYL ASSEMBLY-PORT PORT (SEACORE)(See Power Trim Cylinder Repair Kits For Breakdown) (1 required per assembly) — Replaces: 866465A02, 8M0108281 |
  |
|
8M0128692 - CYL ASSEMBLY-PORT [ More info ]
|
| #8 | 806190Q1 | ANODE ASSEMBLY (2 required per assembly) |
  |
|
97-806190Q 1 - Anode Kit - Trim Cylinder - Bravo 2 - Priced Individually [ More info ]
|
  |
|
97-8M0059342 - Anode Bulk-10 PCS [ More info ]
|
  |
|
97-806190T 1 - Anode Kit - Trim Cylinder - Bravo - Priced Individually [ More info ]
|
| #9 | 806290 | SCREW (#10-32 X .625) (4 required per assembly) |
  |
|
10-806290 - Screw [ More info ]
|
| #10 | 69432 | LOCKWASHER EXTERNAL (#10) (4 required per assembly) |
  |
|
13-69432 - LockWasher - Priced Individually [ More info ]
|
| #11 | 85060 | PLATE (2 required per assembly) |
  |
|
|
| #12 | 85486 | SCREW (4 required per assembly) |
  |
|
10-85486 - Screw [ More info ]
|
| #13 | 44167A1 | PIN FRONT ANCHOR (1 required per assembly) |
  |
|
17-44167A 1 - Pivot Pin [ More info ]
|
| #14 | 805272 | RING RETAINING (2 required per assembly) |
  |
|
53-805272 - Ring - Retaining [ More info ]
|
| #15 | 44164 | WASHER @2 (2 required per assembly) |
  |
|
12-44164 - Washer [ More info ]
|
| #16 | 807073 | BUSHING (4 required per assembly) |
  |
|
23-807073 - Bushing [ More info ]
|
  |
|
18-4288-9 - Bushing, 23-807073, 8PK [ More info ]
|
| #17 | 44163 | WASHER (2 required per assembly) |
  |
|
12-44163 - Washer, (.450 X 1.75 X .12) [ More info ]
|
| #18 | 8M0204653 | NUT @10 (2 required per assembly) — Replaces: 34933 |
  |
|
11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ]
|
  |
|
11-00118 - Nut, Sold Individually [ More info ]
|
| #19 | 14842 | CAP @5 (2 required per assembly) |
  |
|
|
  |
|
18-2465-9 - Pivot Pin End Cap 2-Pack [ More info ]
|
| #20 | 44166 | PIN REAR ANCHOR (1 required per assembly) |
  |
|
17-44166 - Pivot Pin [ More info ]
|
  |
|
17-44166T 1 - Pin Kit - Rear Tilt [ More info ]
|
| #21 | 44164 | WASHER @2 (2 required per assembly) |
| #22 | 807073 | BUSHING (4 required per assembly) |
| #23 | 44163 | WASHER (2 required per assembly) |
| #24 | 8M0204653 | NUT @10 (2 required per assembly) — Replaces: 34933 |
| #25 | 14842 | CAP @5 (2 required per assembly) |
| #26 | 864589 | HOSE-HYDRALIC (Starboard) (1 required per assembly) — Replaces: 99902 |
  |
|
32-864589 - Hydraulic Hose [ More info ]
|
  |
|
18-2136 - Hose 32-99902 [ More info ]
|
| #27 | 864588 | HOSE-HYDRALIC (Port) (1 required per assembly) — Replaces: 99903 |
  |
|
32-864588 - Hydraulic Hose [ More info ]
|
  |
|
18-2137 - Trim Hose 32-99903 [ More info ]
|
| #28 | 88238A13 | CABLE ASSY @5 (2 required per assembly) |
  |
|
88238A13 - Cable Assembly, Priced Individually [ More info ]
|
  |
|
8M0207768 - CABLE ASSY @5 [ More info ] Unavailable |
| #29 | 15768A3 | SPACER KIT TILT (1 required per assembly) |
  |
|
15768A 3 - Spacer Kit [ More info ]
|
| #NS | 87399A2 | OVERHAUL KIT [2A480243] & Below (2 required per assembly) |
  |
|
87399A 2 - Overhaul Kit [ More info ]
|
| #NS | 87400A2 | SEAL KIT [2A480243] & Below (2 required per assembly) |
  |
|
25-87400A 2 - O-Ring Kit [ More info ]
|
  |
|
18-2649 - Seal Kit 25-87400A2 [ More info ]
|
  |
|
58-08211 - Power Trim Cylinder Seal Kit [ More info ]
|
