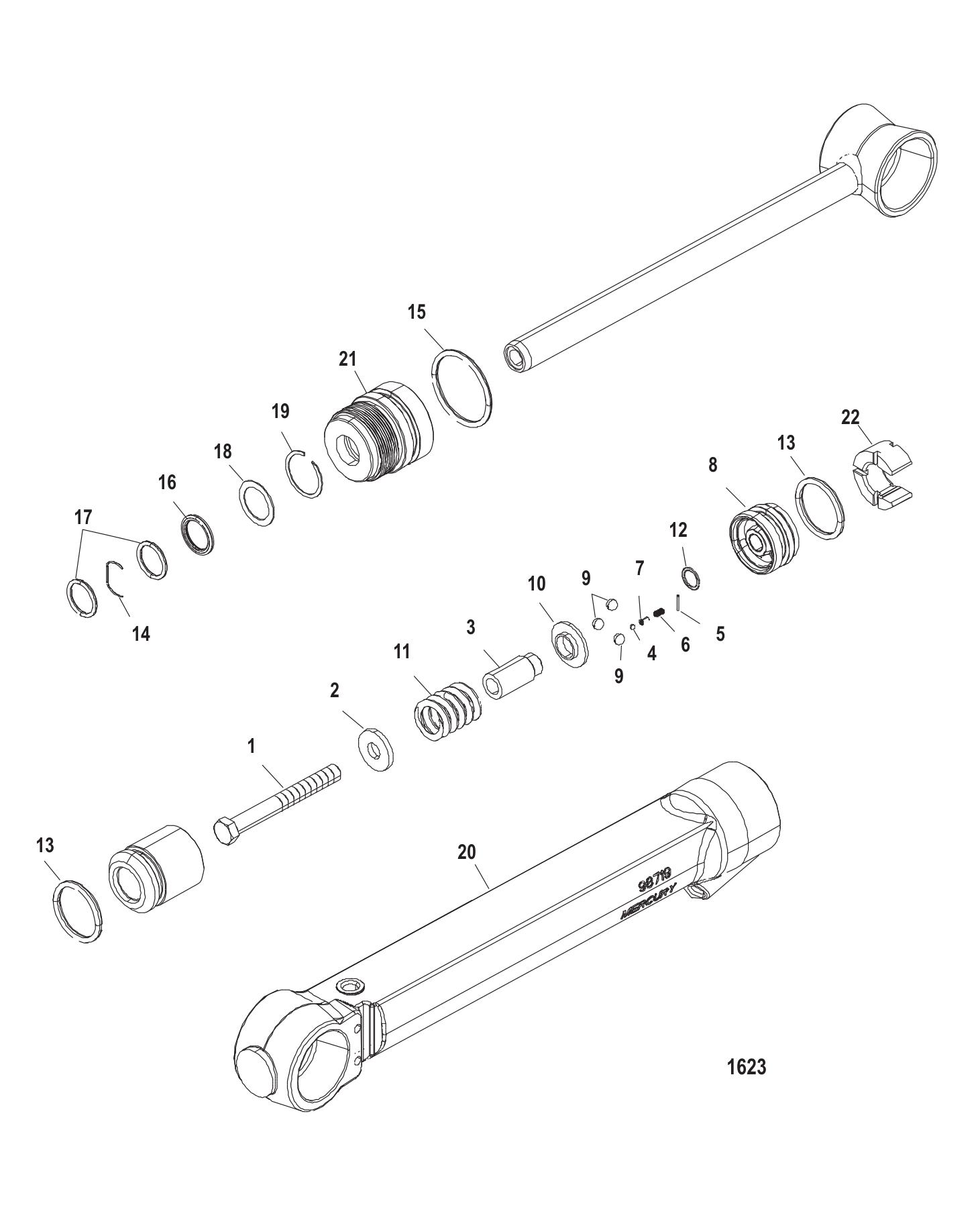

Parts for Bravo XR Sport MerCruiser Outdrive Units Trim Cylinder Components S / N 2A480243 & Below
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 87400A2 | SEAL KIT (1 required per assembly) |
  |
|
25-87400A 2 - O-Ring Kit [ More info ]
|
  |
|
18-2649 - Seal Kit 25-87400A2 [ More info ]
|
  |
|
58-08211 - Power Trim Cylinder Seal Kit [ More info ]
|
| #1 | NSS | NOT SOLD SEPARATE SCREW (M10 X 85) (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #2 | NSS | NOT SOLD SEPARATE WASHER (1 required per assembly) |
| #3 | NSS | NOT SOLD SEPARATE GUIDE (1 required per assembly) |
| #4 | NSS | NOT SOLD SEPARATE BALL-STEEL (.109 DIAMETER) (1 required per assembly) |
| #5 | NSS | NOT SOLD SEPARATE PIN (1 required per assembly) |
| #6 | NSS | NOT SOLD SEPARATE SPRING (1 required per assembly) |
| #7 | NSS | NOT SOLD SEPARATE EYELET (1 required per assembly) |
| #8 | NSS | NOT SOLD SEPARATE PISTON (1 required per assembly) |
| #9 | NSS | NOT SOLD SEPARATE BALL (.250 DIAMETER) (3 required per assembly) |
| #10 | NSS | NOT SOLD SEPARATE PUSHER (1 required per assembly) |
| #11 | NSS | NOT SOLD SEPARATE SPRING (1 required per assembly) |
| #12 | NSS | NOT SOLD SEPARATE O RING (1 required per assembly) |
| #13 | NSS | NOT SOLD SEPARATE O RING (2 required per assembly) |
| #14 | NSS | NOT SOLD SEPARATE SPRING (1 required per assembly) |
| #15 | NSS | NOT SOLD SEPARATE O RING (1 required per assembly) |
| #16 | NSS | NOT SOLD SEPARATE SCRAPER ROD (1 required per assembly) |
| #17 | NSS | NOT SOLD SEPARATE O RING (2 required per assembly) |
| #18 | NSS | NOT SOLD SEPARATE WASHER (1 required per assembly) |
| #19 | NSS | NOT SOLD SEPARATE RING-RETAINING (1 required per assembly) |
| #20 | 98703T | TUBE PORT CYLINDER (CASTING # 98703 OR 98718) (1 required per assembly) |
  |
|
98703T - Tube - Outer- Port [ More info ] Unavailable |
| #20 | 98704T | TUBE STARBOARD CYLINDER (CASTING # 98704 OR 98719) (1 required per assembly) |
  |
|
98704T - Tube - Outer- Stbd [ More info ] Unavailable |
| #21 | 8M0115362 | END CAP KIT (2 required per assembly) — Replaces: 806191T, 8M0110717 |
  |
988M0115362 - End Cap Kit [ More info ] Unavailable |
|
  |
|
98-8M0118340 - End Cap Kit [ More info ]
|
| #22 | 15768A3 | SPACER KIT (1 required per assembly) |
  |
|
15768A 3 - Spacer Kit [ More info ]
|
| #_ | 87399A2 | OVERHAUL KIT (1 required per assembly) |
  |
|
87399A 2 - Overhaul Kit [ More info ]
|
