Parts for Bravo XR Sport MerCruiser Outdrive Units Gear Housing (Bravo I XR / Sportmaster / Sport) (0M955634 & Up)

Revise Search: Sterndrive > MerCruiser Outdrive Units > Bravo XR Sport > 0M970842 & Up > Gear Housing (Bravo I XR / Sportmaster / Sport) (0M955634 & Up)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

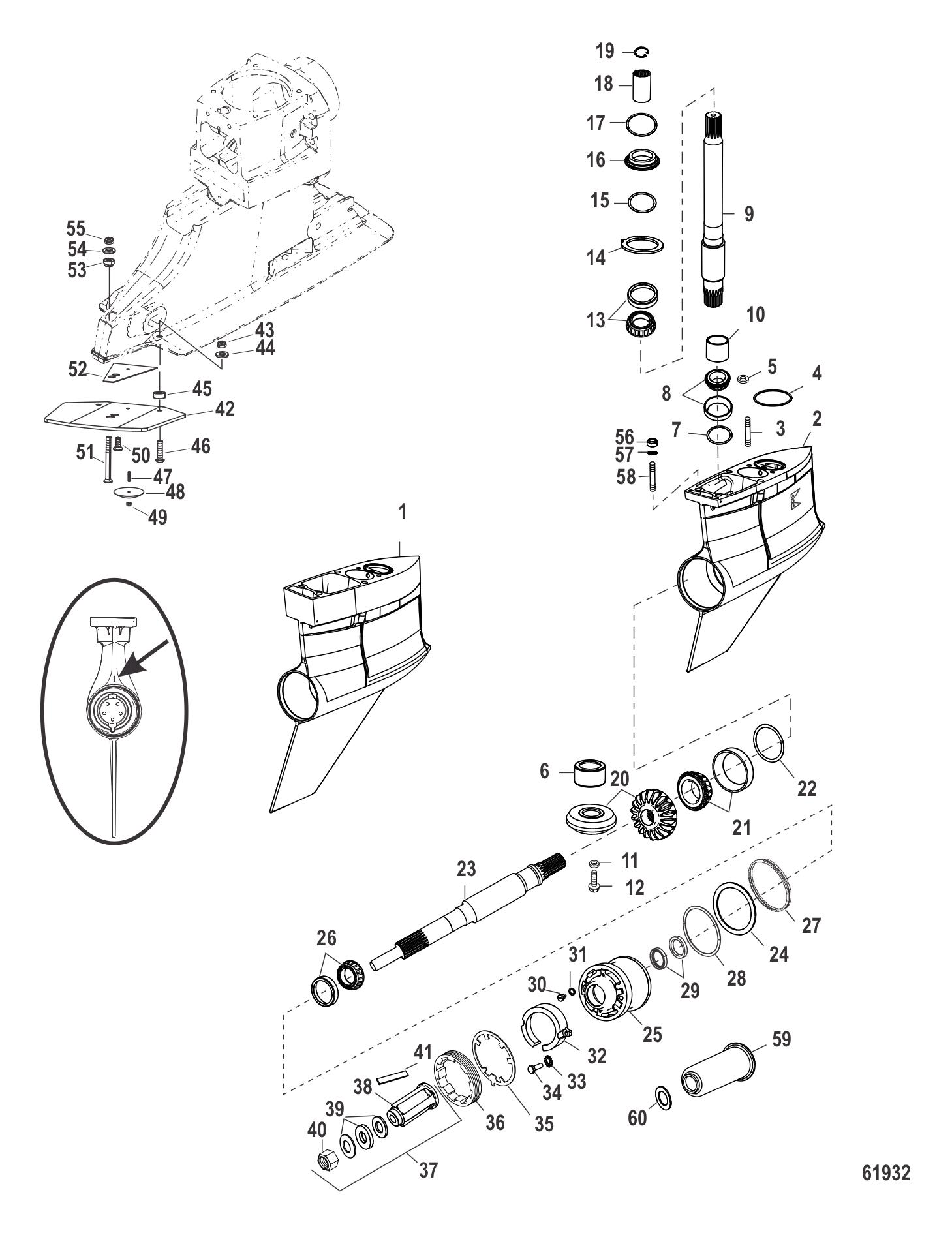

Gear Housing (Bravo I XR / Sportmaster / Sport) (0M955634 & Up)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	883608T49	GEAR HOUSING ASSEMBLY COMPLETE (17/18 Long Style) Number 1 Stamped Above The Propshaft Opening [0M955634] & Up (1 required per assembly)
		1600-883608T49 - Gear Housing Assembly [ More info ] Unavailable
		8M0250893 - GEAR HSG-17/18 L [ More info ] Unavailable
#-	883608T50	GEAR HOUSING ASSEMBLY COMPLETE (17/18 Short Style) Number 1 Stamped Above The Propshaft Opening [0M955634] & Up (1 required per assembly)
		1600-883608T50 - Gear Housing Assembly [ More info ] Unavailable
		8M0250889 - GEAR HSG-17/18 S [ More info ] Unavailable
#-	883608T51	GEAR HOUSING ASSEMBLY COMPLETE (15/17 Long Style) Number 1 Stamped Above The Propshaft Opening [0M955634] & Up (1 required per assembly)
		1600-883608T51 - Gear Housing Assembly [ More info ] Unavailable
		1600-8M0238292 - GEAR HSG 15/17 L [ More info ] Unavailable
#-	883608T52	GEAR HOUSING ASSEMBLY COMPLETE (15/17 Short Style) Number 1 Stamped Above The Propshaft Opening [0M955634] & Up (1 required per assembly)
		1600-883608T52 - Gear Housing Assembly [ More info ] Unavailable
#-	883608T53	GEAR HOUSING ASSEMBLY COMPLETE (15/19 Long Style) Number 1 Stamped Above The Propshaft Opening [0M955634] & Up (1 required per assembly)
		1600-883608T53 - Gear Housing Assembly [ More info ] Unavailable
#-	883608T54	GEAR HOUSING ASSEMBLY COMPLETE (15/19 Short Style) Number 1 Stamped Above The Propshaft Opening [0M955634] & Up (1 required per assembly)
		1600-883608T54 - Gear Housing Assembly [ More info ] Unavailable
		1600-8M0238291 - GEAR HSG 15/19 S [ More info ] Unavailable
#-	8M0091429	GEAR HOUSING ASSEMBLY COMPLETE (15/17) (1.35:1) (Sport) (1 required per assembly)
		16008M0091429 - G CASE ASY-B1XR [ More info ] Unavailable
		1600-8M0238294 - GC SM 15/17 S [ More info ] Unavailable
#-	8M0091432	GEAR HOUSING ASSEMBLY COMPLETE (15/19) (1.50:1) (Sport) (1 required per assembly)
		16008M0091432 - G CASE ASY-B1XR [ More info ] Unavailable
		1600-8M0238296 - GC SM 15/19 S [ More info ] Unavailable
#-	843122T01	FLUSH ATTACHMENT With Bungee Cord - Orange (1 required per assembly)
		843122T01 - Flush Attachment [ More info ] $196.82 Available to Order: Shipping delay up to 10 days.
#-	815565A02	SEAL KIT (1 required per assembly)
		26-815565A02 - Seal Kit [ More info ] $84.99 Available to Order: Shipping delay up to 10 days.
#1	883608T55	GEAR HOUSING ASSEMBLY BASIC - Long Style - Number 1 Stamped Above The Propshaft Opening [0M955634] & Up (1 required per assembly)
		1600-883608T55 - Gear Housing -sm Long [ More info ] Unavailable
		1600-8M0237409 - GEAR HSG SM LONG [ More info ] Unavailable
#1	883608T56	GEAR HOUSING ASSEMBLY BASIC - Short Style - Number 1 Stamped Above The Propshaft Opening [0M955634] & Up (1 required per assembly)
		1600-883608T56 - Gear Housing Assembly [ More info ] Unavailable
		1600-8M0237400 - GEAR HSG SM SHORT [ More info ] Unavailable
#2	8M0091435	GEAR HOUSING ASSEMBLY BASIC Sport (1 required per assembly)
		16008M0091435 - G CASE ASY-B1XR [ More info ] Unavailable
		1600-8M0237418 - GCASE ASY B1XR [ More info ] Unavailable
#3	8M0133358	STUD (.437-14/.437-20 X 2.060) (2 required per assembly) — Replaces: 579203
		168M0133358 - Stud [ More info ] $17.29 Available to Order: Shipping delay up to 10 days.
#4	33465	O-RING (1 required per assembly)
		25-33465 - O-Ring - Priced Individually [ More info ] Unavailable
		25-8M0214925 - O-Ring Note: Priced Individually [ More info ] $5.29 7 In Stock.
#5	8M0204680	SEAL @3 QUAD RING (1 required per assembly) — Replaces: 455771
		26-8M0204680 - QUAD RING SEAL, ORANGE, Priced Individually [ More info ] $4.29 4 In Stock.
#6	86754T	BEARING ASSEMBLY ROLLER NEEDLE (1 required per assembly)
		31-86754T - Bearing - Roller [ More info ] $81.99 5 In Stock.
#7	92914A1	SHIM KIT (AR required per assembly)
		15-92914A 1 - Shim Set [ More info ] $49.32 9 In Stock.
#8	8M0103470	BEARING ASSEMBLY TAPERED ROLLER (1 required per assembly) — Replaces: 66668A1, 99328A1
		31-8M0103470 - Bearing Assembly, Captive [ More info ] $47.11 1 In Stock.
#9	858517A3	DRIVESHAFT ASSEMBLY (16.085 LONG) Long Style Models (1 required per assembly)
		45-858517A 3 - Drive Shaft Assembly [ More info ] $792.99 Available to Order: Shipping delay up to 10 days.
		92-121-04 - Drive Shaft replaces 41629A2 [ More info ] $375.90 $375.90 Available to Order
#9	840979T1	DRIVESHAFT ASSEMBLY (14.085 LONG) Short Style Models (1 required per assembly)
		45-840979T 1 - Drive Shaft Assembly [ More info ] $1,672.06 Available to Order: Shipping delay up to 10 days.
#10	815901	RACE BEARING (1 required per assembly)
		31-815901 - Bearing [ More info ] $65.03 5 In Stock.
#11	805068	WASHER (1 required per assembly)
		12-805068 - Washer, Pinion Gear [ More info ] $17.69 $14.16 7 In Stock.
#12	808027	SCREW (1 required per assembly)
		10-808027 - Screw [ More info ] $5.39 Available to Order: Shipping delay up to 10 days.
#13	8M0103473	BEARING ASSEMBLY TAPERED ROLLER (1 required per assembly) — Replaces: 86748A1
		31-8M0103473 - Upper Drive Shaft Bearing BRVZZ [ More info ] $53.99 In Stock
#14	86739	TAB WASHER (1 required per assembly)
		14-86739 - Tab Washer [ More info ] $18.19 1 In Stock.
#15	86749A1	SHIM KIT (AR required per assembly)
		15-86749A 1 - Shim Set [ More info ] $47.01 10+ In Stock.
#16	8M0046302	SPACER (1 required per assembly) — Replaces: 92916, 8M8000506
		23-8M0046302 - Spacer [ More info ] Unavailable
		23-8M0240070 - SPACER [ More info ] $21.99 Available to Order: Shipping delay up to 10 days.
#17	20826	O-RING (2.230 X .139) (1 required per assembly)
		25-20826 - O-ring, (2.230 X .139) [ More info ] $5.29 10+ In Stock.
#18	88243A3	COUPLING ASSEMBLY (1 required per assembly)
		88243A 3 - Coupling Kit [ More info ] $116.49 Available to Order: Shipping delay up to 10 days.
#19	88242	RING RETAINING (1 required per assembly)
		53-88242 - Ring - Retaining [ More info ] $1.10 5 In Stock.
#20	818928A2	GEAR SET (15/19) (1 required per assembly)
		43-818928A 2 - Gear Set [ More info ] $1,063.49 In Stock
#20	8M0104360	GEAR SET-15/17 (1 required per assembly) — Replaces: 840872A1
		43-8M0104360 - Gear SET 15/17 TEETH [ More info ] $1,670.99 In Stock
#20	8M0104359	GEAR SET-17/18 (1 required per assembly) — Replaces: 840870A1
		43-8M0104359 - Gear SET-17/18 [ More info ] $1,395.49 Available to Order: Shipping delay up to 10 days.
#21	8M0103471	BEARING ASSEMBLY TAPERED ROLLER (1 required per assembly) — Replaces: 86752A1
		31-8M0103471 - Forward Gear Bearing Bravo [ More info ] $72.61 3 In Stock.
#22	87157A1	SHIM KIT (AR required per assembly)
		15-87157A 1 - Shim Set [ More info ] $64.99 $34.14 10+ In Stock.
#22	F9283	SHIM (.003) (OPT required per assembly)
		15-F9283 - Shim - (.003) [ More info ] Unavailable
#23	840377T	PROPELLER SHAFT (1 required per assembly)
		44-840377T - Prop Shaft [ More info ] $1,185.99 Available to Order: Shipping delay up to 10 days.
#24	42256	THRUST WASHER (.105 INCH THICK) (1 required per assembly)
		12-42256 - Thrust Washer, (.105 Inch Thick) [ More info ] $34.48 4 In Stock.
#25	840372A2	CARRIER ASSEMBLY BEARING (1 required per assembly)
		840372A 2 - Carrier Assembly [ More info ] $546.54 Available to Order: Shipping delay up to 10 days.
#26	8M0103476	BEARING ASSY (1 required per assembly) — Replaces: 812767A1
		31-8M0103476 - Bearing Assembly [ More info ] $52.99 Available to Order: Shipping delay up to 10 days.
#27	67440T	LOAD RING (1 required per assembly)
		67440T - Load Ring [ More info ] $41.99 In Stock
#28	31534	O-RING (1 required per assembly)
		25-31534 - O-Ring, Bearing Carrier [ More info ] Unavailable
		25-8M0214920 - Bell Housing O-Ring Note: Priced Individually [ More info ] $6.29 6 In Stock.
#29	815565	SEAL OIL (2 required per assembly)
		26-815565 - Seal [ More info ] $36.77 2 In Stock.
#30	8M0058389	SCREW KIT DRAIN (1 required per assembly) — Replaces: 67892A06
		22-8M0058389 - Screw Kit - Priced Individually [ More info ] $11.69 6 In Stock.
		18-23751-9 - Drain Screw , Package of 50 [ More info ] $346.09 In Stock
		18-2375 - Plug, 22-67892A1 [ More info ] $7.16 10+ In Stock.
		10-02683 - Drain Screw [ More info ] $6.39 $6.03 2 In Stock.
#31	8M0204693	SEAL @6 (1 required per assembly) — Replaces: 830749
		26-8M0204693 - Drain Screw Washer, Priced Individually [ More info ] $5.19 10+ In Stock.
		10-10100-1 - Drain Screw Washer 830749 [ More info ] $3.79 $2.91 7 In Stock.
#32	806188Q01	ANODE ASSY @2 (1 required per assembly) — Replaces: 806188A1
		97-806188Q01 - Anode Kit- Bravo Bearing Carrier - Priced Individually [ More info ] $36.99 10 In Stock.
		97-806188K01 - Anode Kit - Bravo Bearing Carrier [ More info ] $20.00 1 In Stock.
#33	69432	LOCKWASHER EXTERNAL (#10) (2 required per assembly)
		13-69432 - LockWasher - Priced Individually [ More info ] $1.00 10+ In Stock.
#34	806290	SCREW (#10-32 X .625) (2 required per assembly)
		10-806290 - Screw [ More info ] $1.20 5 In Stock.
#35	18323	TAB WASHER KEYED (1 required per assembly)
		14-18323 - Tab Washer, Keyed [ More info ] $24.89 10+ In Stock.
		18-2298 - Washer, 14-18323 [ More info ] $19.99 $16.05 In Stock
#36	8M2000347	RETAINER BEARING CARRIER (1 required per assembly) — Replaces: 79448, 8M2011027
		8M2000347 - Retainer [ More info ] Unavailable
		8M0168577 - Bearing Carrier Retaining Nut [ More info ] $43.49 In Stock
#37	840389K06	PROP HUB KIT PROPELLER (1 required per assembly) — Replaces: 840389K5
		840389K06 - Hub Kit -hd Prop [ More info ] Unavailable
		8M0183487 - HUB KIT-HD PROP [ More info ] $205.54 Available to Order: Shipping delay up to 10 days.
#38	NSS	NOT SOLD SEPARATE PROPELLER HUB (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#39	840383A2	WASHER/NUT KIT (1 required per assembly)
		12-840383A 2 - Washer/Nut Kit [ More info ] $53.29 Available to Order: Shipping delay up to 10 days.
#40	52707Q1	PROP NUT KIT (.750-16) (1 required per assembly)
		11-52707Q 1 - Prop Nut Kit - Priced Individually [ More info ] $16.81 3 In Stock.
		18-3701 - Nut Kit, 11-52707A1 [ More info ] $24.71 10+ In Stock.
		18-3700 - Prop Nut Only, 11-52707 [ More info ] $15.31 In Stock
		11-52707T 1 - Prop Nut Kit - Priced Individually [ More info ] $16.81 2 In Stock.
		11-00122 - Prop Nut Kit [ More info ] $13.99 $11.16 Available to Order: Shipping delay up to 10 days.
#41	840382A02	SNUBBER STRIP KIT (1 required per assembly) — Replaces: 840382A1
		840382A02 - Snubber Strip Kit [ More info ] $28.67 1 In Stock.
#42	843042T03	SPLASH PLATE KIT STAINLESS STEEL (1 required per assembly)
		843042T03 - Splash Plate Kit [ More info ] $545.48 Available to Order: Shipping delay up to 10 days.
#43	82670910	NUT (.312-18) STAINLESS STEEL (2 required per assembly)
		11-826709 10 - Nut, (.312-18) Stainless Steel [ More info ] $7.19 1 In Stock.
#44	8M0204690	WASHER (.344 X .688 X .065) STAINLESS STEEL (2 required per assembly) — Replaces: 814806
		12-8M0204690 - WASHER [ More info ] Unavailable
#45	843043	SPACER (.320 THICK X .343 X .750) (2 required per assembly)
		23-843043 - Spacer - .32 X .343 X .75 [ More info ] $16.49 Available to Order: Shipping delay up to 10 days.
#46	842831	SCREW (.312-18 X 1.25) (2 required per assembly)
		10-842831 - Screw [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#47	8M0034461	STUD (1 required per assembly) — Replaces: 21085
		16-8M0034461 - Stud [ More info ] $21.59 7 In Stock.
#48	847332	ANODE (1 required per assembly)
		847332 - Anode [ More info ] Unavailable
#49	8267096	NUT (#10-32) STAINLESS STEEL (1 required per assembly)
		11-826709 6 - Nut [ More info ] $3.69 1 In Stock.
#50	841031	SCREW (.437-14 X 1.00) (1 required per assembly)
		10-841031 - Screw [ More info ] $23.39 Available to Order: Shipping delay up to 10 days.
#51	842952	SCREW (.437-14 X 4.25) (1 required per assembly)
		10-842952 - Screw [ More info ] $101.99 Available to Order: Shipping delay up to 10 days.
#52	842826	GASKET SPLASH PLATE (1 required per assembly)
		27-842826 - Splash Plate Gasket [ More info ] $7.00 Available to Order: Shipping delay up to 10 days.
#53	842953	BUSHING (1 required per assembly)
		23-842953 - Bushing [ More info ] $113.99 Available to Order: Shipping delay up to 10 days.
#54	8M0204655	WASHER @5 (1 required per assembly) — Replaces: 35935
		12-8M0204655 - WASHER Note: Priced Individually C/U W/BELHSG&T PINZZ [ More info ] $2.69 3 In Stock.
#55	826709014	NUT (.437-14) STAINLESS STEEL (1 required per assembly)
		11-826709014 - Nut, (.437-14) Stainless Steel [ More info ] $4.17 Available to Order: Shipping delay up to 10 days.
#56	8M0143423	NUT (6 required per assembly) — Replaces: 35053
		11-8M0143423 - NUT, Priced Individually [ More info ] $9.49 1 In Stock.
#57	861854	WASHER (6 required per assembly)
		12-861854 - Washer, (.453 X .750 X .032) Stainless Steel [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#58	8M0133358	STUD Short Style Models (4 required per assembly) — Replaces: 579203
#58	841024001	STUD Long Style Models (4 required per assembly)
		16-841024001 - Stud [ More info ] $53.99 Available to Order: Shipping delay up to 10 days.
#58	8M0034453	STUD XR Sport Only (4 required per assembly)
		16-8M0034453 - Stud [ More info ] $19.59 Available to Order: Shipping delay up to 10 days.
#59	8480611	COVER PROPSHAFT (1 required per assembly)
		848061 1 - Prop Shaft Cover [ More info ] $25.03 Available to Order: Shipping delay up to 10 days.
#60	85344	WASHER (1 required per assembly)
		12-85344 - Washer, (.750 Inside Diameter) [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
