Parts for Bravo X Four S MerCruiser Outdrive Units Gear Housing (Bravo 4s)

Revise Search: Sterndrive > MerCruiser Outdrive Units > Bravo X Four S > 0W250000 & Up > Gear Housing (Bravo 4s)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Gear Housing (Bravo 4s)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0174813	GC-BRAVO 4S (1 required per assembly)
		1600-8M0174813 - GC-BRAVO 4S [ More info ] Unavailable
#-	805261A1	WEAR PAD KIT (1 required per assembly)
		805261A 1 - Wear Pad Kit [ More info ] $31.83 4 In Stock.
#-	8M0173379	SEAL KIT, G/C 4S (1 required per assembly)
		26-8M0173379 - SEAL KIT, G/C 4S [ More info ] Unavailable
#1	8M0174812	GEAR HOUSING ASSEMBLY BASIC (1 required per assembly)
		1600-8M0174812 - GC-BRV 4S-BASIC [ More info ] Unavailable
#2	805079T	BEARING ROLLER (1 required per assembly)
		31-805079T - Bearing - Roller [ More info ] $186.96 10+ In Stock.
#3	8M0173367	SPACER (1 required per assembly)
		23-8M0173367 - SPACER-BEARING [ More info ] Unavailable
#4	861694	SEAL OIL (1 required per assembly)
		26-861694 - Seal [ More info ] $65.99 4 In Stock.
#5	86754T	BEARING ASSEMBLY ROLLER (1 required per assembly)
		31-86754T - Bearing - Roller [ More info ] $81.99 5 In Stock.
#6	8M0174602	SCREEN-WATER INLT (1 required per assembly) — Replaces: 8M0173330
		35-8M0174602 - 35-8M0174602 - SCREEN-WATER INLT [ More info ] Unavailable Replaced by -8M0180973
		35-8M0180973 - SCREEN-WATER INLT [ More info ] Unavailable
#7	8M0174574	SCREW (2 required per assembly)
		10-8M0174574 - SCREW-M6 X 16 [ More info ] Unavailable
#8	8M0174577	SCREW (4 required per assembly)
		108M0174577 - SCREW [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#9	43044	PIN DOWEL - WITHOUT HOLE (.375 X .625) (1 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 1 In Stock.
#10	99940A2	CONTINUITY KIT (1 required per assembly)
		99940A 2 - Circuit Kit [ More info ] $49.57 1 In Stock.
#11	8M0113176	SCREW (1 required per assembly)
		108M0113176 - Screw - Priced Individually [ More info ] $1.10 1 In Stock.
#12	8M0174819	WASHER (2 required per assembly) — Replaces: 30971
		128M0174819 - WASHER [ More info ] $8.79 Available to Order: Shipping delay up to 10 days.
		12-8M0179961 - WASHER [ More info ] Unavailable
#13	8M0174601	NOSE CONE (1 required per assembly) — Replaces: 8M0173364
		8M0174601 - 8M0174601 - NOSE CONE [ More info ] Unavailable Replaced by -8M0235229
		8M0235229 - NOSE CONE [ More info ] Unavailable
#14	8M0181966	SCREW (1 required per assembly) — Replaces: 8M0173363
		10-8M0181966 - SCREW [ More info ] Unavailable
#15	92914A1	SHIM KIT (1 required per assembly)
		15-92914A 1 - Shim Set [ More info ] $49.32 9 In Stock.
#16	8M0103470	BEARING ASSEMBLY TAPERED ROLLER (1 required per assembly)
		31-8M0103470 - Bearing Assembly, Captive [ More info ] $47.11 1 In Stock.
#17	8M0173323	SHIM SET 2.51 OD X 2.35 ID (1 required per assembly)
		15-8M0173323 - SHIM SET [ More info ] Unavailable
#18	8M0103473	BEARING ASSEMBLY TAPERED ROLLER (1 required per assembly)
		31-8M0103473 - Upper Drive Shaft Bearing BRVZZ [ More info ] $53.99 In Stock
#19	8M0173324	RETAINER DRIVESHAFT BEARING (1 required per assembly)
		8M0173324 - RETAINER [ More info ] Unavailable
#20	8M0173325	SEAL BEARING CARRIER (1 required per assembly)
		8M0173325 - BEARING CARRIER [ More info ] Unavailable
#21	8M0174078	O-RING (1 required per assembly)
		25-8M0174078 - ORING [ More info ] Unavailable
#22	8M0174077	O-RING (1 required per assembly)
		25-8M0174077 - ORING [ More info ] Unavailable
#23	8M0173327	DRIVESHAFT LOWER (1 required per assembly)
		45-8M0173327 - DRIVESHAFT [ More info ] Unavailable
#24	815901	RACE BEARING (1 required per assembly)
		31-815901 - Bearing [ More info ] $65.03 5 In Stock.
#25	8M0173372	GEAR SET (1 required per assembly)
		43-8M0173372 - GEAR SET [ More info ] Unavailable
#26	NSS	NOT SOLD SEPARATE Outer Propshaft (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#27	NSS	NOT SOLD SEPARATE Front Gear (1 required per assembly)
#28	805068	WASHER (2 required per assembly)
		12-805068 - Washer, Pinion Gear [ More info ] $17.69 $14.16 7 In Stock.
#29	8M0173328	SCREW .375-16 X 1.00 HX HD CAP (2 required per assembly)
		10-8M0173328 - SCREW [ More info ] Unavailable
#30	8M0173329	O-RING (1 required per assembly)
		25-8M0173329 - ORING [ More info ] Unavailable
#31	8M0204680	SEAL @3 (2 required per assembly) — Replaces: 455771
		26-8M0204680 - QUAD RING SEAL, ORANGE, Priced Individually [ More info ] $4.29 4 In Stock.
#32	8M0058389	SCREW KIT DRAIN (1 required per assembly) — Replaces: 67892A06
		22-8M0058389 - Screw Kit - Priced Individually [ More info ] $11.69 6 In Stock.
		18-23751-9 - Drain Screw , Package of 50 [ More info ] $346.09 In Stock
		18-2375 - Plug, 22-67892A1 [ More info ] $7.16 10+ In Stock.
		10-02683 - Drain Screw [ More info ] $6.39 $6.03 2 In Stock.
#33	8M0204693	SEAL @6 (1 required per assembly) — Replaces: 830749
		26-8M0204693 - Drain Screw Washer, Priced Individually [ More info ] $5.19 10+ In Stock.
		10-10100-1 - Drain Screw Washer 830749 [ More info ] $3.79 $2.91 3 In Stock.
#34	8M0173361	SCREW 0.25-20 X 1.50 HEX HD FL (2 required per assembly)
		10-8M0173361 - SCREW [ More info ] Unavailable
#35	57410	BEARING ROLLER (1 required per assembly)
		31-57410 - Bearing - Roller [ More info ] $36.27 5 In Stock.
#36	8M0033407	SEAL (1 required per assembly)
		26-8M0033407 - Seal [ More info ] $87.49 10+ In Stock.
#37	8M0173369	BEARING ASSEMBLY (1 required per assembly)
		31-8M0173369 - BEARING ASSY [ More info ] Unavailable
#38	8M0173368	SHIM SET 4.24 OD X 3.90 ID (1 required per assembly)
		15-8M0173368 - SHIM SET [ More info ] Unavailable
#39	NSS	NOT SOLD SEPARATE Retainer (1 required per assembly)
#40	8M0173370	SPACER THRUST (1 required per assembly)
		23-8M0173370 - SPACER-THRUST [ More info ] Unavailable
#41	805627A1	SHIM ASSEMBLY (1 required per assembly)
		15-805627A 1 - Shim Set [ More info ] $21.39 $20.48 9 In Stock.
#42	8M0177335	CAP-THRUST (1 required per assembly) — Replaces: 8050721
		23-8M0177335 - CAP-THRUST [ More info ] Unavailable
#43	865260	BEARING THRUST (1 required per assembly)

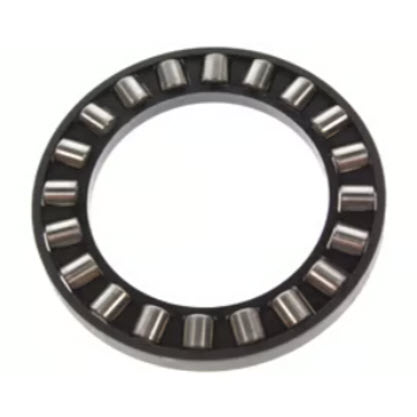

		31-865260 - Thrust Bearing [ More info ] $36.99 Available to Order: Shipping delay up to 10 days.
#44	8M0173365	PROP SHAFT INNER (1 required per assembly)
		44-8M0173365 - PROPSHAFT [ More info ] Unavailable
#45	8M0103471	BEARING ASSEMBLY TAPERED ROLLER (1 required per assembly)
		31-8M0103471 - Forward Gear Bearing Bravo [ More info ] $72.61 3 In Stock.
#46	87157A1	SHIM KIT (1 required per assembly)
		15-87157A 1 - Shim Set [ More info ] $64.99 $34.14 10+ In Stock.
#47	8M0173373	BEARING CARRIER (1 required per assembly)
		8M0173373 - BEARING CARRIER [ More info ] Unavailable
#48	8M0173374	O-RING (1 required per assembly)
		25-8M0173374 - ORING [ More info ] Unavailable
#49	8M0173375	RETAINER BEARING CARRIER (1 required per assembly)
		8M0173375 - RETAINER [ More info ] Unavailable
#50	8M0173376	SCREW (3 required per assembly)
		10-8M0173376 - SCREW [ More info ] Unavailable
#51	8M0143423	NUT (4 required per assembly)
		11-8M0143423 - NUT, Priced Individually [ More info ] $9.49 1 In Stock.
#52	861854	WASHER (4 required per assembly)
		12-861854 - Washer, (.453 X .750 X .032) Stainless Steel [ More info ] $4.19 7 In Stock.
#53	805100	THRUST WASHER (1 required per assembly)
		805100 - Thrust Washer [ More info ] $37.87 2 In Stock.
		18-3784 - Thrust Washer 805100 [ More info ] $35.99 $32.63 1 In Stock.
#54	8M0105210	PROP NUT (1 required per assembly)
		11-8M0105210 - W Prop Nut BRAVO 3 Forward ZZ [ More info ] $65.17 1 In Stock.
#55	805101T	THRUST HUB (1 required per assembly)
		805101T - Thrust Hub [ More info ] $43.94 $41.09 In Stock
		18-3787 - Thrust Washer 805101T [ More info ] $34.75 In Stock
#56	862907	PROP NUT (1 required per assembly)
		11-862907 - Prop Nut [ More info ] $22.73 4 In Stock.
		18-3786 - Nut, 11-862907 [ More info ] $13.09 In Stock
#57	88243A3	COUPLING KIT (2 required per assembly)
		88243A 3 - Coupling Kit [ More info ] $116.49 Available to Order: Shipping delay up to 10 days.
#58	88242	RING RETAINING (2 required per assembly)
		53-88242 - Ring - Retaining [ More info ] $1.10 5 In Stock.
#59	8M0173326	SHAFT-INTER (1 required per assembly)
		45-8M0173326 - SHAFT-INTER [ More info ] Unavailable
#60	8M0173377	SCREW (1 required per assembly)
		10-8M0173377 - SCREW [ More info ] Unavailable
#61	8M0173378	ADAPTER PLT-G/C (1 required per assembly)
		8M0173378 - ADAPTER PLT KIT [ More info ] Unavailable
#62	20826	O-RING (2.230 X .139) (1 required per assembly)
		25-20826 - O-ring, (2.230 X .139) [ More info ] $5.29 10+ In Stock.
#63	33465	O-RING (1 required per assembly)
		25-33465 - O-Ring - Priced Individually [ More info ] Unavailable
		25-8M0214925 - O-Ring Note: Priced Individually [ More info ] $5.29 6 In Stock.
#64	99940A2	CONTINUITY KIT (1 required per assembly)
#65	8M0113176	SCREW (1 required per assembly)
#66	8M0133358	STUD (.437-14/.437-20 X 2.060) (1 required per assembly) — Replaces: 579201, 579203
		168M0133358 - Stud [ More info ] $17.29 Available to Order: Shipping delay up to 10 days.
