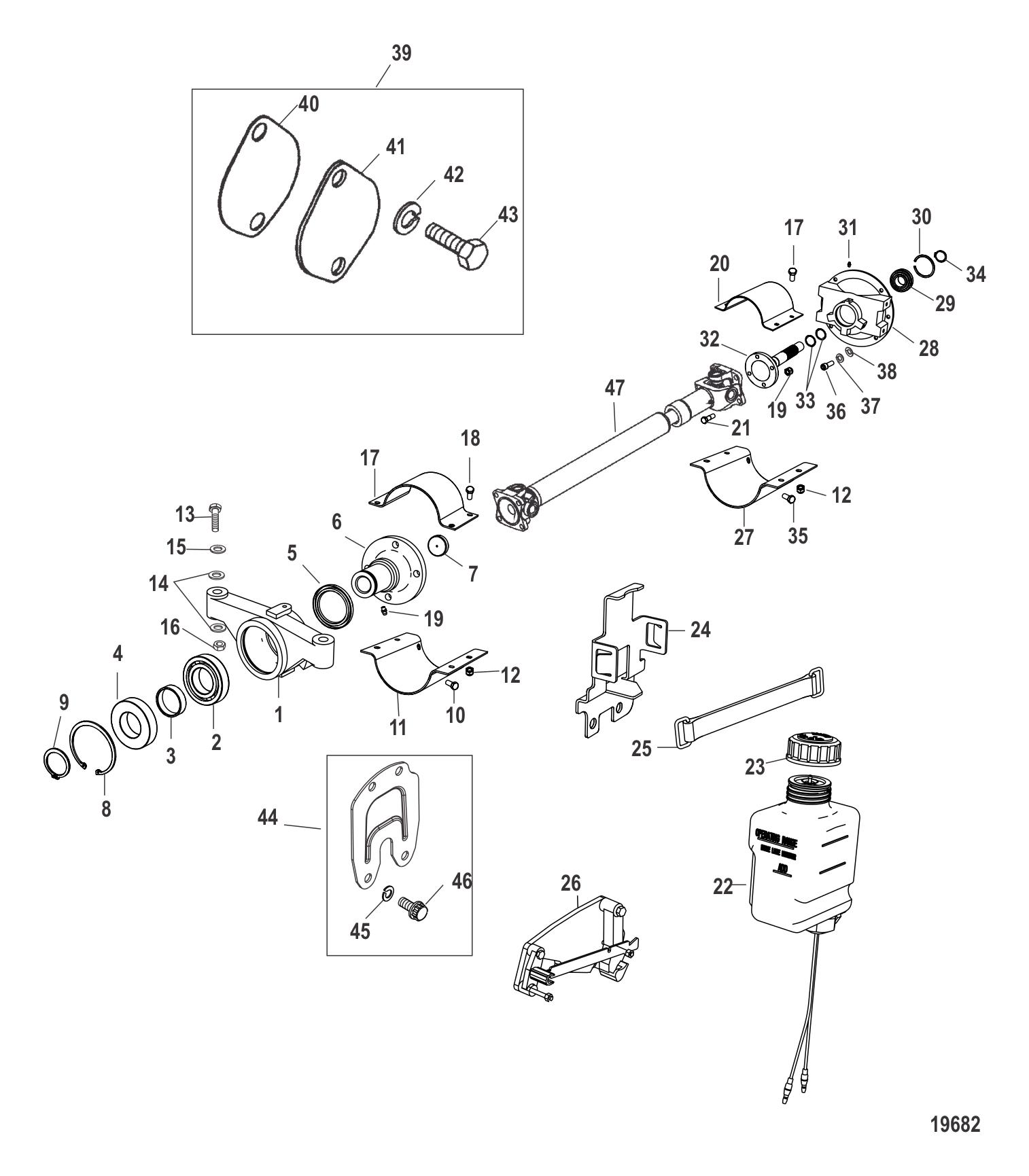

Parts for Bravo X Four S MerCruiser Outdrive Units Driveshaft Extension Kit Qsb 5.9L
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 866274A01 | DRIVE SHAFT EX KT (1 required per assembly) |
  |
|
866274A01 - Drive Shaft Extension Kit [ More info ] Unavailable |
| #- | 93911A15 | TAILSTOCK EXT ASY (1 required per assembly) |
  |
|
93911A15 - Tailstock Ext Assembly [ More info ] Unavailable |
| #1 | 817416A4 | HOUSING ASSEMBLY (1 required per assembly) |
  |
|
817416A 4 - Housing Assembly [ More info ]
|
| #2 | 93944A2 | BEARING SET BALL (INCLUDES ITEM 4) (1 required per assembly) |
  |
|
30-93944A 2 - Jackshaft Gimbal Bearing [ More info ]
|
| #3 | 817417T | SPACER (1 required per assembly) |
  |
|
23-817417T - Spacer - Bearing [ More info ]
|
| #4 | 93944A2 | BEARING SET BALL (INCLUDES ITEM 2) (1 required per assembly) |
| #5 | 93924 | SEAL (1 required per assembly) |
  |
|
|
| #6 | 817415T | SHAFT (1 required per assembly) |
  |
|
817415T - Input Shaft [ More info ]
|
| #7 | 93921 | EXPANSION PLUG (1 required per assembly) |
  |
|
|
| #8 | 93914 | RING RETAINING (1 required per assembly) |
  |
|
53-93914 - Ring - Retaining [ More info ]
|
| #9 | 93915 | RING RETAINING (1 required per assembly) |
  |
|
53-93915 - Ring - Retaining [ More info ]
|
| #10 | 76926 | SCREW (.375-16 X .875) (3 required per assembly) |
  |
|
10-76926 - Screw [ More info ]
|
| #11 | 93918A1 | SHIELD LOWER (1 required per assembly) |
  |
|
93918A 1 - Shield- Lower [ More info ]
|
| #12 | 82670912 | NUT (.375-16) STAINLESS STEEL (8 required per assembly) — Replaces: 82670812 |
  |
|
11-826709 12 - Nut, (.375-16) Stainless Steel [ More info ]
|
| #13 | 57053 | SCREW (.500-20 X 4.500) (2 required per assembly) |
  |
|
10-57053 - Screw [ More info ]
|
| #14 | 42307 | WASHER (4 required per assembly) |
  |
|
12-42307 - Washer, Spherical [ More info ]
|
| #15 | 35777 | WASHER (.5156 X 1.375 X .125) ALUMINUM (2 required per assembly) |
  |
|
12-35777 - Washer, (.5156 X 1.375 X .125) Aluminum [ More info ]
|
| #16 | 863332 | NUT (.500-20) ALUMINUM (2 required per assembly) |
  |
|
11-863332 - Nut, (.500-20) Aluminum [ More info ]
|
| #17 | 862873T | SHIELD (1 required per assembly) |
  |
|
862873T - Shield- Upper [ More info ]
|
| #18 | 76926 | SCREW (.375-16 X .875) (8 required per assembly) |
| #19 | 82670815 | NUT (.437-20) (8 required per assembly) |
  |
|
11-826708 15 - Nut, (.437-20) [ More info ]
|
| #20 | 93919A1 | SHIELD UPPER (1 required per assembly) |
  |
|
93919A 1 - Shield- Upper [ More info ]
|
| #21 | 805159 | SCREW (.437-20 X 1.500) (8 required per assembly) |
  |
|
10-805159 - Screw [ More info ]
|
| #22 | 8M0075708 | LUBE BOTTLE (1 required per assembly) — Replaces: 806193A51 |
  |
|
8M0075708 - Lube Bottle [ More info ]
|
| #23 | 8067271 | CAP DRIVE LUBE MONITOR (1 required per assembly) |
  |
|
36-806727 1 - Reservoir Cap [ More info ]
|
| #24 | 860065A1 | BRACKET KIT (1 required per assembly) |
  |
|
860065A 1 - Bracket Kit [ More info ]
|
  |
|
806293T - Bracket [ More info ]
|
| #25 | 808023T | STRAP (1 required per assembly) |
  |
|
808023T - Retaining Strap [ More info ]
|
| #26 | 99237A27 | BRACKET ASSEMBLY SHIFT (1 required per assembly) |
  |
|
99237A27 - Bracket Assembly - Shift [ More info ]
|
| #27 | 93918A1 | SHIELD LOWER (1 required per assembly) |
| #28 | NSS | NOT SOLD SEPARATE HOUSING ASSEMBLY (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #29 | 879194A03 | GIMBAL BEARING KIT (1 required per assembly) — Replaces: 62780, 62780T |
  |
|
30-879194A03 - Jackshaft Gimbal Bearing [ More info ]
|
| #30 | 94104 | RING RETAINING (1 required per assembly) |
  |
|
53-94104 - Ring - Retaining [ More info ]
|
| #31 | 8M0204738 | SET SCREW (Use with non-greased bearing) (3 required per assembly) — Replaces: 8M2015913 |
  |
|
10-8M0204738 - SET SCREW [ More info ] Unavailable |
| #31 | 8M0169589 | FITTING GREASE (Use with greased bearing) (3 required per assembly) — Replaces: 74036 |
  |
|
228M0169589 - Fitting Note: Priced Individually [ More info ]
|
| #32 | NSS | NOT SOLD SEPARATE SHAFT (1 required per assembly) |
| #33 | 8M0204650 | O-RING (2 required per assembly) — Replaces: 29845 |
  |
|
25-8M0204650 - O RING @3 Q=T [ More info ] Unavailable |
| #34 | 841897T | RING RETAINING (1 required per assembly) |
  |
|
53-841897T - Ring - Retaining [ More info ]
|
  |
|
538M0141818 - RING-RETAINING [ More info ]
|
| #35 | 96995 | SCREW (3 required per assembly) |
  |
|
10-96995 - Screw [ More info ]
|
| #36 | 29081 | SCREW (6 required per assembly) |
  |
|
10-29081 - Screw [ More info ]
|
| #37 | 32993 | LOCKWASHER @5 (6 required per assembly) |
  |
|
13-32993 - LockWasher - Priced Individually [ More info ]
|
| #38 | 878072 | WASHER (6 required per assembly) — Replaces: 28195 |
  |
|
12-878072 - Washer [ More info ]
|
| #39 | 8M0095447 | BLOCK OFF KIT (1 required per assembly) — Replaces: 818304A1 |
  |
|
8M0095447 - Block Off Kit [ More info ]
|
| #40 | 818305 | GASKET (1 required per assembly) |
  |
|
27-818305 - Cover Gasket [ More info ]
|
| #41 | 8M0095447 | BLOCK OFF KIT (1 required per assembly) — Replaces: 818304, 818304A1 |
| #42 | 26992 | LOCKWASHER (.250) STAINLESS STEEL (2 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #43 | 28636 | SCREW (.250-20 X .750) (2 required per assembly) |
  |
|
10-28636 - Screw - Priced Individually [ More info ]
|
| #44 | 861776A2 | PLATE KIT-EXHAUST (1 required per assembly) |
  |
|
861776A 2 - Exhaust Plate Kit [ More info ]
|
| #45 | 41471 | LOCKWASHER (.375) (4 required per assembly) |
  |
|
13-41471 - LockWasher [ More info ]
|
| #46 | 8M0113180 | SCREW (.375-16 X 1.00) (4 required per assembly) — Replaces: 98794 |
  |
|
10-8M0113180 - Mouting Screw AL/BRAV TOP Cover, priced individually [ More info ]
|
| #47 | 864286A1 | D SHAFT KIT-63 IN (1 required per assembly) |
  |
|
45-864286A 1 - Drive Shaft Kit -63 In [ More info ]
|
| #47 | 8M2000586 | SHAFT (1 required per assembly) |
  |
|
8M2000586 - Shaft [ More info ]
|
