Parts for 280-TRS MerCruiser Outdrive Units Gear Housing

Revise Search: Sterndrive > MerCruiser Outdrive Units > 280-TRS > 1975-1976 4203750 - 4895399 - USA > Gear Housing

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

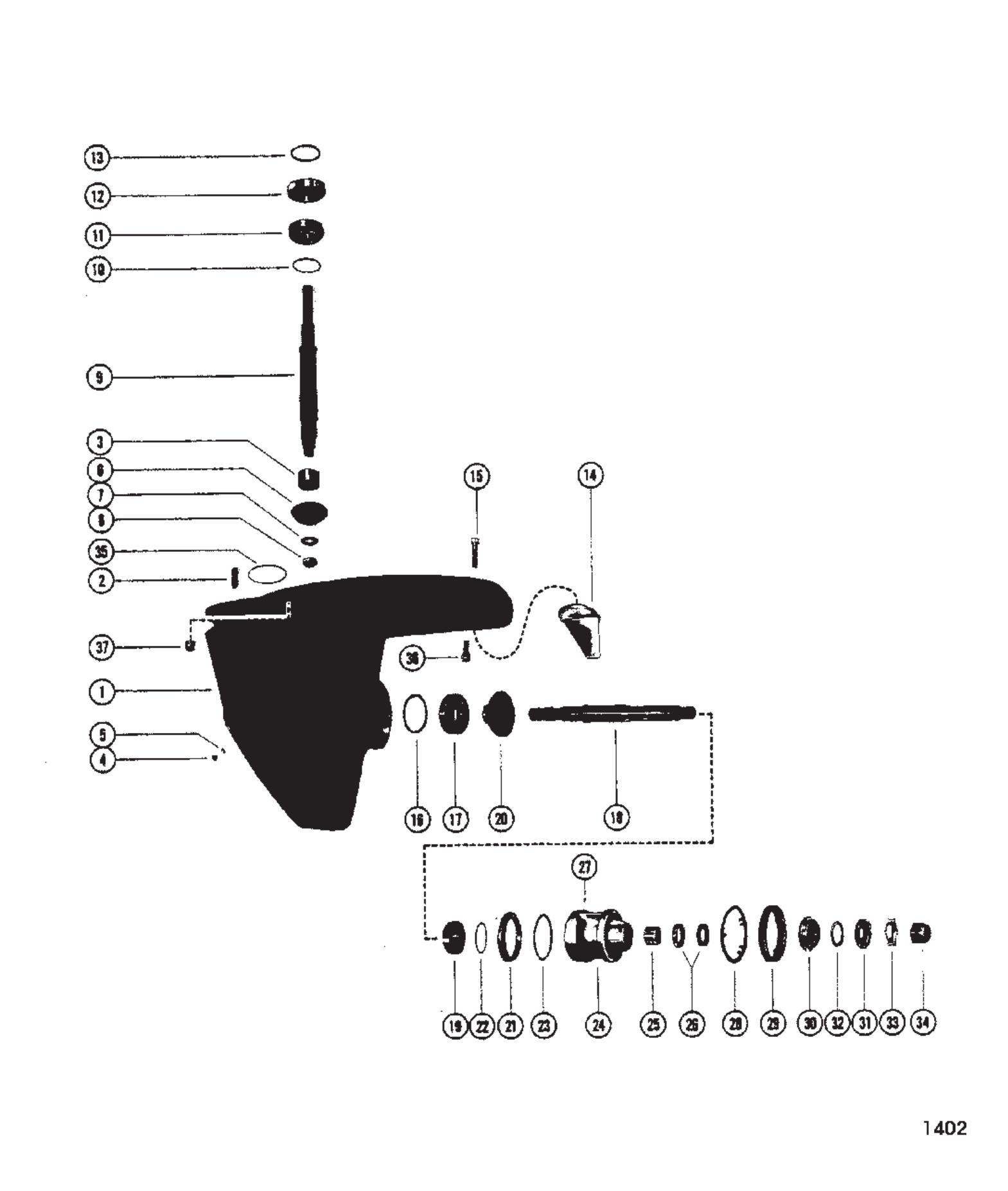

Gear Housing

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	4855A13	GEAR HOUSING ASSEMBLY COMPLETE (LEFT HAND ROTATION) (1 required per assembly)
		1641-4855A13 - Gear Housing,NLA [ More info ] Unavailable
#-	4855A14	GEAR HOUSING ASSEMBLY COMPLETE (RIGHT HAND ROTATION) (1 required per assembly)
		1641-4855A14 - Gear Housing,NLA [ More info ] Unavailable
#1	4855A6	GEAR HOUSING ASSEMBLY (1 required per assembly)
		1641-4855A 6 - Gear Housing,NLA [ More info ] Unavailable
#2	8M0041668	STUD (.437-14/.437-20 X 1.875) GEAR HOUSING (1-7/8&QUOT;) (1 required per assembly) — Replaces: 57982
		16-8M0041668 - Stud [ More info ] $15.49 1 In Stock.
#3	35246	BEARING ROLLER DRIVE SHAFT (1 required per assembly)
		31-35246 - Roller Bearing - Drive Shaft [ More info ] $86.99 $73.67 10+ In Stock.
		18-1120 - Bearing [ More info ] $126.76 In Stock
#4	79953A2	SCREW KIT (.375-16 X .250) VENT - GEAR HOUSING (1 required per assembly) — Replaces: 28634, 79953
		10-79953A 2 - Drain Screw Kit [ More info ] Unavailable
		10-79953Q 2 - Screw Kit - Priced Individually [ More info ] Unavailable
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 9 In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.79 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.19 10+ In Stock.
#5	191832	WASHER SEAL - VENT SCREW (1 required per assembly) — Replaces: 20260, 19183
		12-19183 2 - Washer - Priced Individually [ More info ] Unavailable
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 10 In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 9 In Stock.
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
#6	62880T1	PINION GEAR (1 required per assembly) — Replaces: 62880
		43-62880T 1 - Pinion Gear [ More info ] $80.00 $67.76 8 In Stock.
#7	54048	WASHER PINION GEAR TO DRIVE SHAFT (1 required per assembly)
		12-54048 - Washer [ More info ] $4.30 7 In Stock.
#8	55819	NUT PINION GEAR TO DRIVE SHAFT (1 required per assembly)
		11-55819 - Nut, Pinion Gear To Drive Shaft,NLA [ More info ] $23.42 7 In Stock.
#9	62783T	DRIVESHAFT (1 required per assembly) — Replaces: 62783
		45-62783T - Drive Shaft, NLA [ More info ] Unavailable
#10	26320A1	SHIM ASSEMBLY ROLLER BEARING TO GEAR HOUSING (AR required per assembly)
		15-26320A 1 - Shim Set, NLA [ More info ] $7.00 $5.93 4 In Stock.
#11	48941A1	BEARING ASSEMBLY ROLLER DRIVE SHAFT (1 required per assembly)
		31-48941A 1 - Roller Bearing - Tapered [ More info ] $28.00 $23.72 3 In Stock.
#12	35990A1	BEARING ASSEMBLY ROLLER DRIVE SHAFT (1 required per assembly)
		31-35990A 1 - Tapered Roller Bearing [ More info ] $56.49 Available to Order: Shipping delay up to 10 days.
#13	54030	O-RING (2.987 X .103) GEAR HOUSING (1 required per assembly)
		25-54030 - O-ring, (2.987 X .103) [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#14	316404	TRIM TAB GEAR HOUSING (1 required per assembly) — Replaces: 31640A1, 316403
		0316404 - L/P 167.90 [ More info ] Unavailable
#15	41350	SCREW (.437-14 X 2.50) STAINLESS STEEL TRIM TAB TO GEAR HOUSING (2-1/2&QUOT;) (1 required per assembly) — Replaces: 49354
		10-41350 - Screw [ More info ] $27.49 Available to Order: Shipping delay up to 10 days.
#16	55499A1	SHIM ASSEMBLY ROLLER BEARING LEFT HAND ROTATION (AR required per assembly)
		15-55499A 1 - Shim Set [ More info ] $22.49 $5.38 10+ In Stock.
#16	47397A1	SHIM SET ROLLER BEARING RIGHT HAND ROTATION (AR required per assembly)
		15-47397A 1 - Shim Set [ More info ] $16.79 $11.26 10+ In Stock.
		18-2285 - Shim 15-47397A1 [ More info ] $30.99 $27.04 In Stock
#17	8M0103475	BEARING ASSY LEFT HAND ROTATION (1 required per assembly) — Replaces: 54038A1
		31-8M0103475 - Bearing [ More info ] $143.99 Available to Order: Shipping delay up to 10 days.
#17	62801A1	BEARING ASSEMBLY TAPERED ROLLER RIGHT HAND ROTATION (1 required per assembly)
		31-62801A 1 - Tapered Roller Bearing [ More info ] $79.99 $67.74 10+ In Stock.
#18	62820T1	PROPELLER SHAFT LEFT HAND ROTATION (1 required per assembly) — Replaces: 62820
		44-62820T 1 - Prop Shaft [ More info ] $1,385.99 Available to Order: Shipping delay up to 10 days.
#18	62792	PROPELLER SHAFT RIGHT HAND ROTATION (1 required per assembly)
		44-62792 - Propeller Shaft, NLA [ More info ] $300.00 $254.10 1 In Stock.
#19	8M0103474	BEARING ASSY LEFT HAND ROTATION (1 required per assembly) — Replaces: 54036A1
		318M0103474 - Bearing Assembly [ More info ] Unavailable
#19	62799A1	BEARING SET RIGHT HAND ROTATION (1 required per assembly)
		31-62799A 1 - Tapered Roller Bearing [ More info ] $96.49 Available to Order: Shipping delay up to 10 days.
#20	62881T1	DRIVE GEAR (1 required per assembly) — Replaces: 62881
		43-62881T 1 - Drive Gear [ More info ] $80.00 $67.76 5 In Stock.
#21	66103A1	THRUST RING ASSEMBLY (1 required per assembly)
		66103A 1 - Ring, NLA [ More info ] $28.00 $23.72 3 In Stock.
#22	66093T	RING LOAD THRUST RING (1 required per assembly) — Replaces: 66093
		23-66093T - Load Ring [ More info ] $44.29 10+ In Stock.
#23	34821	O-RING BEARING CARRIER (1 required per assembly)
		25-34821 - O-Ring, Bearing Carrier [ More info ] $7.89 10+ In Stock.
#24	863913A04	ASSEMBLY-CARRIER (1 required per assembly) — Replaces: 62813A1, 62813A4
		863913A04 - Carrier Assembly [ More info ] $499.49 Available to Order: Shipping delay up to 10 days.
#25	54042T	BEARING ROLLER BEARING CARRIER (1 required per assembly) — Replaces: 54042
		31-54042T - Roller Bearing [ More info ] $38.49 $36.88 3 In Stock.
#26	821092	SEAL OIL BEARING CARRIER (2 required per assembly) — Replaces: 54926
		26-821092 - Seal [ More info ] $36.99 $35.44 10+ In Stock.
#27	30281	KEY LOCATING - BEARING CARRIER (1 required per assembly)
		28-30281 - Key - Priced Individually [ More info ] $2.99 9 In Stock.
#28	54167	TAB WASHER GEAR HOUSING COVER (1 required per assembly)
		14-54167 - Tab Washer [ More info ] $20.19 $4.85 10+ In Stock.
#29	8M0169089	CARRIER RETAINER GEAR HOUSING (1 required per assembly) — Replaces: 54163, 8M2000346
		8M0169089 - Bearing Carrier Retainer Nut [ More info ] $122.99 Available to Order: Shipping delay up to 10 days.
#30	55074T	THRUST WASHER (1 required per assembly) — Replaces: 55074
		55074T - Thrust Washer [ More info ] $46.98 4 In Stock.
#31	55073A2	WASHER ASSEMBLY SPLINED - PROPELLER SHAFT (1 required per assembly) — Replaces: 55073A1
		12-55073A 2 - Washer Assembly, Splined - Propeller Shaft [ More info ] $86.31 4 In Stock.
#32	55072	WASHER BEARING CARRIER (1 required per assembly)
		12-55072 - Cupped Washer [ More info ] $13.66 $13.10 10+ In Stock.
#33	34817	TAB WASHER PROPELLER NUT (1 required per assembly)
		14-34817 - Tab Washer [ More info ] $13.66 10+ In Stock.
		18-3788-9 - Tab Washer, 14-34817, Pack of 10 [ More info ] $104.99 $103.66 In Stock
#34	82671127	PROP NUT (1.00-14) BRASS PROPELLER (1-1/4-7 THREAD) (1 required per assembly) — Replaces: 54034
		11-826711 27 - Prop Nut [ More info ] $22.73 3 In Stock.
#35	54029	O-RING (2.800 X .103) GEAR HOUSING (1 required per assembly)
		25-54029 - O-ring (2.8 X .103 In) [ More info ] $4.19 10+ In Stock.
#36	47557	SCREW (.500-13 X 1.500) GEAR HOUSING (1-1/2&QUOT;) (1 required per assembly)
		10-47557 - Screw, NLA [ More info ] $3.59 10+ In Stock.
#37	8M0204653	NUT @10 DRIVE SHAFT HOUSING STUD (1 required per assembly) — Replaces: 34933
		11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ] $5.29 9 In Stock.
		11-00118 - Nut, Sold Individually [ More info ] $3.59 $2.95 7 In Stock.
