Parts for 260 MerCruiser Outdrive Units Power Steering Components (V-engines)

Revise Search: Sterndrive > MerCruiser Outdrive Units > 260 > 1978-1982 4898730 - 6225576 > Power Steering Components (V-engines)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

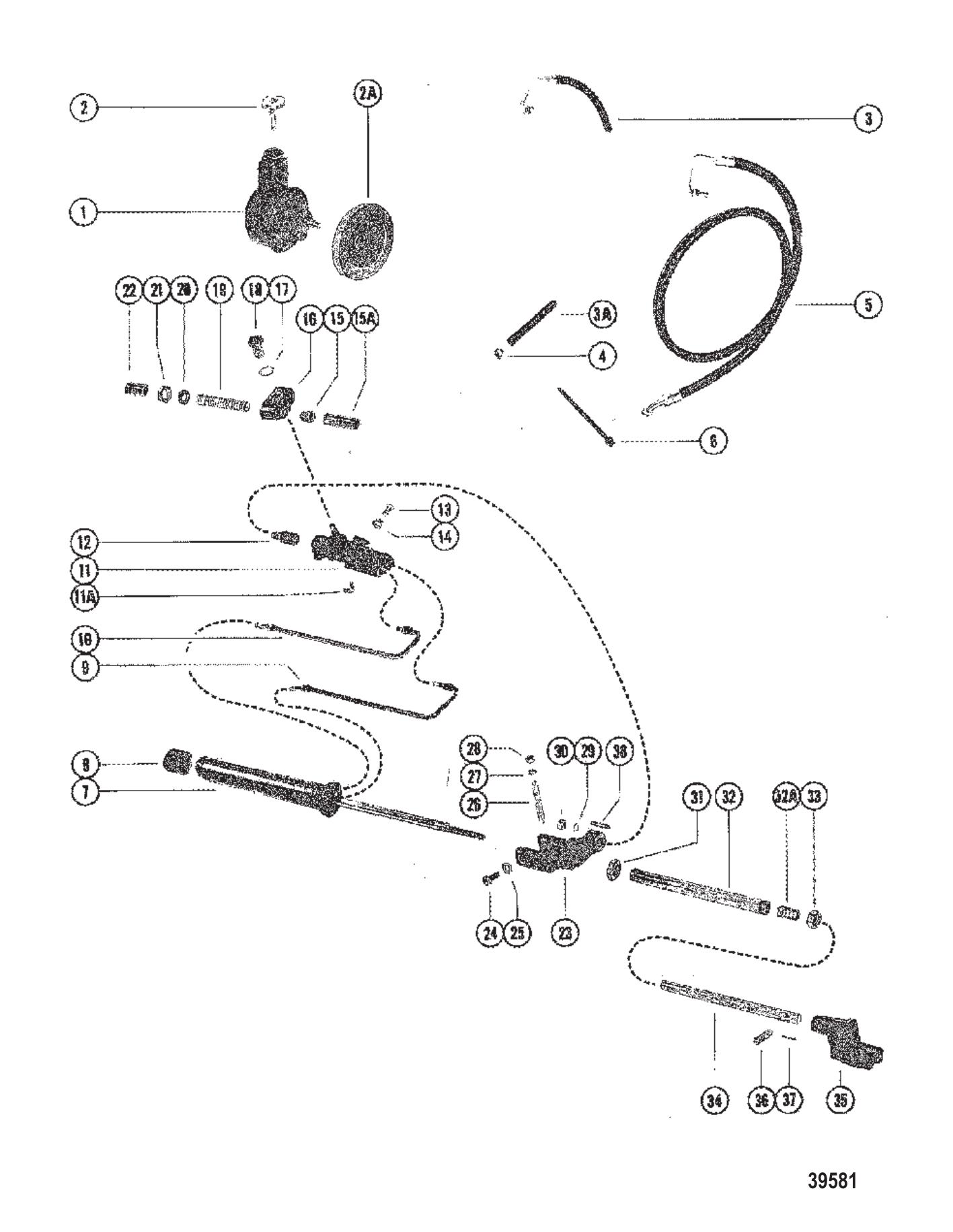

Power Steering Components (V-engines)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	58224	O-RING KIT (1 required per assembly) — Replaces: 58224A1
		25-58224 - Seal Kit, NLA [ More info ] Unavailable
#-	58226A1	O-RING KIT (1 required per assembly)
		25-58226A 1 - O-Ring Kit [ More info ] Unavailable
#1	90507A5	PUMP ASSY-P/S (NON METRIC) (1 required per assembly) — Replaces: 71317A8
		90507A 5 - Power Steering Pump Assembly, NLA [ More info ] Unavailable
#1	90507A12	PUMP ASSY-P/S (METRIC) (1 required per assembly) — Replaces: 90507A1
		90507A12 - Power Steering Pump Assembly [ More info ] $910.99 Available to Order: Shipping delay up to 10 days.
#2	39924	CAP FILLER-HYDRAULIC PUMP (1 required per assembly) — Replaces: 38333
		19-39924 - Cap, NLA [ More info ] Unavailable
#3	9884339	HOSE ASSEMBLY (72.00 INCHES BULK) RETURN-VALVE TO OIL COOLER (32&QUOT;) (1 required per assembly) — Replaces: 65929
		32-98843 39 - Hose -72 Inch [ More info ] $97.99 Available to Order: Shipping delay up to 10 days.
#4	815504206	CLAMP WORM GEAR RETURN HOSE TO HYDRAULIC PUMP (3 required per assembly) — Replaces: 35830
		54-815504206 - Clamp [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
#5	55116	HOSE (72 INCHES) PRESSURE-POWER STEERING (60&QUOT;)-NON METRIC (1 required per assembly)
		32-55116 - Hydraulic Hose [ More info ] $127.49 Available to Order: Shipping delay up to 10 days.
#5	90494	HOSE PRESSURE-POWER STEERING (60&QUOT;)-METRIC (1 required per assembly)
		32-90494 - Hose - 60 Inch [ More info ] $196.99 $194.53 In Stock
#6	61990	TIE STRAP (14.00 INCHES) HYDRAULIC HOSES (1 required per assembly)
		61990 - Tie Strap - Priced Individually [ More info ] $0.70 4 In Stock.
#7	57969A12	CYLINDER ASSEMBLY BOOSTER BOOSTER (1 required per assembly) — Replaces: 57969
		57969A12 - Cylinder Assembly, See Note, NLA [ More info ] Unavailable
#8	26059	CAP RUBBER-BOOSTER CYLINDER (1 required per assembly)
		26059 - Cap, NLA [ More info ] $7.00 $5.93 10 In Stock.
#9	57633	TUBE EXTENDING-POWER STEERING (1 required per assembly)
		32-57633 - Tubing, NLA [ More info ] Unavailable
#10	57634	TUBE RETRACTING-POWER STEERING (1 required per assembly)
		32-57634 - Tubing, NLA [ More info ] Unavailable
#11	816458A1	VALVE ASSEMBLY POWER STEERING (1 required per assembly) — Replaces: 52779A2
		816458A 1 - Valve for Power Steering Cylinder. [ More info ] Unavailable
#12	55109T	STUD ADAPTOR-POWER STEERING VALVE (1 required per assembly) — Replaces: 55109
		16-55109T - STUD,NLA [ More info ] Unavailable
#13	37612	SCREW (.375-16 X 1.250) CLAMPING (1 required per assembly)
		10-37612 - Screw - Priced Individually [ More info ] $2.49 3 In Stock.
#14	35048	LOCKWASHER (.375) CLAMPING SCREW (1 required per assembly) — Replaces: 37459
		13-35048 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#15	60773	SLEEVE ADJUSTING-CABLE GUIDE TUBE (1 required per assembly)
		23-60773 - Sleeve [ More info ] $8.00 $6.78 3 In Stock.
#16	55110T	ADAPTOR-TUBE CABLE GUIDE TUBE (DUAL) (1 required per assembly) — Replaces: 55110, 55110F1
		55110T - Adaptor-Tube, NLA [ More info ] Unavailable
#17	20897	LOCKWASHER DUAL ADAPTOR NUT (1 required per assembly)
		13-20897 - LockWasher, NLA [ More info ] Unavailable
#18	55111	NUT DUAL ADAPTOR TO POWER STEERING VALVE (1 required per assembly)
		11-55111 - NUT,NLA [ More info ] $11.00 $9.32 2 In Stock.
#19	55112	TUBE CABLE GUIDE (1 required per assembly)
		32-55112 - Tube - Cable Guide, NLA [ More info ] $34.99 $29.63 10+ In Stock.
#20	37985	WASHER CABLE GUIDE TUBE (2 required per assembly)
		12-37985 - Washer, Cable Guide Tube, NLA [ More info ] $2.14 4 In Stock.
#21	8M0041651	NUT (.875-14) CABLE GUIDE TUBE (2 required per assembly) — Replaces: 37984
		11-8M0041651 - Nut - Priced Individually [ More info ] $15.89 2 In Stock.
#22	64414	GUIDE CABLE GUIDE TUBE (1 required per assembly)
		64414 - Cable Tube Guide, NLA [ More info ] $7.00 $5.93 3 In Stock.
#23	57286	BRACKET MOUNTING-TRANSOM PLATE (1 required per assembly)
		57286 - Bracket, NLA [ More info ] Unavailable
#24	31832	BOLT (.500-20 X 1.00) MOUNTING BRACKET TO TRANSOM PLATE (2 required per assembly)
		10-31832 - Screw [ More info ] Unavailable
#25	31848	LOCKWASHER (.500) MOUNTING BRACKET SCREW (2 required per assembly)
		13-31848 - LockWasher - Priced Individually [ More info ] $1.00 $0.85 10+ In Stock.
#26	57968	SCREW (.375-24 X 3.00) ADJUSTING-MOUNTING BRACKET (1 required per assembly)
		10-57968 - Screw, NLA [ More info ] Unavailable
#27	35048	LOCKWASHER (.375) ADJUSTING SCREW (1 required per assembly) — Replaces: 37459
#28	46335	NUT (.375-24) ADJUSTING SCREW (1 required per assembly) — Replaces: 24883
		11-46335 - Nut (.375-24) [ More info ] $2.97 Available to Order: Shipping delay up to 10 days.
#29	20959	WASHER VALVE ADAPTOR STUD (1 required per assembly)
		12-20959 - Washer (7/8 X .06) [ More info ] $2.59 10+ In Stock.
#30	898832	NUT (.500-20) VALVE ADAPTOR STUD (1 required per assembly) — Replaces: 28040, 82670817
		11-898832 - Nut, (.500-20) [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#31	32882	NUT (.875-14) MOUNTING TUBE (1 required per assembly)
		11-32882 - Nut, (.875-14) [ More info ] $9.49 10+ In Stock.
#32	57971	TUBE MOUNTING-BOOSTER ROD EXTENSION (1 required per assembly)
		57971 - Tube, NLA [ More info ] $55.00 $46.58 2 In Stock.
#33	55983	NUT (.875-14) JAM-MOUNTING TUBE (1 required per assembly)
		11-55983 - Nut (.875-14) [ More info ] $5.00 $4.24 10+ In Stock.
#34	57970	ROD EXTENDER CYLINDER BOOSTER ROD (1 required per assembly)
		57970 - Extender Rod [ More info ] $93.75 $79.40 10+ In Stock.
#35	86069T	ADAPTOR ROD END (1 required per assembly) — Replaces: 86069
		86069T - Adaptor, NLA [ More info ] Unavailable
#36	52798	PIN CLEVIS STEERING CABLE AND CLEVIS ATTACHING (2 required per assembly)
		17-52798 - Clevis Pin [ More info ] $7.49 Available to Order: Shipping delay up to 10 days.
#37	46950	COTTER PIN CLEVIS PIN RETAINING (2 required per assembly)
		18-46950 - Cotter Pin [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#38	239281	PIN ROLL MOUNTING BRACKET (1 required per assembly) — Replaces: 23928
		17-23928 1 - Pin -roll - Priced Individually [ More info ] $4.39 $2.46 10+ In Stock.
#11A	67305	FITTING GREASE POWER STEERING VALVE (1 required per assembly)
		22-67305 - Fitting - Priced Individually, NLA [ More info ] $2.63 $2.23 10+ In Stock.
#15A	60652	SLEEVE ADJUSTING-CABLE GUIDE TUBE (1 required per assembly)
		23-60652 - Sleeve [ More info ] $39.13 $33.14 4 In Stock.
#2A	73873A1	PULLEY HYDRAULIC PUMP (1 required per assembly) — Replaces: 73873
		73873A 1 - Pulley (Black) [ More info ] $221.49 Available to Order: Shipping delay up to 10 days.
#32A	78498	SPRING TORSION-MOUNTING TUBE (1 required per assembly)
		24-78498 - Spring, Torsion - Mounting Tube,NLA [ More info ] $9.00 $7.62 6 In Stock.
#3A	9884339	HOSE ASSEMBLY (72.00 INCHES BULK) RETURN-OIL COLLER TO HYDRAULIC PUMP (40&QUOT;) (1 required per assembly) — Replaces: 8M0027775
