Parts for 260 MerCruiser Outdrive Units Bell Housing Assembly
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 42815A3 | HOUSING ASSY (1 required per assembly) — Replaces: 65535A4, 94995A3 |
  |
|
42815A 3 - Bell Housing [ More info ]
|
  |
|
42815A 6 - Bell Housing [ More info ]
|
| #2 | 64818A4 | GASKET SET-DRIVE DRIVESHAFT HSG. TO BELL HSG (1 required per assembly) — Replaces: 64818, 64818A1 |
  |
27-64818A 4 - Drive Unit Gasket Set [ More info ] Unavailable |
|
  |
|
27-64818Q 4 - Drive Gasket Set [ More info ]
|
  |
|
18-2820-9 - Gasket 27-64818, 5PK [ More info ]
|
  |
|
18-2614 - Gasket Set 27-64818A1 [ More info ]
|
  |
|
27-64818T 4 - Gasket Set [ More info ]
|
| #3 | 33066 | CONNECTOR (.500-14) STRAIGHT - BRASS WATER HOSE TO BELL HOUSING (1 required per assembly) |
  |
|
22-33066 - Connector [ More info ]
|
| #4 | 69707 | SCREW BELL HOUSING FLANGE (4 required per assembly) |
  |
|
10-69707 - Screw - Priced Individually [ More info ]
|
| #5 | 63679 | BUMPER BELL HOUSING (1 required per assembly) |
  |
|
63679 - Bell Housing Bumper, NLA [ More info ]
|
| #6 | 814308 | BUSHING BELL HOUSING (5/8") (1 required per assembly) — Replaces: 79372 |
  |
|
23-814308 - Bushing [ More info ]
|
| #7 | 45587 | SEAL OIL BELL HOUSING (1 required per assembly) |
  |
|
26-45587 - Seal - Priced Individually [ More info ]
|
| #8 | 805041A2 | BUSHING/SEAL KIT OIL BELL HOUSING (5/16") (1 required per assembly) — Replaces: 79373, 79373A1 |
  |
|
23-805041A 2 - Bushing Kit [ More info ]
|
  |
|
18-2622 - Bushing Kit, 23-805041A2 [ More info ]
|
| #9 | 8M0204656 | GASKET @5 BELL HOUSING (1 required per assembly) — Replaces: 35982 |
  |
|
278M0204656 - Gasket Note: Priced Individually [ More info ]
|
| #10 | 33504 | O-RING BELL HOUSING (1 required per assembly) |
  |
|
25-33504 - O-Ring - Priced Individually [ More info ]
|
  |
|
258M0214926 - O RING Priced Individually [ More info ]
|
| #11 | 72498 | WASHER SYNTHANE BELL HOUSING (2 required per assembly) |
  |
12-72498 - Washer, Synthane [ More info ] Unavailable |
|
  |
|
128M0162651 - WASHER, Sold Individually [ More info ]
|
| #12 | 59579 | STUD (.437-14/.437-20 X 2.812) BELL HOUSING TO DRIVESHAFT HOUSING (6 required per assembly) |
  |
|
|
| #13 | 8M0204655 | WASHER @5 BELL HOUSING STUD (6 required per assembly) — Replaces: 35935 |
  |
|
12-8M0204655 - WASHER Note: Priced Individually C/U W/BELHSG&T PINZZ [ More info ]
|
| #14 | 8M0204653 | NUT @10 BELL HOUSING STUD (6 required per assembly) — Replaces: 34933 |
  |
|
11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ]
|
  |
|
11-00118 - Nut, Sold Individually [ More info ]
|
| #15 | 60932A4 | BELLOWS ASSEMBLY UNIVERSAL JOINT (1 required per assembly) |
  |
|
60932A 4 - Bellows Assembly [ More info ]
|
  |
|
18-2751 - Bellows 60932A4 [ More info ]
|
| #16 | 815504372 | CLAMP WORM GEAR UNIVERSAL JOINT BELLOWS TO BELL HSG. AND GIMBAL HSG. (2 required per assembly) — Replaces: 31765 |
  |
|
54-815504372 - Clamp [ More info ]
|
| #17 | 32461 | HOSE WATER - BELL HOUSING TO GIMBAL HOUSING (13 3/4") (1 required per assembly) |
  |
|
32-32461 - Hose - Water - Bell Housing To Gimbal Housing [ More info ]
|
  |
|
18-3601 - Hose, 32-32461 [ More info ]
|
| #18 | 815504310 | CLAMP WORM GEAR WATER HOSE ATTACHING (2 required per assembly) — Replaces: 32523 |
  |
|
54-815504310 - Clamp [ More info ]
|
| #19 | 8M0124227 | BELLOWS ASSEMBLY EXHAUST (IN-LINE ENGINES) (1 required per assembly) — Replaces: 32734A3, 18654A1 |
  |
|
8M0124227 - Exhaust Bellows [ More info ]
|
  |
|
18-2750 - Bellows 18654A1 [ More info ]
|
| #19 | 78458A1 | TUBE EXHAUST (V-8 ENGINES) (1 required per assembly) |
  |
|
78458A 1 - Exhaust Tube Assembly [ More info ]
|
  |
|
18-2760 - Exhaust Tube 78458A1 [ More info ]
|
  |
|
61-00519 - Exhaust Bellows, 78458A 1 [ More info ]
|
| #20 | 815504348 | CLAMP WORM GEAR EXHAUST BELLOWS ATTACHING (2 required per assembly) — Replaces: 32533 |
  |
|
54-815504348 - Clamp [ More info ]
|
 |
|
18-710-48-2 - HOSE CLAMP [ More info ]
|
| #21 | 8M0184382 | SHAFT-SHIFT SHIFT - UPPER (1 required per assembly) — Replaces: 45589A1, 45589A3 |
  |
|
8M0184382 - SHIFT SHAFT ASSY ZZ [ More info ]
|
| #22 | 621041 | SHIFT SHAFT SHIFT - INTERMEDIATE (1 required per assembly) — Replaces: 62104 |
  |
|
62104 1 - Shift Shaft [ More info ] Unavailable |
| #23 | 32665 | COTTER PIN INTERMEDIATE SHIFT SHAFT RETAINING (1 required per assembly) |
  |
|
18-32665 - Cotter Pin - Priced Individually [ More info ]
|
| #24 | 32666 | WASHER INTERMEDIATE SHIFT SHAFT (1 required per assembly) |
  |
|
12-32666 - Washer, Intermediate Shift Shaft [ More info ]
|
| #25 | 45518A3 | LEVER ASSEMBLY UPPER SHIFT SHAFT (1 required per assembly) — Replaces: 45518A1, 45518A2 |
  |
45518A 3 - Shift Lever Assembly [ More info ] In Stock |
|
  |
|
18-2161 - Shift Arm 45518A3 [ More info ]
|
  |
|
8M0241961 - LEVER UPPER SHIFT [ More info ]
|
  |
|
93-01358 - Shift Arm, 45518A3 [ More info ]
|
| #26 | 39116 | WASHER UPPER SHIFT LEVER (1 required per assembly) |
  |
|
12-39116 - Washer, Nylon [ More info ]
|

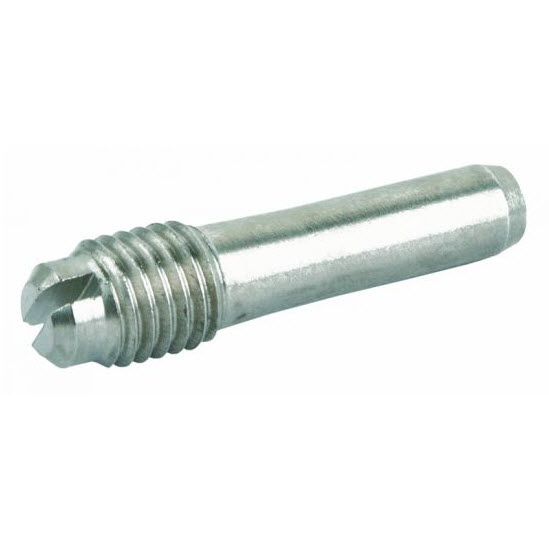

| #27 | 8M0084649 | SCREW SHIFT LEVER UPPER SHIFT LEVER TO SHIFT SHAFT (1 required per assembly) — Replaces: 45590 |
  |
|
10-8M0084649 - Screw - Priced Individually [ More info ]
|
| #28 | 8M0126505 | CLIP GROUNDING BELLOWS (4 required per assembly) — Replaces: 86049 |
  |
|
54-8M0126505 - 8ROUNDING Clip - Priced Individually [ More info ]
|
