Parts for 233 MerCruiser Outdrive Units Gimbal Housing Assembly

Revise Search: Sterndrive > MerCruiser Outdrive Units > 233 > 1975-1977 4200500 & Up > Gimbal Housing Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

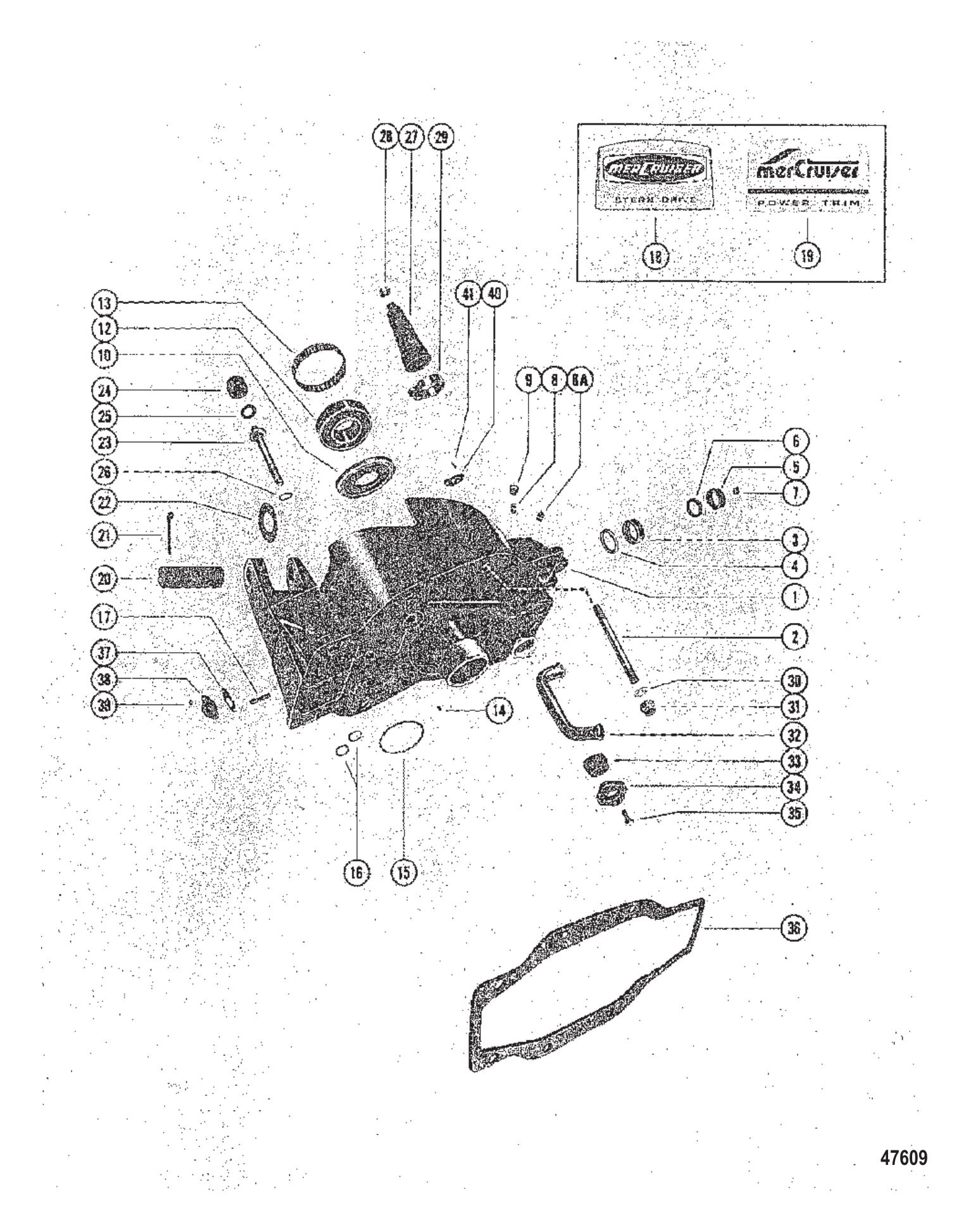

Gimbal Housing Assembly

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	63504A1	GIMBAL HOUSING ASSEMBLY (WITHOUT GIMBAL TRIM SENDER) (1 required per assembly)
		63504A 1 - Housing,NLA [ More info ] Unavailable
#1	70862A1	GIMBAL HOUSING ASSEMBLY (WITH GIMBAL TRIM SENDER) (1 required per assembly)
		70862A 1 - Housing Assembly [ More info ] Unavailable
#2	56296	STUD (.437-20 X 4.750) GIMBAL HOUSING TO TRANSOM PLATE (4 3/4&QUOT;) (2 required per assembly)
		16-56296 - Stud [ More info ] Unavailable
#3	32536	BEARING ROLLER - GIMBALL HOUSING (LOWER) (1 required per assembly)
		31-32536 - Bearing - Roller - Gimball Housing [ More info ] $7.53 10+ In Stock.
#4	32911	SEAL OIL LOWER GIMBALL HOUSING ROLLER BEARING (1 required per assembly)
		26-32911 - Seal [ More info ] $15.59 1 In Stock.
#5	38634	BUSHING SYNTHANE - GIMBAL HOUSING (UPPER) WITHOUT GIMBAL TRIM SENDER (1 required per assembly)
		23-38634 - Bushing, NLA [ More info ] $9.99 $8.45 10+ In Stock.
#5	21145	BEARING ROLLER GIMBAL HOUSING (UPPER) WITH GIMBAL TRIM SENDER (1 required per assembly)
		31-21145 - Roller Bearing - Gimbal Housing - Upper [ More info ] $17.67 3 In Stock.
#6	32540	SEAL OIL UPPER GIMBAL HOUSING BUSHING WITHOUT GIMBAL TRIM SENDER (1 required per assembly)
		26-32540 - Seal, NLA [ More info ] $9.99 $8.45 10+ In Stock.
#6	54925	SEAL OIL UPPER GIMBAL HOUSING BEARING WITH GIMBAL TRIM SENDER (1 required per assembly)
		26-54925 - Seal [ More info ] $20.29 $13.62 10+ In Stock.
#7	39072	PLUG (1/8 INCH BRASS) PIPE - GIBAL HOUSING (1 required per assembly) — Replaces: 52644, 35268
		22-39072 - Plug [ More info ] $2.22 4 In Stock.
		22-39072 1 - Plug - Priced Individually [ More info ] $9.29 1 In Stock.
#8	8M0169589	FITTING GREASE (Use with greased bearing) (2 required per assembly) — Replaces: 74036
		228M0169589 - Fitting Note: Priced Individually [ More info ] $4.79 1 In Stock.
#8	8M0204738	SET SCREW (Use with non-greased bearing) (2 required per assembly) — Replaces: 8M2015913
		10-8M0204738 - SET SCREW [ More info ] Unavailable
#9	77633Q	LUBRICAP GIMBAL HOUSING GREASE FITTING (2 required per assembly) — Replaces: 29359, 77633
		19-77633Q - Cap - Pack of 5 as shown [ More info ] $6.99 9 In Stock.
#10	88416	SEAL OIL GREASE - GIMBAL HOUSING (1 required per assembly) — Replaces: 36143
		26-88416 - Seal [ More info ] Unavailable
		18-2094 - Seal, 26-88416 [ More info ] $26.31 7 In Stock.
		26-00175 - Gimbal Housing Seal, 26-88416 [ More info ] $20.72 2 In Stock.
#12	879194A02	BEARING KIT-GIMBL BALL - GIMBAL HOUSING (1 required per assembly) — Replaces: 60794A2, 60794A4
		30-879194A02 - Gimbal Bearing, Sealed [ More info ] $138.99 $136.90 In Stock
		18-21001 - Gimbal Bearing, Sealed, 30-879194A02 [ More info ] $92.99 $88.21 9 In Stock.
		18-2100 - Gimbal Bearing, Greaseable, 30-60794A4, 3853 [ More info ] $75.99 $73.84 10+ In Stock.
		30-00803 - Gimbal Bearing 30-60794A4 [ More info ] $91.49 $74.09 5 In Stock.
#13	61075	TOLERANCE RING GIMBAL HOUSING BEARING (1 required per assembly)
		61075 - Tolerance Ring, NLA [ More info ] $12.14 9 In Stock.
#14	25612	SCREW DRIVE - GIMBAL HOUSING EXHAUST FLANGE (13 required per assembly)
		10-25612 - Screw, NLA [ More info ] $1.80 $1.52 10+ In Stock.
#15	20863	O-RING GIMBAL HOUSING (1 required per assembly)
		25-20863 - O-ring, Upper Bearing Housing [ More info ] $4.59 2 In Stock.
		18-7152 - O-Ring 25-20863 [ More info ] $3.88 $3.48 5 In Stock.
#16	23145	O-RING (.984 X .139) GIMBAL HOUSING (2 required per assembly)
		25-23145 - O-ring, (.984 X .139) [ More info ] $1.99 1 In Stock.
		18-7114 - O-Ring 25-23145, 302540 [ More info ] $2.02 $1.59 7 In Stock.
#17	56766	STUD (.250-20/.250-28 X 1.380) HYDRAULIC CONNECTOR TO GIMBAL HOUSING (2 required per assembly)
		16-56766 - Stud - Priced Individually [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#18	87018	DECAL GIMBAL HOUSING SEE PHOTO FOR CORRECT REPLACEMENT (1 required per assembly) — Replaces: 60884
		37-87018 - Decal, NLA [ More info ] Unavailable
#19	87018	DECAL GIMBAL HOUSING SEE PHOTO FOR CORRECT REPLACEMENT (1 required per assembly) — Replaces: 76733
#20	45212	PIN SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER) (1 required per assembly)
		17-45212 - Swivel Pin [ More info ] $78.00 2 In Stock.
		178M0073409 - Pin [ More info ] $59.99 Available to Order: Shipping delay up to 10 days.
#21	54929	COTTER PIN RETAINING - LOWER SWIVEL PIN (1 required per assembly) — Replaces: 34212
		18-54929 - Cotter Pin [ More info ] $7.89 5 In Stock.
#22	32518	WASHER GIMBAL HOUSING TO LOWER SWIVEL PIN (1 required per assembly)
		12-32518 - Washer, Lower Swivel Pin [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#23	8M0030655	ANODE BOLT KIT ANODIC - GIMBAL HOUSING TO TRANSOM PLATE (2 required per assembly) — Replaces: 55989A1, 55989A8
		97-8M0030655 - Anode Bolt Kit [ More info ] $73.89 1 In Stock.
#24	55989A9	ANODE KIT BOLT ASSEMBLY (2 required per assembly) — Replaces: 55989, 55989A3
		55989A 9 - Anode Kit, Package of 2 [ More info ] $19.99 8 In Stock.
		18-6015-9 - Anode, Zinc, Pack of 2 [ More info ] $7.99 $5.11 Available to Order: Shipping delay up to 10 days.
		97-55989Q 9 - Anode Kit, Aluminum, Pack of 2 [ More info ] $20.09 1 In Stock.
#25	56085	WASHER ANODIC BOLT ASSEMBLY (2 required per assembly)
		12-56085 - Washer, Neoprene [ More info ] $1.20 $0.67 10+ In Stock.
#26	32620	WASHER GIMBALL HOUSING BOLT (2 required per assembly)
		12-32620 - Washer - Priced Individually [ More info ] $1.50 10+ In Stock.
#27	74639A2	BELLOWS ASSEMBLY SHIFT ACTUATING CABLE (1 required per assembly) — Replaces: 74639
		74639A 2 - Bellows [ More info ] $34.99 3 In Stock.
		18-2753-2 - Shift Cable Bellows [ More info ] $20.87 10+ In Stock.
		74639Q02 - Bellows Kit - Priced Individually [ More info ] $34.99 $33.49 Available to Order: Shipping delay up to 10 days.
		61-00504 - Shift Cable Bellow & Clamps Mercury Mercruiser 74639A2 [ More info ] $16.99 $13.99 Available to Order: Shipping delay up to 10 days.
#28	8M0090424	CLAMP ACTUATING CABLE BELLOW TO SHIFT ACTUATING CABLE (1 required per assembly) — Replaces: 38863, 866507
		54-8M0090424 - Clamp - Priced Individually [ More info ] $7.20 4 In Stock.
		54-8M0204733 - CLAMP Note: Priced Individually [ More info ] $7.49 3 In Stock.
#29	8M0204716	CLAMP SHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSING (1 required per assembly) — Replaces: 31766, 815504320
		54-8M0204716 - CLAMP [ More info ] Unavailable
#30	34567	WASHER GIMBAL HOUSING STUD (2 required per assembly)
		12-34567 - Washer (.453 X .875 X .12) Brace Slot [ More info ] $1.50 8 In Stock.
#31	8M0204653	NUT @10 GIMBAL HOUSING STUD (2 required per assembly) — Replaces: 34933
		11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ] $5.29 9 In Stock.
		11-00118 - Nut, Sold Individually [ More info ] $3.59 $2.95 7 In Stock.
#32	869081	ORD 32- 41672A01 WATER - GIMBAL HOUSING (1 required per assembly) — Replaces: 60542, 86908
		32-86908 1 - Water Tube [ More info ] $26.99 5 In Stock.
#33	28055	BUSHING RUBBER - WATER TUBE SEALING (1 required per assembly)
		23-28055 - Bushing, NLA [ More info ] Unavailable
#34	32517	COVER WATER TUBE SEALING BUSHING - GIMBAL HOUSING (1 required per assembly)
		32517 - Cover [ More info ] $10.76 10 In Stock.
#35	28635	SCREW (.250-20 X .620) STAINLESS STEEL WATER TUBE SEALING COVER TO GIMBAL HOUSING (5/8&QUOT;) (2 required per assembly)
		10-28635 - Screw - Priced Individually [ More info ] $1.80 10+ In Stock.
#36	65373	GASKET GIMBAL HSG. TO TRANSOM (WITHOUT GIMBAL TRIM SENDER) (1 required per assembly)
		27-65373 - Gimbal Housing To Transom Gasket [ More info ] $68.49 Available to Order: Shipping delay up to 10 days.
#36	65533A1	SEAL GIMBAL HSG. TO TRANSOM (WITH GIMBAL TRIM SENDER) (1 required per assembly) — Replaces: 65533
		65533A 1 - Seal [ More info ] $22.11 4 In Stock.
#37	476441	GASKET HYDRAULIC CONNECTOR (1 required per assembly) — Replaces: 47644
		27-47644 1 - Gasket - Priced Individually [ More info ] $2.69 2 In Stock.
#38	47347	CONNECTOR HYDRAULIC - GIMBAL HOUSING (1 required per assembly)
		47347 - Connector [ More info ] Unavailable
#39	35888	NUT (.250-28) STAINLESS STEEL GIMBAL HOUSING TO HYDRAULIC CONNECTOR STUD (2 required per assembly)
		11-35888 - Nut (1/4-28) [ More info ] $6.89 $3.04 10+ In Stock.
		18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ] $11.99 $8.16 Available to Order: Shipping delay up to 10 days.
#40	12078	CLAMP RETAINING - GIMBAL HOUSING WITH GIMBAL TRIM SENDER (1 required per assembly) — Replaces: 57322, 57322T
		54-12078 - Clamp [ More info ] $13.59 Available to Order: Shipping delay up to 10 days.
#41	28635	SCREW (.250-20 X .620) STAINLESS STEEL COVER TO GIMBAL HOUSING (5/8&QUOT;) WITH GIMBAL TRIM SENDER (2 required per assembly)
#8A	428611	FITTING PIPE - BRASS (.750-14) PLASTIC - GIMBALL HOUSING (2 required per assembly) — Replaces: 58934, 42861
		22-42861 1 - Pipe Plug [ More info ] $6.99 10+ In Stock.
		22-8M0204679 - Exhaust Manifold Pipe Plug [ More info ] $10.99 Available to Order: Shipping delay up to 10 days.
