Parts for 233 MerCruiser Outdrive Units Gear Housing Assembly Complete

Revise Search: Sterndrive > MerCruiser Outdrive Units > 233 > 1975-1977 4200500 & Up > Gear Housing Assembly Complete

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

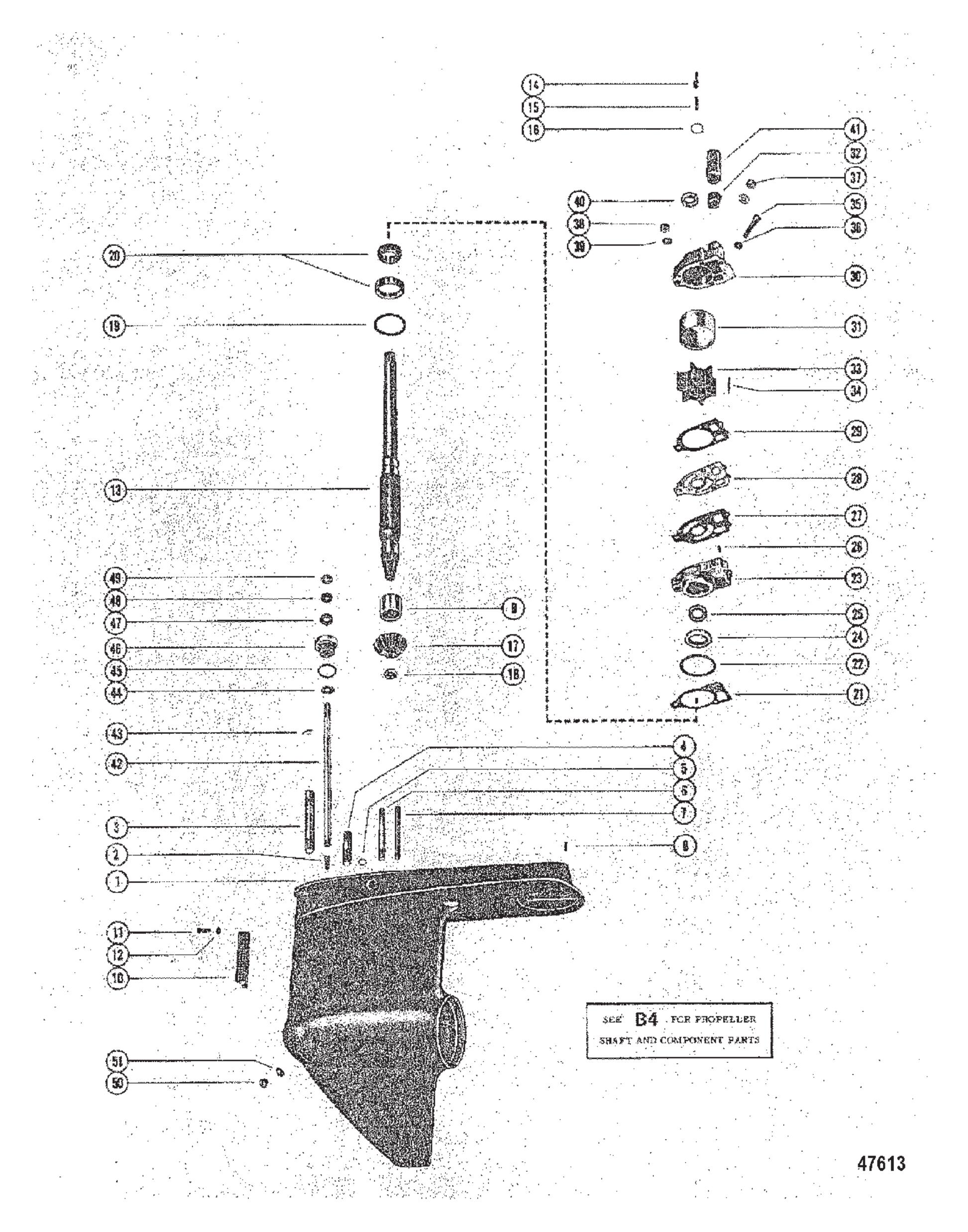

Gear Housing Assembly Complete

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	5356A20	GEAR HOUSING ASSEMBLY COMPLETE (SEE NOTE BELOW) (1 required per assembly) — Replaces: 5356A3, 5356A19
		1623-5356A20 - Gear Housing Assembly [ More info ] Unavailable
		1623-8951A 2 - Gear Housing Assembly [ More info ] Unavailable
		1623-8951A19 - Gearcase [ More info ] Unavailable
		1623-8951A23 - Gearcase COMP [ More info ] Unavailable
		1623-8951A43 - Gear Housing Assembly [ More info ] Unavailable
		90-106-02 - SE106 Lower Unit Mercruiser Alpha One, Standard Rotation [ More info ] $1065.00 $1065.00 Available to Order
#1	5356A4	GEAR HOUSING ASSEMBLY (1 required per assembly)
		1623-5356A 4 - Gear Housing Assembly [ More info ] $1,337.79 $1,133.10 10+ In Stock.
#2	379721	PIN SHAFT CRANK - GEAR HOUSING (1 required per assembly) — Replaces: 37972
		17-37972 1 - Pin [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#3	46911	STUD GEAR HOUSING TO DRIVE SHAFT HOUSING (3 3/16&QUOT;) (1 required per assembly)
		16-46911 - Stud [ More info ] $7.49 $1.50 10+ In Stock.
#4	56298	STUD (.437 X 1.97) GEAR HOUSING TO DRIVE SHAFT HOUSING (1 31/32&QUOT;) (2 required per assembly)
		16-56298 - Stud [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#5	8M0204680	SEAL @3 GEAR HOUSING (1 required per assembly) — Replaces: 45577, 455771
		26-8M0204680 - QUAD RING SEAL, ORANGE, Priced Individually [ More info ] $4.29 4 In Stock.
#6	8M0034463	STUD (.312-24 X 3.38) WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8&QUOT;) (1 required per assembly) — Replaces: 56297, 562972
		16-8M0034463 - Stud [ More info ] $17.89 Available to Order: Shipping delay up to 10 days.
#7	69501	STUD WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/4&QUOT;) (2 required per assembly)
		16-69501 - Stud [ More info ] $3.59 2 In Stock.
#8	8M0084726	PIN DOWEL DOWEL - GEAR HOUSING TO DRIVE SHAFT HOUSING (2 required per assembly) — Replaces: 46912, 85500
		178M0084726 - Pin - Dowel [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#9	35934A1	BEARING ASSEMBLY ROLLER ROLLER - DRIVE SHAFT (1 required per assembly) — Replaces: 35934
		31-35934A 1 - Roller Bearing [ More info ] $20.00 $4.80 10 In Stock.
#10	66884	INSERT WATER PICKUP (PORT SIDE) (1 required per assembly)
		66884 - Water Pickup Insert [ More info ] $18.31 10 In Stock.
#10	66885	INSERT WATER PICKUP (STARBOARD SIDE) (1 required per assembly)
		66885 - Water Pickup Insert [ More info ] $6.40 $3.58 10+ In Stock.
#11	76156	SCREW (#10-32 X 1.88) INSERT TO GEAR HOUSING (1 7/8&QUOT;) (1 required per assembly)
		10-76156 - Screw [ More info ] $3.39 10+ In Stock.
#12	859124	NUT (#10-32) STAINLESS STEEL INSERT TO GEAR HOUSING SCREW (1 required per assembly) — Replaces: 45812
		11-859124 - Nut, (#10-32) Stainless Steel, Nylon Insert [ More info ] $18.69 10+ In Stock.
#13	41939F1	DRIVESHAFT ASSEMBLY (1 required per assembly) — Replaces: 55757A1, 41939A1
		45-41939F 1 - Drive Shaft - Black [ More info ] $232.73 3 In Stock.
#14	30545	PIN DRIVE SHAFT (1 required per assembly)
		17-30545 - Pin - Priced Individually [ More info ] $1.90 7 In Stock.
#15	34576	SPRING COMPRESSION - DRIVE SHAFT (1 required per assembly)
		24-34576 - Spring, Compression - Drive Shaft,NLA [ More info ] $9.89 10+ In Stock.
#16	30613	O-RING UPPER - DRIVE SHAFT (1 required per assembly)
		25-30613 - O-ring, Upper Drive Shaft [ More info ] Unavailable
		25-8M0214919 - O RING @5 [ More info ] Unavailable
#17	96084A4	GEAR SET PINION - DRIVE SHAFT (1 required per assembly) — Replaces: 61027
		43-96084A 4 - Gear Set [ More info ] $269.48 10+ In Stock.
#18	35921	NUT (.625-18) PINION GEAR TO DRIVE SHAFT (1 required per assembly)
		11-35921 - Nut, (.625-18) [ More info ] $7.99 10+ In Stock.
		18-3719 - Nut, 11-35921, 314730 [ More info ] $5.19 1 In Stock.
		18-2359 - Nut Kit [ More info ] $5.19 $3.51 Available to Order: Shipping delay up to 10 days.
#19	57007A1	SHIM DRIVE SHAFT BEARING TO GEAR HOUSING (.002-3-5-10-20) (AR required per assembly)
		15-57007A 1 - Shim Set [ More info ] $48.83 $41.36 4 In Stock.
#20	53079A1	BEARING ASSEMBLY TAPERED ROLLER DRIVE SHAFT (1 required per assembly)
		31-53079A 1 - Tapered Roller Bearing - Dirve Shaft [ More info ] $39.99 $9.60 10+ In Stock.
#21	856101	GASKET WATER PUMP BASE TO GEAR HOUSING (1 required per assembly) — Replaces: 33146, 85610
		27-85610 1 - Gasket - Priced Individually [ More info ] $2.77 10+ In Stock.
		27-856704 - Water Pump To Gear Housing Gasket [ More info ] $8.35 5 In Stock.
		27-8M0214962 - GASKET @5 [ More info ] Unavailable
#22	33145	O-RING (1.984 X .139) WATER PUMP BASE (1 required per assembly)
		25-33145 - O-ring, (1.984 X .139) [ More info ] Unavailable
		18-7162-9 - (PK5) O-Ring 25-33145 [ More info ] $17.00 Available to Order: Shipping delay up to 10 days.
		25-8M0214923 - O RING, sold individually [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#23	57234A1	BASE ASSEMBLY WATER PUMP (1 required per assembly)
		46-57234A 1 - Water Pump Base [ More info ] In Stock
		18-3417 - Water Pump Base 46-57234A1 [ More info ] $39.99 $27.67 In Stock
#24	89238	SEAL OIL WATER PUMP BASE (1 required per assembly) — Replaces: 33144
		26-89238 - Seal [ More info ] $21.19 In Stock
		18-2014 - Seal 26-89238, 26F69430 [ More info ] $18.86 5 In Stock.
		26-00171 - Seal 26-89238, 26F694305 [ More info ] $16.99 $14.00 Available to Order: Shipping delay up to 10 days.
#25	16977	SEAL OIL WATER PUMP BASE (1 required per assembly) — Replaces: 31507, 79884
		26-16977 - Seal [ More info ] $18.69 In Stock
		18-2026 - Seal, 321453 [ More info ] $15.99 $15.82 10+ In Stock.
		18-2013 - Seal, 26-16977 [ More info ] $15.99 $14.81 2 In Stock.
#26	35973	PIN DOWEL WATER PUMP BASE TO WATER PUMP BODY (2 required per assembly)
		17-35973 - Pin -Dowel - Priced Individually [ More info ] $1.80 10+ In Stock.
#27	856081	GASKET LOWER - WATER PUMP BASE TO FACE PLATE (1 required per assembly) — Replaces: 32433, 85608
		27-85608 1 - Gasket - Priced Individually [ More info ] $6.18 10+ In Stock.
		18-2914-9 - Gasket 27-85608 2-Pack [ More info ] $6.27 Available to Order: Shipping delay up to 10 days.
		27-8M0090319 - Water Pump Gasket - Priced Individually [ More info ] $4.19 7 In Stock.
#28	8M0204677	PLATE-FACE FACE - WATER PUMP BASE TO WATER PUMP BODY (1 required per assembly) — Replaces: 32435, 324351
		8M0204677 - Wear Plate [ More info ] $9.29 1 In Stock.
#29	856091	GASKET UPPER - FACE PLATE TO WATER PUMP BODY (1 required per assembly) — Replaces: 32434, 85609
		27-85609 1 - Gasket , Priced Individually [ More info ] Unavailable
		27-858524 - Water Pump Base Gasket [ More info ] $4.09 9 In Stock.
		18-2915-9 - Gasket 27-858524 2-Pack [ More info ] $6.14 Available to Order: Shipping delay up to 10 days.
#30	96148T1	BODY ASSEMBLY WATER PUMP (1 required per assembly) — Replaces: 64141A1, 96148A1
		46-96148T 1 - Water Pump Body [ More info ] $51.99 In Stock
		18-3116 - Housing 46-96148A1 [ More info ] $49.09 4 In Stock.
#31	48752T	INSERT WATER PUMP BODY (1 required per assembly) — Replaces: 48752
		48752T - Water Pump Insert - Priced Individually [ More info ] $12.39 4 In Stock.
		18-3114 - SS Cup, 48752 [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#32	38970	SEAL RUBBER - WATER INLET TUBE (1 required per assembly)
		26-38970 - Seal - Priced Individually [ More info ] $5.09 10+ In Stock.
		18-3110 - Seal, 26-38970 [ More info ] $3.49 $3.43 5 In Stock.
#33	899842	IMPELLER WATER PUMP (1 required per assembly) — Replaces: 65960, 89984
		47-89984 2 - Impeller [ More info ] Unavailable
		47-89984 4 - Impeller [ More info ] Unavailable
		47-89984T 4 - Impeller [ More info ] $49.49 4 In Stock.
		18-3017 - Impeller 47-89984 [ More info ] $39.99 $23.95 10+ In Stock.
		47-00001 - Water Pump Impeller Mercury Force 47-89984T 4 [ More info ] $20.89 $20.72 10+ In Stock.
#34	8M0032834	KEY IMPELLER DRIVE (1 required per assembly) — Replaces: 56654
		28-8M0032834 - Key - Priced Individually [ More info ] $4.40 10+ In Stock.
		28-8M0214992 - KEY @5 [ More info ] Unavailable
#35	30720	SCREW (.250-20 X 2.25) WATER PUMP BODY TO GEAR HOUSING (2 1/4&QUOT;) (1 required per assembly)
		10-30720 - Screw, NLA [ More info ] $5.37 10+ In Stock.
#36	36001	WASHER WATER PUMP BODY SCREW (1 required per assembly)
		12-36001 - Washer - Priced Individually [ More info ] $1.50 10+ In Stock.
		18-4270 - Washer 12-36001 [ More info ] $1.25 $0.91 2 In Stock.
#37	35888	NUT (.250-28) STAINLESS STEEL WATER PUMP BODY SHEETS STUDS (1/4-28) (2 required per assembly)
		11-35888 - Nut (1/4-28) [ More info ] $6.89 $3.04 10+ In Stock.
		18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ] $11.99 $8.16 Available to Order: Shipping delay up to 10 days.
#38	826709111	NUT (.312-24) STAINLESS STEEL WATER PUMP BODY STUDS (5/16-24) (1 required per assembly) — Replaces: 45592
		11-826709111 - Nut, (.312-24) Stainless Steel [ More info ] $4.49 $3.60 6 In Stock.
		18-3723-9 - Lock Nut, 11-45592, 5PK [ More info ] $16.66 Available to Order: Shipping delay up to 10 days.
#39	8M0204649	WASHER @10 WATER PUMP BODY STUD (3 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#40	30271	RING RUBBER RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT) (1 required per assembly)
		25-30271 - Ring - Priced Individually [ More info ] $1.90 2 In Stock.
		18-7426-9 - O-Ring (PK2) 25-30271 [ More info ] $4.39 Available to Order: Shipping delay up to 10 days.
		25-8M0214918 - WATER PUMP HSG RUBBER RING O/B [ More info ] $1.99 6 In Stock.
#41	29804T	SLEEVE GUIDE - WATER INLET TUBE (1 required per assembly) — Replaces: 29804
		23-29804T - Sleeve - Priced Individually [ More info ] $8.99 9 In Stock.
		18-3109 - Tube 23-29804 [ More info ] $6.21 1 In Stock.
#42	774811	SHIFT SHAFT SHIFT - LOWER [4640110] & Up (1 required per assembly) — Replaces: 66066, 77481
		77481 1 - Shift Shaft - Lower [ More info ] $63.49 $33.36 5 In Stock.
		18-2150 - Shaft, 77481-1 [ More info ] $59.29 $24.95 In Stock
#43	29641	E RING RETAINING - SHIFT SHAFT (1 required per assembly) — Replaces: 20233
		53-29641 - E Ring - Priced Individually [ More info ] $1.80 8 In Stock.
#44	27880	WASHER LOWER SHIFT SHAFT AND CRANK (1 required per assembly)
		12-27880 - Washer, Lower Shift Shaft And Crank [ More info ] $1.70 10+ In Stock.
#45	25439	O-RING (.862 X .103) SHIFT SHAFT BUSHING (1 required per assembly)
		25-25439 - O-Ring, Shaft Shaft Bushing [ More info ] $1.99 10+ In Stock.
#46	8M0112749	BUSHING ASSY. SHIFT SHAFT (1 required per assembly) — Replaces: 30617A2
		23-8M0112749 - Shift Shaft Bushing ZZ [ More info ] $29.39 In Stock
#47	892361	SEAL OIL SHIFT SHAFT BUSHING (1 required per assembly) — Replaces: 46021, 89236
		26-89236 1 - Seal [ More info ] $17.69 10+ In Stock.
		18-2009 - Seal, 26-89236 [ More info ] $13.12 8 In Stock.
#48	31266	WASHER RUBBER - SHIFT SHAFT BUSHING (1 required per assembly)
		12-31266 - Washer (rubber) [ More info ] $1.10 2 In Stock.
#49	8M0042641	WASHER (.390 X 1.00 X .06) SHIFT SHAFT (1 required per assembly) — Replaces: 29395
		12-8M0042641 - Washer [ More info ] $1.70 5 In Stock.
		18-4267-9 - Washer, 12-29395, 2PK [ More info ] $3.49 Available to Order: Shipping delay up to 10 days.
#50	79953A2	SCREW KIT (.375-16 X .250) GEAR HOUSING GREASE FILLER AND VENT HOLE (1 required per assembly) — Replaces: 28634, 79953
		10-79953A 2 - Drain Screw Kit [ More info ] Unavailable
		10-79953Q 2 - Screw Kit - Priced Individually [ More info ] Unavailable
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 9 In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.79 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.19 10+ In Stock.
#51	191832	WASHER GEAR HOUSING GREASE FILLER AND VENT HOLE SCREW (1 required per assembly) — Replaces: 20260, 19183
		12-19183 2 - Washer - Priced Individually [ More info ] Unavailable
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 5 In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 8 In Stock.
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
