Parts for Mercury 210 Carb Jet Drive (Powerhead) Carburetor

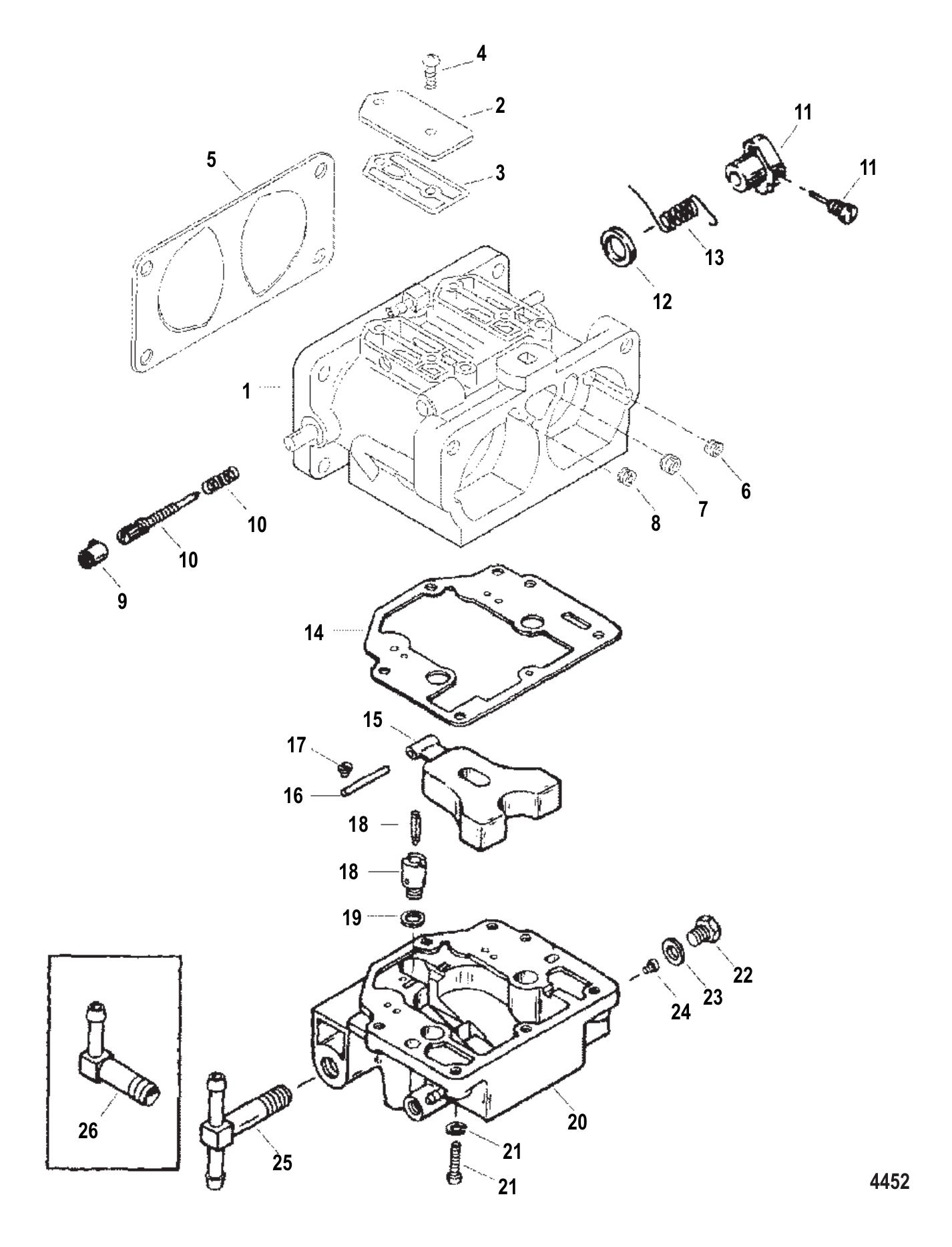

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 804985A1 | GASKET/SEAL SET POWERHEAD - NOTE: See Gasket/Seal Set - Powerhead Section For Parts Breakdown (1 required per assembly) |
  |
|
27-804985A 1 - Powerhead Gasket Set [ More info ]
|
| #- | 8116913 | REPAIR KIT-CARB (1 required per assembly) |
  |
|
1395-811691 3 - Carburetor Repair Kit [ More info ]
|
  |
|
18-7356 - Carburetor Kit, 1395-8116913 [ More info ]
|
  |
|
1300-36081 - Carburetor Kit, 1395-8116913 [ More info ]
|
| #- | 8107493 | GASKET KIT-CARB (1 required per assembly) |
  |
|
810749 3 - Carburetor Gasket Kit [ More info ]
|
  |
|
18-7214 - Carburetor Kit, 810749 3 [ More info ]
|
  |
|
1300-36008 - Carb Gasket Kit [ More info ]
|
| #1 | 828272A63 | CARBURETOR BOTTOM (WMV-14-3A) (1 required per assembly) |
  |
|
3326-828272A63 - Carburetor Assembly - Bottom [ More info ]
|
| #1 | 828272A62 | CARBURETOR CENTER (WMV-14-2A) (1 required per assembly) |
  |
|
3326-828272A62 - Carburetor, Center [ More info ]
|
| #1 | 828272A61 | CARBURETOR TOP (WMV-14-1A) (1 required per assembly) |
  |
|
3326-828272A61 - Carburetor, Top [ More info ]
|
| #2 | 809743 | COVER IDLE CIRCUIT (6 required per assembly) |
  |
|
1395-809743 - COVER [ More info ]
|
| #3 | 809758 | GASKET IDLE CIRCUIT COVER (6 required per assembly) |
  |
|
1395-809758 - Idle Circuit Cover Gasket [ More info ]
|
| #4 | 8087391 | SCREW IDLE CIRCUIT COVER (12 required per assembly) |
  |
|
1395-808739 1 - Screw [ More info ]
|
| #5 | 828292 | GASKET CARBURETOR MOUNT (3 required per assembly) |
  |
|
27-828292 - Carburetor Mount Gasket [ More info ]
|
| #6 | 815633048 | JET (.048) IDLE AIR VENT - Center Carb - Port (1 required per assembly) |
  |
|
815633048 - Jet, .048, NLA [ More info ]
|
| #6 | 815633054 | JET (.054) IDLE AIR VENT - Bottom Carb - Port (1 required per assembly) |
  |
|
815633054 - Jet -.054 [ More info ]
|
| #7 | 6201 | JET (.080) BOWL VENT (3 required per assembly) |
  |
|
1395-6201 - Jet -.080 - Priced Individually [ More info ]
|
| #8 | 815633054 | JET (.054) IDLE AIR VENT - Bottom Carb - Starboard (1 required per assembly) |
| #8 | 815633050 | JET (.050) IDLE AIR VENT - Center Carb - Starboard (1 required per assembly) |
  |
|
815633050 - Jet -.050 [ More info ]
|
| #8 | 810742 | JET (.044) IDLE AIR VENT - Top Carb - Starboard (1 required per assembly) |
  |
|
810742 - Jet -.044 [ More info ]
|
| #9 | 810779 | CAP LIMITER (3 required per assembly) |
  |
|
810779 - Limiter Cap [ More info ] Unavailable |
| #10 | NSS | NOT SOLD SEPARATE IDLE MIXTURE - NEEDLE AND SPRING (6 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #11 | 8113523 | LEVER KIT (3 required per assembly) |
  |
|
1395-811352 3 - LEVER KIT,NLA [ More info ]
|
| #12 | 6031 | SPACER (3 required per assembly) |
  |
|
1395-6031 - Spacer [ More info ]
|
| #13 | NSS | NOT SOLD SEPARATE THROTTLE RETURN SPRING (3 required per assembly) |
| #14 | NSS | NOT SOLD SEPARATE FUEL BOWL GASKET (3 required per assembly) |
| #15 | 810738 | FLOAT ASSEMBLY (3 required per assembly) |
  |
|
810738 - Float Assembly [ More info ]
|
| #16 | F10064 | SHAFT FLOAT (3 required per assembly) |
  |
|
F10064 - Float Support Shaft [ More info ]
|
| #17 | 5902 | SCREW (#6-32 X .187) FLOAT PIN (3 required per assembly) |
  |
|
1395-5902 - Screw Assembly, NLA [ More info ]
|
| #18 | 8116901 | VALVE SEAT KIT (3 required per assembly) |
  |
|
1395-811690 1 - Valve Seat Kit [ More info ]
|
| #19 | NSS | NOT SOLD SEPARATE VALVE SEAT GASKET (3 required per assembly) |
| #20 | 8236241 | BOWL FUEL - Center And Bottom Carbs (2 required per assembly) |
  |
|
1395-823624 1 - Fuel Bowl [ More info ]
|
| #20 | 8236231 | BOWL FUEL - Top Carb (1 required per assembly) |
  |
|
1395-823623 1 - Fuel Bowl [ More info ] Unavailable |
| #21 | 808612 | SCREW AND WASHER (#8-32 X .750) FUEL BOWL (18 required per assembly) |
  |
|
1395-808612 - Screw & Washer [ More info ]
|
| #22 | 811694 | PLUG KIT DRAIN (6 required per assembly) |
  |
|
1395-811694 - Bowl Drain Plug Kit [ More info ]
|
| #23 | NSS | NOT SOLD SEPARATE DRAIN PLUG GASKET (6 required per assembly) |
| #24 | 3517 | JET (.084) MAIN - Center Carb - Starboard (1000 - 3000 Feet) (OPT required per assembly) |
  |
|
1399-3517 - Jet -.084 [ More info ]
|
| #24 | 3796 | JET (.076) MAIN - Top Carb - Starboard (0 - 1000 Feet) (1 required per assembly) |
  |
|
1399-3796 - Jet -.076 [ More info ]
|
| #24 | 3518 | JET (.082) MAIN - Center Carb - Port (1000 - 3000 Feet) (OPT required per assembly) |
  |
|
1399-3518 - Jet -.082 [ More info ]
|
| #24 | 6680 | JET (.078) MAIN - Bottom Carb - Port (3000 - 6000 Feet) (OPT required per assembly) |
  |
|
1395-6680 - Jet -.078 [ More info ]
|
| #24 | 6201 | JET (.080) MAIN - Bottom Carb - Port (1000 - 3000 Feet) (OPT required per assembly) |
| #24 | 5815 | JET (.086) MAIN - Center Carb - Starboard (0 - 1000 Feet) (1 required per assembly) |
  |
|
1395-5815 - Jet -.086 [ More info ]
|
| #24 | 6029 | JET (.068) MAIN - Top Carb - Starboard (8000 - 10000 Feet) (OPT required per assembly) |
  |
|
1395-6029 - Jet -.068 [ More info ]
|
| #24 | 6030 | JET (.070) MAIN - Top Carb - Starboard (6000 - 8000 Feet) (OPT required per assembly) |
  |
|
1395-6030 - Jet -.070 [ More info ]
|
| #24 | 6207 | JET (.072) MAIN - Top Carb - Starboard (3000 - 6000 Feet) (OPT required per assembly) |
  |
|
1395-6207 - Jet -.072 [ More info ]
|
| #24 | 3794 | JET (.074) MAIN - Bottom Carb - Port (8000 - 10000 Feet) (OPT required per assembly) |
  |
|
1399-3794 - Jet -.074 [ More info ]
|
| #25 | 855526 | FITTING TEE - TOP AND CENTER CARBS (2 required per assembly) |
  |
|
22-855526 - Fitting -t [ More info ]
|
| #26 | 855527 | FITTING ELBOW - BOTTOM CARB (1 required per assembly) |
  |
|
22-855527 - Elbow Fitting [ More info ]
|
