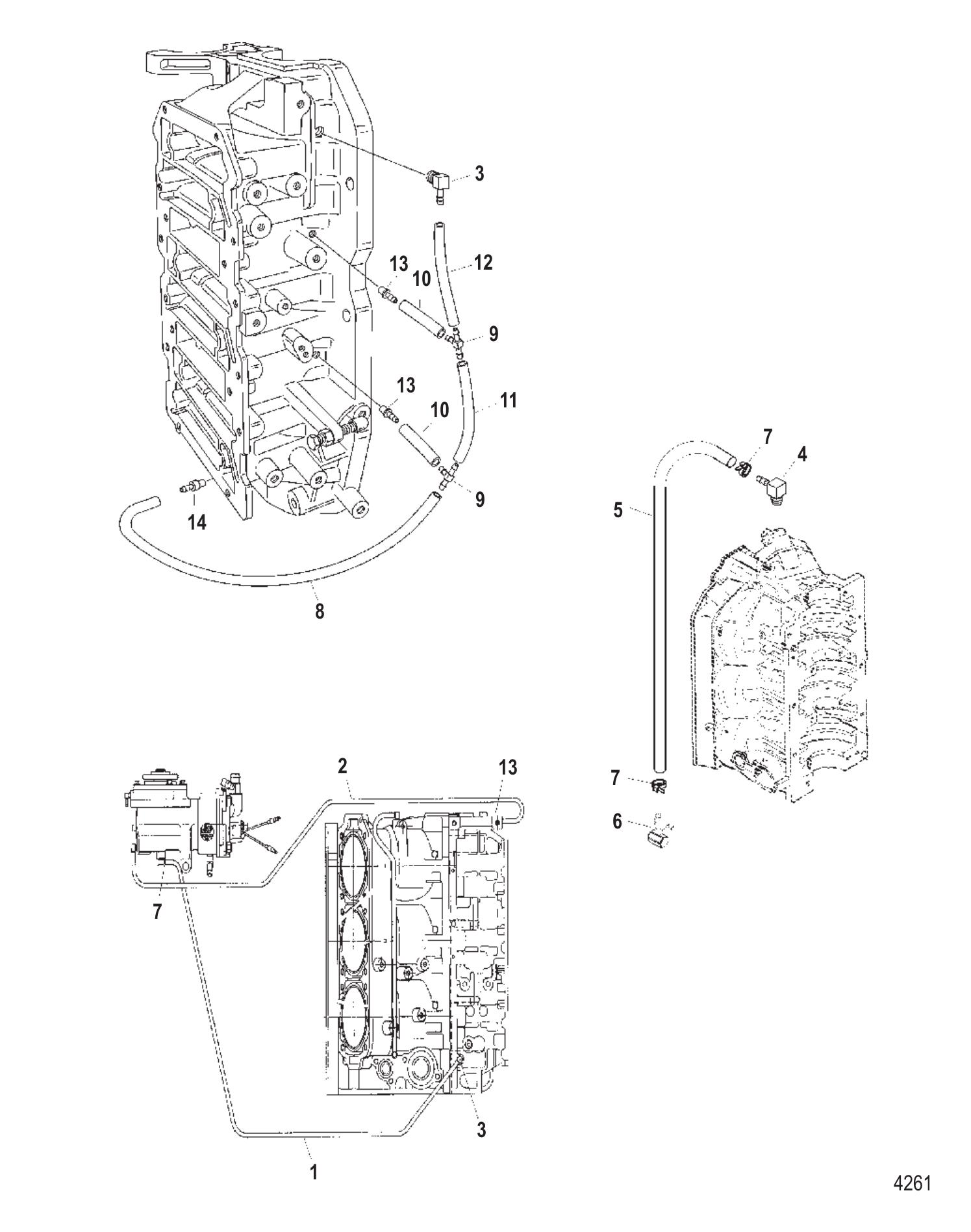

Parts for Mercury 200 DFI M2 Jet Drive (Powerhead) Oil Lines
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M0165982 | PH SJ 200 DFI (1 required per assembly) — Replaces: 858961A19 |
  |
|
8008M0165982 - PH SJ 200 DFI [ More info ] Unavailable |
| #1 | 8M0054152 | TUBING (39.00 INCHES BULK) CUT 30.00 INCHES (1 required per assembly) — Replaces: 85606065 |
  |
|
328M0054152 - Tubing-39 Inch [ More info ]
|
| #2 | 8M0054152 | TUBING (39.00 INCHES BULK) CUT 22.50 INCHES (1 required per assembly) — Replaces: 85606065 |
| #3 | 887801 | ELBOW (2 required per assembly) |
  |
|
22-88780 1 - Elbow [ More info ]
|
| #4 | 8592352 | CHECK VALVE (2 required per assembly) |
  |
|
21-859235 2 - Check Valve [ More info ]
|
| #5 | 8M0054152 | TUBING (39.00 INCHES BULK) CUT 16.50 INCHES (2 required per assembly) — Replaces: 85606065 |
| #6 | 151333 | FITTING (2 required per assembly) |
  |
|
22-15133 3 - Fitting [ More info ]
|
| #7 | 69355 | TIE STRAP @100 (AR required per assembly) |
  |
|
69355 - Tie Strap - Priced Individually [ More info ]
|
  |
|
8M0214940 - TIE STRAP [ More info ]
|
| #8 | 8M0054152 | TUBING (39.00 INCHES BULK) CUT 22.00 INCHES (1 required per assembly) — Replaces: 85606065 |
| #9 | 59169003 | FITTING @2 (2 required per assembly) — Replaces: 591692 |
  |
|
22-59169003 - Fitting - Priced Individually [ More info ]
|
| #10 | 8M0054152 | TUBING (39.00 INCHES BULK) CUT 1.500 INCHES (2 required per assembly) — Replaces: 85606065 |
| #11 | 8M0054152 | TUBING (39.00 INCHES BULK) CUT 4.750 INCHES (1 required per assembly) — Replaces: 85606065 |
| #12 | 8M0054152 | TUBING (39.00 INCHES BULK) CUT 3.500 INCHES (1 required per assembly) — Replaces: 85606065 |
| #13 | 426233 | CHECK VALVE (3 required per assembly) — Replaces: 426231 |
  |
|
21-42623 3 - Check Valve [ More info ]
|
| #14 | 426982 | CHECK VALVE (1 required per assembly) — Replaces: 426981 |
  |
|
21-42698 2 - Check Valve [ More info ]
|
