Parts for 90 HP EFI Seapro 4-Stroke Mercury Outboard Motor Cooling

Revise Search: Outboard > 4-Stroke Mercury Outboard > 90 HP EFI Seapro > 2B095049 & Up > Cooling

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

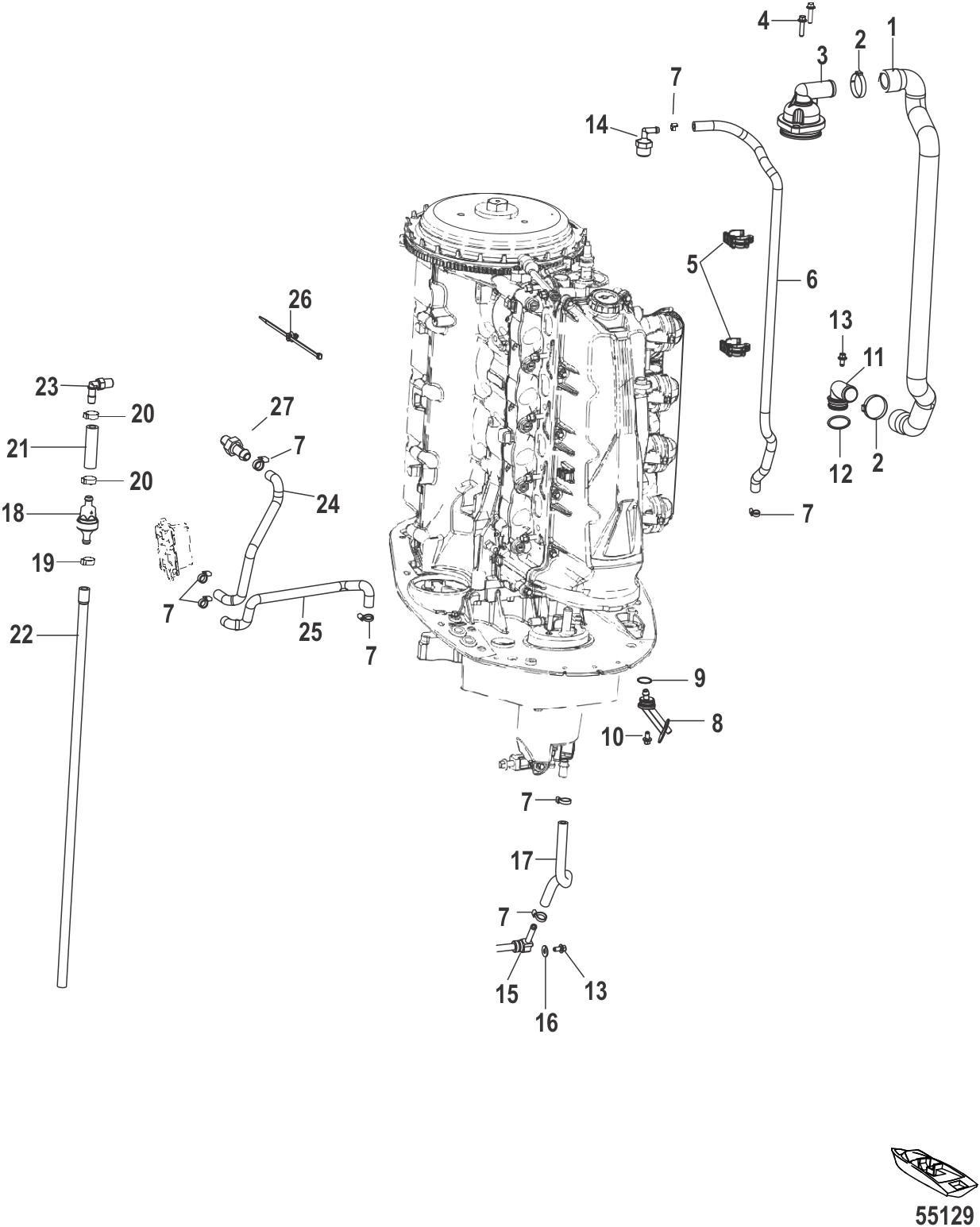

Cooling

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0055699	HOSE, THERMOSTAT (1 required per assembly)
		328M0055699 - Hose, Thermostat [ More info ] $31.79 Available to Order: Shipping delay up to 10 days.
#2	8M0204719	CLAMP @5 (AR required per assembly) — Replaces: 888988001
		548M0204719 - CLAMP Note: Priced Individually [ More info ] $5.49 4 In Stock.
#3	8M0090819	THERMOSTAT ASSY (1 required per assembly)
		8M0090819 - Thermostat [ More info ] $96.99 5 In Stock.
		18-3635 - Thermostat [ More info ] $125.99 $89.15 8 In Stock.
		18-3633 - Thermostat [ More info ] $82.99 $81.25 5 In Stock.
		75-75517 - Thermostat 8M0090819, 120 Degree [ More info ] $75.99 $58.11 2 In Stock.
#4	8M0103807	SCREW @2 (3 required per assembly) — Replaces: 88552525
		108M0103807 - Screw (M6 x 25 MM) Stainless Steel [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#5	8M0061994	CLIP, HOSE-DOUBLE (2 required per assembly)
		548M0061994 - Clip, Hose-DOUBLE [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#6	8M0055698	HOSE, TELL TALE (1 required per assembly)
		328M0055698 - Hose, TELL TALE [ More info ] $11.39 Available to Order: Shipping delay up to 10 days.
#7	816311T	TIE STRAP @100 (AR required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#8	8M0055215	TELLTALE (1 required per assembly)
		8M0055215 - TELLTALE [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#9	38101	O-RING (.674 X .103) (1 required per assembly)
		25-38101 - O-ring, (.674 X .103) [ More info ] $1.80 10+ In Stock.
#10	8M0012661	SCREW (1 required per assembly)
		10-8M0012661 - Screw [ More info ] $21.59 Available to Order: Shipping delay up to 10 days.
#11	8M0057408	FITTING,WTR DP AP (1 required per assembly)
		228M0057408 - Fitting,WTR DP AP [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#12	8M0204650	O-RING (1 required per assembly) — Replaces: 29845
		25-8M0204650 - O RING @3 Q=T [ More info ] Unavailable
#13	8M0103804	SCREW @2 (1 required per assembly) — Replaces: 88552512
		108M0103804 - Screw (M6 x 12 MM) Stai [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#14	8M0061328	STRAINER-SNAP FIT (1 required per assembly)
		358M0061328 - Strainer-SNAP FIT [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#15	8M0050013	FITING EXHAST COL (1 required per assembly)
		228M0050013 - Fitting Exhaust COL [ More info ] $16.49 Available to Order: Shipping delay up to 10 days.
#16	4002316	WASHER @5 (1 required per assembly)
		12-40023 16 - Washer - Priced Individually [ More info ] $1.17 2 In Stock.
		128M0214930 - WASHER Note: Must be ordered in multiples of 5 [ More info ] $1.00 1 In Stock.
#17	8M0045298	HOSE, SPRAYER (1 required per assembly)
		328M0045298 - Hose, Sprayer [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#18	8M0102825	HOSE ASY FLSH SYS (1 required per assembly) — Replaces: 8M0035700
		328M0102825 - Hose FLSH SYS [ More info ] $60.99 Available to Order: Shipping delay up to 10 days.
#19	8M0204696	CLAMP (AR required per assembly) — Replaces: 855697
		54-8M0204696 - CLAMP Note: Priced Individually [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#20	888988022	CLAMP (AR required per assembly)
		54-888988022 - Clamp [ More info ] $1.99 Available to Order: Shipping delay up to 10 days.
#21	8M0057620	HOSE FLUSH (1 required per assembly)
		328M0057620 - Hose, Flush [ More info ] $4.29 Available to Order: Shipping delay up to 10 days.
#22	8M0057599	TUBING (8 ID X 14 OD X 840 MM) (1 required per assembly)
		328M0057599 - Tubing [ More info ] $10.89 Available to Order: Shipping delay up to 10 days.
#23	8M0075779	FITTING-90 DEG (1 required per assembly)
		228M0075779 - Fitting-90 DEG [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#24	8M0056685	HOSE, BLOCK DRAIN (1 required per assembly)
		328M0056685 - Hose, BLOCK DRAIN [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#25	8M0056483	HOSE, FSM WTR INL (1 required per assembly)
		328M0056483 - Hose, FSM WTR INL [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#26	899145	CLIP (AR required per assembly)
		54-899145 - Clip [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#27	291112	FITTING (1 required per assembly)
		0291112 - Exhaust Gasket (291112) [ More info ] Unavailable
