Parts for 9.9 HP Carb (232 Cc) 4-Stroke Mercury Outboard Motor Top Cowl

Revise Search: Outboard > 4-Stroke Mercury Outboard > 9.9 HP Carb (232 Cc) > 0H000058 - 0H016909 - USA > Top Cowl

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

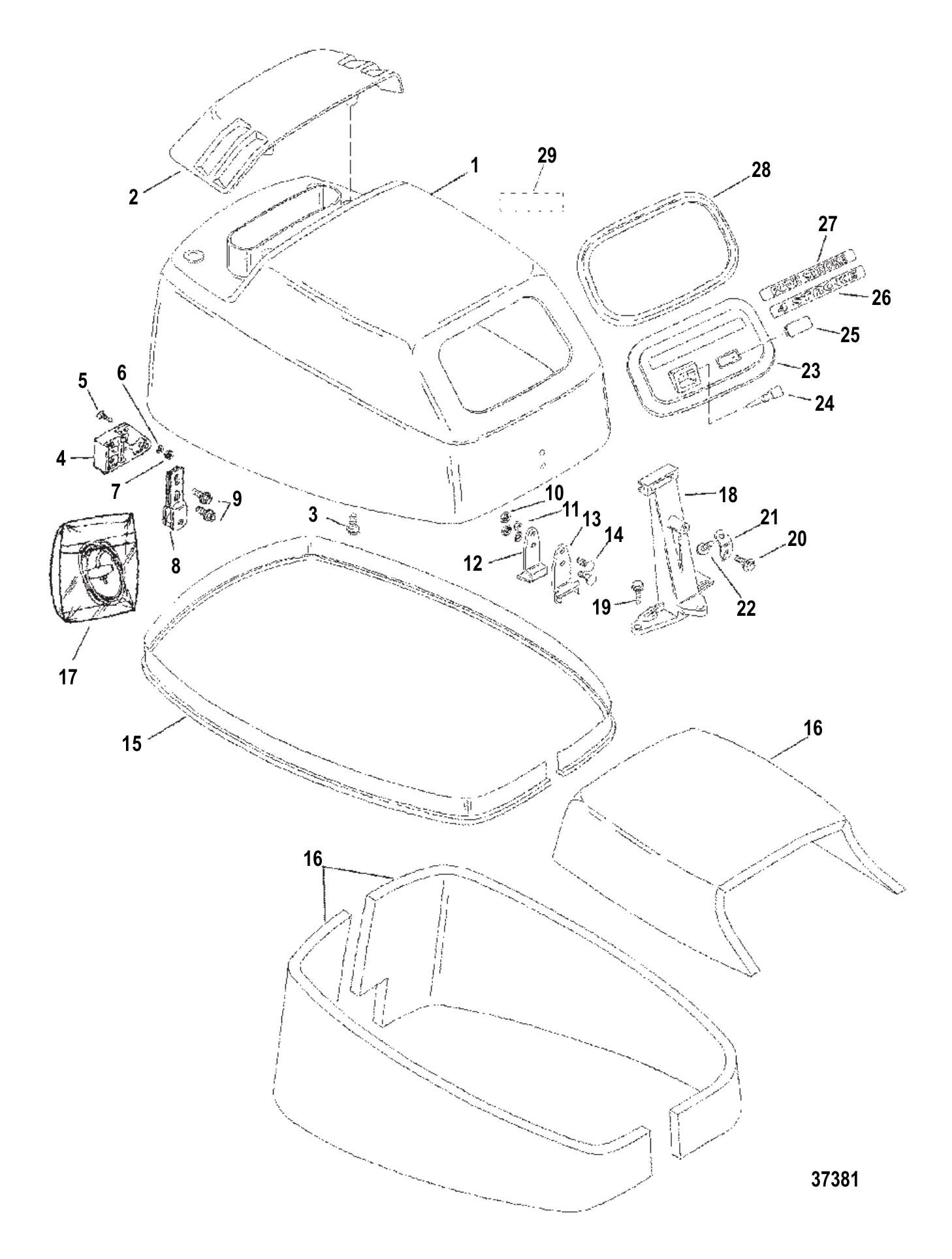

Top Cowl

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	854654T3	COWL-TOP-BLACK (BLACK) [0H013399] & Below (1 required per assembly) — Replaces: 854654A3, 825553A4
		114-854654T 3 - COWL-TOP-BLACK,NLA [ More info ] Unavailable
#1	854654T4	COWL-TOP-SILVER (SILVER) [0H013399] & Below (1 required per assembly) — Replaces: 854654A4, 825553A5
		114-854654T 4 - COWL-TOP-SILVER,NLA [ More info ] Unavailable
#2	825554F1	SHIELD AIR INLET (BLACK) [0H013399] & Below (1 required per assembly)
		825554F 1 - Shield- Black, NLA [ More info ] Unavailable
#2	825554F2	SHIELD AIR INLET (SILVER) [0H013399] & Below (1 required per assembly)
		825554F 2 - Shield, NLA [ More info ] Unavailable
#3	4006731	SCREW (M6 X 16) [0H013399] & Below (4 required per assembly)
		10-40067 31 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#4	8M0038412	BRACKET-COWL (REAR) (1 required per assembly) — Replaces: 8224261
		8M0038412 - Bracket-Cowl [ More info ] $19.99 Available to Order: Shipping delay up to 10 days.
#5	8231871	SCREW (M4 X 14.5) (3 required per assembly)
		10-823187 1 - Screw [ More info ] $5.79 Available to Order: Shipping delay up to 10 days.
#6	26995	LOCKWASHER (#8) STAINLESS STEEL (3 required per assembly)
		13-26995 - Lock Washer - Priced Individually [ More info ] Unavailable
#7	8237515	NUT (M4) (3 required per assembly)
		11-823751 5 - Nut [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#8	893763	BRACKET ROLLER LATCH (1 required per assembly) — Replaces: 18173
		893763 - Roller Latch Bracket [ More info ] $31.79 Available to Order: Shipping delay up to 10 days.
#9	4006731	SCREW (M6 X 16) (2 required per assembly)
#10	8237515	NUT (M4) (2 required per assembly)
#11	26995	LOCKWASHER (#8) STAINLESS STEEL (2 required per assembly)
#12	826649	LATCH (1 required per assembly)
		826649 - Latch [ More info ] $69.99 Available to Order: Shipping delay up to 10 days.
#13	827702T	COVER (1 required per assembly) — Replaces: 827702
		827702T - Cover [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#14	8231871	SCREW (M4 X 14.5) (2 required per assembly)
#15	8M0043391	SEAL-COWL (1 required per assembly) — Replaces: 8282371
		8M0043391 - Seal - Cowl [ More info ] $99.99 Available to Order: Shipping delay up to 10 days.
#16	825567A1	SOUND BLANKET (1 required per assembly)
		825567A 1 - Sound Blanket Kit [ More info ] Unavailable
#17	47341A11	ROPE AND HANDLE (1 required per assembly) — Replaces: 47341A1
		47341A11 - Manual Start Rope And Handle [ More info ] $18.60 1 In Stock.
#18	8258271	SUPPORT (1 required per assembly)
		825827 1 - Support, NLA [ More info ] $130.42 10+ In Stock.
#19	8M0204741	SCREW @4 (3 required per assembly) — Replaces: 40011128, 8M4503518
		108M0204741 - SCREW Note: Priced Individually [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#20	82129114	SCREW (1 required per assembly)
		10-821291 14 - Screw [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#21	827501	BRACKET (1 required per assembly)
		827501 - Bracket, NLA [ More info ] $4.50 $3.82 4 In Stock.
#22	40011126	SCREW @5 (1 required per assembly)
		10-40011126 - Screw - Priced Individually [ More info ] $3.69 10+ In Stock.
#23	825655A5	HANDLE REST KIT I.D. OF REST ROPE HOLE IS 1/3 IN. (1 required per assembly) — Replaces: 825655
		825655A 5 - HANDLE REST KIT,NLA [ More info ] Unavailable
#24	822513	PLUG STARTER HANDLE (REMOTE CONTROL) I.D. OF REST ROPE HOLE IS 1/4 IN. (1 required per assembly)
		19-822513 - Plug, NLA [ More info ] $2.72 $2.31 10+ In Stock.
#24	822513002	PLUG I.D. OF REST ROPE HOLE IS 1/3 IN. (1 required per assembly) — Replaces: 8225131
		19-822513002 - Plug [ More info ] $1.60 Available to Order: Shipping delay up to 10 days.
#25	827870	PLUG LIGHT (REMOTE CONTROL) (1 required per assembly)
		19-827870 - Plug, NLA [ More info ] $14.25 $12.07 10+ In Stock.
#26	8302584	DECAL (BLACK/TRACKER) [0H013399] & Below (1 required per assembly)
		37-830258 4 - Decal, NLA [ More info ] Unavailable
#27	8500534	DECAL - TOP (GRAY) [0H013400] & Up (1 required per assembly)
		37-850053 4 - Decal, NLA [ More info ] Unavailable
#27	8263367	DECAL - TOP (GRAY) [0H013400] & Below (1 required per assembly)
		37-826336 7 - Decal, NLA [ More info ] $8.00 $6.78 10+ In Stock.
#28	8249952	SEAL (1 required per assembly)
		824995 2 - Seal, NLA [ More info ] Unavailable
#29	855577A23	REF SOB 09-18 (1998) (1 required per assembly) — Replaces: 85557723
		37-855577A23 - Decal -epa, NLA [ More info ] Unavailable
