Parts for 80 HP EFI Jet 4-Stroke Mercury Outboard Motor Gear Housing, Driveshaft 2.07:1 Standard Rotation

Revise Search: Outboard > 4-Stroke Mercury Outboard > 80 HP EFI Jet > 2B095049 & Up > Gear Housing, Driveshaft 2.07:1 Standard Rotation

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

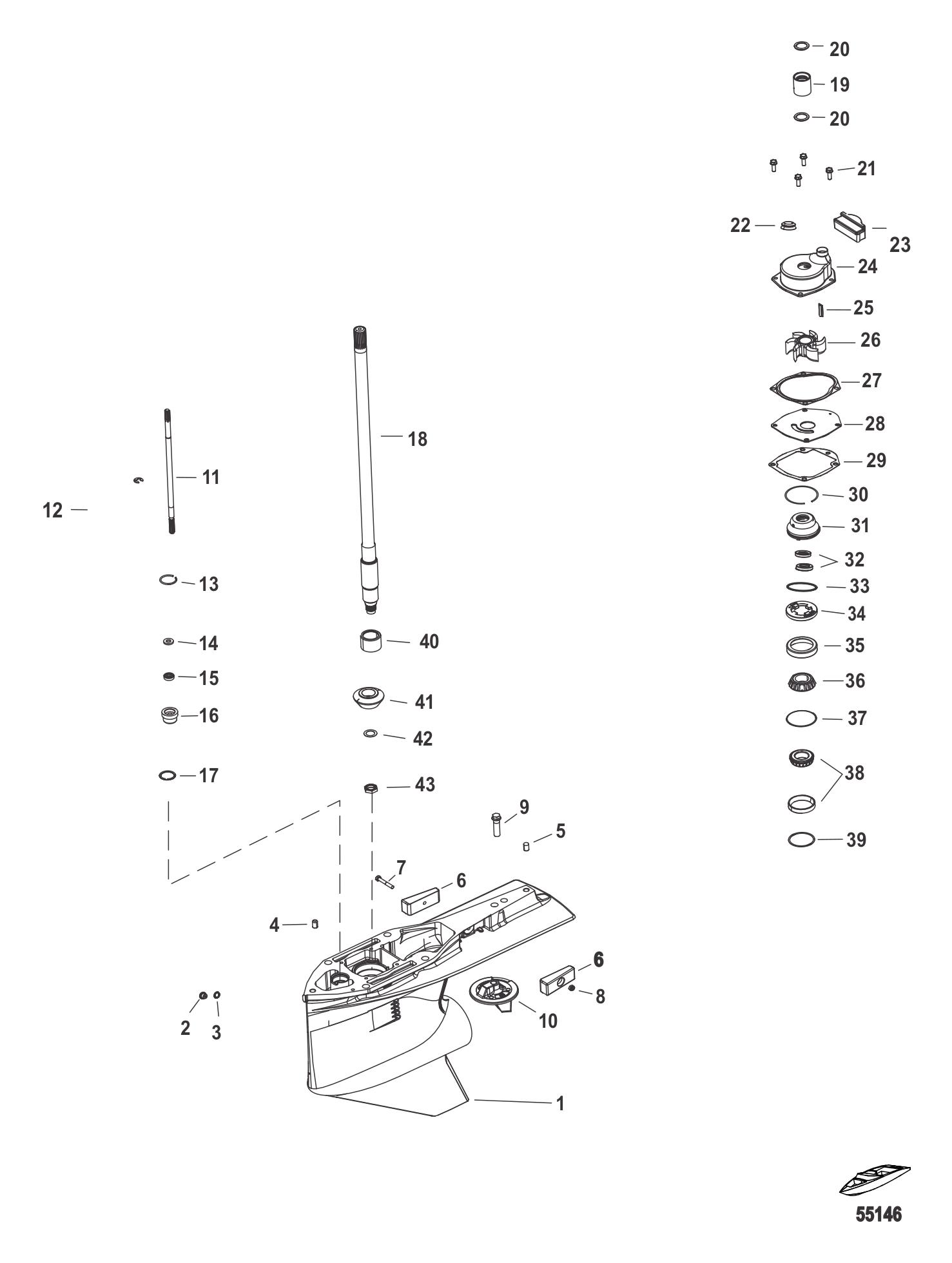

Gear Housing, Driveshaft 2.07:1 Standard Rotation

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0090442	SKEG (1 required per assembly)
		8M0090442 - SKEG [ More info ] $162.99 Available to Order: Shipping delay up to 10 days.
#-	8M0094529	REPAIR KIT-W/P (1 required per assembly)
		8M0094529 - Water Pump Kit [ More info ] $170.99 $164.49 In Stock
#-	8M0100526	REPAIR KIT - IMP (1 required per assembly) — Replaces: 8M0094530
		47-8M0100526 - Impeller Repair Kit [ More info ] $66.99 4 In Stock.
		18-3265 - Water Pump Kit 47-43026Q06 [ More info ] $60.49 $59.34 10+ In Stock.
		18-3214 - Impeller Repair Kit, Without Housing [ More info ] $42.99 $42.32 10+ In Stock.
		47-8M0100527 - Repair Kit - Impeller [ More info ] $73.50 Available to Order: Shipping delay up to 10 days.
		46-01811 - Water Pump Kit without Housing 47-43026T11, Q06 [ More info ] $46.99 $43.58 In Stock
#-	8M0088080	GEARCASE SEAL KIT (1 required per assembly)
		8M0088080 - Gearcase Seal Kit [ More info ] Unavailable
#-	8M0061040	REPAIR KIT-WP UP (1 required per assembly)
		46-8M0061040 - Repair Kit - Water Pump [ More info ] $121.49 $121.17 Available to Order: Shipping delay up to 10 days.
#-	8M0088072	G/C LONG (1 required per assembly)
		16008M0088072 - G/C LONG [ More info ] Unavailable
#-	8M0088074	G/C X-LONG (1 required per assembly)
		16008M0088074 - G/C X-LONG [ More info ] Unavailable
#1	8M0091538	GEARCASE BASIC (1 required per assembly)
		16008M0091538 - Gearcase-BASIC [ More info ] $1,797.99 Available to Order: Shipping delay up to 10 days.
#2	79953A04	PLUG ASSEMBLY (.375-16 X .250) (1 required per assembly)
		10-79953A04 - Drain Screw Kit [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
		10-02699 - Drain Plug [ More info ] $3.59 $2.75 10+ In Stock.
#3	8M0204693	SEAL @6 (1 required per assembly) — Replaces: 830749
		26-8M0204693 - Drain Screw Washer, Priced Individually [ More info ] $5.19 10+ In Stock.
		10-10100-1 - Drain Screw Washer 830749 [ More info ] $3.79 $2.91 10+ In Stock.
#4	8M0084244	PIN DOWEL (1 required per assembly)
		178M0084244 - Pin - Dowel [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#5	43044	PIN DOWEL - WITHOUT HOLE (.375 X .625) (1 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#6	826134Q	ANODE (2 required per assembly)
		97-826134Q - Anode, Aluminum, Outboard Side Pocket, Priced Individually [ More info ] $16.49 4 In Stock.
		18-6068 - Anode, Zinc, 826134 [ More info ] $14.31 1 In Stock.
		97-826134T - Anode - Outboard Side Pocket - Priced Individually [ More info ] $18.19 7 In Stock.
#7	4000333	SCREW (M6 X 40) (1 required per assembly)
		10-40003 33 - Screw - Priced Individually [ More info ] $4.09 4 In Stock.
#8	401386	NUT (M6) STAINLESS STEEL (1 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#9	8M0204686	SCREW (1 required per assembly) — Replaces: 806327
		10-8M0204686 - Trim Tab Anode Screw, Outboard [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#10	8M0091534	TRIM TAB (1 required per assembly)
		8M0091534 - Trim Tab [ More info ] Unavailable
		8M0231857 - TRIM TAB [ More info ] $24.19 Available to Order: Shipping delay up to 10 days.
#11	8M0069658	SHIFT SHAFT LOWER, LONG (1 required per assembly)
		8M0069658 - SHIFT Shaft-LOWER [ More info ] $74.49 Available to Order: Shipping delay up to 10 days.
#11	8M0053078	SHIFT SHAFT LOWER, X-LONG (1 required per assembly)
		8M0053078 - SHIFT Shaft [ More info ] $120.49 Available to Order: Shipping delay up to 10 days.
#12	29641	E RING (1 required per assembly)
		53-29641 - E Ring - Priced Individually [ More info ] $1.80 4 In Stock.
#13	8M0029306	RING RETAINING (1 required per assembly)
		538M0029306 - Retaining Ring [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#14	77674	WASHER (1 required per assembly)
		12-77674 - Washer, Rubber [ More info ] $1.80 7 In Stock.
		18-2316-9 - Washer, 12-77674, 5PK [ More info ] $4.69 $4.68 Available to Order: Shipping delay up to 10 days.
#15	8M0204708	SEAL (1 required per assembly) — Replaces: 8164641
		26-8M0204708 - Shift Shaft Oil Seal-O/B [ More info ] $16.99 2 In Stock.
#16	813696A2	BUSHING ASSEMBLY (1 required per assembly)
		23-813696A 2 - Bushing [ More info ] $45.91 1 In Stock.
#17	45258	O-RING (.987 X .103) (1 required per assembly)
		25-45258 - O Ring, Shift Rod [ More info ] $3.59 3 In Stock.
#18	8M0090831	DRIVESHAFT LONG (1 required per assembly)
		458M0090831 - TM [ More info ] $367.49 Available to Order: Shipping delay up to 10 days.
#18	8M0094341	DRIVESHAFT X-LONG (1 required per assembly)
		458M0094341 - Drive Shaft, XL [ More info ] $549.99 Available to Order: Shipping delay up to 10 days.
#19	8M0036238	COUPLING WATER PUMP (1 required per assembly)
		8M0036238 - Coupling,H20 Pump [ More info ] Unavailable
		8M0214995 - COUPLING,H20 PUMP [ More info ] Unavailable
#20	8M0204645	O RING (2 required per assembly) — Replaces: 21836
		25-8M0204645 - O RING [ More info ] $2.39 3 In Stock.
#21	8M0204706	SCREW @2 (4 required per assembly) — Replaces: 1993720
		108M0204706 - SCREW Note: Must be ordered in multiples of 2 [ More info ] $1.20 3 In Stock.
#22	8M0142851	VRING FACE SEAL (1 required per assembly) — Replaces: 8M2014338
		268M0142851 - FACE SEAL VRING [ More info ] $0.30 Available to Order: Shipping delay up to 10 days.
#23	8M0010459	FILLER BLOCK (1 required per assembly)
		8M0010459 - Filler Block [ More info ] $23.09 Available to Order: Shipping delay up to 10 days.
#24	817275A1	HOUSING KIT WATER PUMP (1 required per assembly)
		817275A 1 - Housing for Water Pump [ More info ] $102.99 $101.34 In Stock
		18-3570 - Water Pump Kit 817275A1, A2 [ More info ] $90.99 $87.72 10+ In Stock.
#25	8M0204723	KEY @2 (1 required per assembly) — Replaces: 8M0032833
		288M0204723 - KEY Note: Priced Individually [ More info ] $4.39 3 In Stock.
#26	43026T2	IMPELLER (1 required per assembly)
		47-43026T 2 - Water Pump Impeller [ More info ] $36.49 10+ In Stock.
		18-3056 - Impeller 47-43026-2 [ More info ] $26.99 $23.37 10+ In Stock.
		47-43026Q02 - Water Pump Impeller [ More info ] $36.49 Available to Order: Shipping delay up to 10 days.
#27	8172771	GASKET (1 required per assembly)
		27-817277 1 - Gasket -Sold each [ More info ] $5.69 9 In Stock.
		18-2566-9 - Gasket 27-817277 2-Pack [ More info ] $8.67 10+ In Stock.
#28	8M0204709	FACEPLATE-W/P (1 required per assembly) — Replaces: 8172761
		8M0204709 - Water Pump Faceplate, Outboard [ More info ] $14.59 Available to Order: Shipping delay up to 10 days.
#29	8M0142616	GASKET FACE PLATE TO GEARCASE (1 required per assembly) — Replaces: 8M0050720, 8M0112903
		27-8M0142616 - Gasket LOWER [ More info ] $9.59 Available to Order: Shipping delay up to 10 days.
#30	880719	RING RETAINING (1 required per assembly)
		53-880719 - Ring - Retaining [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#31	8M0057748	OIL SEAL CARRIER ASSEMBLY (1 required per assembly)
		8M0057748 - Oil Seal Carrier [ More info ] $65.99 Available to Order: Shipping delay up to 10 days.
#32	89238	SEAL OIL (2 required per assembly)
		26-89238 - Seal [ More info ] $21.19 In Stock
		26-00171 - Seal 26-89238, 26F694305 [ More info ] $16.99 $14.00 Available to Order: Shipping delay up to 10 days.
#33	8M0142854	O RING (2.175 X .103) (1 required per assembly) — Replaces: 896523
		25-8M0142854 - O-Ring [ More info ] $1.10 5 In Stock.
#34	853651	RETAINER (1 required per assembly)
		853651 - Bearing Retainer [ More info ] $13.99 Available to Order: Shipping delay up to 10 days.
#35	33138A1	BEARING ASSEMBLY TAPERED ROLLER (1 required per assembly)
		31-33138A 1 - Tapered Roller Bearing [ More info ] $75.26 1 In Stock.
#36	NSS	NOT SOLD SEPARATE (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#37	8M0063267	SHIM SET (1 required per assembly)
		15-8M0063267 - Shim Set [ More info ] $28.41 10+ In Stock.
#38	8M0166756	BEARING KIT (1 required per assembly) — Replaces: 77420A1
		318M0166756 - Bearing Kit [ More info ] $46.99 Available to Order: Shipping delay up to 10 days.
#39	8M0063268	SHIM SET (1 required per assembly)
		15-8M0063268 - Shim Set [ More info ] $31.57 4 In Stock.
#40	8M0090828	BEARING NEEDLE ROLLER (1 required per assembly)
		318M0090828 - Bearing Needle RO [ More info ] $24.59 Available to Order: Shipping delay up to 10 days.
#41	NSS	NOT SOLD SEPARATE (1 required per assembly)
#42	92721	WASHER (1 required per assembly)
		12-92721 - Washer, Pinion Gear [ More info ] $1.50 $0.85 10+ In Stock.
		18-2359 - Nut Kit [ More info ] $5.19 $3.51 Available to Order: Shipping delay up to 10 days.
#43	8M0071654	NUT (.625-18 HX) (1 required per assembly)
		118M0071654 - NUT-.625-18 HX [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
