Parts for Mercury 200 DFI M2 Jet Drive (Powerhead) Oil Injection Components

Revise Search: Mercury Jet Drive & SportJet > 200 DFI M2 Jet Drive (Powerhead) > 0E384500 - 0E433351 - USA > Oil Injection Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Oil Injection Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0165982	PH SJ 200 DFI (1 required per assembly) — Replaces: 858961A19
		8008M0165982 - PH SJ 200 DFI [ More info ] Unavailable

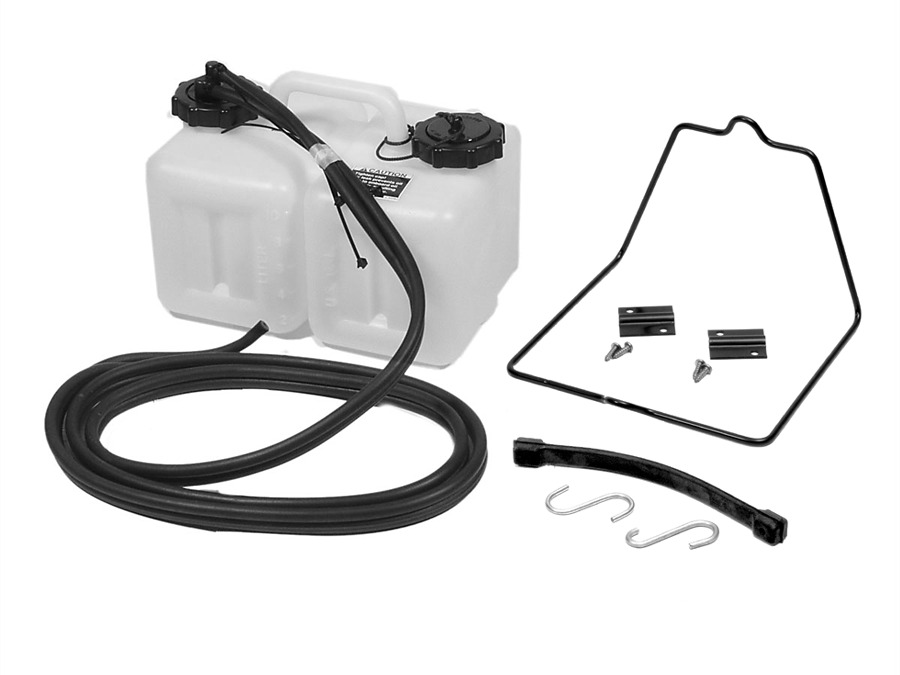

#1	8742A22	TANK ASSEMBLY REMOTE OIL COMPLETE - Design II - With 884481A1 Hold Down Bracket (1 required per assembly) — Replaces: 8742A20
		1257-8742A22 - Oil Tank - without Sender [ More info ] $408.49 Available to Order: Shipping delay up to 10 days.
#1	87421	TANK OIL (1 required per assembly)
		1257-8742 1 - Oil Reservoir [ More info ] $90.99 Available to Order: Shipping delay up to 10 days.
#2	884481A1	BRACKET KIT OIL TANK HOLD DOWN - Design II (1 required per assembly)
		884481A 1 - Bracket Kit [ More info ] $91.49 Available to Order: Shipping delay up to 10 days.
#2	12335A1	BRACKET KIT OIL TANK HOLD DOWN - Design I (1 required per assembly)
		12335A 1 - Bracket Kit [ More info ] $110.99 Available to Order: Shipping delay up to 10 days.
#3	12323A1	CORD/HOOK KIT (1 required per assembly)
		12323A 1 - Cord/Hook Kit [ More info ] $23.49 Available to Order: Shipping delay up to 10 days.
#4	12320	BRACKET HOLD DOWN (2 required per assembly)
		12320 - Hold Down Bracket [ More info ] $8.69 Available to Order: Shipping delay up to 10 days.
#5	79968	SCREW (#12-11 X .750) (4 required per assembly)
		10-79968 - Screw [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#6	43298A2	CAP ASSEMBLY OIL TANK (1 required per assembly)
		36-43298A 2 - Cap Assembly [ More info ] $32.77 1 In Stock.
#7	11332	O-RING (2.225 X .210) (1 required per assembly)
		25-11332 - O-ring, (2.225 X .210) [ More info ] $4.85 3 In Stock.
#8	816190A4	OIL PICK UP ASSEMBLY WITHOUT SENDER (1 required per assembly)
		816190A 4 - Oil Sender Assembly [ More info ] $201.99 Available to Order: Shipping delay up to 10 days.
#9	43298A2	CAP ASSEMBLY HOUSING ADAPTOR (1 required per assembly)
#10	11332	O-RING (2.225 X .210) (1 required per assembly)
#11	99802	TUBE OIL PICK UP (1 required per assembly)
		32-99802 - Tube Assembly [ More info ] $16.99 Available to Order: Shipping delay up to 10 days.
#12	99439	HOSE (114.00 INCHES) OIL LINE (1 required per assembly)
		32-99439 - Hose - Oil - 114 Inch [ More info ] $89.49 In Stock
#13	816311T	TIE STRAP (8.00 INCHES) (5 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#14	8781051	CHECK VALVE CRANKCASE (1 required per assembly) — Replaces: 878105
		21-878105 1 - Check Valve [ More info ] $45.99 3 In Stock.
#15	NSS	NOT SOLD SEPARATE YELLOW PLUG (2 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#16	8M0063190	OIL TANK ASSY OIL (1 required per assembly) — Replaces: 833069T9
		1200-8M0063190 - Oil Tank [ More info ] $316.99 1 In Stock.
#17	855364	BUSHING (3 required per assembly)
		23-855364 - Bushing [ More info ] $5.99 10+ In Stock.
#18	855362001	GROMMET (3 required per assembly) — Replaces: 855362
		25-855362001 - Grommet, Coolant Reservoir [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#19	856156T02	SWITCH ASSEMBLY LOW OIL (1 required per assembly) — Replaces: 856156A2
		87-856156T02 - Switch Assembly [ More info ] $27.39 2 In Stock.
#20	58376	SCREW (.164-18 X .375) (1 required per assembly)
		10-58376 - Screw [ More info ] $1.23 $1.18 9 In Stock.
#21	72761	WASHER (.203 X .562 X .060) STAINLESS STEEL (1 required per assembly)
		12-72761 - Washer, (.203 X .562 X .060) Stainless Steel [ More info ] $1.63 10+ In Stock.
#22	49436	WASHER (3 required per assembly)
		12-49436 - Washer - Priced Individually [ More info ] $0.90 $0.72 2 In Stock.
#23	60411	SCREW (.312-18 X 1.250) (3 required per assembly)
		10-60411 - Screw - Priced Individually [ More info ] $1.50 $1.20 1 In Stock.
#24	NSS	NOT SOLD SEPARATE RESERVOIR INFO DECAL (1 required per assembly)
#25	814634	CLAMP (1 required per assembly)
		54-814634 - Clamp [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#26	875284T01	FILTER OIL - IN LINE OIL (1 required per assembly) — Replaces: 875284, 875284001
		35-875284T01 - Filter [ More info ] $6.79 6 In Stock.
#27	69355	TIE STRAP @100 (4 required per assembly)
		69355 - Tie Strap - Priced Individually [ More info ] $0.40 10+ In Stock.
		8M0214940 - TIE STRAP [ More info ] $0.80 Available to Order: Shipping delay up to 10 days.
#28	875283	HOSE-2 INCHES (1 required per assembly)
		32-875283 - Hose -2 Inches [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#29	858955	CONNECTOR (1 required per assembly)
		22-858955 - Connector [ More info ] $3.69 2 In Stock.
#30	816311T	TIE STRAP @100 (4 required per assembly)
#31	8M0108355	HOSE (57 INCHES BULK) CUT 4.750 INCHES (1 required per assembly) — Replaces: 830756109, 8M0047428
		32-8M0108355 - Hose, 57 Inch [ More info ] $52.49 1 In Stock.
#32	8M0207780	FITTING CHECK (1 required per assembly) — Replaces: 424254
		228M0207780 - Fitting [ More info ] $55.99 Available to Order: Shipping delay up to 10 days.
#33	8M0108355	HOSE (57 INCHES BULK) CUT 6.00 INCHES (1 required per assembly) — Replaces: 830756109, 8M0047428
