Parts for 75 HP EFI Seapro 4-Stroke Mercury Outboard Motor Starter Motor / Oil Filter / Sensors

Revise Search: Outboard > 4-Stroke Mercury Outboard > 75 HP EFI Seapro > 2B095049 & Up > Starter Motor / Oil Filter / Sensors

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

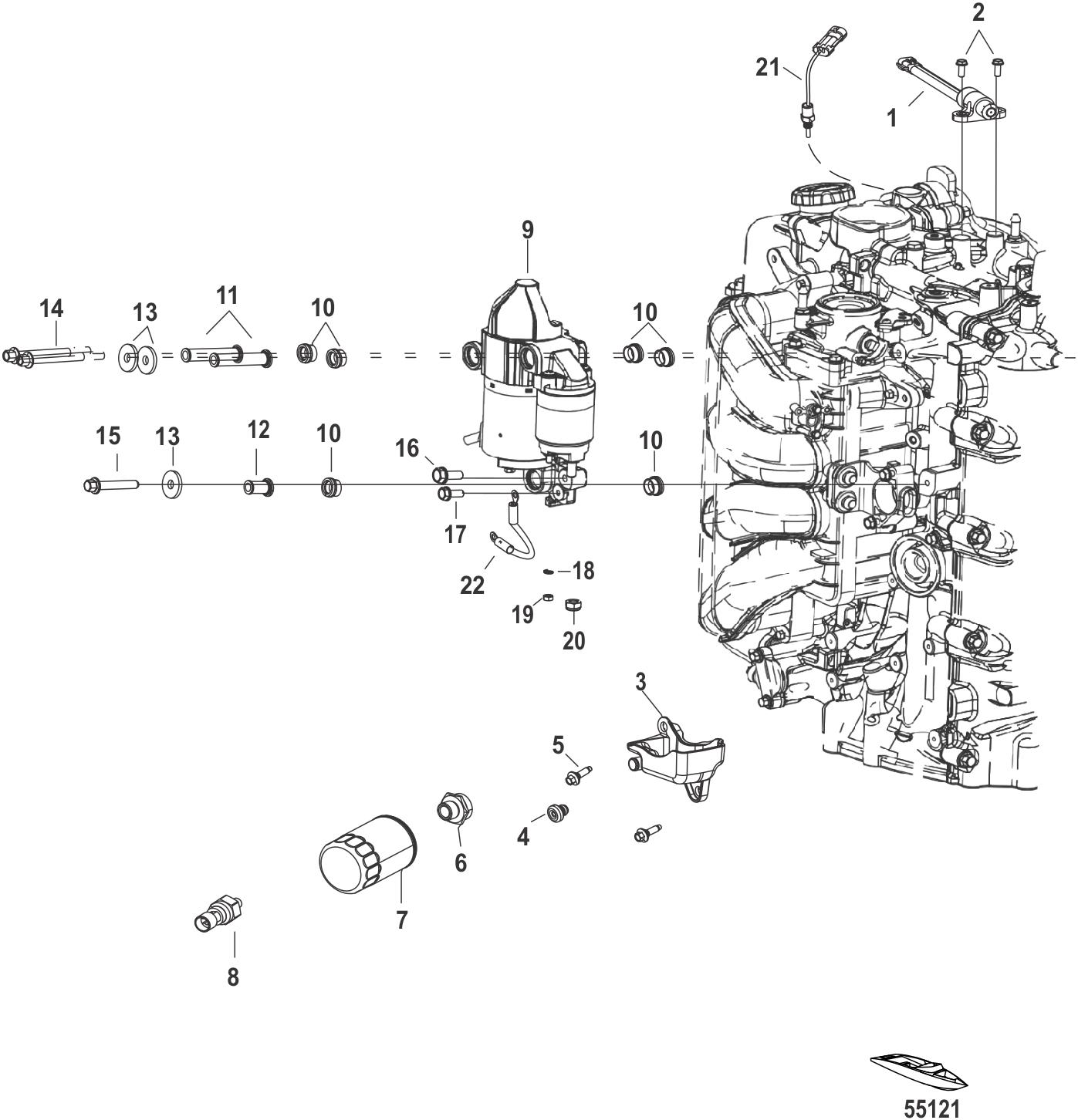

Starter Motor / Oil Filter / Sensors

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0082988	SENSOR ASSY (1 required per assembly)
		8M0082988 - Sensor Assembly [ More info ] $120.49 $115.99 In Stock
#2	40011106	SCREW (2 required per assembly)
		10-40011106 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#3	8M0090816	TRAY-OIL DRIP (1 required per assembly)
		8M0090816 - TRAY-OIL DRIP [ More info ] $11.09 Available to Order: Shipping delay up to 10 days.
#4	8M0143229	PLUG DRIP TRAY (1 required per assembly) — Replaces: 8M0049906, 8M0137767
		198M0143229 - PLUG DRIP TRAY [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#5	8M0012661	SCREW (2 required per assembly)
		10-8M0012661 - Screw [ More info ] $21.59 Available to Order: Shipping delay up to 10 days.
#6	8M0071039	FITTING-OILFILTER (1 required per assembly)
		228M0071039 - Fitting-OILFilter [ More info ] $15.19 Available to Order: Shipping delay up to 10 days.
#7	8M0162830	FILTER OIL @6 (1 required per assembly) — Replaces: 8M0065103
		35-8M0162830 - Oil Filter, Priced Individually [ More info ] $14.49 8 In Stock.
#8	8M6000634	SENSOR (1 required per assembly)
		8M6000634 - Sensor [ More info ] Unavailable
		718M0142688 - PRESSURE Sensor [ More info ] $219.49 Available to Order: Shipping delay up to 10 days.
#9	8M0166297	STARTER ASSY (1 required per assembly) — Replaces: 8M0088064, 8M0137769
		50-8M0166297 - Starter Motor [ More info ] $393.99 Available to Order: Shipping delay up to 10 days.
#10	8M0154659	MOUNT TUBULAR 8MM (6 required per assembly) — Replaces: 8M0070367
		238M0154659 - MOUNT TUBULAR 8MM [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#11	8M0070369	SPACER8.3IDX11.8O (2 required per assembly)
		238M0070369 - Spacer8.3IDX11.8O [ More info ] $20.79 Available to Order: Shipping delay up to 10 days.
#12	8M0070368	SPACER8.3X11.8X21 (1 required per assembly)
		238M0070368 - Spacer8.3X11.8X21 [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
#13	43430	WASHER (3 required per assembly)
		12-43430 - Washer, Upper Mount Screw [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#14	8M0188530	SCREW (2 required per assembly) — Replaces: 8M0071509, 8M0142896
		10-8M0188530 - SCREW [ More info ] Unavailable
#15	88552645	SCREW @2 (1 required per assembly)
		10-885526 45 - Screw - Priced Individually [ More info ] $3.29 1 In Stock.
#16	40011148	SCREW @2 (1 required per assembly)
		10-40011148 - Screw - Priced Individually [ More info ] Unavailable
		10-8M0214929 - SCREW @2 [ More info ] Unavailable
#17	40011126	SCREW @5 (1 required per assembly)
		10-40011126 - Screw - Priced Individually [ More info ] $3.69 10+ In Stock.
#18	400255	LOCKWASHER (1 required per assembly)
		13-40025 5 - LockWasher [ More info ] $1.10 $0.88 8 In Stock.
#19	400211	NUT (1 required per assembly)
		11-40021 1 - Nut [ More info ] $3.59 10+ In Stock.
#20	401388	NUT @5 (1 required per assembly)
		11-40138 8 - Nut - Priced Individually [ More info ] $3.11 3 In Stock.
#21	8M0148668	SENSOR-TEMP (1 required per assembly) — Replaces: 885342002
		8M0148668 - Temperature Sensor [ More info ] $47.49 In Stock
#22	8M0056666	CABLE ASSEMBLY (1 required per assembly)
		848M0056666 - Cable Assembly [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
