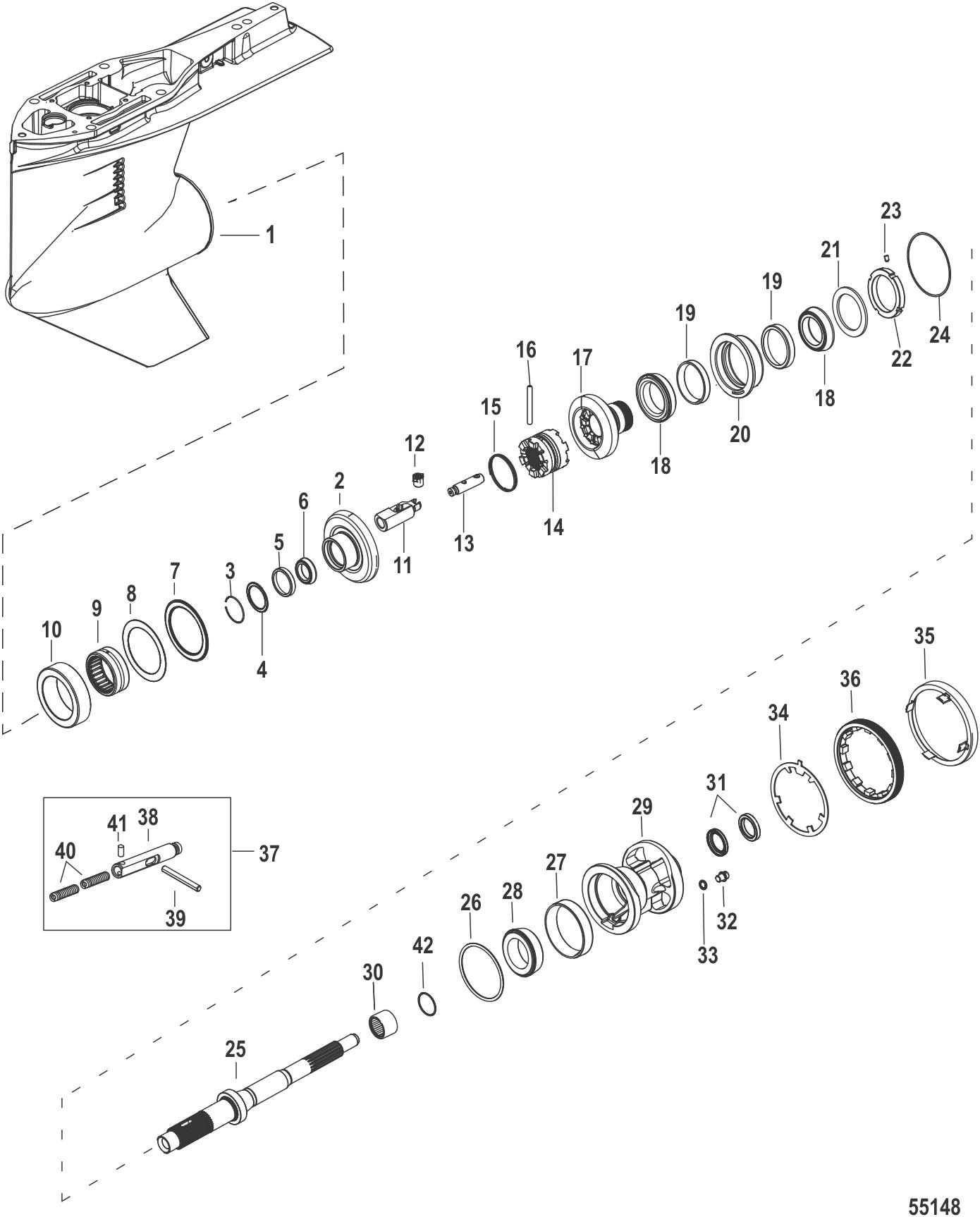

Parts for 65 HP EFI Jet 4-Stroke Mercury Outboard Motor Gear Housing, Propeller Shaft 2.38:1 Counter Rotation
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M0102751 | G/C CT CL (1 required per assembly) |
  |
|
16008M0102751 - G/C CT CL [ More info ] Unavailable |
| #- | 8M0088076 | G/C CXL CT (1 required per assembly) |
  |
|
16008M0088076 - G/C CXL CT [ More info ] Unavailable |
| #- | 8M0099917 | G/C CXL SEA SeaPro (1 required per assembly) |
  |
|
16008M0099917 - G/C CXL SEA [ More info ] Unavailable |
| #1 | 8M0057747 | GEAR HOUSING BASIC (1 required per assembly) |
  |
|
16008M0057747 - Gearcase Basic [ More info ]
|
| #1 | 8M0099907 | GEAR HOUSING BASIC SeaPro (1 required per assembly) |
  |
|
16008M0099907 - G/C BASIC [ More info ]
|
| #2 | 8M0108312 | GEAR KIT-REVERSE (1 required per assembly) — Replaces: 8M0094500 |
  |
|
438M0108312 - Reverse Gear Kit [ More info ]
|
| #3 | 8M0094502 | RING INTERNAL RETAINING (1 required per assembly) |
  |
|
538M0094502 - RING-RETAINING [ More info ]
|
| #4 | 8M0064432 | WASHER THRUST (1 required per assembly) |
  |
|
128M0064432 - Thrust Washer [ More info ]
|
| #5 | 8M0094499 | BEARING SET TAPERED ROLLER (1 required per assembly) |
  |
|
318M0094499 - Bearing ASSY ROLL [ More info ]
|
| #6 | NSS | NOT SOLD SEPARATE (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #7 | 815480 | BEARING THRUST (1 required per assembly) |
  |
|
31-815480 - Thrust Bearing [ More info ]
|
| #8 | 815481 | THRUST WASHER (1 required per assembly) |
  |
|
12-815481 - Thrust Washer [ More info ]
|
| #9 | 8M0094497 | BEARING NEEDLE ROLLER (1 required per assembly) |
  |
|
318M0094497 - Needle Bearing [ More info ]
|
| #10 | 8M0064369 | BEARING ADAPTER REVERSE GEAR (1 required per assembly) |
  |
|
8M0064369 - Bearing Adaptor R [ More info ]
|
| #11 | 8M0031018 | FOLLOWER CAM (LH) (1 required per assembly) |
  |
|
8M0031018 - FOLLOWER-CAM-LH [ More info ]
|
| #12 | 8M0077490 | CAM SHIFT (1 required per assembly) |
  |
|
8M0077490 - CAM-SHIFT [ More info ]
|
| #13 | 8M0057749 | ROD CLUTCH ACTUATOR DESIGN 1 [2B384875] & Below (1 required per assembly) |
  |
|
8M0057749 - ROD,Clutch ACTUAT [ More info ]
|
| #14 | 8M0094479 | CLUTCH SLIDING, 6 JAW (1 required per assembly) |
  |
|
528M0094479 - Clutch [ More info ]
|
| #15 | 8M0047945 | SPRING RETAINING (1 required per assembly) |
  |
|
248M0047945 - Spring-Cross Pin [ More info ]
|
| #16 | 8M0045759 | PIN CROSS (1 required per assembly) |
  |
|
178M0045759 - Pin-CROSS [ More info ]
|
| #17 | 8M0094483 | GEAR SET FORWARD/PINION (31T LH) (1 required per assembly) |
  |
|
438M0094483 - Gear Set [ More info ]
|
| #18 | 8M0094485 | TAPERED ROLLER BEARING SET (2 required per assembly) |
  |
|
318M0094485 - Bearing ASSY ROLL [ More info ]
|
| #19 | NSS | NOT SOLD SEPARATE (2 required per assembly) |
| #20 | 8M0094486 | ADAPTER BEARING, FORWARD GEAR (1 required per assembly) |
  |
|
8M0094486 - Bearing Adaptor [ More info ]
|
| #21 | 8M0064177 | WASHER THRUST (1 required per assembly) |
  |
|
128M0064177 - Thrust Washer [ More info ]
|
| #22 | 8M0064178 | LOCK NUT (1 required per assembly) — Replaces: 8M0094488 |
  |
|
118M0064178 - LOCK NUT [ More info ]
|
| #23 | 8M0066130 | SCREW- HALF DOG POINT SET (1 required per assembly) |
  |
|
108M0066130 - Screw-HALF DOG [ More info ]
|
  |
|
10-8M0233826 - SCREW-HALF DOG [ More info ] Unavailable |
| #24 | 8M0094490 | SHIM SET (1 required per assembly) |
  |
158M0094490 - Shim Set [ More info ] Unavailable |
|
  |
|
15-8M0239650 - SHIM SET [ More info ] Unavailable |
| #25 | 8M0088079 | SHAFT - PROPELLER LH (1 required per assembly) |
  |
|
448M0088079 - Prop Shaft LH [ More info ]
|
| #26 | 8M0030845 | O-RING 3.975X.210 (1 required per assembly) |
  |
|
258M0030845 - O-Ring,3.975X.210 [ More info ]
|
| #27 | 8M0148319 | BEARING CUP/CONE (1 required per assembly) — Replaces: 884330T01 |
  |
|
318M0148319 - Bearing CUPCone [ More info ]
|
| #28 | NSS | NOT SOLD SEPARATE (1 required per assembly) |
| #29 | 8M0094495 | BEARING CARRIER C/R (1 required per assembly) |
  |
|
8M0094495 - Bearing Carrier [ More info ]
|
| #30 | 8M0064306 | SPACER (1 required per assembly) |
  |
|
238M0064306 - Spacer-Thrust [ More info ]
|
| #31 | 8M0204700 | SEAL-OIL (2 required per assembly) — Replaces: 888483 |
  |
|
268M0204700 - SEAL-OIL [ More info ]
|
| #32 | 8M0071653 | SCREW SPECIAL (1 required per assembly) |
  |
|
108M0071653 - Screw [ More info ]
|
| #33 | 8M0204693 | SEAL @6 (1 required per assembly) — Replaces: 830749 |
  |
|
26-8M0204693 - Drain Screw Washer, Priced Individually [ More info ]
|
  |
|
10-10100-1 - Drain Screw Washer 830749 [ More info ]
|
| #34 | 8M0030784 | WASHER KEYED (1 required per assembly) |
  |
|
8M0030784 - Washer-KeyED (CP) [ More info ]
|
| #35 | 8M0187255 | SLEEVE @5 (1 required per assembly) — Replaces: 8M0054695 |
  |
|
23-8M0187255 - Sleeve Note: Priced Individually [ More info ]
|
| #36 | 8M0168885 | RETAINER BEARING (1 required per assembly) — Replaces: 8M0030785, 8M0141332 |
  |
|
538M0168885 - Retainer BEARING [ More info ]
|
| #37 | 8M0120367 | ACTUATOR KIT DOUBLE ACTING SHIFT DESIGN 2 SeaPro [2B384875] & Up (1 required per assembly) |
  |
|
988M0120367 - Shift Actuator KT [ More info ]
|
| #38 | 8M0102962 | ROD CLUTCH ACTUATOR (1 required per assembly) |
  |
|
8M0102962 - ROD-Clutch ACTUAT [ More info ]
|
| #39 | 8M0029113 | PIN CROSS (1 required per assembly) |
  |
|
178M0029113 - PIN [ More info ]
|
| #40 | 8M0096707 | SPRING COMPRESSION (2 required per assembly) |
  |
|
248M0096707 - SPRING [ More info ]
|
| #41 | 8M0084245 | PIN SPRING LOCATOR (1 required per assembly) |
  |
|
178M0084245 - Locator Pin [ More info ]
|
| #42 | 8M0076745 | SHIM SET (1 required per assembly) |
  |
|
158M0076745 - Washer/Shim Set [ More info ]
|
| #42 | 8M0050423 | WASHER .020 (AR required per assembly) |
  |
|
12-8M0050423 - Shim-.020 , Priced Individually [ More info ]
|
| #42 | 8M0050424 | WASHER .022 (AR required per assembly) |
  |
|
12-8M0050424 - Shim-.022 , Priced Individually [ More info ]
|
| #42 | 8M0050425 | WASHER .024 (AR required per assembly) |
  |
|
12-8M0050425 - Shim-.024 , Priced Individually [ More info ]
|
| #42 | 8M0050427 | WASHER .026 (AR required per assembly) |
  |
|
12-8M0050427 - Shim-.026 , Priced Individually [ More info ]
|
| #42 | 8M0050428 | WASHER .028 (AR required per assembly) |
  |
|
12-8M0050428 - Shim-.028 , Priced Individually [ More info ]
|
| #42 | 8M0050429 | WASHER .030 (AR required per assembly) |
  |
|
12-8M0050429 - Shim-.030 , Priced Individually [ More info ]
|
| #42 | 8M0050430 | WASHER .032 (AR required per assembly) |
  |
|
12-8M0050430 - Shim-.032 , Priced Individually [ More info ]
|
| #42 | 8M0050431 | WASHER .034 (AR required per assembly) |
  |
|
12-8M0050431 - Shim-.034 , Priced Individually [ More info ]
|
| #42 | 8M0050432 | WASHER .036 (AR required per assembly) |
  |
|
12-8M0050432 - Shim-.036 , Priced Individually [ More info ]
|
| #42 | 8M0050433 | WASHER .038 (AR required per assembly) |
  |
|
12-8M0050433 - Shim-.038 , Priced Individually [ More info ]
|
| #42 | 8M0050434 | WASHER .040 (AR required per assembly) |
  |
|
12-8M0050434 - Shim-.040 , Priced Individually [ More info ]
|
| #42 | 8M0050435 | WASHER .042 (AR required per assembly) |
  |
|
12-8M0050435 - Shim-.042 , Priced Individually [ More info ]
|
| #42 | 8M0050436 | WASHER .044 (AR required per assembly) |
  |
|
12-8M0050436 - Shim-.044 , Priced Individually [ More info ]
|
| #42 | 8M0050437 | WASHER .046 (AR required per assembly) |
  |
|
12-8M0050437 - Shim-.046 , Priced Individually [ More info ]
|
| #42 | 8M0050438 | WASHER .048 (AR required per assembly) |
  |
|
12-8M0050438 - Shim-.048 , Priced Individually [ More info ]
|
| #42 | 8M0050439 | WASHER .050 (AR required per assembly) |
  |
|
12-8M0050439 - Shim-.050 , Priced Individually [ More info ]
|
