Parts for 65 HP EFI Jet 4-Stroke Mercury Outboard Motor Cylinder Head & Camshaft Cover

Revise Search: Outboard > 4-Stroke Mercury Outboard > 65 HP EFI Jet > 2B095049 & Up > Cylinder Head & Camshaft Cover

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

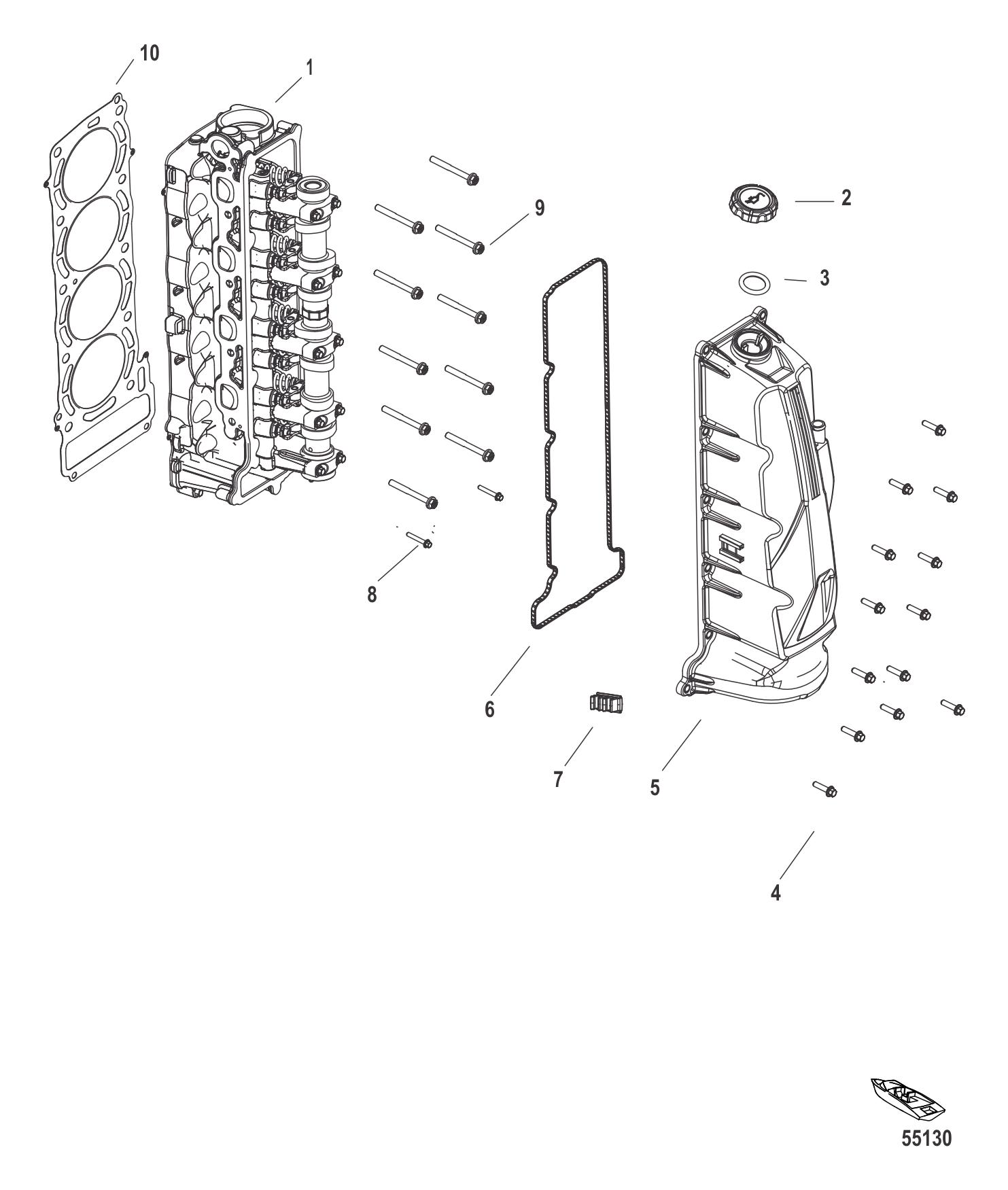

Cylinder Head & Camshaft Cover

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0098627	HEAD ASSY -CYL 75/90 SeaPro (1 required per assembly) — Replaces: 8M0094683
		9008M0098627 - Cylinder Head [ More info ] Unavailable
		900-8M0153942 - 900-8M0153942 - CYLINDER HEAD [ More info ] Unavailable Replaced by -8M0169880
		900-8M0169880 - 900-8M0169880 - CYLINDER HEAD [ More info ] Unavailable Replaced by -8M0190640
		8M0190640 - CYLINDER HEAD [ More info ] Unavailable
#1	8M0121260	HEAD ASSY CYL 115 and 80 Jet [2B192012] & Below (1 required per assembly) — Replaces: 8M0091290, 8M0098628
		9008M0121260 - Cylinder Head [ More info ] Unavailable
		9008M0153943 - Cylinder Head [ More info ] Unavailable
		900-8M0169881 - 900-8M0169881 - CYLINDER HEAD [ More info ] Unavailable Replaced by -8M0190641
		900-8M0190641 - CYLINDER HEAD [ More info ] Unavailable
#1	8M0153943	CYLINDER HEAD 115 Seapro [2B192012] & Below (1 required per assembly) — Replaces: 8M0098628, 8M0121260
#1	8M0169881	CYLINDER HEAD 115, 115 SeaPro, 80 Jet [2B192013] & Up (1 required per assembly) — Replaces: 8M0121260, 8M0153943
#2	8M0065093	CAP, OIL FILL (1 required per assembly)
		8M0065093 - Oil Fill Cap [ More info ] $16.59 Available to Order: Shipping delay up to 10 days.
#3	8M0043174	O-RING (1 required per assembly)
		25-8M0043174 - O-Ring [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#4	8M0103807	SCREW @2 (13 required per assembly) — Replaces: 88552525
		108M0103807 - Screw (M6 x 25 MM) Stainless Steel [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#5	8M0088067	CAMSHAFT CVR ASSY (1 required per assembly)
		8M0088067 - Camshaft CVR ASSY [ More info ] $284.49 Available to Order: Shipping delay up to 10 days.
#6	8M0069479	SEAL CAMSHAFT COVER (1 required per assembly)
		8M0069479 - Seal [ More info ] $30.19 Available to Order: Shipping delay up to 10 days.
#7	8M0071081	CLIP,WIRE (1 required per assembly)
		548M0071081 - Clip,Wire [ More info ] $1.40 Available to Order: Shipping delay up to 10 days.
#8	8M0103809	SCREW @2 (2 required per assembly) — Replaces: 88552540
		108M0103809 - Screw - Priced Individually [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#9	8M0082895	SCREW M10X1.5X95 (10 required per assembly)
		108M0082895 - Screw M10X1.5X95 [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#10	8M0090776	GASKET CYL HEAD (1 required per assembly)
		278M0090776 - Cylinder Head Gasket [ More info ] $47.49 Available to Order: Shipping delay up to 10 days.
