Parts for 65 HP EFI Jet 4-Stroke Mercury Outboard Motor Crankshaft, Pistons & Connecting Rods

Revise Search: Outboard > 4-Stroke Mercury Outboard > 65 HP EFI Jet > 2B095049 & Up > Crankshaft, Pistons & Connecting Rods

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

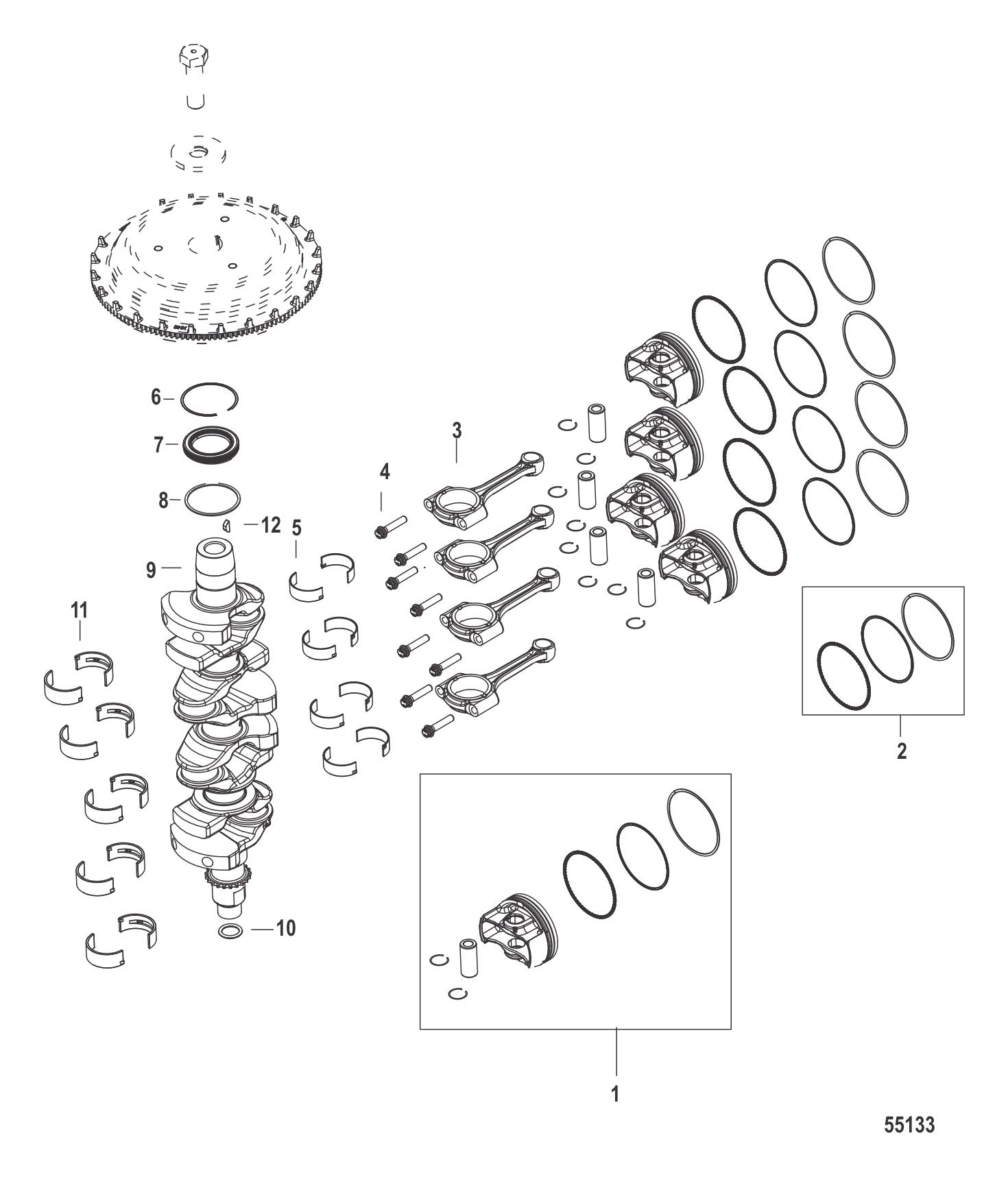

Crankshaft, Pistons & Connecting Rods

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0100259	PISTON ASSEMBLY (4 required per assembly) — Replaces: 8M0090781
		7008M0100259 - Piston [ More info ] $155.49 Available to Order: Shipping delay up to 10 days.
#2	8M0090783	RING SET - PISTON (4 required per assembly)
		398M0090783 - Piston Ring Set [ More info ] $73.49 Available to Order: Shipping delay up to 10 days.
#3	8M0107011	CONN ROD ASSY (4 required per assembly) — Replaces: 8M0090778
		6008M0107011 - Connecting Rod Assembly [ More info ] $127.49 Available to Order: Shipping delay up to 10 days.
#4	8M6002637	BOLT (8 required per assembly)
		108M6002637 - Bolt [ More info ] Unavailable
		10-8M0159648 - BOLT CONNECT ROD [ More info ] Unavailable
#5	8M0090780	BEARING-CON ROD (AR required per assembly)
		8M0090780 - Bearing-CON ROD [ More info ] $12.69 Available to Order: Shipping delay up to 10 days.
#5	8M0091376	BEARING-CON ROD (AR required per assembly)
		6008M0091376 - Bearing-CON ROD [ More info ] $12.69 Available to Order: Shipping delay up to 10 days.
#5	8M0091377	BEARING-CON ROD (AR required per assembly)
		6008M0091377 - Bearing-CON ROD [ More info ] $13.89 Available to Order: Shipping delay up to 10 days.
#6	8M0057585	RING-RETAINING (1 required per assembly)
		538M0057585 - RING-RETAINING [ More info ] $7.59 Available to Order: Shipping delay up to 10 days.
#7	8M6002225	SEAL-TOP M BRNG (1 required per assembly)
		268M6002225 - Seal-TOP M BRNG [ More info ] $16.69 Available to Order: Shipping delay up to 10 days.
#8	8M0057586	SPACER-SEAL (1 required per assembly)
		238M0057586 - Spacer-SEAL [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#9	8M0090777	CRANKSHAFT (1 required per assembly)
		4008M0090777 - CrankShaft [ More info ] $1,195.99 Available to Order: Shipping delay up to 10 days.
#10	8M0034912	O RING @2 (1 required per assembly)
		25-8M0034912 - O-ring, Oil Pump Driveshaft [ More info ] $5.29 1 In Stock.
#11	8M0090779	BEARING-CRANK SFT (AR required per assembly)
		5008M0090779 - Bearing-CRANK SFT [ More info ] $19.19 Available to Order: Shipping delay up to 10 days.
#11	8M0090797	BEARING-CRANK SFT (AR required per assembly)
		5008M0090797 - Bearing-CRANK SFT [ More info ] $19.69 Available to Order: Shipping delay up to 10 days.
#11	8M0091378	BEARING-CRANK SFT (AR required per assembly)
		5008M0091378 - Bearing-CRANK SFT [ More info ] $19.69 Available to Order: Shipping delay up to 10 days.
#11	8M0091379	BEARING-CRANK SFT (AR required per assembly)
		5008M0091379 - Bearing-CRANK SFT [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#12	91800	KEY @2 (1 required per assembly)
		28-91800 - Key - Priced Individually [ More info ] $3.05 4 In Stock.
