Parts for 600 HP 7.6L V12 4-Stroke Mercury Outboard Motor Gear Housing Propeller Shaft
Tap to zoom. Scroll down to order.

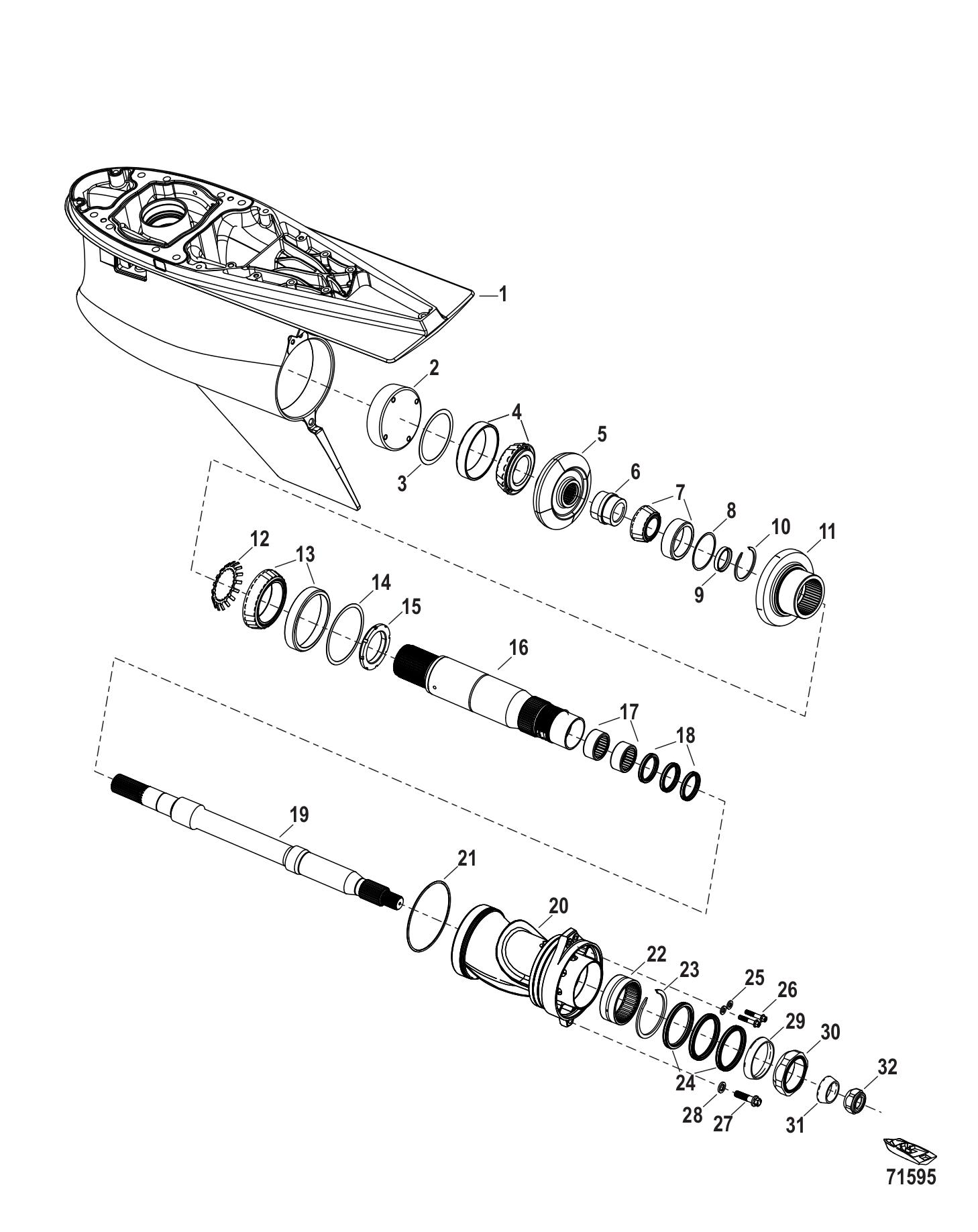

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M0174564 | GC SILVER CONTRA (1 required per assembly) |
  |
|
1600-8M0174564 - GC SILVER CONTRA [ More info ] Unavailable |
| #1 | 8M0174565 | GEAR HOUSING ASSEMBLY BASIC (1 required per assembly) |
  |
|
1600-8M0174565 - GC 500-600 BASIC [ More info ] Unavailable |
| #2 | 8M0177409 | PLUG NOSE CONE (1 required per assembly) |
  |
|
19-8M0177409 - PLUG-TORPEDO [ More info ] Unavailable |
| #3 | 8M0155681 | SHIM SET (1 required per assembly) |
  |
|
15-8M0155681 - SHIM SET [ More info ] Unavailable |
| #4 | 8M0177411 | BEARING TAPER (1 required per assembly) |
  |
|
31-8M0177411 - BEARING-TAPER [ More info ] Unavailable |
| #5 | 8M0177412 | GEAR SET (1 required per assembly) |
  |
|
43-8M0177412 - GEAR-FRONT [ More info ] Unavailable |
| #6 | 8M0177413 | SLEEVE (1 required per assembly) |
  |
|
23-8M0177413 - SLEEVE [ More info ] Unavailable |
| #7 | 8M0177414 | BEARING TAPER (1 required per assembly) |
  |
|
31-8M0177414 - BEARING-TAPER [ More info ] Unavailable |
| #8 | 8M0155671 | SHIM SET (1 required per assembly) |
  |
|
15-8M0155671 - SHIM SET [ More info ] Unavailable |
| #9 | 8M0177416 | SPACER (1 required per assembly) |
  |
|
23-8M0177416 - SPACER-BEARING [ More info ] Unavailable |
| #10 | 8M0177417 | RING RETAINING (1 required per assembly) |
  |
|
53-8M0177417 - RING-RETAINING [ More info ] Unavailable |
| #11 | 8M0177412 | GEAR SET (1 required per assembly) |
| #12 | 8M0177419 | WASHER (1 required per assembly) |
  |
|
14-8M0177419 - 14-8M0177419 - WASHER [ More info ] Unavailable Replaced by -8M0182583 |
  |
|
14-8M0182583 - WASHER [ More info ] Unavailable |
| #13 | 8M0177420 | BEARING TAPER (1 required per assembly) |
  |
|
31-8M0177420 - BEARING-TAPER [ More info ] Unavailable |
| #14 | 8M0155682 | SHIM SET (1 required per assembly) |
  |
|
15-8M0155682 - SHIM SET [ More info ] Unavailable |
| #15 | 8M0177422 | NUT (1 required per assembly) |
  |
|
11-8M0177422 - NUT-LOCK [ More info ] Unavailable |
| #16 | 8M0177423 | PROPSHAFT OUTER (1 required per assembly) |
  |
|
44-8M0177423 - PROPSHAFT-OUTER [ More info ] Unavailable |
| #17 | 8M0177424 | BEARING NEEDLE (2 required per assembly) |
  |
|
31-8M0177424 - BEARING-ROLLER [ More info ] Unavailable |
| #18 | 8M0177425 | SEAL (3 required per assembly) |
  |
|
26-8M0177425 - SEAL-PRPSFT INNER [ More info ] Unavailable |
| #19 | 8M0177426 | PROPSHAFT INNER (1 required per assembly) |
  |
|
44-8M0177426 - PROPSHAFT-INNER [ More info ] Unavailable |
| #20 | 8M0177427 | BEARING CARRIER ASSEMBLY (1 required per assembly) |
  |
|
8M0177427 - BEARING CARRIER [ More info ] Unavailable |
| #21 | 8M0177428 | O-RING (1 required per assembly) |
  |
|
25-8M0177428 - 25-8M0177428 - O-RING [ More info ] Unavailable Replaced by -8M0187117 |
  |
|
25-8M0187117 - O-RING [ More info ] Unavailable |
| #22 | 8M0177429 | BEARING NEEDLE (1 required per assembly) |
  |
|
31-8M0177429 - BEARING-NEEDLE [ More info ] Unavailable |
| #23 | 8M0185887 | RING RETAINING (1 required per assembly) |
  |
|
53-8M0185887 - RING-RETAINING [ More info ] Unavailable |
| #24 | 8M0177430 | SEAL (3 required per assembly) |
  |
|
26-8M0177430 - SEAL-OUTER PRPSHF [ More info ] Unavailable |
| #25 | 8M0177431 | WASHER (2 required per assembly) |
  |
|
12-8M0177431 - WASHER [ More info ] Unavailable |
| #26 | 8M0084475 | SCREW (M8 X 40) (2 required per assembly) |
  |
|
108M0084475 - Screw [ More info ]
|
| #27 | 8M0177432 | SCREW (1 required per assembly) |
  |
|
10-8M0177432 - SCREW [ More info ] Unavailable |
| #28 | 8M0177433 | WASHER (1 required per assembly) |
  |
|
12-8M0177433 - WASHER [ More info ] Unavailable |
| #29 | 8M0176912 | WASHER-THRUST FRT (1 required per assembly) |
  |
|
12-8M0176912 - WASHER-THRUST FRT [ More info ] Unavailable |
| #30 | 8M0176914 | NUT-PROP, FRONT (1 required per assembly) |
  |
|
11-8M0176914 - NUT-PROP, FRONT [ More info ] Unavailable |
| #31 | 8M0176913 | WASHER,THRUST (1 required per assembly) |
  |
|
12-8M0176913 - WASHER,THRUST [ More info ] Unavailable |
| #32 | 8M0176915 | NUT-PROP, REAR (1 required per assembly) |
  |
|
11-8M0176915 - NUT-PROP, REAR [ More info ] Unavailable |
