Parts for 600 HP 7.6L V12 4-Stroke Mercury Outboard Motor Electrical Engine Harness

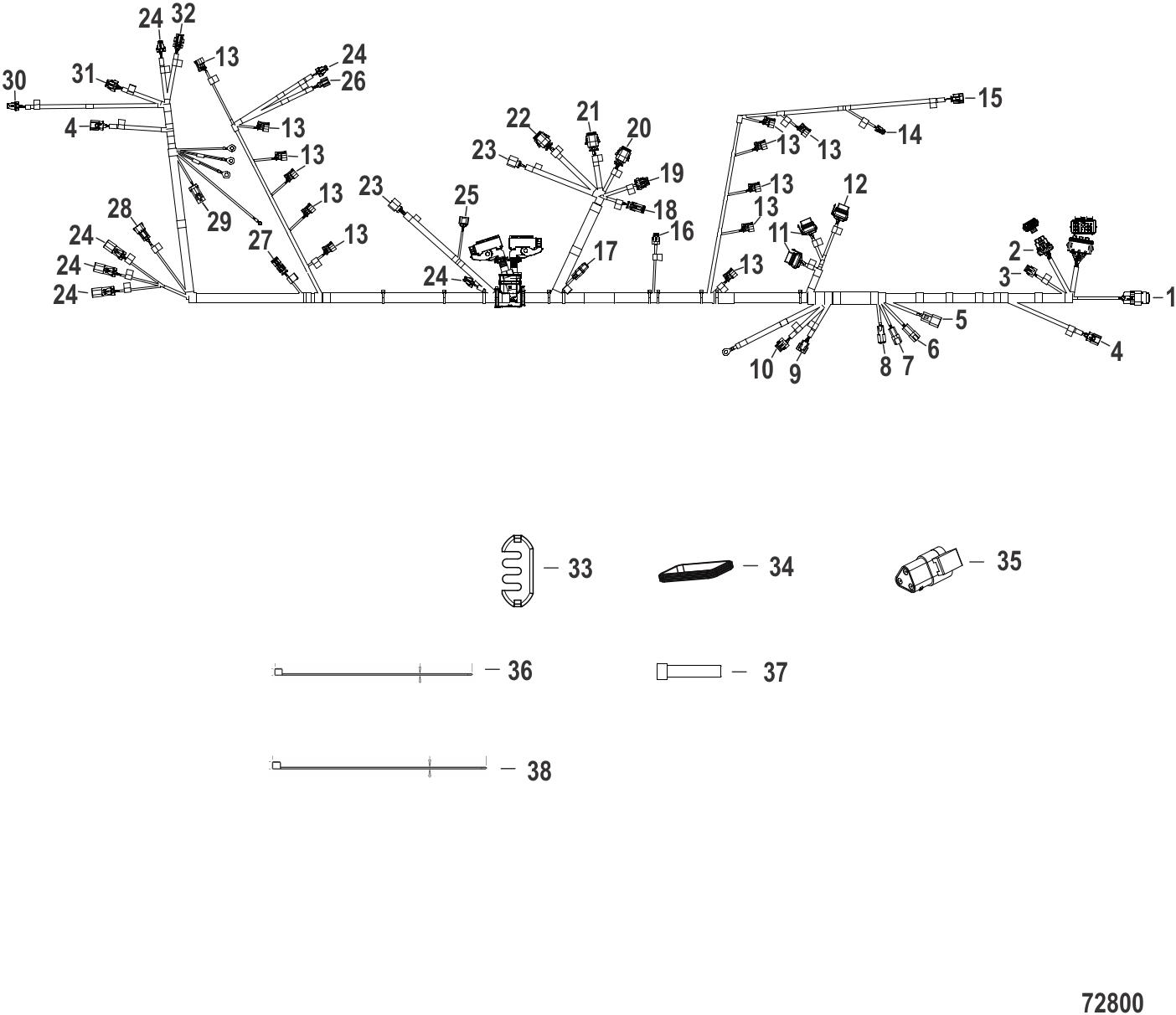

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M0178245 | HARNESS ENGINE (1 required per assembly) |
  |
|
84-8M0178245 - HARNESS ENGINE [ More info ] Unavailable |
| #- | 893388A01 | RESISTOR-120 OHM (3 required per assembly) |
  |
|
893388A01 - Resistor-120 Ohm [ More info ]
|
| #1 | 879346A31 | HARNESS REPAIR Resister: CAN 1, P (1 required per assembly) |
  |
|
879346A31 - Kit-10 Pin Delphi [ More info ]
|
| #2 | 8M0062016 | HARNESS REPAIR Fuse Holder 2 (1 required per assembly) |
  |
|
848M0062016 - Harness Repair Kit [ More info ]
|
| #3 | 879346A42 | HARNESS REPAIR Steering, CAN 4 (1 required per assembly) |
  |
|
879346A42 - KT-4 Pin Delphi [ More info ]
|
| #4 | 8M0179595 | HARNESS REPAIR ETC 1, ETC 2 (1 required per assembly) |
  |
|
84-8M0179595 - HARNESS REPAIR [ More info ] Unavailable |
| #5 | 8M0179609 | HARNESS REPAIR Engine Power (1 required per assembly) |
  |
|
84-8M0179609 - HARNESS REPAIR [ More info ] Unavailable |
| #6 | 8M0179602 | HARNESS REPAIR Engine Primary (1 required per assembly) |
  |
|
84-8M0179602 - HARNESS REPAIR [ More info ] Unavailable |
| #7 | 8M0179593 | HARNESS REPAIR Engine Feature (1 required per assembly) |
  |
|
84-8M0179593 - HARNESS REPAIR [ More info ] Unavailable |
| #8 | 8M0179594 | HARNESS REPAIR Engine Auxiliary (1 required per assembly) |
  |
|
84-8M0179594 - HARNESS REPAIR [ More info ] Unavailable |
| #9 | 879346A47 | HARNESS REPAIR KIT Trim Switch (1 required per assembly) |
  |
|
879346A47 - KT-3 Pin AMP [ More info ]
|
| #10 | 879346A51 | HARNESS REPAIR KIT Oil Level (1 required per assembly) |
  |
|
879346A51 - KT-5 Pin Delphi [ More info ]
|
| #11 | 8M0179605 | HARNESS REPAIR Fuel Pump, Main Power Relay (1 required per assembly) |
  |
|
84-8M0179605 - HARNESS REPAIR [ More info ] Unavailable |
| #12 | 8M0179604 | HARNESS REPAIR Starter Relay (1 required per assembly) |
  |
|
84-8M0179604 - HARNESS REPAIR [ More info ] Unavailable |
| #13 | 8M0062019 | HARNESS REPAIR KIT INJECTOR 9, 6, 10, 8, 11, 4, 3, 12, 2, 7, 5 (1 required per assembly) |
  |
|
848M0062019 - Harness Repair Kit [ More info ]
|
| #14 | 879346A39 | HARNESS REPAIR KIT Block PSI (1 required per assembly) |
  |
|
879346A39 - KT-3 Pin PKRD RND [ More info ]
|
| #15 | 8M0179603 | HARNESS REPAIR Alternator (1 required per assembly) |
  |
|
84-8M0179603 - HARNESS REPAIR [ More info ] Unavailable |
| #16 | 879346A41 | HARNESS REPAIR KIT Camshaft (1 required per assembly) |
  |
|
879346A41 - KT-3 Pin Delphi [ More info ]
|
| #17 | 8M0179610 | HARNESS REPAIR MP Alert (1 required per assembly) |
  |
|
84-8M0179610 - HARNESS REPAIR [ More info ] Unavailable |
| #18 | 8M0179600 | HARNESS REPAIR Steering Position A, B (1 required per assembly) |
  |
|
84-8M0179600 - HARNESS REPAIR [ More info ] Unavailable |
| #19 | 8M0179608 | HARNESS REPAIR Fuel Pump (1 required per assembly) |
  |
|
84-8M0179608 - HARNESS REPAIR [ More info ] Unavailable |
| #20 | 8M0179599 | HARNESS REPAIR Transmission #1 (1 required per assembly) |
  |
|
84-8M0179599 - HARNESS REPAIR [ More info ] Unavailable |
| #21 | 8M0179598 | HARNESS REPAIR Transmission #2 (1 required per assembly) |
  |
|
84-8M0179598 - HARNESS REPAIR [ More info ] Unavailable |
| #22 | 8M0179597 | HARNESS REPAIR Coils (1 required per assembly) |
  |
|
84-8M0179597 - HARNESS REPAIR [ More info ] Unavailable |
| #23 | 879346A44 | HARNESS REPAIR KIT Port/Starboard Pre CAT 02 (1 required per assembly) |
  |
|
879346A44 - KT-6 Pin ETC [ More info ]
|
| #24 | 879346A32 | HARNESS REPAIR KIT Resistors: CAN 2, 3, 4, E, S, Exhaust Temperature, Engine Coolant Temperature, Oil Temperature (1 required per assembly) |
  |
|
879346A32 - Kit-2 Pin PKRD BK [ More info ]
|
| #25 | 8M0179601 | HARNESS REPAIR Power Steering Pump (1 required per assembly) |
  |
|
84-8M0179601 - HARNESS REPAIR [ More info ] Unavailable |
| #26 | 879346A52 | HARNESS REPAIR KIT Crank Position (1 required per assembly) |
  |
|
879346A52 - KT-2 Pin AMP [ More info ]
|
| #27 | 8M0179606 | HARNESS REPAIR Trim Sender (1 required per assembly) |
  |
|
84-8M0179606 - HARNESS REPAIR [ More info ] Unavailable |
| #28 | 8M0179596 | HARNESS REPAIR Trim Control (1 required per assembly) |
  |
|
84-8M0179596 - HARNESS REPAIR [ More info ] Unavailable |
| #29 | 8M0050324 | HARNESS REPAIR KIT Air Temp (1 required per assembly) |
  |
|
8M0050324 - KT 2-Pin HARN PRK [ More info ]
|
| #30 | 879346A33 | HARNESS REPAIR KIT Hood Latch (1 required per assembly) |
  |
|
879346A33 - KT-2 Pin PKRD WHT [ More info ]
|
| #31 | 879346A35 | HARNESS REPAIR KIT MAP (1 required per assembly) |
  |
|
879346A35 - KT-3 Pin PKRD GRY [ More info ]
|
| #32 | 8M0179607 | HARNESS REPAIR Oil Pressure (1 required per assembly) |
  |
|
84-8M0179607 - HARNESS REPAIR [ More info ] Unavailable |
| #33 | 831957 | RETAINER (1 required per assembly) |
  |
|
831957 - TPA-3 Wire [ More info ]
|
| #34 | 8M0147903 | SEAL FUSE BOX (1 required per assembly) |
  |
|
8M0147903 - Seal FUSE [ More info ]
|
| #35 | 8M0060394 | CONNECTOR AND LOCK 3-WAY (1 required per assembly) |
  |
|
8M0060394 - Connector & LOCK [ More info ]
|
| #36 | 69355 | TIE STRAP (5.50 INCHES) (2 required per assembly) |
  |
|
69355 - Tie Strap - Priced Individually [ More info ]
|
  |
|
8M0214940 - TIE STRAP [ More info ]
|
| #37 | 889826 | CAVITY PLUG (3 required per assembly) |
  |
|
889826 - Plug - Priced Individually [ More info ]
|
| #38 | 816311T | TIE STRAP (8.00 INCHES) (13 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #39 | 8M0175113 | TRIM JUMPER (1 required per assembly) |
  |
|
8M0175113 - TRIM JUMPER [ More info ] Unavailable |
