Parts for 60 HP EFI Seapro 4 Cyl 4-Stroke Mercury Outboard Motor Tiller Handle Kit (Jet 35 / 40)

Revise Search: Outboard > 4-Stroke Mercury Outboard > 60 HP EFI Seapro 4 Cyl > 1C453840 & Up - USA > Tiller Handle Kit (Jet 35 / 40)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

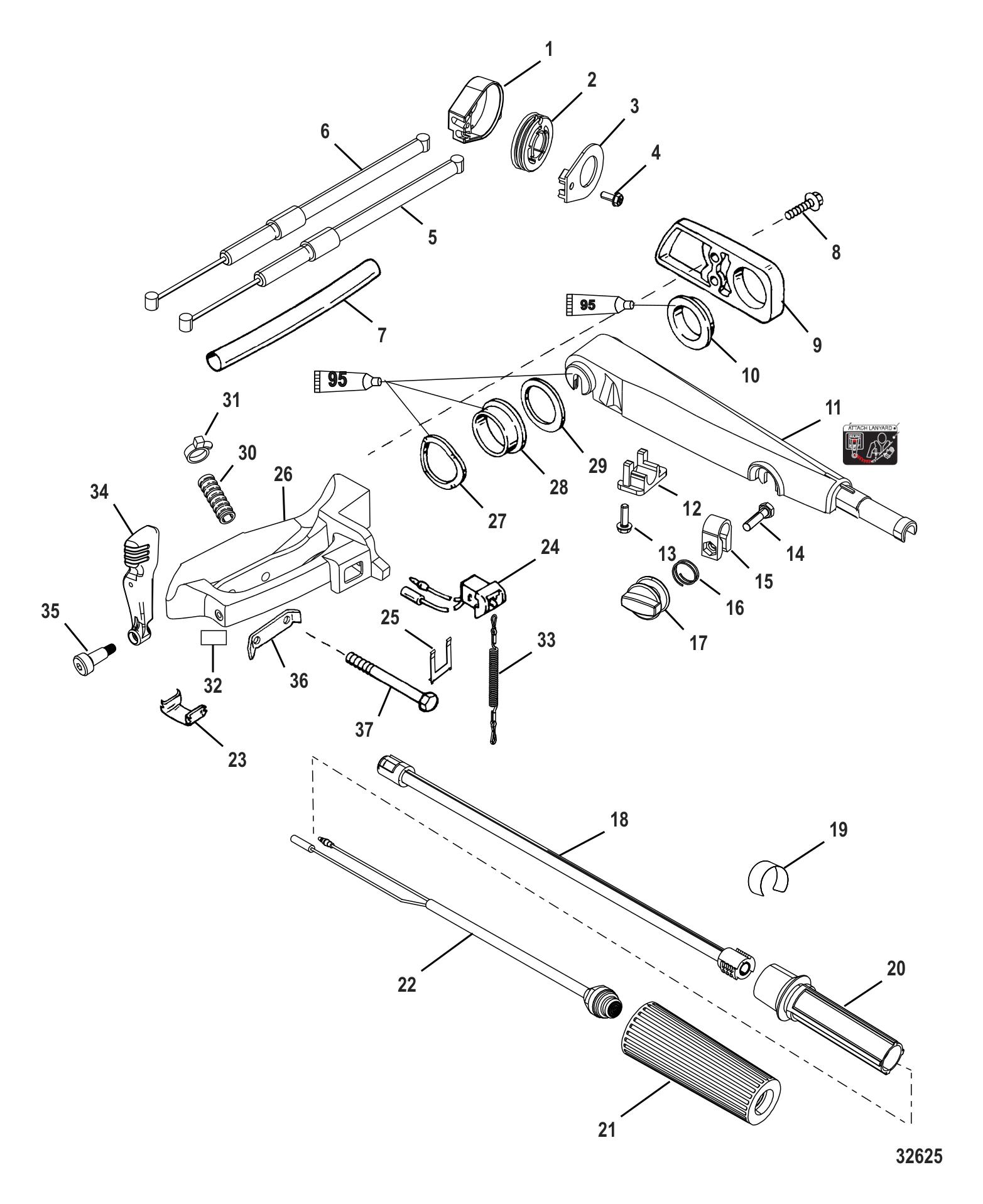

Tiller Handle Kit (Jet 35 / 40)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	889246A37	HANDLE KIT-TILLER (1 required per assembly)
		889246A37 - Tiller Handle Kit [ More info ] Unavailable
#-	8M0032728	DECAL LANYARD, BLACK (1 required per assembly)
		378M0032728 - Decal-Lanyard BLK [ More info ] $0.31 Available to Order: Shipping delay up to 10 days.
#1	822148T06	COVER KIT (1 required per assembly) — Replaces: 822148A6
		822148T06 - Pulley Kit - Tiller [ More info ] $198.49 Available to Order: Shipping delay up to 10 days.
#2	822150	PULLEY (1 required per assembly)
		822150 - Pulley [ More info ] $35.49 Available to Order: Shipping delay up to 10 days.
#3	NSS	NOT SOLD SEPARATE CASE (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#4	878608	SCREW (#10-16 X .500) (1 required per assembly)
		10-878608 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#5	4324210	CABLE ASSEMBLY THROTTLE (30.50 INCHES) (1 required per assembly)
		43242 10 - Throttle Cable [ More info ] $32.09 Available to Order: Shipping delay up to 10 days.
#6	4324211	CABLE ASSEMBLY THROTTLE (41.50 INCHES) (1 required per assembly)
		43242 11 - Throttle Cable [ More info ] $32.09 Available to Order: Shipping delay up to 10 days.
#7	960099	SLEEVE (12.00 INCHES) (1 required per assembly)
		85-96009 9 - Sleeve -12 Inch [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#8	82526225	SCREW (M8 X 25 MM) (2 required per assembly)
		10-825262 25 - Screw [ More info ] $5.09 10+ In Stock.
#9	8M0072298	COVER (1 required per assembly) — Replaces: 822407F1
		8M0072298 - Cover [ More info ] $41.49 Available to Order: Shipping delay up to 10 days.
#10	821477	BUSHING 1.485-1.475 INSIDE DIAMETER (1 required per assembly)
		23-821477 - Bushing [ More info ] $19.89 6 In Stock.
#11	828813T1	ARM STEERING HANDLE (1 required per assembly)
		828813T 1 - Handle - Tiller Han A [ More info ] $413.99 Available to Order: Shipping delay up to 10 days.
#12	822441	RETAINER (1 required per assembly)
		822441 - Retainer [ More info ] $3.59 5 In Stock.
#13	40011107	SCREW (M5 X 16) STAINLESS STEEL (1 required per assembly)
		10-40011107 - SCREW [ More info ] $1.80 2 In Stock.
#14	8M0204707	SCREW @5 (1 required per assembly) — Replaces: 4000330
		108M0204707 - SCREW Note: Priced Individually [ More info ] $3.99 4 In Stock.
#15	892995	LOCK THROTTLE (1 required per assembly)
		892995 - Throttle Lock [ More info ] $7.79 1 In Stock.
#16	96203	SPRING (1 required per assembly)
		24-96203 - Spring, Pilot Control Screw [ More info ] $4.19 2 In Stock.
#17	821972T	KNOB THROTTLE (1 required per assembly)
		821972T - Throttle Knob [ More info ] $18.59 Available to Order: Shipping delay up to 10 days.
#18	8M0138696	TILLER TUBE (1 required per assembly) — Replaces: 821463A2
		8M0138696 - Tiller Tube [ More info ] $107.49 Available to Order: Shipping delay up to 10 days.
#19	8242004	DECAL (1 required per assembly)
		37-824200 4 - Decal - Tiller Hld [ More info ] $13.79 1 In Stock.
#20	821465	HANDLE THROTTLE (1 required per assembly)
		821465 - Throttle Handle [ More info ] $26.49 $17.81 5 In Stock.
#21	99589003	GRIP (1 required per assembly)
		99589003 - Grip [ More info ] Unavailable
		8M0221732 - Outer Grip [ More info ] $22.49 Available to Order: Shipping delay up to 10 days.
#22	8M0104614	SWITCH STOP (1 required per assembly) — Replaces: 823609A14
		878M0104614 - Switch [ More info ] $72.99 Available to Order: Shipping delay up to 10 days.
#23	823687	CLIP (2 required per assembly)
		823687 - Clip- Cable Retain [ More info ] $6.09 $4.88 10+ In Stock.
#24	11083A31	SWITCH STOP (1 required per assembly)
		87-11083A31 - Stop Switch Assembly [ More info ] Unavailable
#25	8M0032846	RETAINER BRASS (1 required per assembly) — Replaces: 120441
		8M0032846 - Brass Retainer [ More info ] $4.61 Available to Order: Shipping delay up to 10 days.
#26	821455A4	BRACKET TILLER (1 required per assembly)
		821455A 4 - Bracket - Tiller, Black [ More info ] $309.99 Available to Order: Shipping delay up to 10 days.
#27	826792	WAVE WASHER (1 required per assembly)
		13-826792 - Wave Washer [ More info ] $8.79 3 In Stock.
#28	821477	BUSHING 1.485-1.475 INSIDE DIAMETER (1 required per assembly)
#29	827314	WASHER (1 required per assembly)
		12-827314 - Washer - Priced Individually [ More info ] $6.79 1 In Stock.
#30	828547633	CONDUIT (.620 INSIDE DIAMETER X 3.00 FEET BULK) (1 required per assembly)
		32-828547633 - Conduit (.620 Inside Di [ More info ] $14.19 Available to Order: Shipping delay up to 10 days.
#31	816311T	TIE STRAP (8.00 INCHES) (1 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#32	82409316	DECAL F-N-R SHIFT (1 required per assembly)
		37-824093 16 - Decal - Shift [ More info ] $8.19 Available to Order: Shipping delay up to 10 days.
#33	15920Q54	LANYARD ASSEMBLY (1 required per assembly)
		15920Q54 - Stop Switch Lanyard- Priced Individually [ More info ] Unavailable
#34	830180A01	HANDLE KIT SHIFT (1 required per assembly)
		830180A01 - Shift Handle Kit [ More info ] $80.49 Available to Order: Shipping delay up to 10 days.
#35	8M0021519	SHOULDER SCREW (10 X 20) (1 required per assembly)
		10-8M0021519 - Screw [ More info ] $70.99 Available to Order: Shipping delay up to 10 days.
#36	8M0009820	TAB WASHER (1 required per assembly)
		14-8M0009820 - Tab Washer [ More info ] $5.99 Available to Order: Shipping delay up to 10 days.
#37	82484890	SCREW (M10 X 90) (2 required per assembly)
		10-824848 90 - Screw [ More info ] $7.59 $1.52 10+ In Stock.
