Parts for 400 HP 2.6L L6 Verado 4-Stroke Mercury Outboard Motor Adapter Plate-lower

Revise Search: Outboard > 4-Stroke Mercury Outboard > 400 HP 2.6L L6 Verado > 2B618256 & Up - USA > Adapter Plate-lower

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

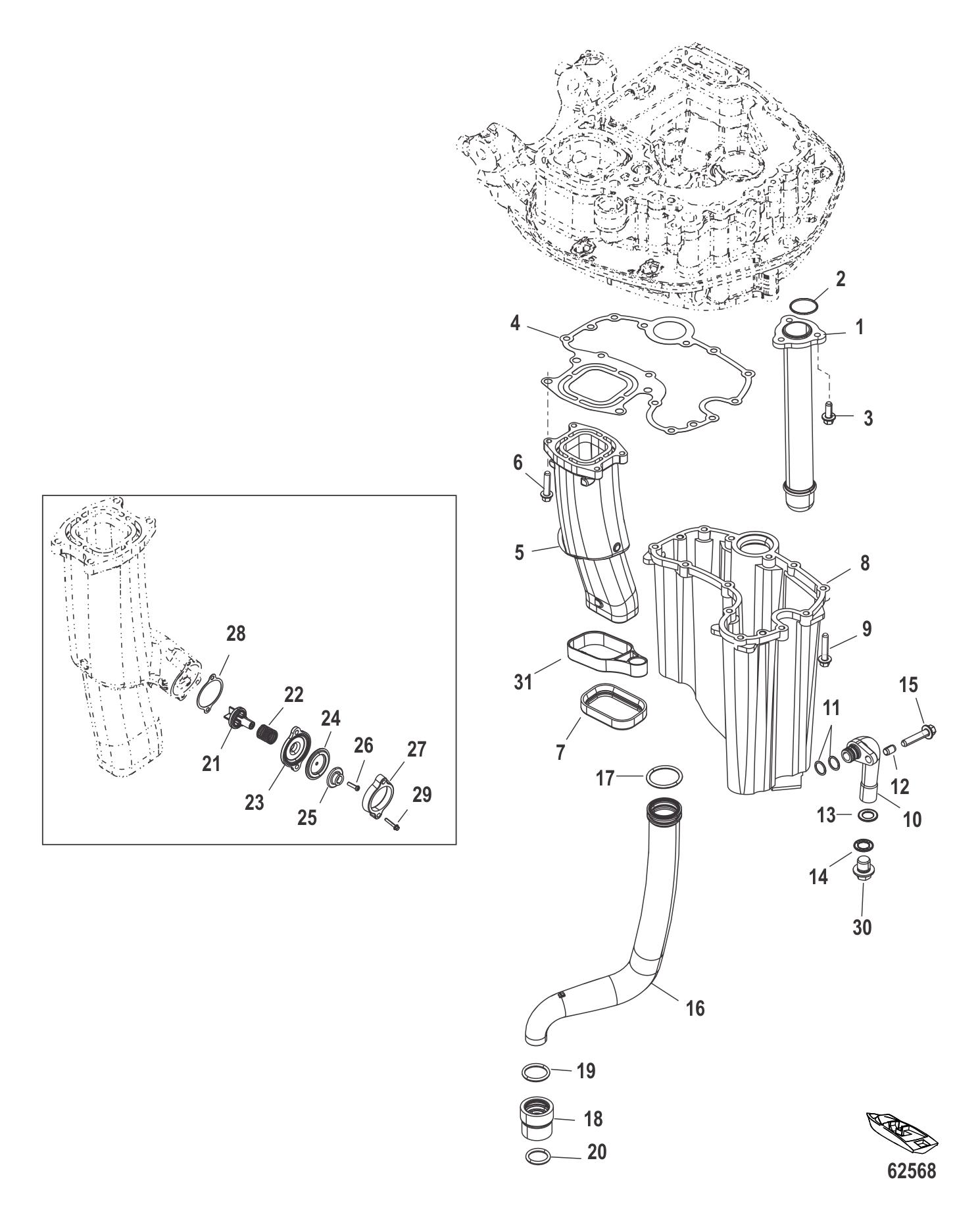

Adapter Plate-lower

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	880552A08	GASKET SET P/H (1 required per assembly)
		27-880552A08 - Powerhead Gasket Set [ More info ] $599.49 Available to Order: Shipping delay up to 10 days.
#-	896966A06	PH L6SC 350/400 (1 required per assembly)
		61896966A06 - PH L6SC 350/400 [ More info ] Unavailable
#1	887623T03	PICKUP ASSY-OIL (1 required per assembly)
		887623T03 - Oil Pickup Assembly [ More info ] $91.49 Available to Order: Shipping delay up to 10 days.
#2	8M0092943	O RING (1 required per assembly)
		258M0092943 - O-Ring [ More info ] $3.59 1 In Stock.
#3	8M0103807	SCREW @2 (3 required per assembly) — Replaces: 88552525
		108M0103807 - Screw (M6 x 25 MM) Stainless Steel [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#4	889618001	GASKET OIL SUMP (1 required per assembly)
		27-889618001 - Oil Sump Gasket [ More info ] $19.89 Available to Order: Shipping delay up to 10 days.
#5	8M0080961	TUBE-EXHAUST (1 required per assembly)
		8M0080961 - Exhaust Tube [ More info ] $280.49 Available to Order: Shipping delay up to 10 days.
#6	8M0103814	SCREW @2 (4 required per assembly) — Replaces: 88552635
		108M0103814 - Screw (M8 x 35 MM) [ More info ] $4.19 6 In Stock.
#7	880629	SEAL EXHAUST TUBE (1 required per assembly)
		26-880629 - Seal [ More info ] $13.79 $11.04 3 In Stock.
#8	880639T	SUMP-OIL (1 required per assembly)
		880639T - Sump- Oil [ More info ] $269.99 Available to Order: Shipping delay up to 10 days.
#9	8M0103808	SCREW @2 (12 required per assembly) — Replaces: 88552530
		108M0103808 - Screw (M6 x 30 MM) Stai [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#10	887753A02	TUBE-OIL DRAIN (Long) (1 required per assembly)
		887753A02 - Tube - Oil Drain [ More info ] $55.99 Available to Order: Shipping delay up to 10 days.
#10	8M0082193	DRAIN TUBE ASSY (X-Long/XX-Long) (1 required per assembly)
		8M0082193 - Drain Tube Assembly [ More info ] $63.49 Available to Order: Shipping delay up to 10 days.
#11	892446	O-RING (14 X 1.78 MM) (2 required per assembly)
		25-892446 - O-ring, Adaptor Plate Fitting [ More info ] $1.50 2 In Stock.
#12	892228	PIN DOWEL (1 required per assembly)
		17-892228 - Pin, Dowel [ More info ] $4.49 $3.60 7 In Stock.
#13	8M0079733	O-RING (1 required per assembly)
		258M0079733 - O-Ring [ More info ] $4.19 $3.36 4 In Stock.
#14	888593	SEAL DRAIN PLUG (1 required per assembly)
		26-888593 - Seal [ More info ] Unavailable
		268M0188614 - SEAL (268M0188614) [ More info ] $9.79 Available to Order: Shipping delay up to 10 days.
#15	8M0103808	SCREW @2 (1 required per assembly) — Replaces: 88552530
#16	885541A01	TUBE-WATER (Long) (1 required per assembly)
		32-885541A01 - Water Tube [ More info ] $63.49 Available to Order: Shipping delay up to 10 days.
#16	885541A02	TUBE-WATER XL (X-Long) (1 required per assembly)
		32-885541A02 - Water Tube Xl [ More info ] $70.49 Available to Order: Shipping delay up to 10 days.
#16	885541A03	TUBE-WATER XXL (XX-Long) (1 required per assembly)
		32-885541A03 - Water Tube Xxl [ More info ] $68.99 Available to Order: Shipping delay up to 10 days.
#17	892445	O-RING (1 required per assembly)
		25-892445 - O-ring, Water Tube [ More info ] $9.69 Available to Order: Shipping delay up to 10 days.
#18	887987A1	COUPLING ASSY (1 required per assembly)
		22-887987A 1 - Coupling Assembly [ More info ] Unavailable
#19	8M0204673	O RING (1 required per assembly) — Replaces: 90196
		258M0204673 - O RING [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#20	8M0204645	O RING (1 required per assembly) — Replaces: 21836
		25-8M0204645 - O RING [ More info ] $2.39 5 In Stock.
#21	8M0114707	POPPET VALVE ASSY (1 required per assembly) — Replaces: 888913A01
		8M0114707 - Poppet Valve Assembly [ More info ] $74.99 Available to Order: Shipping delay up to 10 days.
#22	64878	SPRING (BLACK) (1 required per assembly)
		24-64878 - Spring, Compresion Poppet Valve [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
#23	893385001	RETAINER (1 required per assembly)
		893385001 - Retainer [ More info ] $48.49 Available to Order: Shipping delay up to 10 days.
#24	648771	DIAPHRAGM (1 required per assembly)
		64877 1 - Diaphragm [ More info ] $11.79 10+ In Stock.
#25	889706	WASHER (1 required per assembly)
		889706 - Washer [ More info ] $11.09 Available to Order: Shipping delay up to 10 days.
#26	69570	SCREW (#10-16 X .750) (1 required per assembly)
		10-69570 - Screw [ More info ] $1.80 4 In Stock.
#27	893384001	COVER POPPET (1 required per assembly)
		893384001 - Poppet Cover [ More info ] $17.89 $17.12 4 In Stock.
#28	889561	GASKET POPPET (1 required per assembly)
		27-889561 - Poppet Gasket [ More info ] $33.29 Available to Order: Shipping delay up to 10 days.
#29	88552535	SCREW @2 (2 required per assembly)
		10-885525 35 - Screw - Priced Individually [ More info ] $4.69 1 In Stock.
#30	888592005	PLUG-OIL DRAIN (1 required per assembly)
		888592005 - Oil Drain Plug [ More info ] $17.09 $16.40 1 In Stock.
#31	8M0107908	GUIDE, WATER TUBE XL and XXL Models Only (1 required per assembly)
		8M0107908 - Guide, Water Tube [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
