Parts for 850 Sci 9.1L (557 Cu In) V8 MerCruiser Engines - Gas Engine Components (Front Cover & Camshaft)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 842593A01 | GASKET SET - NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing (1 required per assembly) |
  |
|
27-842593A01 - Engine Overhaul Gasket Set [ More info ]
|
| #- | 841350A07 | PARTIAL-850 SCI (1 required per assembly) |
  |
|
841350A07 - Partial Engine Assembly [ More info ] Unavailable |
| #1 | 822733 | BELT-TIMING (1 required per assembly) |
  |
|
822733 - Timing Belt [ More info ]
|
| #2 | F1664 | PIN-SPRING (1 required per assembly) |
  |
|
17-F1664 - Spring, Pin [ More info ]
|
| #3 | 842895002 | WHEEL (1 required per assembly) |
  |
|
842895002 - Wheel [ More info ]
|
| #4 | 28770 | NUT @5 (4 required per assembly) |
  |
|
11-28770 - Nut (5/16-24) [ More info ]
|
| #5 | 8M0204690 | WASHER (4 required per assembly) — Replaces: 814806 |
  |
|
12-8M0204690 - WASHER [ More info ] Unavailable |
| #6 | 817504 | SCREW (2 required per assembly) |
  |
|
10-817504 - Screw [ More info ]
|
| #7 | 817505 | SCREW (1 required per assembly) |
  |
|
10-817505 - Screw [ More info ]
|
| #8 | 840015 | POINTER (1 required per assembly) |
  |
|
840015 - Pointer [ More info ] Unavailable |
| #9 | 840014 | BODY (1 required per assembly) |
  |
|
840014 - Body [ More info ] Unavailable |
| #10 | 822922A03 | DRIVE ASSY-TIMING (1 required per assembly) |
  |
|
822922A03 - Drive Assembly - Timing [ More info ] Unavailable |

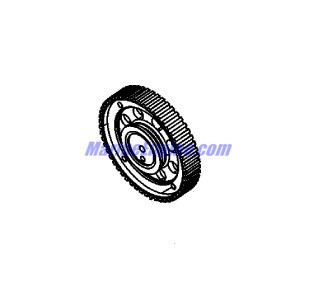

| #11 | 822926 | PULLEY TIMING (1 required per assembly) |
  |
|
822926 - Pulley - Upper [ More info ] Unavailable |
| #12 | 20094 | KEY WOODRUFF (1 required per assembly) |
  |
|
28-20094 - Key - Priced Individually [ More info ]
|
| #13 | 822932 | SEAL (1 required per assembly) |
  |
|
26-822932 - Seal - Lower [ More info ]
|
| #14 | 822933 | SEAL (1 required per assembly) |
  |
|
26-822933 - Seal - Upper [ More info ]
|
| #15 | 822934 | THRUST WASHER INNER (1 required per assembly) |
  |
|
12-822934 - Thrust Washer, Inner [ More info ]
|
| #16 | NSS | NOT SOLD SEPARATE CAM ADAPTOR (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #17 | 847746 | THRUST WASHER OUTER (1 required per assembly) |
  |
|
12-847746 - Thrust Washer, Outer [ More info ] Unavailable |
| #18 | 8M0207776 | NUT (6 required per assembly) — Replaces: 814101 |
  |
|
118M0207776 - NUT [ More info ]
|
| #19 | 817505 | SCREW (8 required per assembly) |
| #20 | 54529 | GASKET TIMING COVER FRONT COVER TO BLOCK (1 required per assembly) |
  |
|
27-54529 - Crankcase Cover Gasket [ More info ]
|
| #21 | 841362A01 | ROLLERTAPPET PAIR (8 required per assembly) |
  |
|
841362A01 - Roller Tappet Pair [ More info ] Unavailable |
| #22 | 8M0043068 | CAMSHAFT (1 required per assembly) — Replaces: 841341 |
  |
|
8M0043068 - CamShaft [ More info ] Unavailable |
| #23 | 891530001 | BEARING-GROOVED - NOTE: With Groove (1 required per assembly) |
  |
|
23-891530001 - Bearing -grooved [ More info ] Unavailable |
| #24 | 891530A01 | BEARING SET-STD - NOTE: Without Groove (4 required per assembly) — Replaces: 891530 |
  |
|
23-891530A01 - Bearing Set - Std [ More info ] Unavailable |
| #24 | 891530002 | BEARING CAM - .010 OVERSIZE ONE PER PACKAGE (AR required per assembly) |
  |
|
23-891530002 - Bearing -.010 Os [ More info ] Unavailable |
| #24 | 891530003 | BEARING CAM - .020 OVERSIZE ONE PER PACKAGE (AR required per assembly) |
  |
|
23-891530003 - Bearing -.020 Os [ More info ] Unavailable |
| #24 | 891530004 | BEARING CAM - .030 OVERSIZE ONE PER PACKAGE (AR required per assembly) |
  |
|
23-891530004 - BEARING Cam - .03 [ More info ] Unavailable |
