Parts for 1075 Sci 9.1L (557 Cu In) V8 MerCruiser Engines - Gas Electrical Components (Ignition Coils)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 841350A07 | PARTIAL-850 SCI 850 (1 required per assembly) |
  |
|
841350A07 - Partial Engine Assembly [ More info ] Unavailable |
| #- | 841000A17 | PARTIAL-1075 SCI 1025/1075 (1 required per assembly) |
  |
|
841000A17 - Partial Engine Assembly [ More info ] Unavailable |
| #- | 841950A07 | PARTIAL-1200 SCI 1200 (1 required per assembly) |
  |
|
841950A07 - Partial Engine Assembly [ More info ] Unavailable |
| #1 | F2030 | SCREW-SS (16 required per assembly) |
  |
|
10-F2030 - Screw -ss [ More info ]
|
| #2 | 8M0077471 | IGNITION COIL (8 required per assembly) — Replaces: 879984T00, 879984T01 |
  |
|
300-8M0077471 - Ignition Coil [ More info ]
|

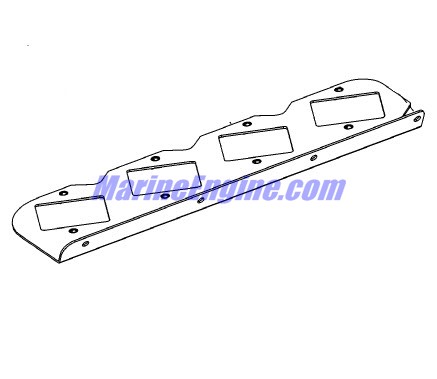

| #3 | 842891 | BRACKET COIL MOUNT PORT (1 required per assembly) |
  |
|
842891 - Bracket - Port [ More info ] Unavailable |
| #4 | 817505 | SCREW (8 required per assembly) |
  |
|
10-817505 - Screw [ More info ]
|
| #5 | 842892 | BRACKET COIL MOUNT STARBOARD (1 required per assembly) |
  |
|
842892 - Bracket - Stbd [ More info ] Unavailable |
| #6 | 842393A03 | CABLE ASSY-IGN (4 required per assembly) |
  |
|
84-842393A03 - Ignition Cable Assembly [ More info ] Unavailable |
| #6 | 842393A04 | CABLE ASSY-IGN (4 required per assembly) |
  |
|
84-842393A04 - Ignition Cable Assembly [ More info ]
|
| #7 | 843825 | NGK BR9ECS @10 850/1025/1075 (8 required per assembly) |
  |
|
33-843825 - NGK Spark Plug BR9ECS - Priced Individually [ More info ]
|
| #7 | 840697 | S PLUG C53CX@4 1200 (8 required per assembly) |
  |
|
33-840697 - Spark Plug C53CX - Priced Individually [ More info ]
|
| #8 | 54676 | RETAINER (16 required per assembly) |
  |
|
54676 - Retainer [ More info ]
|
