Parts for 1075 Sci 9.1L (557 Cu In) V8 MerCruiser Engines - Gas Alternator & Sea Water Pump Mounting

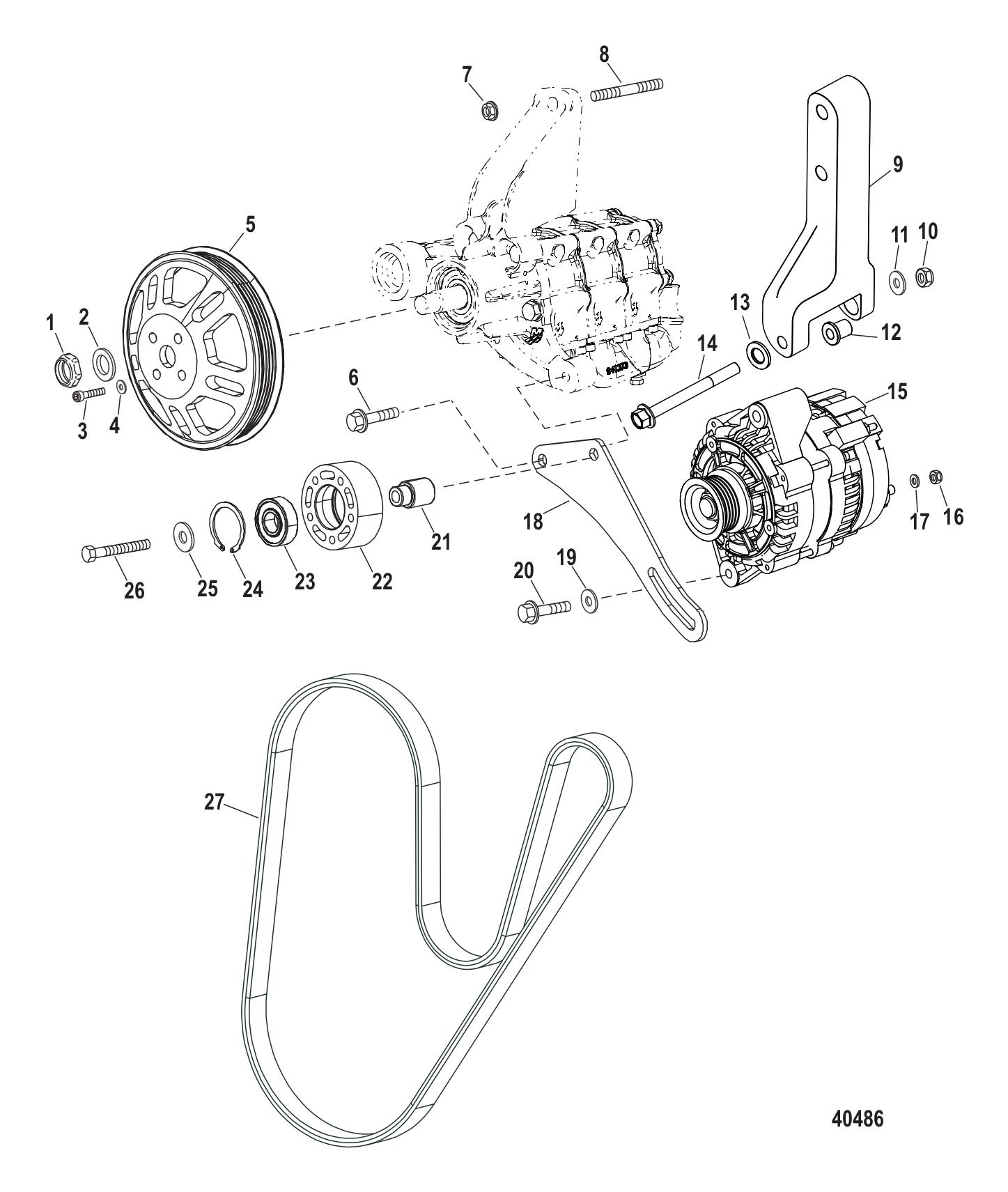

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 826709121 | NUT (1 required per assembly) |
  |
|
11-826709121 - Nut, (.625-18) Stainless Steel [ More info ]
|
| #2 | 846378 | WASHER (1 required per assembly) |
  |
|
12-846378 - Washer, (.688 X 1.00 X .120) Stainless Steel [ More info ]
|
| #3 | 849377 | SCREW (4 required per assembly) |
  |
|
10-849377 - Screw [ More info ]
|
| #4 | 8M0042642 | WASHER @5 (4 required per assembly) — Replaces: 70132 |
  |
|
12-8M0042642 - Washer - Priced Individually [ More info ]
|
| #5 | 899898T76 | PULLEY-CLEAR (1 required per assembly) |
  |
|
899898T76 - Pulley - Clear [ More info ]
|
| #6 | 805559 | SCREW (1 required per assembly) |
  |
|
10-805559 - Screw [ More info ]
|
| #7 | 859135 | NUT @5 (2 required per assembly) |
  |
|
11-859135 - Nut (7/16-20), Priced Individually [ More info ]
|
| #8 | 8M0133358 | STUD (2 required per assembly) — Replaces: 579203 |
  |
|
168M0133358 - Stud [ More info ]
|
| #9 | 8M0036561 | BRACKET (1 required per assembly) |
  |
|
8M0036561 - Bracket [ More info ] Unavailable |
| #10 | 401388 | NUT @5 (1 required per assembly) |
  |
|
11-40138 8 - Nut - Priced Individually [ More info ]
|
| #11 | 8M0042642 | WASHER @5 (1 required per assembly) — Replaces: 70132 |
| #12 | 8M0036580 | BUSHING (1 required per assembly) |
  |
|
23-8M0036580 - Bushing [ More info ] Unavailable |
| #13 | 39817 | WASHER (1 required per assembly) |
  |
|
12-39817 - Washer, Special - Stainless Steel [ More info ]
|
| #14 | 823567105 | SCREW (1 required per assembly) |
  |
|
10-823567105 - Screw [ More info ]
|
| #15 | 863077T01 | ALTERNATOR (1 required per assembly) |
  |
|
863077T01 - Alternator [ More info ]
|
| #16 | 401386 | NUT @5 (2 required per assembly) |
  |
|
11-40138 6 - Nut - Priced Individually [ More info ]
|
| #17 | 846673 | WASHER (2 required per assembly) |
  |
|
12-846673 - Washer, (.265 X .500 X .060) Stainless Steel [ More info ]
|
| #18 | 840007 | BRACKET ALTERNATOR TENSIONER (1 required per assembly) |
  |
|
840007 - Bracket [ More info ] Unavailable |
| #19 | 63032 | WASHER (1 required per assembly) |
  |
|
12-63032 - Washer, (.320 X 1.00 X .120) Stainless Steel [ More info ]
|
| #20 | 82155025 | SCREW @5 (1 required per assembly) |
  |
|
10-821550 25 - Screw - Priced Individually [ More info ]
|
| #21 | 843848 | PIN-IDLER (1 required per assembly) |
  |
|
17-843848 - Idler Pin [ More info ]
|
| #22 | 899898T62 | PULLEY ASSY-CLEAR (1 required per assembly) |
  |
|
899898T62 - Pulley Assembly - Clear [ More info ] Unavailable |
| #23 | 33451 | BEARING BALL (1 required per assembly) |
  |
|
30-33451 - Ball Bearing [ More info ]
|
| #24 | 18917 | RING RETAINING (1 required per assembly) |
  |
|
53-18917 - Ring - Retaining [ More info ]
|
| #25 | 74759 | WASHER (1 required per assembly) |
  |
|
12-74759 - Washer, (.391 X .880 X .125) Stainless Steel [ More info ]
|
| #26 | 95802 | SCREW (1 required per assembly) |
  |
|
10-95802 - Screw [ More info ] Unavailable |
| #27 | 842648Q | BELT (1 required per assembly) |
  |
|
57-842648Q - Belt [ More info ]
|
