Parts for 1075 Sci 9.1L (557 Cu In) V8 MerCruiser Engines - Gas Flywheel Housing & Components

Revise Search: Sterndrive > MerCruiser Engines - Gas > 9.1L (557 Cu In) V8 > 1075 Sci > 0M957032 - 0M962885 - USA > Flywheel Housing & Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

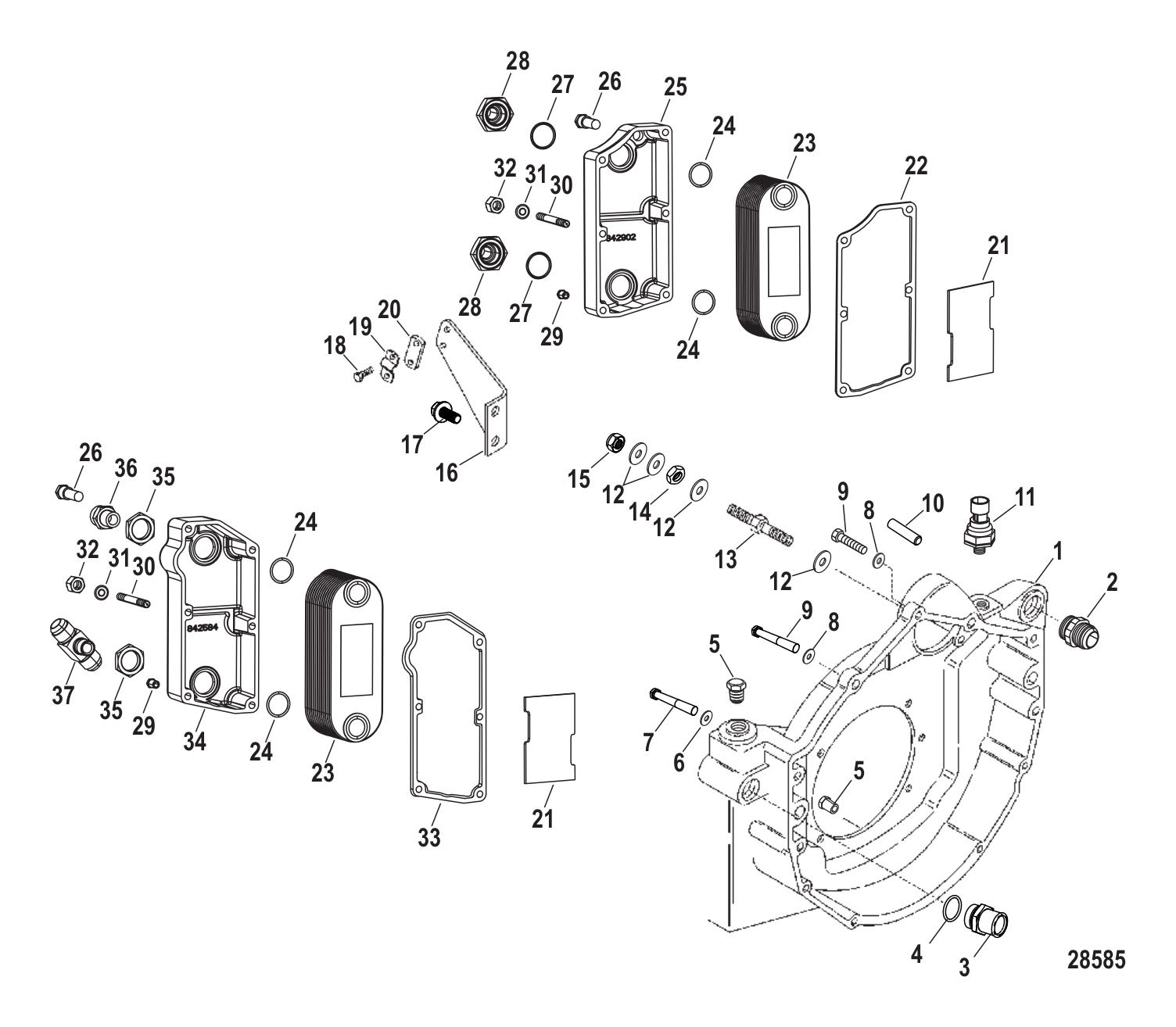

Flywheel Housing & Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	842593A01	GASKET SET - NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing (1 required per assembly)
		27-842593A01 - Engine Overhaul Gasket Set [ More info ] $2,192.23 Available to Order: Shipping delay up to 10 days.
#1	843330A01	HSG ASSY-F WHEEL (1 required per assembly)
		843330A01 - Flywheel Housing Assembly [ More info ] Unavailable
#2	8M0053646	FITTING ASSY (1 required per assembly) — Replaces: 8M0005503
		228M0053646 - Fitting Assembly [ More info ] $166.34 Available to Order: Shipping delay up to 10 days.
#3	8M0007483	FITTING ASSEMBLY STRAIGHT - STAINLESS STEEL (1 required per assembly)
		22-8M0007483 - Fitting Assembly [ More info ] $111.00 Available to Order: Shipping delay up to 10 days.
#4	843858	O-RING (1.188 X .125) (1 required per assembly)
		25-843858 - O-ring, (1.188 X .125) [ More info ] $9.12 Available to Order: Shipping delay up to 10 days.
#5	328022	PLUG PIPE (.125-27) BRASS (3 required per assembly)
		22-32802 2 - Brass Pipe Plug, Priced Individually [ More info ] $7.59 1 In Stock.
		18-4263 - Pipe Plug, 1/8-27 NPT, Brass [ More info ] $5.30 10+ In Stock.
#6	33181	WASHER (4 required per assembly)
		12-33181 - Washer, (.375 X .812 X .062) Copper [ More info ] $9.59 $1.92 10+ In Stock.
#7	95802	SCREW (4 required per assembly)
		10-95802 - Screw [ More info ] Unavailable
#8	34931	WASHER (2 required per assembly)
		12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ] $2.59 10+ In Stock.
#9	846294	SCREW (2 required per assembly)
		10-846294 - Screw [ More info ] $5.96 Available to Order: Shipping delay up to 10 days.
#10	8M0041668	STUD (2 required per assembly) — Replaces: 57982
		16-8M0041668 - Stud [ More info ] $15.49 1 In Stock.
#11	881879T11	SENSOR-PRESSURE (1 required per assembly) — Replaces: 881879011
		881879T11 - Pressure Sensor [ More info ] $196.99 $189.49 In Stock
#12	34931	WASHER (4 required per assembly)
#13	861316	STUD (1 required per assembly) — Replaces: 64066
		16-861316 - Stud [ More info ] $15.09 Available to Order: Shipping delay up to 10 days.
#14	58186	NUT (.375-16) ZINC PLATED PLAIN HEX (1 required per assembly)
		11-58186 - Nut, (.375-16) Zinc Plated [ More info ] Unavailable
#15	82670912	NUT (.375-16) STAINLESS STEEL NYLON INSERT (1 required per assembly)
		11-826709 12 - Nut, (.375-16) Stainless Steel [ More info ] $6.79 $3.81 10+ In Stock.
#16	849091	BRACKET SHIFT CABLE - Driveline Models (1 required per assembly)
		849091 - Bracket [ More info ] $110.40 Available to Order: Shipping delay up to 10 days.
#17	817505	SCREW - Driveline Models (2 required per assembly)
		10-817505 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#18	88865	SCREW - Driveline Models (2 required per assembly)
		10-88865 - Screw [ More info ] Unavailable
#19	846341	BRACKET CABLE - Driveline Models (1 required per assembly)
		54-846341 - Bracket - Cable [ More info ] $12.59 10+ In Stock.
#20	846344	SPACER - Driveline Models (1 required per assembly)
		846344 - Spacer - Cable Bracket [ More info ] $67.54 Available to Order: Shipping delay up to 10 days.
#21	840041001	SHIM (.059) (AR required per assembly)
		15-840041001 - SHIM (.059) Oil C [ More info ] Unavailable
#21	840041002	SHIM (.090) (AR required per assembly)
		15-840041002 - SHIM (.090) Oil C [ More info ] Unavailable
#21	840041003	SHIM (.105) (AR required per assembly)
		15-840041003 - SHIM (.105) Oil C [ More info ] Unavailable
#22	848382	GASKET OIL COOLER - PORT FLYWHEEL HOUSING TO OIL COOLER (1 required per assembly)
		27-848382 - Oil Cooler Gasket [ More info ] $76.19 Available to Order: Shipping delay up to 10 days.
#23	8M0050390	COOLER-OIL (2 required per assembly) — Replaces: 843524
		8M0050390 - Oil Cooler [ More info ] $866.43 Available to Order: Shipping delay up to 10 days.
#24	35480	O RING @5 (4 required per assembly)
		25-35480 - O Ring (1.237 Id X .103) [ More info ] $3.19 4 In Stock.
#25	842902001	COVER (PORT) (1 required per assembly)
		842902001 - Cover [ More info ] $808.90 Available to Order: Shipping delay up to 10 days.
#26	806000	ANODE-(4400-1044) (2 required per assembly) — Replaces: 47917
		97-806000 - Anode - (4400-1044) [ More info ] $40.99 Available to Order: Shipping delay up to 10 days.
#27	35480	O RING @5 (2 required per assembly)
#28	840039	FITTING (2 required per assembly)
		22-840039 - Fitting [ More info ] Unavailable
#29	328022	PLUG-(BRASS)@2 (2 required per assembly)
#30	68202	STUD (12 required per assembly)
		16-68202 - Stud [ More info ] $37.49 $8.98 1 In Stock.
#31	36533	WASHER (4 required per assembly)
		12-36533 - Washer [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#31	8M0042642	WASHER @5 (8 required per assembly) — Replaces: 70132
		12-8M0042642 - Washer - Priced Individually [ More info ] $1.80 6 In Stock.
#32	82670911	NUT @5 (12 required per assembly)
		11-826709 11 - Nut (5/16-24) [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#33	848383	GASKET OIL COOLER - STARBOARD FLYWHEEL HOUSING TO OIL COOLER (1 required per assembly)
		27-848383 - Oil Cooler Gasket [ More info ] $74.29 Available to Order: Shipping delay up to 10 days.

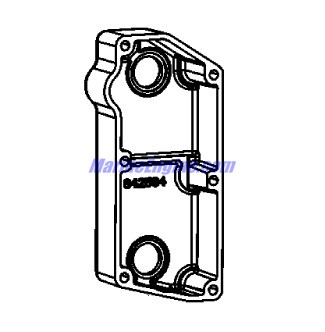

#34	842584001	COVER (STBD) (1 required per assembly)
		842584001 - Cover [ More info ] $819.95 Available to Order: Shipping delay up to 10 days.
#35	47521	NUT (2 required per assembly)
		11-47521 - Nut, (1.125-12) [ More info ] $27.69 $26.56 2 In Stock.
#36	84772013	FITTING (1 required per assembly)
		22-847720 13 - Fitting [ More info ] Unavailable
#37	8M0053747	ADAPTOR (1 required per assembly) — Replaces: 847550
		22-8M0053747 - Adaptor [ More info ] $86.62 Available to Order: Shipping delay up to 10 days.
