Parts for 1075 Sci 9.1L (557 Cu In) V8 MerCruiser Engines - Gas Engine Components (Drive Belt) (0M961118 & Up)

Revise Search: Sterndrive > MerCruiser Engines - Gas > 9.1L (557 Cu In) V8 > 1075 Sci > 0M957032 - 0M962885 - USA > Engine Components (Drive Belt) (0M961118 & Up)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

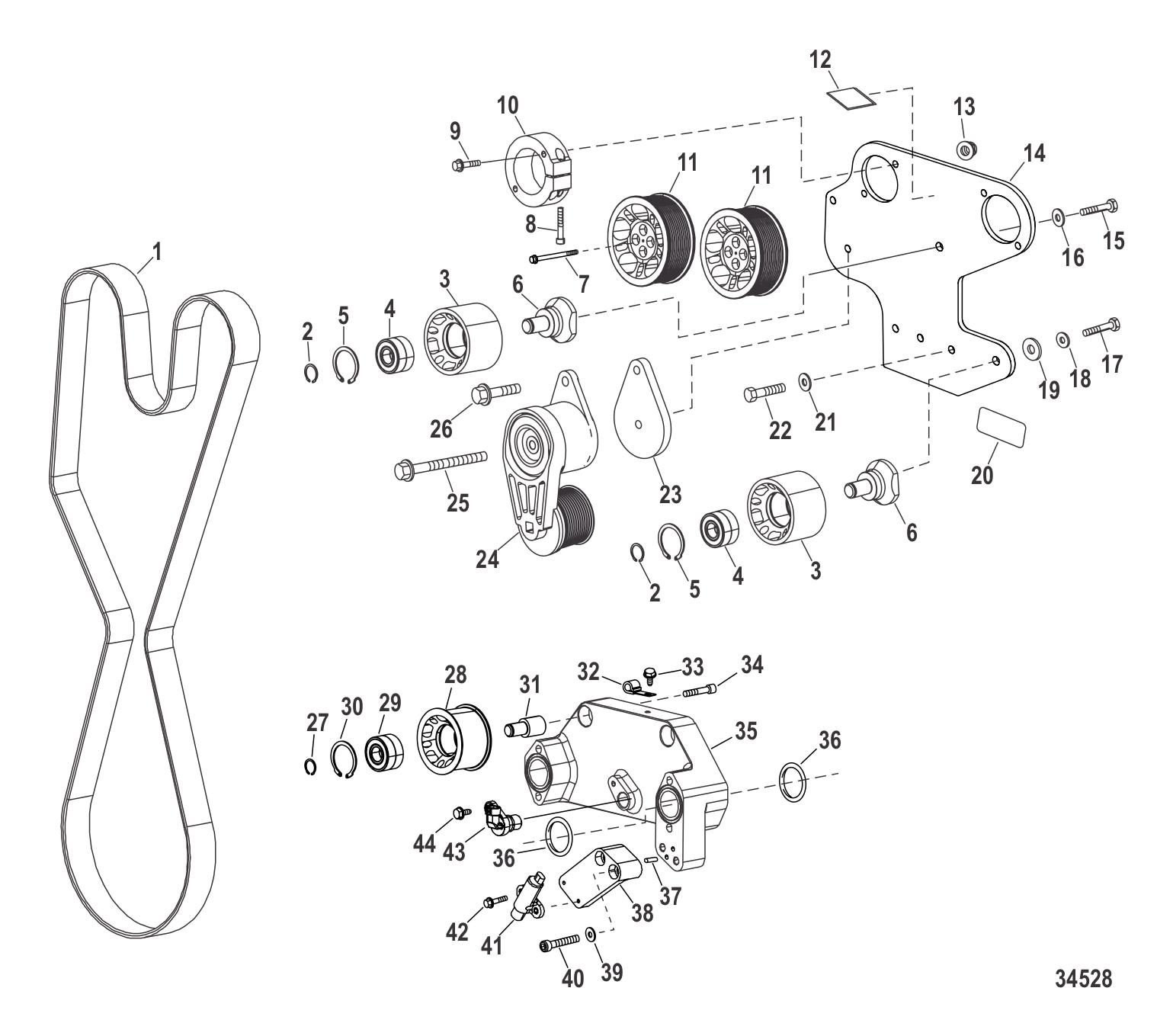

Engine Components (Drive Belt) (0M961118 & Up)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	842593A01	GASKET SET - NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing (1 required per assembly)
		27-842593A01 - Engine Overhaul Gasket Set [ More info ] $2,192.23 Available to Order: Shipping delay up to 10 days.
#1	879330T29	BELT-SERPENTINE [0M961118] & Up (1 required per assembly)
		57-879330T29 - Serpentine Belt [ More info ] $182.02 Available to Order: Shipping delay up to 10 days.
#2	52562	RING-RETAINING (2 required per assembly)
		53-52562 - Ring - Retaining [ More info ] $1.57 Available to Order: Shipping delay up to 10 days.
#3	899898T61	PULLEY ASSY-CLEAR (2 required per assembly)
		899898T61 - Pulley Assembly - Clear [ More info ] $456.69 Available to Order: Shipping delay up to 10 days.
#4	33451	BEARING BALL (4 required per assembly)
		30-33451 - Ball Bearing [ More info ] $63.99 $61.04 6 In Stock.
#5	18917	RING RETAINING (2 required per assembly)
		53-18917 - Ring - Retaining [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#6	8M0051208	PIN-IDLER (2 required per assembly) — Replaces: 842873001
		178M0051208 - Idler Pin [ More info ] $184.78 Available to Order: Shipping delay up to 10 days.
#7	841339	SCREW (8 required per assembly)
		10-841339 - Screw [ More info ] $7.82 Available to Order: Shipping delay up to 10 days.
#8	823029	SCREW (2 required per assembly)
		10-823029 - Screw [ More info ] $6.44 Available to Order: Shipping delay up to 10 days.
#9	F430732	SCREW-SS (4 required per assembly)
		10-F430732 - Screw -ss [ More info ] $7.89 $6.32 7 In Stock.
#10	843536002	CLAMP-BLOWERSNOUT (2 required per assembly)
		843536002 - Clamp - BlowerSnout [ More info ] Unavailable
#11	899898T80	PULLEY-CLEAR (2 required per assembly)
		899898T80 - Pulley - Clear [ More info ] Unavailable
#12	859271T05	EMBLEM-SMARTCRAFT (1 required per assembly)
		37-859271T05 - Emblem-smartcraft [ More info ] Unavailable
#13	826292	NUT (2 required per assembly)
		11-826292 - Nut (M10) [ More info ] $4.19 $3.36 10+ In Stock.
#14	8M0050922	PLATE (1 required per assembly) — Replaces: 8M0031698
		8M0050922 - Plate [ More info ] $694.32 Available to Order: Shipping delay up to 10 days.
#15	90042	SCREW (1 required per assembly)
		10-90042 - Screw, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#16	861854	WASHER (1 required per assembly)
		12-861854 - Washer, (.453 X .750 X .032) Stainless Steel [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#17	47658	SCREW (1 required per assembly)
		10-47658 - Screw [ More info ] $4.26 Available to Order: Shipping delay up to 10 days.
#18	822836	WASHER (1 required per assembly)
		12-822836 - Washer, (.445 X .805 X .108) [ More info ] Unavailable
#19	71458	WASHER (1 required per assembly)
		12-71458 - Washer [ More info ] $8.09 Available to Order: Shipping delay up to 10 days.
#20	8M0042973	DECAL-ENG SPECS (1 required per assembly) — Replaces: 841369
		37-8M0042973 - Decal -eng Specs [ More info ] Unavailable
#21	37828	WASHER (3 required per assembly)
		12-37828 - Washer, (.390 X .625 X .062) Stainless Steel [ More info ] $0.80 2 In Stock.
#22	849397	SCREW (3 required per assembly)
		10-849397 - Screw [ More info ] $4.14 Available to Order: Shipping delay up to 10 days.
#23	8M0031912	SPACER (1 required per assembly)
		8M0031912 - Spacer - Belt Tensioner [ More info ] $243.55 Available to Order: Shipping delay up to 10 days.
#24	879330T27	TENSIONER ASSY [0M961118] & Up (1 required per assembly)
		879330T27 - Tensioner Assembly [ More info ] $927.68 Available to Order: Shipping delay up to 10 days.
#25	823567105	SCREW (1 required per assembly)
		10-823567105 - Screw [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
#26	4010845	SCREW (1 required per assembly)
		10-40108 45 - Screw [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#27	52562	RING-RETAINING (2 required per assembly)
#28	899898T78	PULLEY ASSY-CLEAR (2 required per assembly)
		899898T78 - Pulley Assembly - Clear [ More info ] Unavailable
#29	33451	BEARING BALL (4 required per assembly)
#30	18917	RING RETAINING (2 required per assembly)
#31	842876	PIN-IDLER (2 required per assembly)
		17-842876 - Idler Pin [ More info ] $123.27 Available to Order: Shipping delay up to 10 days.
#32	54457	J CLIP (1 required per assembly)
		54-54457 - J Clip [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
#33	817505	SCREW (1 required per assembly)
		10-817505 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#34	79436	SCREW @2 (2 required per assembly)
		10-79436 - Screw - Priced Individually [ More info ] $4.49 $0.90 10+ In Stock.
#35	899898T77	HOUSING (1 required per assembly)
		899898T77 - Housing [ More info ] $1,834.38 Available to Order: Shipping delay up to 10 days.
#36	843863	O RING (4 required per assembly)
		25-843863 - O-ring, (1.612 X .103) [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#37	48450	PIN-DOWEL (2 required per assembly)
		17-48450 - Pin -Dowel [ More info ] $10.30 Available to Order: Shipping delay up to 10 days.
#38	843852001	BRACKET (1 required per assembly)
		843852001 - Bracket [ More info ] $309.74 Available to Order: Shipping delay up to 10 days.
#39	8M0027716	WASHER (2 required per assembly)
		12-8M0027716 - Washer, (.390 X .600 X .032) Stainless Steel [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#40	822168	SCREW (2 required per assembly)
		10-822168 - Screw [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#41	8M0082988	SENSOR CRANKSHAFT POSITION CRANKSHAFT (1 required per assembly) — Replaces: 8283582, 8M0030022
		8M0082988 - Sensor Assembly [ More info ] $120.49 $115.99 In Stock
#42	4010516	SCREW @2 (2 required per assembly)
		10-40105 16 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#43	8M0011986	SENSOR ASSY (1 required per assembly) — Replaces: 880609001
		8M0011986 - Sensor Assembly [ More info ] Unavailable
		8M0233299 - SENSOR ASSY [ More info ] Unavailable
#44	817505	SCREW (1 required per assembly)
