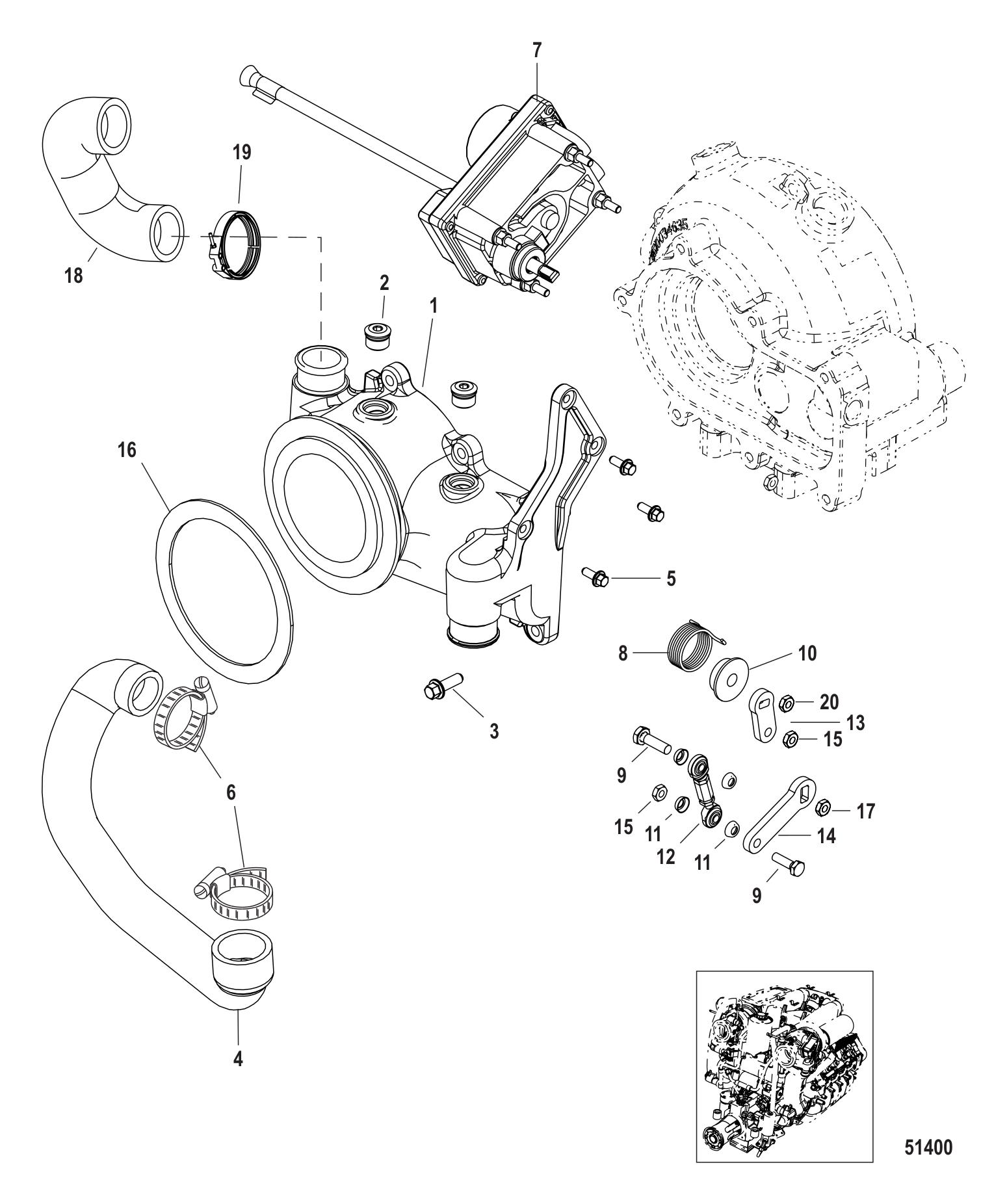

Turbocharger Wastegate Adapter

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0095545	ADAPTER-SILVER (2 required per assembly)
		8M0095545 - Adapter-SILVER [ More info ] $863.49 Available to Order: Shipping delay up to 10 days.
#1	8M0095547	ADAPTER-BLACK (2 required per assembly)
		8M0095547 - Adapter-BLACK [ More info ] $1,177.01 Available to Order: Shipping delay up to 10 days.
#2	891953	PLUG (18 MM) (8 required per assembly)
		19-891953 - Plug [ More info ] $19.99 Available to Order: Shipping delay up to 10 days.
#3	4010725	SCREW (14 required per assembly)
		10-40107 25 - Screw [ More info ] $5.79 Available to Order: Shipping delay up to 10 days.
#4	8M0045048	HOSE TURBO TO TAILPIPE ADAPTER (2 required per assembly)
		328M0045048 - Hose [ More info ] $36.18 Available to Order: Shipping delay up to 10 days.
#5	8M0103805	SCREW @2 (6 required per assembly) — Replaces: 88552516
		108M0103805 - Screw (M6 x 16MM) Stain [ More info ] $2.49 4 In Stock.
#6	180766	CLAMP WORM GEAR TOP (2 required per assembly)
		54-18076 6 - Clamp [ More info ] $15.09 Available to Order: Shipping delay up to 10 days.
#6	180767	CLAMP WORM GEAR BOTTOM (2 required per assembly)
		54180767 - Clamp [ More info ] $13.82 Available to Order: Shipping delay up to 10 days.
#7	8M0058486	ACTUATOR (1 required per assembly)
		8M0058486 - Actuator [ More info ] $917.74 Available to Order: Shipping delay up to 10 days.
#7	8M0096089	ACTUATOR STBD BLK (AR required per assembly)
		8M0096089 - ACTUATOR Wastegat [ More info ] Unavailable
#7	8M0058487	ACTUATOR (1 required per assembly)
		8M0058487 - Actuator [ More info ] $899.74 Available to Order: Shipping delay up to 10 days.
#7	8M0095560	ACTUATOR-WASTGAT (AR required per assembly)
		8M0095560 - Actuator-WASTGAT [ More info ] $1,137.03 Available to Order: Shipping delay up to 10 days.
#8	8M0045653	SPRING TORSION ACTUATOR (2 required per assembly)
		248M0045653 - Spring [ More info ] $30.87 Available to Order: Shipping delay up to 10 days.
#9	59702	SCREW (4 required per assembly)
		10-59702 - Screw [ More info ] $1.82 Available to Order: Shipping delay up to 10 days.
#10	8M0046644	SPACER TURBO SPRING (2 required per assembly)
		238M0046644 - Spacer [ More info ] $11.25 Available to Order: Shipping delay up to 10 days.
#11	8M0057343	SEAL (8 required per assembly)
		8M0057343 - Seal [ More info ] $5.04 Available to Order: Shipping delay up to 10 days.
#12	8M0059266	ROD END KIT (2 required per assembly)
		8M0059266 - ROD END Kit Waste [ More info ] $286.11 Available to Order: Shipping delay up to 10 days.
#13	8M0043921	LEVER ACTUATOR (2 required per assembly)
		8M0043921 - Lever [ More info ] $64.66 Available to Order: Shipping delay up to 10 days.
#14	8M0042209	LEVER WASTEGATE (2 required per assembly)
		8M0042209 - Lever [ More info ] $88.29 Available to Order: Shipping delay up to 10 days.
#15	826709109	NUT @5 (4 required per assembly)
		11-826709109 - Nut, (.250-28) Stainless Steel [ More info ] $3.59 5 In Stock.
#16	8M0059974	GASKET TAILPIPE (2 required per assembly)
		278M0059974 - Gasket [ More info ] $64.98 Available to Order: Shipping delay up to 10 days.
#17	4013812	NUT @2 (2 required per assembly)
		11-40138 12 - Nut, (M12) Stainless Steel [ More info ] $8.79 1 In Stock.
#18	8M0060023	HOSE TAILPIPE (2 required per assembly)
		328M0060023 - Hose [ More info ] $42.71 Available to Order: Shipping delay up to 10 days.
#19	8M0060020	CLAMP TAIL PIPE (2 required per assembly)
		548M0060020 - Clamp [ More info ] $360.05 Available to Order: Shipping delay up to 10 days.
#20	4013810	NUT (2 required per assembly)
		114013810 - Nut [ More info ] $4.97 Available to Order: Shipping delay up to 10 days.
