Parts for 1100 Qc4v 9.0L (552 Cu In) V8 MerCruiser Engines - Gas Power Steering Pump, Pulleys

Revise Search: Sterndrive > MerCruiser Engines - Gas > 9.0L (552 Cu In) V8 > 1100 Qc4v > 0M973453 & Up > Power Steering Pump, Pulleys

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

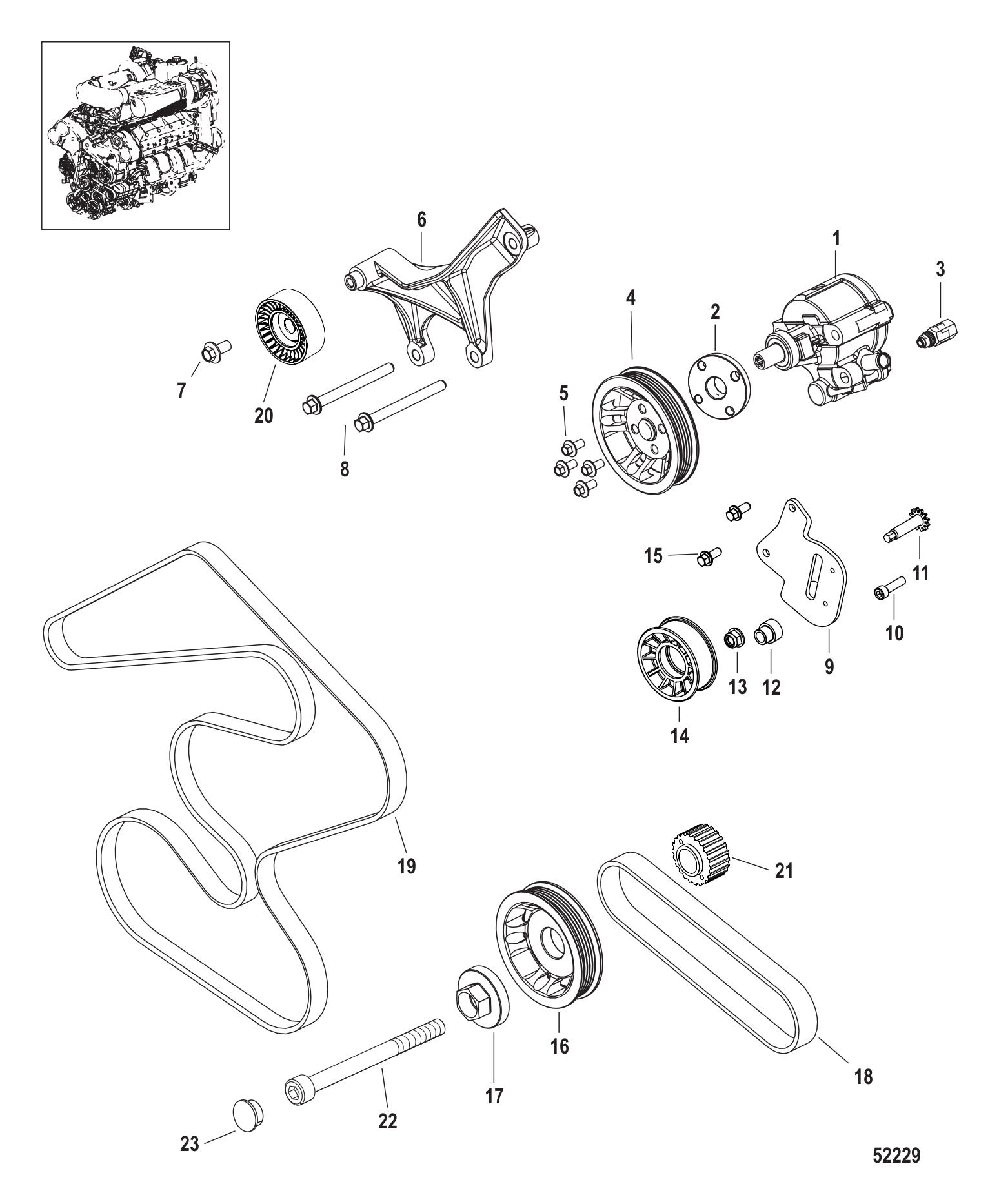

Power Steering Pump, Pulleys

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0059629	PUMP ASSY (BOX) (1 required per assembly)
		8M0059629 - Pump Assembly (BOX) [ More info ] $948.28 Available to Order: Shipping delay up to 10 days.
#2	NSS	NOT SOLD SEPARATE HUB (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#3	8M0009629	CHECK VALVE ASSEMBLY (1 required per assembly)
		21-8M0009629 - Check Valve Assembly [ More info ] $317.62 Available to Order: Shipping delay up to 10 days.
#4	8M0053444	PULLEY POWER STEERING (1 required per assembly)
		8M0053444 - Pulley [ More info ] $600.47 Available to Order: Shipping delay up to 10 days.
#5	4010716	SCREW (4 required per assembly)
		10-40107 16 - Screw [ More info ] $4.49 1 In Stock.
#6	8M0192267	BRACKET POWER STEERING (1 required per assembly) — Replaces: 8M8025216
		8M0192267 - BRACKET [ More info ] Unavailable
#7	4010820	SCREW @5 (AR required per assembly)
		10-40108 20 - Screw - Priced Individually [ More info ] $4.79 2 In Stock.
#8	8M0103820	SCREW @2 (2 required per assembly) — Replaces: 885527105
		108M0103820 - Screw - Priced Individually [ More info ] $8.19 Available to Order: Shipping delay up to 10 days.
#9	8M0045782	BRACKET TENSIONER (1 required per assembly) — Replaces: 8M8025217
		8M0045782 - Tensioner [ More info ] $158.60 Available to Order: Shipping delay up to 10 days.
#10	4008930	SCREW (1 required per assembly)
		10-40089 30 - Screw [ More info ] $2.74 Available to Order: Shipping delay up to 10 days.
#11	8M0113182	PINION STUD (1 required per assembly) — Replaces: 8183812
		43-8M0113182 - Pinion Stud [ More info ] $22.96 In Stock
#12	845117	BUSHING (1 required per assembly)
		845117 - Bushing [ More info ] $25.86 Available to Order: Shipping delay up to 10 days.
#13	859135	NUT @5 (1 required per assembly)
		11-859135 - Nut (7/16-20), Priced Individually [ More info ] $6.09 2 In Stock.
#14	8M0046468	PULLEY IDLER (1 required per assembly)
		8M0046468 - Pulley [ More info ] $94.77 Available to Order: Shipping delay up to 10 days.
#15	88552620	SCREW @3 (2 required per assembly)
		10-885526 20 - Screw - Priced Individually [ More info ] $7.59 Available to Order: Shipping delay up to 10 days.
#16	8M0000194	PULLEY CRANKSHAFT (1 required per assembly)
		8M0000194 - Pulley [ More info ] $504.08 Available to Order: Shipping delay up to 10 days.
#17	8M0043433	WASHER (1 required per assembly)
		128M0043433 - Washer [ More info ] $174.82 Available to Order: Shipping delay up to 10 days.
#18	8M0030635	BELT OIL PUMP (1 required per assembly)
		8M0030635 - Belt [ More info ] $93.19 Available to Order: Shipping delay up to 10 days.
#19	8M0038443	BELT ACCESSORY (1 required per assembly)
		578M0038443 - Belt [ More info ] Unavailable
		57-8M0238902 - BELT-6 RIB V [ More info ] Unavailable
#20	8M6003035	PULLEY (1 required per assembly) — Replaces: 885349500, 8M0062859
		8M6003035 - Pulley [ More info ] $69.49 $68.41 In Stock
#21	8M0035152	PULLEY 26 TEETH OIL PUMP (1 required per assembly)
		8M0035152 - Pulley [ More info ] $350.78 Available to Order: Shipping delay up to 10 days.
#22	NSS	NOT SOLD SEPARATE SCREW (1 required per assembly)
#23	NSS	NOT SOLD SEPARATE PLUG (1 required per assembly)
