Parts for 1100 Qc4v 9.0L (552 Cu In) V8 MerCruiser Engines - Gas Sea Water Pump Components

Revise Search: Sterndrive > MerCruiser Engines - Gas > 9.0L (552 Cu In) V8 > 1100 Qc4v > 0M965965 - 0M973452 > Sea Water Pump Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

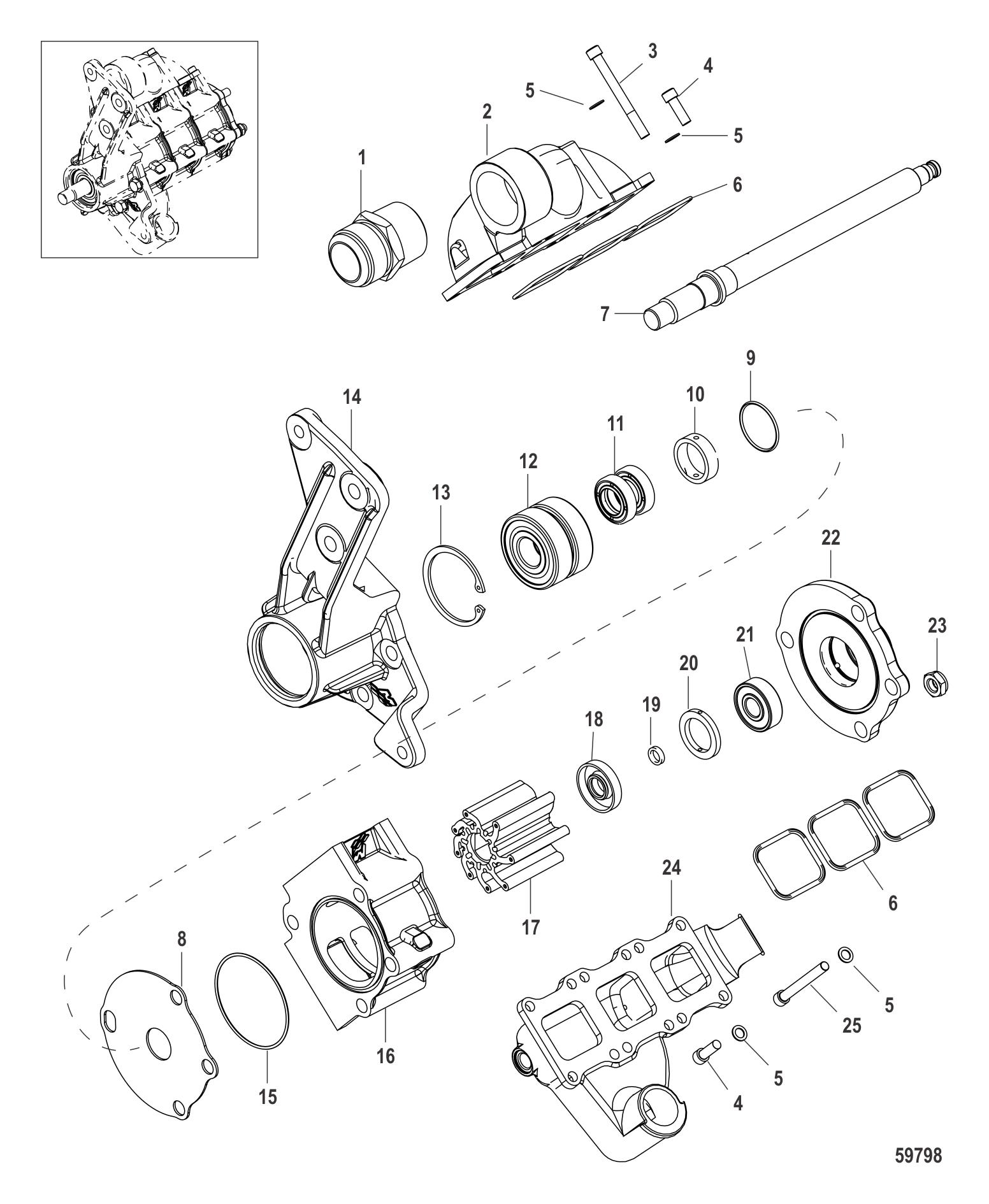

Sea Water Pump Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0060389	PUMP ASSY (BOX) (1 required per assembly)
		8M0060389 - Pump Assembly (BOX) [ More info ] Unavailable
#-	8M8021115	REFRESH KIT (1 required per assembly)
		8M8021115 - Refresh Kit [ More info ] $299.39 Available to Order: Shipping delay up to 10 days.
#-	8M8020298	O-RING KIT SEA WATER PUMP (1 required per assembly)
		8M8020298 - O-ring Kit, Sea Water Pump [ More info ] $46.60 Available to Order: Shipping delay up to 10 days.
#1	8M0060643	FITTING STRAIGHT (1 required per assembly)
		228M0060643 - Fitting [ More info ] Unavailable
		22-8M0237466 - FITTING [ More info ] Unavailable
#2	NSS	NOT SOLD SEPARATE MANIFOLD INLET (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#3	848920	SCREW (.250-20 X 2.50) (4 required per assembly)
		10-848920 - Screw [ More info ] $8.24 Available to Order: Shipping delay up to 10 days.
#4	92160	SCREW (.250-20 X .750) STAINLESS STEEL (18 required per assembly)
		10-92160 - Screw [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#5	35950	WASHER (.273 X .437 X .031) STAINLESS STEEL (24 required per assembly)
		12-35950 - Washer, (.273 X .437 X .031) Stainless Steel [ More info ] $1.80 5 In Stock.
#6	849087	O-RING (1.862 X .103) (6 required per assembly)
		25-849087 - O-ring, (1.862 X .103) [ More info ] $18.39 Available to Order: Shipping delay up to 10 days.
#7	840053	SHAFT SEA WATER PUMP (1 required per assembly)
		840053 - Water Pump Shaft [ More info ] $458.42 Available to Order: Shipping delay up to 10 days.
#8	840052	WEAR PLATE STAINLESS STEEL (4 required per assembly)
		840052 - Wear Plate [ More info ] $50.04 Available to Order: Shipping delay up to 10 days.
#9	8M0092943	O-RING ORANGE (1 required per assembly) — Replaces: 846594
		258M0092943 - O-Ring [ More info ] $3.59 1 In Stock.
#10	8M0012427	SPACER (.355) (1 required per assembly)
		23-8M0012427 - Spacer - .355 [ More info ] $21.15 Available to Order: Shipping delay up to 10 days.
#11	841330	SEAL (2 required per assembly)
		26-841330 - Seal [ More info ] $36.35 Available to Order: Shipping delay up to 10 days.
#12	840056	BEARING (2 required per assembly)
		30-840056 - Bearing [ More info ] $30.97 Available to Order: Shipping delay up to 10 days.
#13	8M0051043	RETAINING RING (1 required per assembly)
		53-8M0051043 - Retainer Ring [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#14	NSS	NOT SOLD SEPARATE FRONT BEARING MOUNT (1 required per assembly)
#15	94926	O-RING (2.489 X .070) (7 required per assembly)
		25-94926 - O-ring, (2.489 X .070) [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#16	8M0113659	BODY SEA WATER PUMP IMPELLER (BLACK) (3 required per assembly) — Replaces: 8M0056796
		8M0113659 - Sea Pump Body [ More info ] $740.23 Available to Order: Shipping delay up to 10 days.
#17	59362T1	IMPELLER (3 required per assembly)
		47-59362T 1 - Impeller [ More info ] $45.99 4 In Stock.
		18-3087 - Impeller, 47-59362 [ More info ] $29.20 10+ In Stock.
		47-59362Q01 - Impeller [ More info ] $61.99 $58.12 Available to Order: Shipping delay up to 10 days.
		47-03908 - Impeller, Mercury 59362T1 Bravo [ More info ] $26.99 $25.47 10+ In Stock.
#18	840057	SEAL (1 required per assembly)
		26-840057 - Seal [ More info ] $35.61 Available to Order: Shipping delay up to 10 days.
#19	863151	SEAL QUAD RING (1 required per assembly)
		26-863151 - Seal [ More info ] Unavailable
		26-8M0214975 - Cool Fuel Quad Ring Seal, Priced Individually [ More info ] $2.69 4 In Stock.
#20	8M0012575	SPACER (.145) (1 required per assembly)
		23-8M0012575 - Spacer - .145 [ More info ] $21.15 Available to Order: Shipping delay up to 10 days.
#21	805500	BEARING BALL (1 required per assembly)
		30-805500 - Ball Bearing [ More info ] $5.87 Available to Order: Shipping delay up to 10 days.
#22	8M0008192	COVER REAR BEARING - BLACK (1 required per assembly)
		8M0008192 - Sea Pump Cover [ More info ] Unavailable
		8M0192240 - COVER-SEA PUMP [ More info ] Unavailable
#23	826709112	NUT (.375-16) STAINLESS STEEL (4 required per assembly)
		11-826709112 - Nut, (.375-16) Stainless Steel [ More info ] $3.02 10+ In Stock.
#24	NSS	NOT SOLD SEPARATE MANIFOLD OUTLET (1 required per assembly)
#25	NSS	NOT SOLD SEPARATE SCREW (2 required per assembly)
