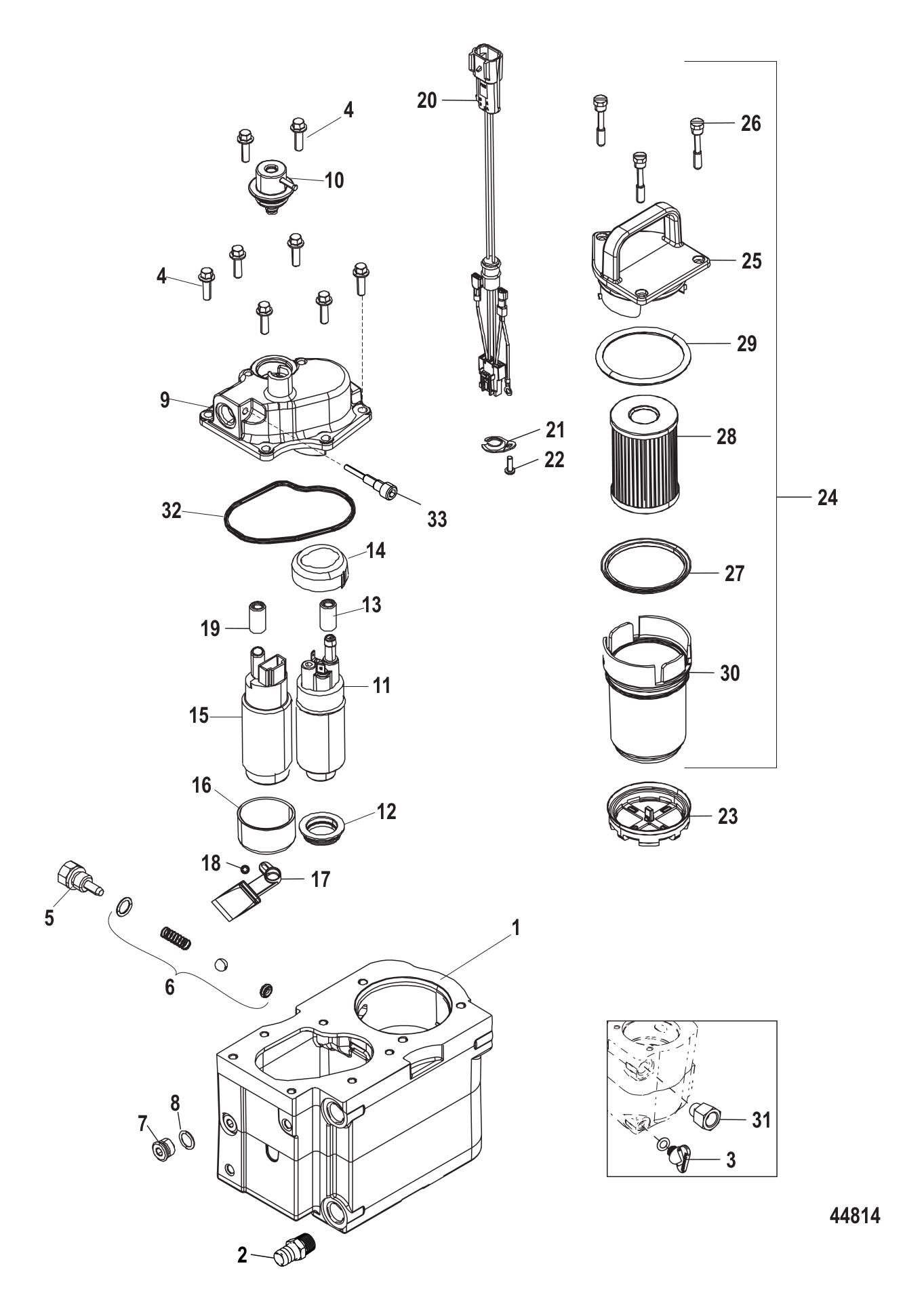

Parts for 8.2L Mag Ec (H.o. Model) 8.2L (502 Cu In) V8 GM MerCruiser Engines - Gas Fuel Module Components -bravo
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M0047215 | MODULE KIT FUEL PUMP, COMPLETE WITH DRAIN PORT (1 required per assembly) |
  |
|
8M0047215 - Fuel Module Kit [ More info ]
|
| #1 | 8M0047216 | HOUSING FUEL MODULE WITH DRAIN PORT (1 required per assembly) |
  |
|
8M0047216 - Fuel Module Housing [ More info ]
|
| #2 | 8M2010476 | FITTING (3/8-18) (2 required per assembly) |
  |
|
22-8M2010476 - Connector [ More info ]
|
| #3 | 8M0119211 | PLUG ASSEMBLY (.500-13) BLUE HOUSING WITH DRAIN PORT ONLY (1 required per assembly) — Replaces: 806608A02 |
  |
|
22-8M0119211 - Drain Plug, Priced Individually, .5 inch x 13 [ More info ]
|
| #4 | 892684 | SCREW (8 required per assembly) |
  |
|
10-892684 - Screw - Priced Individually [ More info ]
|
| #5 | 892670A01 | CHECK VALVE KIT (1 required per assembly) |
  |
|
892670A01 - Check Valve Kit [ More info ]
|
| #6 | NSS | NOT SOLD SEPARATE CHECK VALVE (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #7 | NSS | NOT SOLD SEPARATE PLUG (1 required per assembly) |
| #8 | NSS | NOT SOLD SEPARATE SEAL (1 required per assembly) |
| #9 | 8M0130861 | COVER REPAIR KIT FUEL MODULE HOUSING (1 required per assembly) — Replaces: 892677, 8M0086387 |
  |
|
8M0130861 - Fuel Module Cover Kit [ More info ] Unavailable |
  |
|
8M0178981 - COVER KT FUEL MOD [ More info ]
|
| #10 | 892681 | REGULATOR (1 required per assembly) |
  |
|
892681 - Regulator [ More info ]
|
| #11 | 866170A01 | PUMP ASSEMBLY FUEL - LOW PRESSURE (1 required per assembly) |
  |
|
866170A01 - Fuel Pump Kit [ More info ]
|
  |
|
18-8865 - Fuel Pump 866170A01 [ More info ]
|
| #12 | NSS | NOT SOLD SEPARATE SEAL (1 required per assembly) |
| #13 | NSS | NOT SOLD SEPARATE SEAL (1 required per assembly) |
| #14 | NSS | NOT SOLD SEPARATE ISOLATOR, LIFT PUMP (1 required per assembly) |
| #15 | 866169T01 | PUMP ASSEMBLY FUEL HIGH PRESSURE (1 required per assembly) |
  |
|
866169T01 - Fuel Pump Kit [ More info ]
|
  |
|
1399-39541 - Fuel Pump Kit [ More info ]
|
| #16 | NSS | NOT SOLD SEPARATE ISOLATOR (1 required per assembly) |
| #17 | 8M2018790 | FILTER PUMP SUCTION (1 required per assembly) |
  |
|
8M2018790 - FILTER [ More info ] Unavailable |
| #18 | 8M2018792 | CLIP (1 required per assembly) |
  |
|
548M2018792 - Clip [ More info ]
|
| #19 | NSS | NOT SOLD SEPARATE SEAL (1 required per assembly) |
| #20 | 8M0056175 | HARNESS ASSEMBLY (1 required per assembly) |
  |
|
84-8M0056175 - Harness [ More info ]
|
| #21 | NSS | NOT SOLD SEPARATE RETAINER (1 required per assembly) |
| #22 | NSS | NOT SOLD SEPARATE SCREW (1 required per assembly) |
| #23 | 8M0204703 | FILTER-FUEL (1 required per assembly) — Replaces: 892665 |
  |
|
35-8M0204703 - Fuel Filter, GEN 3 Coolfuel [ More info ]
|
| #24 | 892687A02 | CARTRIDGE ASSEMBLY FUEL FILTER (1 required per assembly) |
  |
|
892687A02 - CARTRIDGE ASSEMBL [ More info ] Unavailable |
| #25 | NSS | NOT SOLD SEPARATE CAP, FUEL FILTER CARTRIDGE (1 required per assembly) |
| #26 | NSS | NOT SOLD SEPARATE SCREW (3 required per assembly) |
| #27 | NSS | NOT SOLD SEPARATE SEAL (1 required per assembly) |
| #28 | 8M0093688 | FILTER FUEL (1 required per assembly) — Replaces: 866171A01 |
  |
|
35-8M0093688 - Fuel Filter [ More info ]
|
  |
|
18-7977-1 - Fuel Filter [ More info ]
|
  |
|
18-7977-1 - Fuel Filter [ More info ]
|
  |
|
35-13523-1 - Fuel Filter, Gen III Cool Fuel [ More info ]
|
| #29 | NSS | NOT SOLD SEPARATE SEAL (1 required per assembly) |
| #30 | NSS | NOT SOLD SEPARATE CUP, FUEL FILTER CARTRIDGE (1 required per assembly) |
| #31 | 88517 | FITTING REDUCING (1 required per assembly) |
  |
|
22-88517 - Fitting [ More info ]
|
| #32 | 892683 | SEAL (1 required per assembly) |
  |
|
26-892683 - Seal [ More info ]
|
| #33 | 866114 | SCREW (1 required per assembly) |
  |
|
10-866114 - Screw [ More info ]
|
