Parts for 8.2L Mag Ec (Base Model) 8.2L (502 Cu In) V8 GM MerCruiser Engines - Gas Steering Components

Revise Search: Sterndrive > MerCruiser Engines - Gas > 8.2L (502 Cu In) V8 GM > 8.2L Mag Ec (Base Model) > 2A051742 - 2A051742 > Steering Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

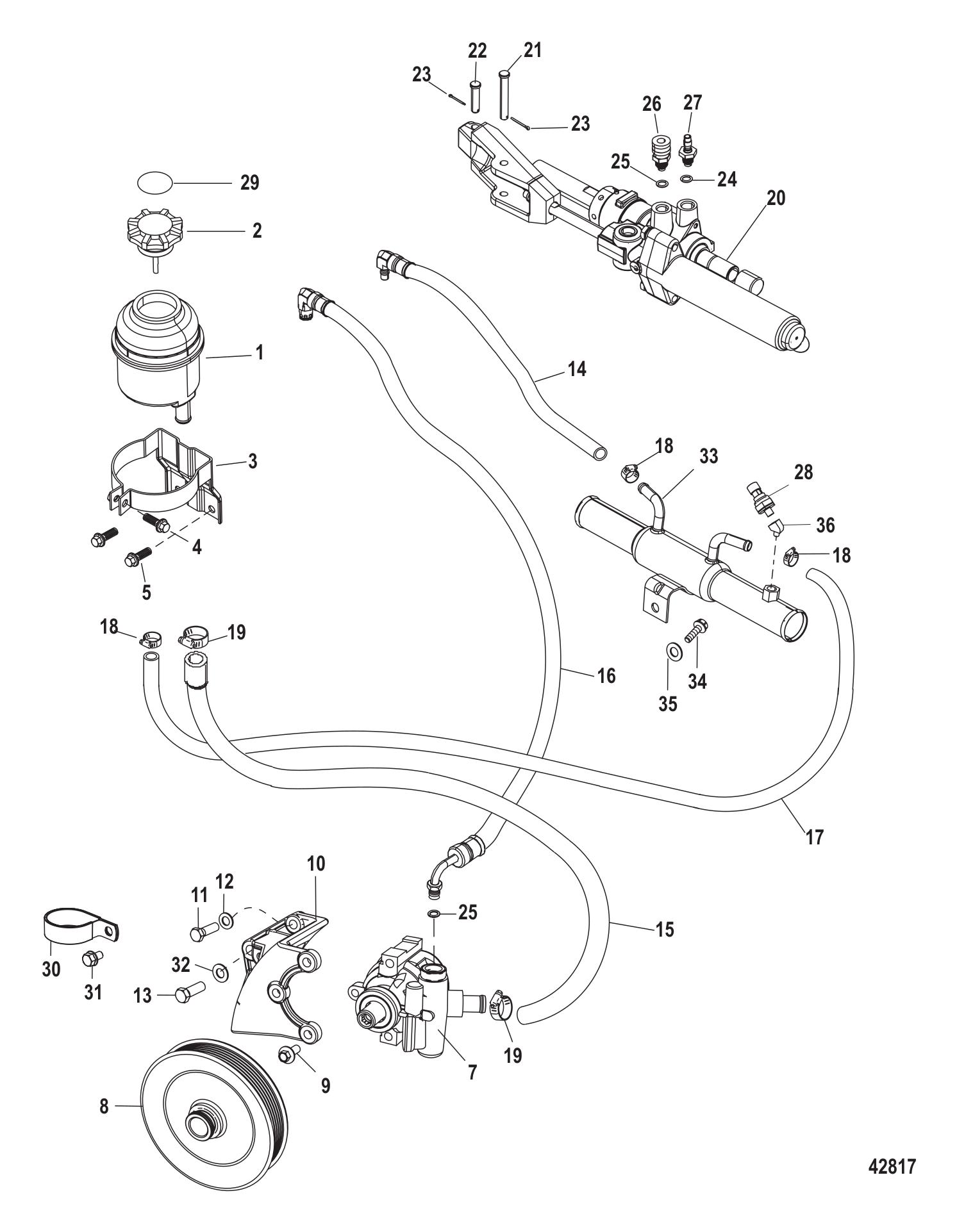

Steering Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0121093	RESERVOIR ASSY (1 required per assembly) — Replaces: 8M0046080
		8M0121093 - Reservoir [ More info ] Unavailable
		8M0157890 - Reservoir [ More info ] Unavailable
		8M0239407 - RESERVOIR ASSY [ More info ] Unavailable
#2	8M0050237	CAP OIL RESERVOIR - BLACK (1 required per assembly) — Replaces: 865263001
		19-8M0050237 - Reservoir Cap [ More info ] Unavailable
		8M0121096 - CAP-P/S RESERVOIR [ More info ] Unavailable
#3	865262A02	BRACKET ASSY (1 required per assembly)
		865262A02 - Bracket Assembly [ More info ] $51.99 Available to Order: Shipping delay up to 10 days.
#4	82130025	SCREW (M6 X 25) (1 required per assembly)
		10-821300 25 - Screw [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#5	4010716	SCREW (M8 X 16) (2 required per assembly)
		10-40107 16 - Screw [ More info ] $4.49 1 In Stock.
#7	865710T	PUMP ASSEMBLY .75 SHAFT DIAMETER POWER STEERING (1 required per assembly)
		865710T - Power Steering Pump [ More info ] Unavailable
#8	8M0150723	PULLEY POWER STEERING (1 required per assembly) — Replaces: 861578
		8M0150723 - Pulley-Power Steering Pump [ More info ] $107.99 In Stock
		18-8297 - Pulley, 861578 [ More info ] $96.73 2 In Stock.
#9	4010720	SCREW (3 required per assembly)
		10-40107 20 - Screw [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#10	8M0045250	BRACKET POWER STEERING PUMP (1 required per assembly)
		8M0045250 - Bracket [ More info ] $162.49 Available to Order: Shipping delay up to 10 days.
#11	37612	SCREW @5 (1 required per assembly)
		10-37612 - Screw - Priced Individually [ More info ] $2.49 3 In Stock.
#12	20553	WASHER @5 (1 required per assembly)
		12-20553 - Washer - Priced Individually [ More info ] $1.50 8 In Stock.
#13	47462	SCREW @5 (2 required per assembly)
		10-47462 - Screw - Priced Individually [ More info ] $1.80 $1.44 10+ In Stock.
#14	865390015	HOSE MALE QUICK CONNECT CYLINDER TO COOLER (1 required per assembly)
		32-865390015 - Hydraulic Hose [ More info ] $63.99 In Stock
#15	8M0046187	HOSE PUMP TO RESERVOIR (1 required per assembly)
		32-8M0046187 - Hose - Pump To Reservoir [ More info ] $28.09 Available to Order: Shipping delay up to 10 days.
#16	8M0104321	HOSE-POWER STEER. PUMP TO CYLINDER (1 required per assembly) — Replaces: 8M0046188
		328M0104321 - Power Steering Hose [ More info ] Unavailable
#17	865717	HOSE RESERVOIR TO COOLER (1 required per assembly)
		32-865717 - Molded Hose [ More info ] $58.49 Available to Order: Shipping delay up to 10 days.
#18	815504105	CLAMP WORM GEAR (11-18 MM) HOSE (2 required per assembly)
		54-815504105 - Clamp [ More info ] Unavailable
		54-8M0188618 - CLAMP [ More info ] Unavailable
#19	815504210	CLAMP WORM GEAR HOSE (2 required per assembly)
		54-815504210 - Clamp [ More info ] $4.19 $0.85 10+ In Stock.
#20	8M0146217	CYLINDER-PWR STR (1 required per assembly) — Replaces: 866200A01, 8M0063382
		8M0146217 - Power Steering Cylinder [ More info ] Unavailable
		8M0208402 - CYLINDER-PWR STR [ More info ] $1,559.49 In Stock
#21	15878	PIN CLEVIS Long (1 required per assembly)
		17-15878 - Clevis Pin [ More info ] $20.49 In Stock
#22	16419	PIN CLEVIS Short (1 required per assembly)
		17-16419 - Clevis Pin [ More info ] $20.99 In Stock
#23	46950	COTTER PIN (2 required per assembly)
		18-46950 - Cotter Pin [ More info ] $4.19 2 In Stock.
#24	806232	O-RING (.239 X .064) (1 required per assembly)
		25-806232 - O-ring, (.239 X .064) [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#25	89879	O-RING (.301 X .064) (2 required per assembly)
		25-89879 - O-ring, (.301 X .064) [ More info ] $1.60 Available to Order: Shipping delay up to 10 days.
#26	865415	FITTING (1 required per assembly)
		22-865415 - Fitting -q/C [ More info ] $33.99 Available to Order: Shipping delay up to 10 days.
#27	865414001	FITTING (1 required per assembly)
		22-865414001 - Fitting -q/C [ More info ] $10.99 Available to Order: Shipping delay up to 10 days.
#28	8M0157742	SENSOR-PRESSURE (1 required per assembly) — Replaces: 881879010, 8M6000623
		71-8M0157742 - Water Pressure Sensor 50PSI [ More info ] $209.99 In Stock
#29	8M2017892	DECAL-PS FLUID (1 required per assembly)
		37-8M2017892 - Decal-PS FLUID [ More info ] $1.99 Available to Order: Shipping delay up to 10 days.
#30	62494	CLIP (1 required per assembly)
		54-62494 - Clip [ More info ] $7.49 Available to Order: Shipping delay up to 10 days.
#31	8055571	SCREW (1 required per assembly)
		10-805557 1 - Screw [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#32	22248	WASHER (2 required per assembly)
		12-22248 - Washer, (.453 X .875 X .060) [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#33	8M0125856	COOLER POWER STEERING (1 required per assembly) — Replaces: 863820T1
		8M0125856 - Power Steering Cooler [ More info ] $294.99 $291.00 Available to Order: Shipping delay up to 10 days.
#34	816585	SCREW (1 required per assembly)
		10-816585 - Screw [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#35	72521	LOCKWASHER (1 required per assembly)
		13-72521 - LockWasher [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#36	8M0123050	FITTING (1 required per assembly) — Replaces: 29085, 8M0109010
		22-8M0123050 - Fitting [ More info ] $21.89 Available to Order: Shipping delay up to 10 days.
